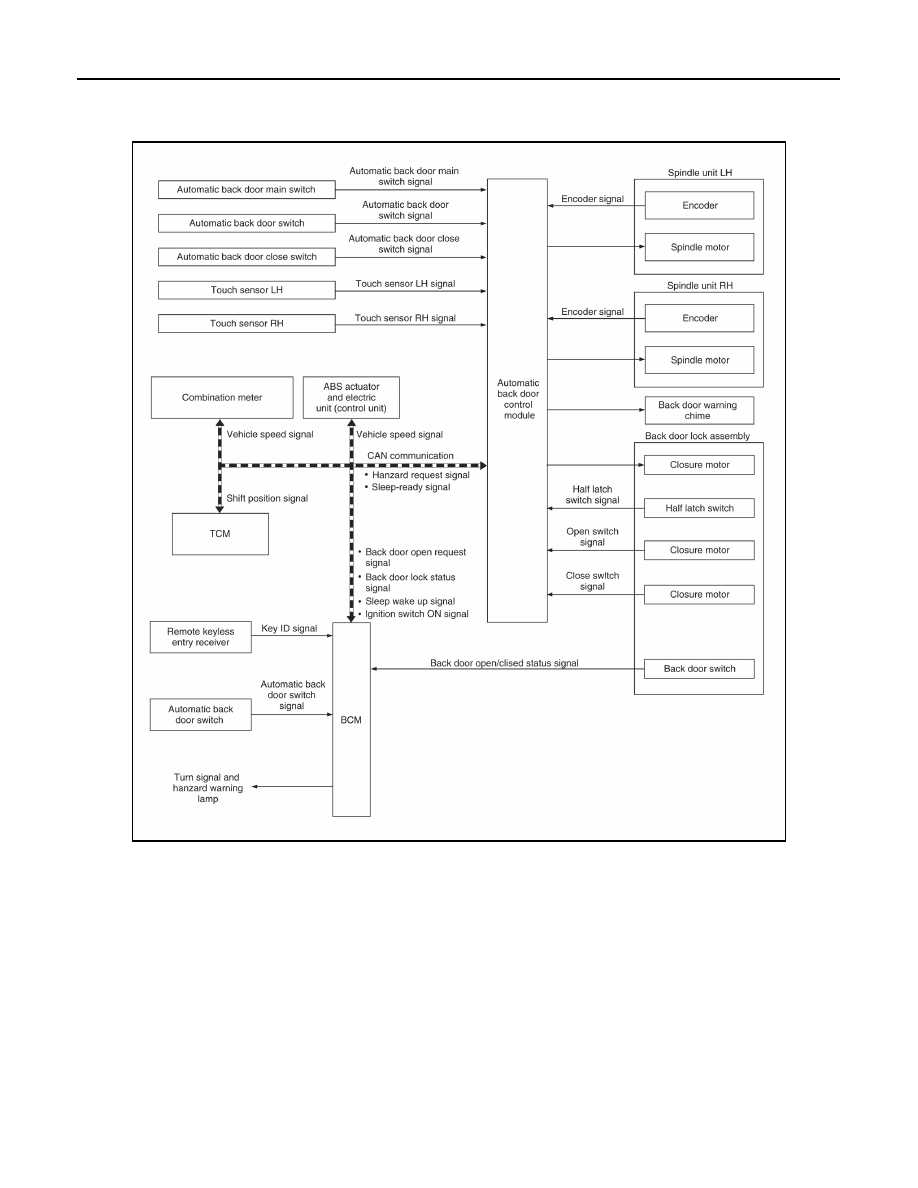

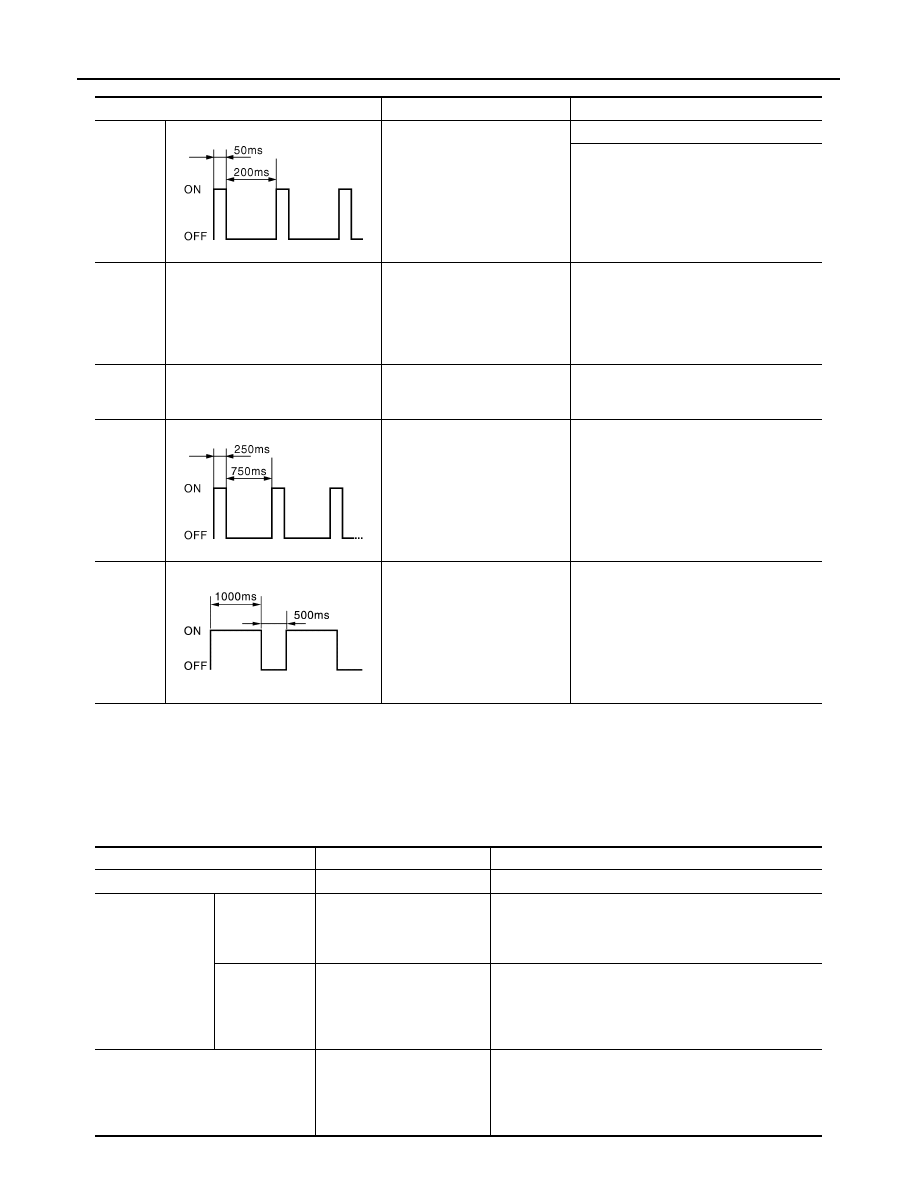

DLK-38 < SYSTEM DESCRIPTION > SYSTEM (AUTOMATIC BACK DOOR SYSTEM) SYSTEM (AUTOMATIC BACK DOOR SYSTEM) System Diagram INFOID:0000000009175624 System Description INFOID:0000000009175625 The automatic back door system performs the automatic open/close operation of the back door by operating the automatic back door switch, the automatic back door close switch, the back door opener switch, and Intel- ligent Key. AUTOMATIC BACK DOOR OPEN/CLOSE FUNCTION • In the case of the back door fully closed, operate the automatic back door switch, Intelligent Key or back door opener switch with the back door unlock. The back door closure motor releases the latch, then the spin- dle motor opens the back door to the fully open position. The closure motor reverses to the neutral position simultaneously. • In the case of the back door fully open, operate the automatic back door switch, Intelligent Key or automatic back door close switch. The spindle motor closes the back door to the half-latch position, then the back door closure motor to the full latch position. Then, the closure motor reverses to the neutral position. AUTOMATIC OPEN/CLOSE TEMPORARY STOP FUNCTION ALKIA2530GB |
