WHEEL SENSOR

BRC-119

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Installation is in the reverse order of removal.

CAUTION:

• When installing, make sure there is no foreign material such as iron chips on and in the hole in the

steering knuckle for the front wheel sensor. Make sure no foreign material has been caught in the

sensor rotor. Remove any foreign material and clean the mount.

• Do not twist front wheel sensor harness when installing front

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that front wheel sensor harness is not

twisted after installation.

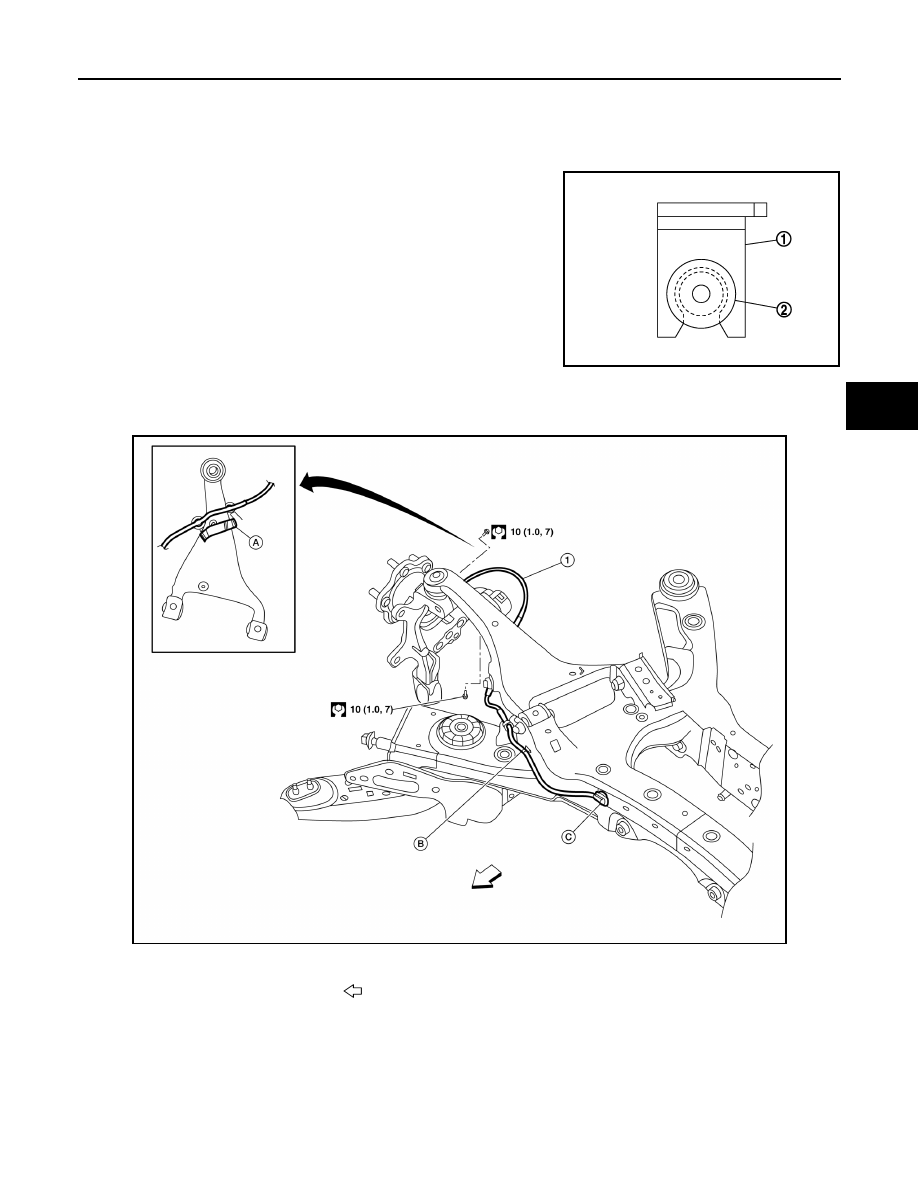

Exploded View - Rear Wheel Sensor

INFOID:0000000009177350

RH Side

JPFIC0209ZZ

ALFIA0263GB

1.

Rear wheel sensor

A. Rear wheel sensor bracket

B. Clip

C. Rear wheel sensor connector

Front

BRC-120

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

WHEEL SENSOR

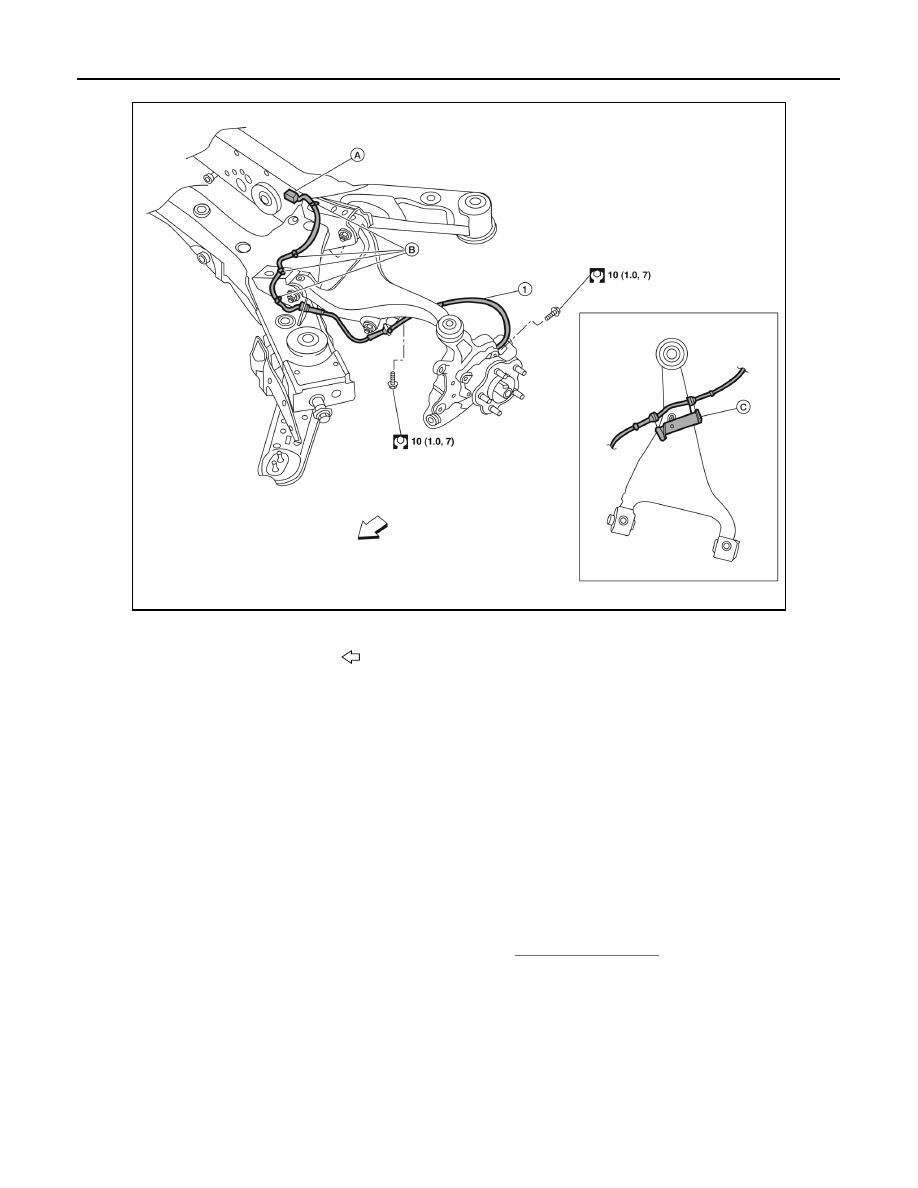

LH Side

Removal and Installation - Rear Wheel Sensor

INFOID:0000000009177351

CAUTION:

• Be careful not to damage rear wheel sensor edge and sensor rotor teeth.

• When removing the rear wheel hub and bearing, first remove the rear wheel sensor from the rear

knuckle. Failure to do so may result in damage to the rear wheel sensor wires making the rear wheel

sensor inoperative.

• Pull out the rear wheel sensor, being careful to turn it as little as possible. Do not pull on the rear

wheel sensor harness.

• Before installation, check if foreign objects such as iron fragments are adhered to the pick-up part of

the rear wheel sensor or to the inside of the hole in the rear knuckle for the rear wheel sensor, or if a

foreign object is caught in the surface of the mating surface for the sensor rotor. Fix as necessary

and then install the rear wheel sensor.

REMOVAL

1. Remove the rear wheel and tire using power tool. Refer to

WT-58, "Adjustment"

.

2. Remove the rear wheel sensor bolt.
3. Disconnect the harness connector from the rear wheel sensor.
4. Remove the rear wheel sensor from the sensor brackets.
5. Remove the rear wheel sensor from the rear knuckle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

ALFIA0264GB

1.

Rear wheel sensor

A. Rear wheel sensor connector

B. Clip

C. Rear wheel sensor bracket

Front

WHEEL SENSOR

BRC-121

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• When installing, make sure there is no foreign material such as iron chips on and in the hole in the

rear knuckle for the rear wheel sensor. Make sure no foreign material has been caught in the sensor

rotor. Remove any foreign material and clean the mount.

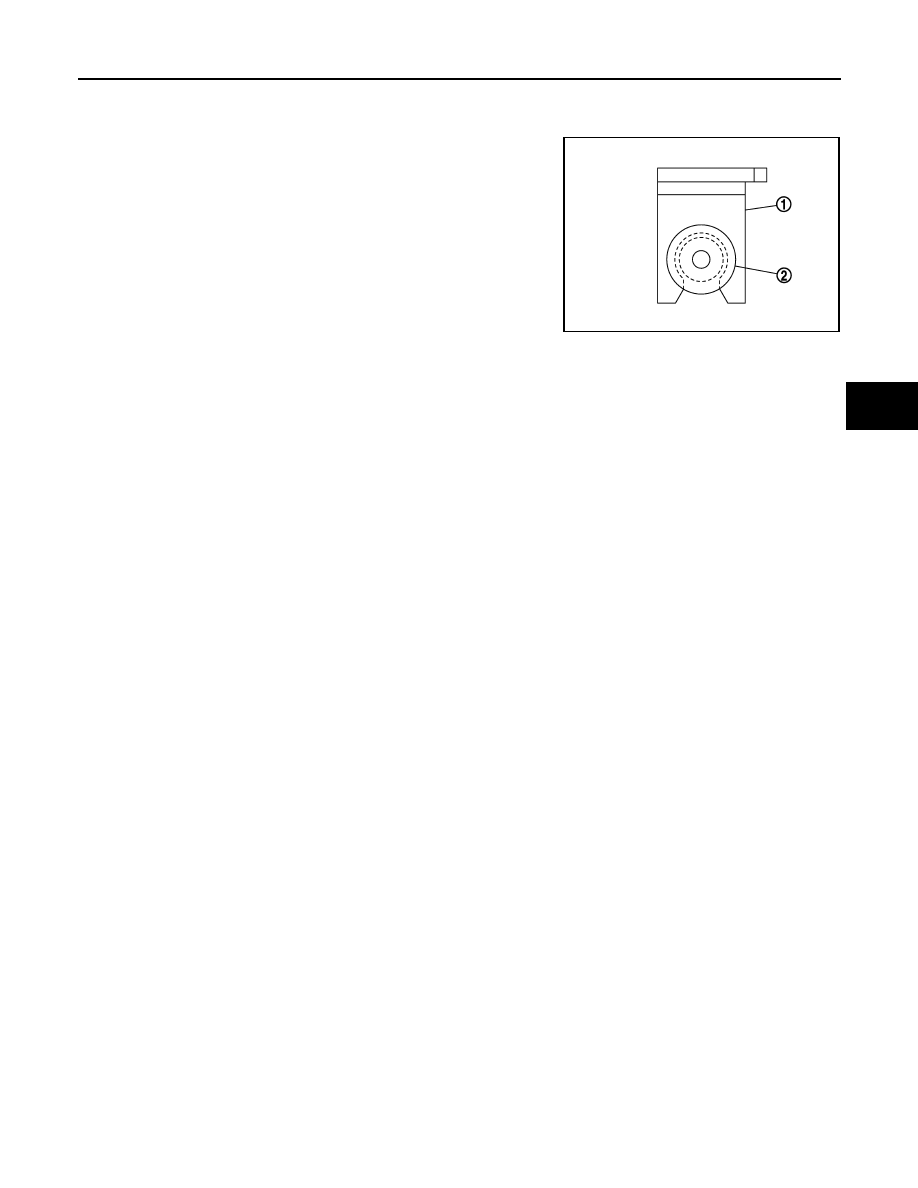

• Do not twist rear wheel sensor harness when installing rear

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that rear wheel sensor harness is not

twisted after installation.

JPFIC0209ZZ

BRC-122

< UNIT REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

SENSOR ROTOR

SENSOR ROTOR

Removal and Installation - Front Sensor Rotor

INFOID:0000000009177352

The front wheel sensor rotor is an integral part of the wheel hub and bearing and cannot be disassembled.

Refer to

FAX-8, "Removal and Installation"

.

Removal and Installation - Rear Sensor Rotor

INFOID:0000000009177353

The rear wheel sensor rotor is an integral part of the wheel hub and bearing and cannot be disassembled.

Refer to

RAX-7, "Removal and Installation"

.
