Nissan Pathfinder. Manual - part 240





SYSTEM

BRC-19

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

CONDITIONS FOR TURNING ON THE INDICATOR LAMP

VDC OFF indicator lamp

• Turns ON when VDC function and TCS function are switched to non-operational status (OFF) by VDC OFF

switch.

• Turns ON when ignition switch turns ON and turns OFF when the system is normal for bulb check purposes.

Fail-Safe

INFOID:0000000009177246

VDC FUNCTION, TCS FUNCTION and hill start assist FUNCTION

VDC warning lamp in combination meter turns ON when a malfunction occurs in system [ABS actuator and

electric unit (control unit)]. The control is suspended for VDC function, TCS function and hill start assist func-

tion. The vehicle status becomes the same as models without VDC function, TCS function and hill start assist

function. However, ABS function and EBD function are operated normally.

ABS FUNCTION

ABS warning lamp and VDC warning lamp in combination meter turn ON when a malfunction occurs in system

[ABS actuator and electric unit (control unit)]. The control is suspended for VDC function, TCS function, ABS

function and hill start assist function. The vehicle status becomes the same as models without VDC function,

TCS function, ABS function and hill start assist function. However, EBD function is operated normally.

NOTE:

ABS self-diagnosis sound may be heard the same as in the normal condition because self-diagnosis is per-

formed when ignition switch turns ON and when vehicle initially starts.

EBD FUNCTION

ABS warning lamp, brake warning lamp and VDC warning lamp in combination meter turn ON when a mal-

function occurs in system [ABS actuator and electric unit (control unit)]. The control is suspended for VDC

function, TCS function, ABS function, EBD function and hill start assist function. The vehicle status becomes

the same as models without VDC function, TCS function, ABS function, EBD function and hill start assist func-

tion.

ABS function is malfunctioning

ON

EBD function is malfunctioning

ON

VDC function is operating

Blinking

TCS function is operating

Blinking

Condition (status)

VDC warning lamp

Condition (status)

VDC OFF indicator lamp

Ignition switch OFF

OFF

For approx. 1 second after the ignition switch is turned ON

ON

Approx. 1 second after ignition switch is turned ON (when the sys-
tem is in normal operation)

OFF

When VDC OFF switch is ON (VDC function and TCS function are
OFF)

ON

BRC-20

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

SYSTEM

DTC

Malfunction detected condition

Fail-safe condition

C1101

When an open circuit is detected in rear RH wheel sensor circuit.

The following functions are sus-
pended:
• VDC function
• TCS function
• ABS function
• EBD function (only when both 2

rear wheels are malfunctioning)

• hill start assist function

C1102

When an open circuit is detected in rear LH wheel sensor circuit.

C1103

When an open circuit is detected in front RH wheel sensor circuit.

C1104

When an open circuit is detected in front LH wheel sensor circuit.

C1105

• When power supply voltage of rear RH wheel sensor is low.
• When distance between rear RH wheel sensor and rear RH wheel sensor rotor is

large.

• When installation of rear RH wheel sensor or rear RH wheel sensor rotor is not

normal.

C1106

• When power supply voltage of rear LH wheel sensor is low.
• When distance between rear LH wheel sensor and rear LH wheel sensor rotor is

large.

• When installation of rear LH wheel sensor or rear LH wheel sensor rotor is not nor-

mal.

C1107

• When power supply voltage of front RH wheel sensor is low.
• When distance between front RH wheel sensor and front RH wheel sensor rotor

is large.

• When installation of front RH wheel sensor or front RH wheel sensor rotor is not

normal.

C1108

• When power supply voltage of front LH wheel sensor is low.
• When distance between front LH wheel sensor and front LH wheel sensor rotor is

large.

• When installation of front LH wheel sensor or front LH wheel sensor rotor is not

normal.

C1109

• When ignition voltage is 10 V or less.
• When ignition voltage is 16 V or more.

The following functions are sus-
pended:
• VDC function
• TCS function
• ABS function
• EBD function
• hill start assist function

C1111

When a malfunction is detected in motor or motor relay.

C1115

When difference in wheel speed between any wheel and others is detected during
the vehicle is driven, because of installation of other tires than specified.

The following functions are sus-
pended:
• VDC function
• TCS function
• ABS function
• hill start assist function

C1116

When stop lamp switch signal is not input when brake pedal operates.

C1120

When a malfunction is detected in front LH ABS IN valve.

The following functions are sus-
pended:
• VDC function
• TCS function
• ABS function
• EBD function
• hill start assist function

C1121

When a malfunction is detected in front LH ABS OUT valve.

C1122

When a malfunction is detected in front RH ABS IN valve.

C1123

When a malfunction is detected in front RH ABS OUT valve.

C1124

When a malfunction is detected in rear LH ABS IN valve.

C1125

When a malfunction is detected in rear LH ABS OUT valve.

C1126

When a malfunction is detected in rear RH ABS IN valve.

C1127

When a malfunction is detected in rear RH ABS OUT valve.

C1130

When a malfunction is detected in ECM system.

The following functions are sus-
pended:
• VDC function
• TCS function
• hill start assist function

SYSTEM

BRC-21

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

VDC FUNCTION

C1140

When a malfunction is detected in actuator relay.

The following functions are sus-
pended:
• VDC function
• TCS function
• ABS function
• EBD function
• hill start assist function

C1142

When a malfunction is detected in pressure sensor.

The following functions are sus-
pended:
• VDC function
• TCS function
• hill start assist function

C1143

When a malfunction is detected in steering angle sensor.

C1144

When neutral position adjustment of steering angle sensor is not complete.

C1145

When a malfunction is detected in yaw rate signal.

C1146

When a malfunction is detected in side/decel G signal.

The following functions are sus-
pended:
• VDC function
• TCS function
• ABS function
• hill start assist function

C1155

When brake fluid level low signal is detected.

C1160

When calibration of yaw rate/side/decel G sensor is not complete.

The following functions are sus-
pended:
• VDC function
• TCS function
• hill start assist function

C1164

When a malfunction is detected in cut valve 1.

The following functions are sus-
pended:
• VDC function
• TCS function
• ABS function
• EBD function
• hill start assist function

C1165

When a malfunction is detected in cut valve 2.

C1170

When the information in ABS actuator and electric unit (control unit) is not the same.

C1197

When a malfunction is detected in vacuum sensor.

Electrical vacuum assistance of
brake booster is suspended.

C1198

• When an open circuit is detected in vacuum sensor circuit.
• When a short circuit is detected in vacuum sensor circuit.
• When a malfunction is detected in vacuum sensor noise.

C1199

When brake booster vacuum is approx. 0 kPa (0 mmHg) during engine running.

C119A

When a malfunction is detected in supply power voltage of vacuum sensor.

Electrical vacuum assistance of
brake booster is suspended.

U1000

When CAN communication signal is not continuously received for 2 seconds or
more.

The following functions are sus-
pended:
• VDC function
• TCS function
• hill start assist function

DTC

Malfunction detected condition

Fail-safe condition

BRC-22

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

SYSTEM

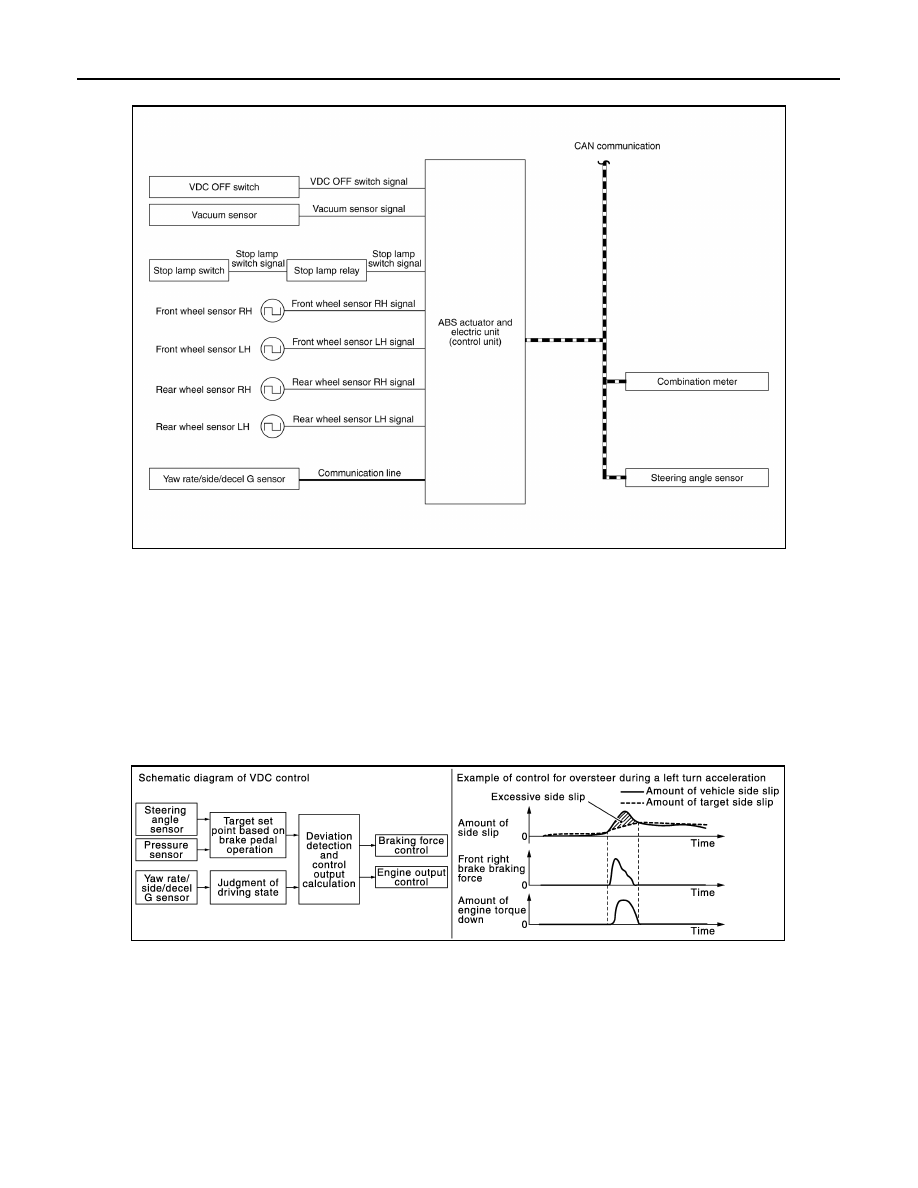

VDC FUNCTION : System Diagram

INFOID:0000000009177247

VDC FUNCTION : System Description

INFOID:0000000009177248

• Side slip or tail slip may occur while driving on a slippery road or during intended urgent evasive driving.

VDC function detects side slip status using each sensor when side slip or tail slip is about to occur and

improves vehicle stability by brake control and engine output control during driving.

• In addition to ABS function, EBD function and TCS function, target side slip amount is calculated according

to steering operation amount from steering angle sensor and brake operation amount from brake pressure

sensor. By comparing this information with vehicle side slip amount that is calculated from information from

yaw rate/side/decel G sensor and wheel sensor, vehicle driving conditions (conditions of understeer or over-

steer) are judged and vehicle stability is improved by brake force control on all 4 wheels and engine output

control.

• VDC function can be switched to non-operational status (OFF) by operating VDC OFF switch. In this case,

VDC OFF indicator lamp turns ON.

• Control unit portion automatically improves driving stability by performing brake force control as well as

engine output control by transmitting drive signal to actuator portion according to difference between target

side slip amount and vehicle side slip amount

• VDC warning lamp blinks while VDC function is in operation and indicates to the driver that the function is in

operation.

• VDC function has brake limited slip differential (BLSD) function. LH and RH driving wheel spin is always

monitored. If necessary, appropriate brake force is independently applied to LH or RH driving wheel so that

one-sided wheel spin is avoided and traction is maintained. Mainly starting ability is improved. [Brake limited

slip differential (BLSD) function operates while VDC function is in non-operational status (OFF) by VDC OFF

ALFIA0327GB

JPFIC0133GB
