FRONT DISC BRAKE

• Do not deform the pad retainers.

• Verify that the pad retainers are secured properly to the torque member.

2. Apply Rubber grease or equivalent to the mating faces between the brake pads and pad retainers. Refer

to

BR-35, "BRAKE PAD : Exploded View"

.

3. Apply Molykote AS-880N grease or equivalent to the mating faces between the brake pads, shims and

shim covers, and install them to the brake pad. Refer to

BR-35, "BRAKE PAD : Exploded View"

.

CAUTION:

When installing new brake pads, replace the shims and shim covers.

4. Install the brake pads to the torque member.
5. Using a suitable tool, press the pistons into the brake caliper.

CAUTION:

Do not damage the piston boot.

6. Install the brake caliper to the torque member.
7. Install the sliding pin bolts and tighten to specification. Refer to

BR-35, "BRAKE PAD : Exploded View"

.

8. Depress the brake pedal several times and verify that drag does not exist.
9. Install the front wheels and tires. Refer to

WT-58, "Adjustment"

.

10. Check brake fluid level and refill as necessary. Refer to

BR-8, "Inspection"

.

BRAKE CALIPER ASSEMBLY

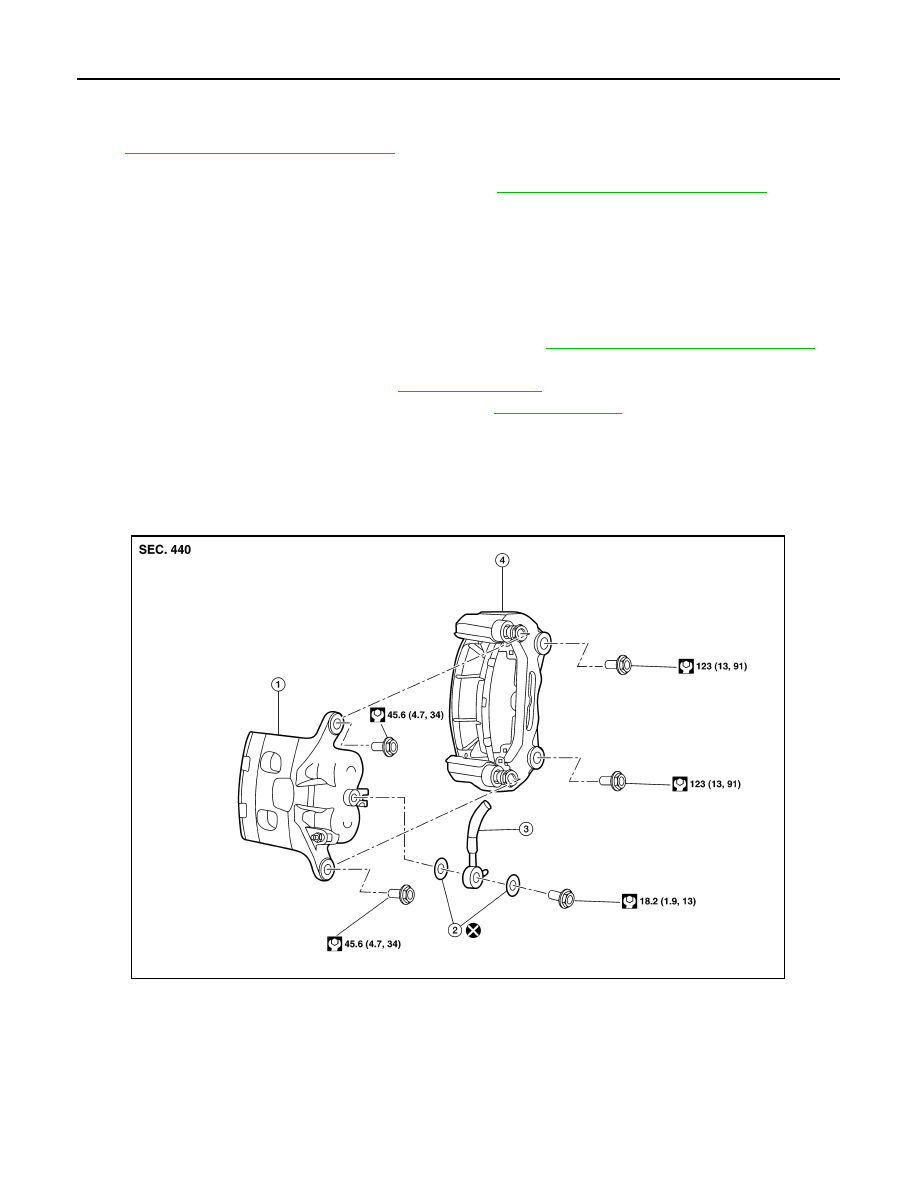

BRAKE CALIPER ASSEMBLY : Exploded View

INFOID:0000000009177199

BRAKE CALIPER ASSEMBLY : Removal and Installation

INFOID:0000000009177200

WARNING:

Clean dust on brake caliper and brake pad with a vacuum dust collector to minimize the hazard of air-

borne particles or other materials.

1.

Brake caliper

2.

Copper sealing washer

3.

Brake hose

4.

Torque member

AWFIA0956ZZ

FRONT DISC BRAKE

BR-37

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

CAUTION:

• Do not depress the brake pedal.

• Do not spill or splash brake fluid on painted areas; it may cause paint damage. If brake fluid is

splashed on painted areas, wash it away with water immediately.

• Do not bend, twist or pull the brake hoses and piping.

• Do not reuse drained brake fluid.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove front wheels and tires using power tool.
2. Secure the disc rotor using wheel nuts.
3. Remove union bolt, copper sealing washers, and disconnect brake hose from brake caliper. Discard the

copper sealing washers.

CAUTION:

Do not reuse copper sealing washers.

4. Remove sliding pin bolts and the brake caliper.

CAUTION:

Do not drop brake pads or caliper.

INSTALLATION

1. Position the brake caliper to torque member and install the sliding pin bolts. Tighten to specification.

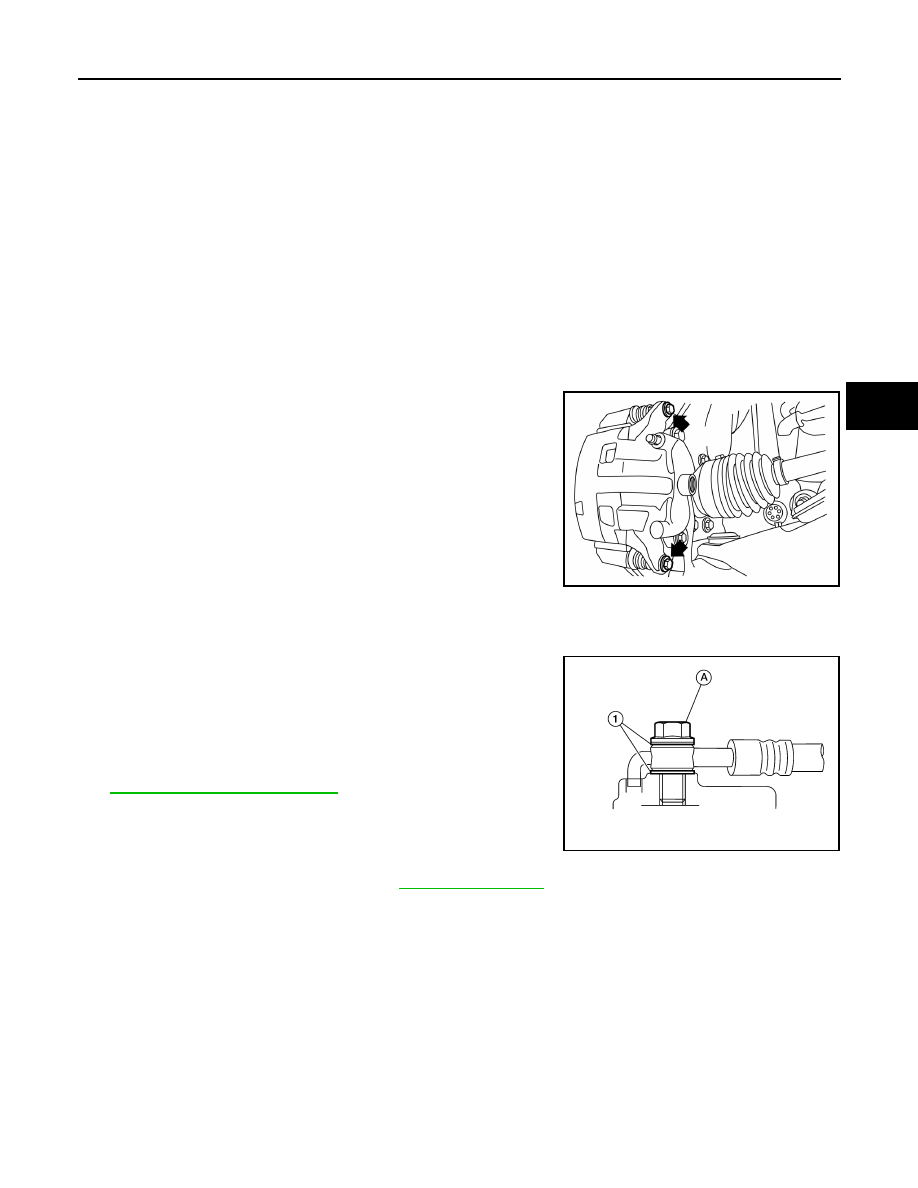

2. Assemble the union bolt (A) and the copper sealing washers (1)

to the brake hose and install it as an assembly to the brake cali-

per. Align the brake hose L-pin by aligning it with the brake cali-

per hole, and tighten the union bolt (A) to the specified torque.

CAUTION:

Do not reuse copper sealing washers.

3. Refill with new brake fluid and perform the air bleeding. Refer to

BR-16, "Bleeding Brake System"

.

CAUTION:

• Do not reuse drained brake fluid.

• Do not spill or splash brake fluid on the disc rotor.

4. Check the front disc brakes for drag.
5. Install the front wheels and tires. Refer to

WT-58, "Adjustment"

.

AWFIA0788ZZ

AWFIA0795ZZ

BR-38

< REMOVAL AND INSTALLATION >

REAR DISC BRAKE

REAR DISC BRAKE

BRAKE PAD

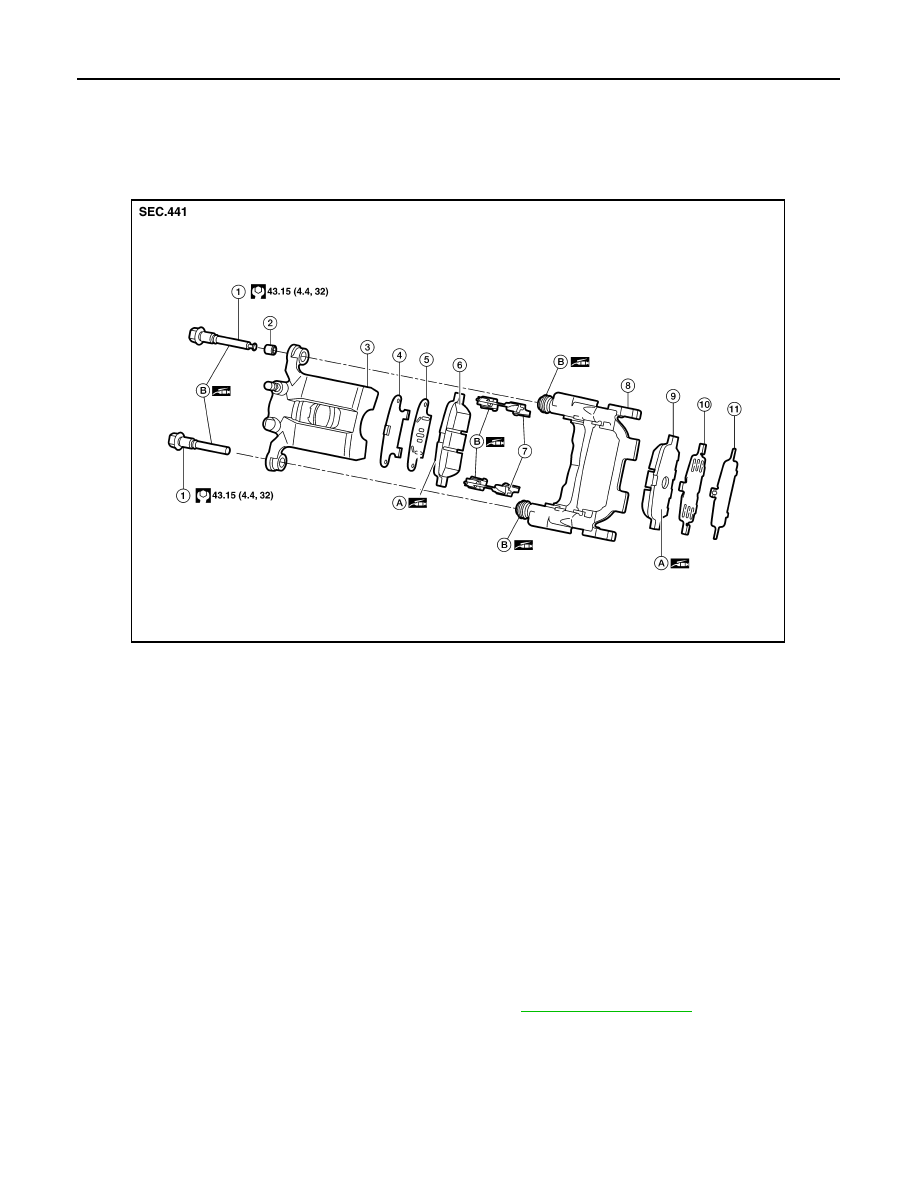

BRAKE PAD : Exploded View

INFOID:0000000009177201

BRAKE PAD : Removal and Installation

INFOID:0000000009177202

REMOVAL

WARNING:

Clean dust on brake caliper and brake pad with a vacuum dust collector to minimize the hazards of air-

borne particles or other material.

CAUTION:

• Do not depress the brake pedal while removing the brake pads because the pistons may pop out.

• It is not necessary to remove bolts on torque member and brake hose except for disassembly or

replacement of brake caliper. For brake pad removal, hang brake caliper with a wire so as not to

stretch brake hose.

• If brake fluid or grease adheres to the brake caliper or disc rotor, quickly wipe it off.
1. Partially drain brake fluid from the master cylinder. Refer to

BR-16, "Drain and Refill"

.

2. Remove the rear wheels and tires using power tool.
3. Loosen the lower sliding pin bolt and remove the upper sliding pin bolt.
4. Using the lower sliding pin bolt as a pivot, swing the brake caliper down from the torque member. Leaving

the brake hose attached, support the brake caliper with wire.

5. Remove the brake pads, shims, shim covers and pad retainers from the torque member.

CAUTION:

1.

Sliding pin bolt

2.

Sliding pin bushing

3.

Cylinder body

4.

Inner shim cover

5.

Inner shim

6.

Inner pad

7.

Pad retainer

8.

Torque member

9.

Outer pad

10. Outer shim

11. Outer shim cover

A.

Molykote AS-880N

B.

Rubber grease

AWFIA1034ZZ

REAR DISC BRAKE

BR-39

< REMOVAL AND INSTALLATION >

C

D

E

G

H

I

J

K

L

M

A

B

BR

N

O

P

• Do not reuse the pad retainers.

• Do not damage the piston boot.

• Do not drop the brake pads, shims, or the shim covers.

• Note the position of components during removal to aid with installation.

INSTALLATION

1. Install the new pad retainers to the torque member.

CAUTION:

• Do not reuse the pad retainers.

• Do not deform the pad retainers.

• Verify that the pad retainers are secured properly to the torque member.

2. Apply rubber grease or equivalent to the mating faces between the brake pads and pad retainers. Refer to

BR-35, "BRAKE PAD : Exploded View"

.

3. Apply Molykote AS-880N grease or equivalent to the mating faces between the brake pads, shims and

shim covers. Install components to the brake pad. Refer to

BR-35, "BRAKE PAD : Exploded View"

.

CAUTION:

When installing new brake pads, replace the shims and shim covers.

4. Install the brake pads to the torque member.
5. Using a suitable tool, press the pistons into the brake caliper.

CAUTION:

Do not damage the piston boot.

6. Using the lower sliding pin bolt as a pivot, swing the brake caliper up to the torque member.
7. Install the upper sliding pin bolts. Tighten all sliding pin bolts to specification. Refer to

BR-35, "BRAKE

PAD : Exploded View"

.

8. Depress the brake pedal several times and verify that drag does not exist.
9. Install the front wheels and tires. Refer to

WT-58, "Adjustment"

.

10. Check brake fluid level and refill as necessary. Refer to

BR-8, "Inspection"

.

BRAKE CALIPER ASSEMBLY
BRAKE CALIPER ASSEMBLY : Exploded View

INFOID:0000000009177203
