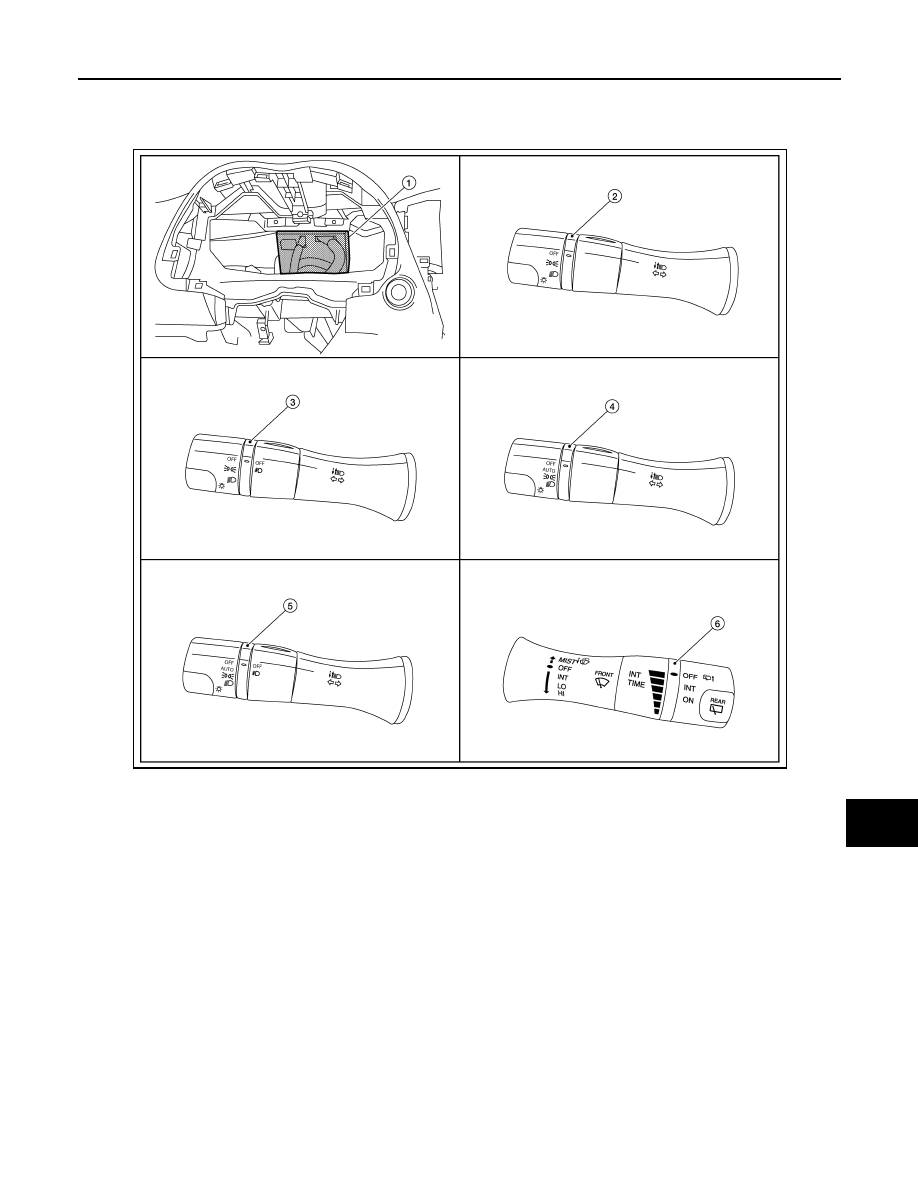

COMBINATION SWITCH READING SYSTEM : Component Parts Location

INFOID:0000000009174863

POWER CONSUMPTION CONTROL SYSTEM

1.

BCM (view with combination meter
removed)

2.

Combination switch (lighting and
turn signal) (without auto light and
front fog lamps)

3.

Combination switch (lighting and
turn signal) (without auto light, with
front fog lamps)

4.

Combination switch (lighting and
turn signal) (with auto light)

5.

Combination switch (lighting and
turn signal) (with auto light and front
fog lamps)

6.

Combination switch (wiper and
washer)

AWMIA1452ZZ

BCS-6

< SYSTEM DESCRIPTION >

[BCM]

COMPONENT PARTS

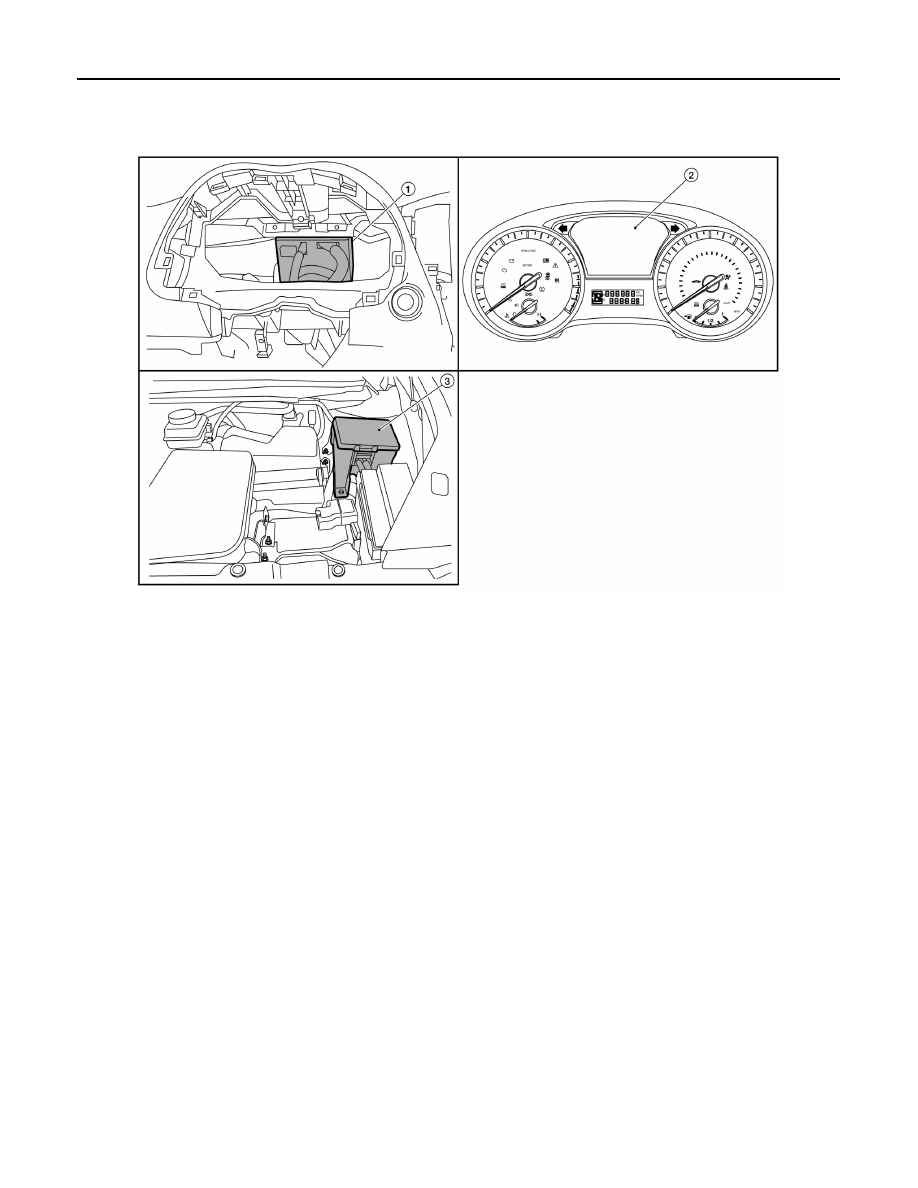

POWER CONSUMPTION CONTROL SYSTEM : Component Parts Location

INFOID:0000000009174864

1.

BCM (view with combination meter
removed)

2.

Combination meter

3.

IPDM E/R

ALMIA0552ZZ

BCS

SYSTEM

BCS-7

< SYSTEM DESCRIPTION >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM

BODY CONTROL SYSTEM
BODY CONTROL SYSTEM : System Description

INFOID:0000000009174865

OUTLINE

• BCM (body control module) controls various electrical components. It receives the information required from

CAN communication and the signals received from each switch and sensor.

• BCM has a combination switch reading function for reading the status of combination switches (light, turn

signal, wiper and washer) in addition to functions for controlling the operation of various electrical compo-

nents. It also has a signal transmission function for other systems, and a power consumption control function

that reduces the power consumption with the ignition switch OFF.

• BCM is equipped with a diagnosis function that operates with CONSULT and allows for various settings to

be changed.

BCM FUNCTION LIST

System

Refer to

Combination switch reading system

BCS-8, "COMBINATION SWITCH READING SYSTEM : System
Description"

Signal buffer system

BCS-12, "SIGNAL BUFFER SYSTEM : System Description"

Power consumption control system

BCS-12, "POWER CONSUMPTION CONTROL SYSTEM : Sys-
tem Description"

Auto light system

EXL-9, "AUTO LIGHT SYSTEM : System Description"

Headlamp system

EXL-8, "HEADLAMP SYSTEM : System Description"

Daytime light system

EXL-10, "DAYTIME RUNNING LIGHT SYSTEM : System De-
scription"

Front fog lamp system

EXL-11, "FRONT FOG LAMP SYSTEM : System Description"

Turn signal and hazard warning lamps system

EXL-10, "TURN SIGNAL AND HAZARD WARNING LAMP SYS-
TEM : System Description"

Parking, license plate and tail lamps system

EXL-11, "PARKING, LICENSE PLATE, SIDE MARKER AND TAIL
LAMP SYSTEM : System Description"

Trailer tow system

EXL-12, "TRAILER TOW SYSTEM : System Description"

Exterior lamp battery saver system

EXL-8, "HEADLAMP SYSTEM : System Description"

Interior room lamp battery saver system

INL-6, "INTERIOR ROOM LAMP CONTROL SYSTEM : System
Description"

Interior room lamp control system

INL-6, "INTERIOR ROOM LAMP CONTROL SYSTEM : System
Description"

Front wiper and washer system

WW-9, "FRONT WIPER AND WASHER SYSTEM : System De-
scription"

Rear wiper and washer system

WW-12, "REAR WIPER AND WASHER SYSTEM : System De-
scription"

Warning chime system

WCS-6, "WARNING CHIME SYSTEM : System Description"

Door lock system

DLK-20, "System Description"

Back door open system

DLK-38, "System Description"

Nissan vehicle immobilizer system (NVIS)

SEC-12, "NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS :
System Description"

Vehicle security system

DLK-34, "WARNING FUNCTION : System Description"

Panic alarm

Rear window defogger system

DEF-6, "System Description"

BCS-8

< SYSTEM DESCRIPTION >

[BCM]

SYSTEM

COMBINATION SWITCH READING SYSTEM
COMBINATION SWITCH READING SYSTEM : System Diagram

INFOID:0000000009174866

COMBINATION SWITCH READING SYSTEM : System Description

INFOID:0000000009174867

OUTLINE

• BCM reads the status of the combination switch (light, turn signal, wiper and washer) and recognizes the

status of each switch.

• BCM has a combination of 5 output terminals (OUTPUT 1 - 5) and 5 input terminals (INPUT 1 - 5) and reads

a maximum of 20 switch states.

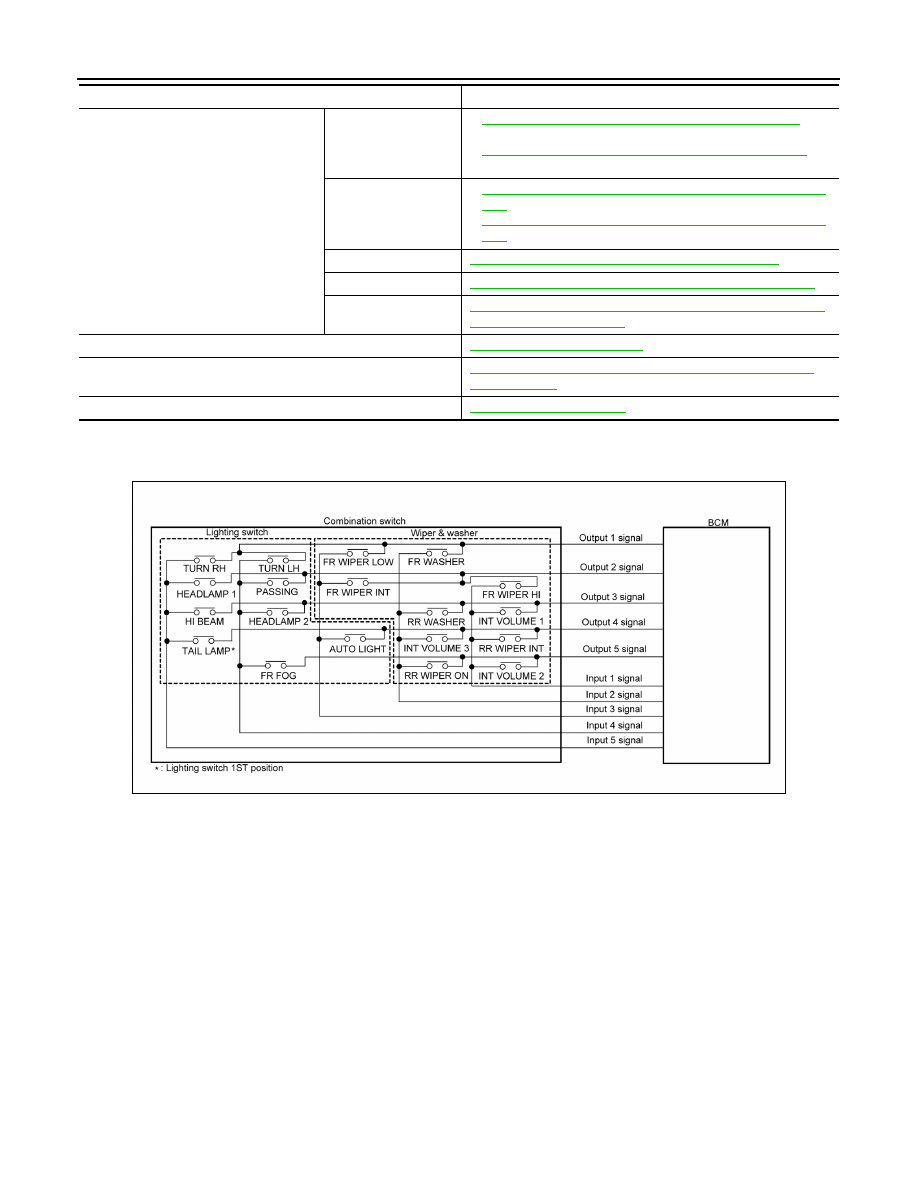

COMBINATION SWITCH MATRIX

Intelligent Key system/engine start sys-
tem

Door lock function

•

DLK-23, "DOOR LOCK FUNCTION : System Description"

 (door

request switch)

•

DLK-23, "DOOR LOCK FUNCTION : System Description"

 (In-

telligent Key)

Back door open func-
tion

•

DLK-26, "BACK DOOR OPEN FUNCTION : System Descrip-
tion"

 (back door request switch)

•

DLK-26, "BACK DOOR OPEN FUNCTION : System Descrip-
tion"

 (Intelligent Key)

Warning function

DLK-34, "WARNING FUNCTION : System Description"

Key reminder function

DLK-30, "KEY REMINDER FUNCTION : System Description"

Engine start function

SEC-9, "INTELLIGENT KEY SYSTEM/ENGINE START FUNC-
TION : System Description"

Power window system

PWC-10, "System Description"

RAP (retained accessory power) system

BCS-27, "RETAINED PWR : CONSULT Function (BCM - RE-
TAINED PWR)"

TPMS (tire pressure monitoring system)

WT-9, "System Description"

System

Refer to

AWMIA1329GB
