MULTI AV SYSTEM

AV-599

< SYMPTOM DIAGNOSIS >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

RELATED TO REAR DISPLAY (HEADREST-MOUNTED)

Perform diagnosis of the Power supply and ground circuit before starting diagnosis by symptom. Refer to

AV-

554, "HEADREST DISPLAY UNIT : Diagnosis Procedure"

.

Rear view and rear of birds-eye
view is not displayed.

Rear camera malfunction.

Rear camera power supply and ground circuits mal-
function.
Refer to

AV-554, "AROUND VIEW MONITOR CON-

TROL UNIT : Diagnosis Procedure"

.

Rear camera image signal circuit mal-
function.

Rear camera image signal circuit malfunction be-
tween rear camera and around view monitor control
unit.
Refer to

AV-590, "Diagnosis Procedure"

.

Front-side and driver side of birds-
eye view is not displayed.

Side camera LH malfunction.

Side camera LH power supply and ground circuits
malfunction.
Refer to

AV-554, "AROUND VIEW MONITOR CON-

TROL UNIT : Diagnosis Procedure"

.

Side camera LH image signal circuit
malfunction.

Side camera LH image signal circuit malfunction be-
tween side camera LH and around view monitor con-
trol unit.
Refer to

AV-593, "Diagnosis Procedure"

.

Front-side and passenger side of
birds-eye view is not displayed.

Side camera RH malfunction.

Side camera RH power supply and ground circuits
malfunction.
Refer to

AV-534, "Diagnosis Procedure"

.

Side camera RH image signal circuit
malfunction.

Side camera RH image signal circuit malfunction be-
tween side camera RH and around view monitor con-
trol unit.
Refer to

AV-594, "Diagnosis Procedure"

.

Selector lever is in a position other
than R (reverse) and front, rear,
front-side and Birds-Eye views are
displayed even as vehicle speed in-
creases.

Vehicle speed signal malfunction.

Vehicle speed signal malfunction between ABS actu-
ator and electric unit (control unit) and around view
monitor control unit.
Refer to

LAN-20, "Trouble Diagnosis Flow Chart"

.

Symptoms

Check items

Probable malfunction location

Symptom

Check item

Possible malfunction location/Action to take

Video is not shown on the
headrest display unit
screen.

Use the touch button in
front display to switch vid-
eo images on the head-
rest display unit.

Video is shown.

Operate with the remote to see if videos can be
switched.

Video is not shown.

Replace headrest display unit.
Refer to

AV-616, "Removal and Installation"

.

Headrest display unit in-
operative with the re-
mote.

All keys inoperative.

• Check battery polarity.
• Replace battery.

• Check with a remote from the same vehicle fam-

ily.

• Check infrared* of the luminescent part (LED) of

the remote.

Some keys inoperative.

• Check with a remote

from the same vehicle
family.

• Check infrared* of the

luminescent part (LED)
of the remote.

The function corresponding to the remote operation
is not included (this is not a malfunction).

Headrest display unit
screen is black.

Play a DVD.

Video is not shown.

Switch from AUX mode to DVD mode and check
video.

Screen is dark.

Adjust screen for image quality (this is not a mal-
function).

Screen is black.

Replace headrest display unit.
Refer to

AV-616, "Removal and Installation"

.

AV-600

< SYMPTOM DIAGNOSIS >

[PREMIUM AUDIO WITH NAVIGATION]

MULTI AV SYSTEM

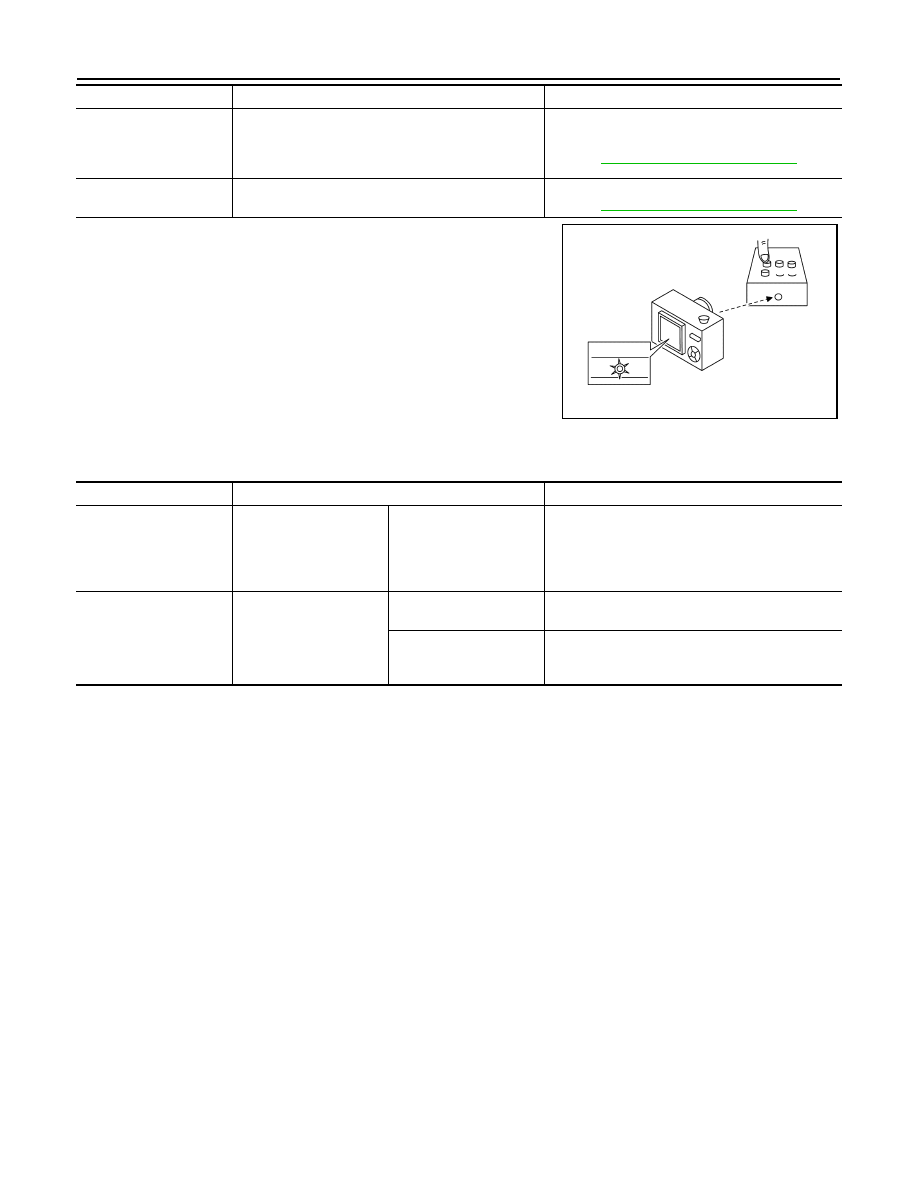

*: To check infrared, check light of the luminescent part (LED)

through the lens of digital camera when operating the remote.

RELATED TO HEADPHONES (HEADREST-MOUNTED)

Video shown on headrest
display unit screen be-
comes distorted or rolls
up/down

Adjust the color settings using the display screen
menu items.

If the symptom does not change, replace headrest
display unit.
Refer to

AV-616, "Removal and Installation"

.

Headrest display unit
screen is blue.

Replace headrest display unit.
Refer to

AV-616, "Removal and Installation"

.

Symptom

Check item

Possible malfunction location/Action to take

JSNIA4954ZZ

Symptom

Check item

Possible malfunction location/Action to take

Audio cannot be heard
from headphones.

• Turn ON the headrest

display unit.

• Switch the slide switch

on the left side of the
headphones.

Audio cannot be heard.

Check power supply of headphones.

Headphones cannot be
turned ON.

• Battery polarity.
• Battery poor contact.
• Battery replacement.

Power is ON (power indi-
cator lamp: ON).

This is not a malfunction.

Power cannot be turned
ON (power indicator
lamp: OFF).

Replace headphones.

AV

NORMAL OPERATING CONDITION

AV-601

< SYMPTOM DIAGNOSIS >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000009174792

RELATED TO NOISE

The majority of the audio concerns are the result of outside causes (bad CD, electromagnetic interference,

etc.).

The following noise results from variations in field strength, such as fading noise and multi-path noise, or

external noise from trains and other sources. It is not a malfunction.

• Fading noise: This noise occurs because of variations in the field strength in a narrow range due to moun-

tains or buildings blocking the signal.

• Multi-path noise: This noise results from the waves sent directly from the broadcast station arriving at the

antenna at a different time from the waves which reflect off mountains or buildings.

The vehicle itself can be a source of noise if noise prevention parts or electrical equipment is malfunctioning.

Check if noise is caused and/or changed by engine speed, ignition switch turned to each position, and opera-

tion of each piece of electrical equipment, and determine the cause.

NOTE:

The source of the noise can be found easily by listening to the noise while removing the fuses of electrical

components, one by one.

Type of Noise and Possible Cause

RELATED TO HANDS-FREE PHONE

Occurrence condition

Possible cause

Occurs only when engine is ON.

A continuous growling noise occurs. The speed of
the noise varies with changes in the engine speed.

• Ignition components

The occurrence of the noise is linked with the operation of the fuel pump.

• Fuel pump condenser

Noise only occurs when various
electrical components are oper-
ating.

A cracking or snapping sound occurs with the op-
eration of various switches.

• Relay malfunction, AV control unit malfunc-

tion

The noise occurs when various motors are operat-
ing.

• Motor case ground
• Motor

The noise occurs constantly, not just under certain conditions.

• Rear defogger coil malfunction
• Open circuit in printed heater
• Poor ground of antenna feeder line

A cracking or snapping sound occurs while the vehicle is being driven, especially when
it is vibrating excessively.

• Ground wire of body parts
• Ground due to improper part installation
• Wiring connections or a short circuit

Symptom

Cause and Counter measure

Does not recognize cellular phone connection (No connection is
displayed on the display at the guide).

Some Bluetooth

®

 enabled cellular phones may not be recognized

by the in-vehicle phone module.
Refer to “RELATED TO HANDS-FREE PHONE (Check Compati-
bility)” in

AV-595, "Symptom Table"

.

Cannot use hands-free phone.

Customer will not be able to use a hands-free phone under the fol-
lowing conditions:
• The vehicle is outside of the telephone service area.
• The vehicle is in an area where it is difficult to receive radio

waves; such as in a tunnel, in an underground parking garage,
near a tall building or in a mountainous area.

• The cellular phone is locked to prevent it from being dialed.
NOTE:
While a cellular phone is connected through the Bluetooth

®

 wire-

less connection, the battery power of the cellular phone may dis-
charge quicker than usual. The Bluetooth

®

 Hands-Free Phone

System cannot charge cellular phones.

AV-602

< SYMPTOM DIAGNOSIS >

[PREMIUM AUDIO WITH NAVIGATION]

NORMAL OPERATING CONDITION

RELATED TO NAVIGATION

Basic Operation

Vehicle Mark

The other party’s voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person’s voice during a
call.

Poor sound quality.

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Symptom

Cause and Counter measure

Symptom

Cause

Remedy

No image is shown.

Display brightness adjustment is set fully to DARK
side.

Adjust the display brightness.

No guide sound is heard.
Audio guide volume is too low or
too high.

Volume control is set to OFF, MIN or MAX.

Adjust the audio guide volume.

Audio guidance is not available while the vehicle is
driving on a dark pink route.

System is not malfunctioning.

Screen is too dark.
Motion of the image is too slow.

Temperature inside the vehicle is low.

Wait until the temperature inside the vehicle
reaches the proper temperature.

Small black or bright spots appear
on the screen.

Symptom peculiar to a liquid crystal display (dis-
play unit).

System is not malfunction.

Symptom

Cause

Remedy

Map screen and BIRDVIEW™
Name of the place vary with the
screen.

Some thinning of the character data is done to pre-
vent the display becoming to complex. In some
cases and in some locations, the display contents
may differ.
The same place name, street name, etc. may not
be displayed every time on account of the data
processing.

System is not malfunctioning.

Vehicle mark is not positioned cor-
rectly.

Vehicle is transferred by ferry or by towing after its
ignition switch is turned to OFF.

Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.

Screen will not switch to nighttime
mode after the lighting switch is
turned ON.

The daytime screen is selected by the “SWITCH
SCREENS” when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screen may
be inhibited by the automatic illumination adjust-
ment function.

Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.

Map screen will not scroll in accor-
dance with the vehicle travel.

Current location is not displayed.

Press “MAP” button to display the current lo-
cation.

Vehicle mark will not be shown.

Current location is not displayed.

Press “MAP” button to display the current lo-
cation.

Accuracy indicator (GPS satellite
mark) on the map screen stays
gray.

GPS satellite signal is intercepted because the ve-
hicle is in or behind a building.

Move the vehicle out to an open space.

GPS satellite signal cannot be received because
an obstacle is placed on top of the instrument pan-
el.

Do not place anything on top of the meter dis-
play (instrument panel).

GPS satellites are not visible from current location. Wait until GPS satellites are visible by mov-

ing the vehicle.
