AV

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

AV-415

< SYSTEM DESCRIPTION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

CONSULT Function

INFOID:0000000009174664

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

 ON (for at least 5 seconds)  OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the around view monitor control unit.

ECU IDENTIFICATION

The part number of around view monitor control unit is displayed.

SELF DIAGNOSTIC RESULT

Refer to

AV-441, "DTC Index"

.

DATA MONITOR

WORK SUPPORT

Direct Diagnostic Mode

Description

Ecu Identification

The around view monitor control unit part number is displayed.

Self Diagnostic Result

The around view monitor control unit self diagnostic results are displayed.

Data Monitor

The around view monitor control unit input/output data is displayed in real time.

Work support

The settings for around view monitor control unit functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing around view monitor control unit.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Monitor Item

Description

ST ANGLE SENSOR SIGNAL [On/Off]

Indicates condition of steering angle sensor signal.

REVERSE SIGNAL [On/Off]

Indicates selector lever position.

VEHICLE SPEED SIGNAL [mph/km/h]

Indicates condition of vehicle speed signal.

CAMERA SWITCH SIGNAL [On/Off]

Indicates condition of camera switch signal.

CAMERA OFF SIGNAL [On/Off]

Indicates condition of camera OFF signal.

ST ANGLE SENSOR TYPE [Absolute]

Indicates steering angle sensor type.

STEERING GEAR RATIO TYPE [Type O]

Indicates steering gear ratio type.

STEERING POSITION [LHD/RHD]

Indicates LH or RH drive type.

REAR CAMERA IMAGE SIGNAL [OK/NG] Indicates condition of camera image signal.

F-CAMERA IMAGE SIGNAL [OK/NG]

Indicates condition of camera image signal.

DR-SIDE CAMERA IMAGE SIG [OK/NG]

Indicates condition of camera image signal.

PA-SIDE CAMERA IMAGE SIG [OK/NG]

Indicates condition of camera image signal.

Support Item

Setting

Description

NON-VIEWABLE AREA REMINDER

ON/OFF setting of non-viewable area can be performed.

INITIALIZE CAMERA IMAGE
CALIBRATION

Factory image calibration restoration can be performed.

STEERING ANGLE SENSOR
ADJUSTMENT

Steering angle sensor neutral position adjustment can be performed.

AV-416

< SYSTEM DESCRIPTION >

[PREMIUM AUDIO WITH NAVIGATION]

DIAGNOSIS SYSTEM (AROUND VIEW MONITOR CONTROL UNIT)

CONFIGURATION

Refer to

AV-492, "CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT) : Description"

.

CAN DIAG SUPPORT MNTR

Refer to

LAN-17, "CAN Diagnostic Support Monitor"

.

CALIBRATING CAMERA IMAGE
(FRONT CAMERA)

STATUS

Performs calibration of front camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(PASS-SIDE CAMERA)

STATUS

Performs calibration of passenger side camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(DR-SIDE CAMERA)

STATUS

Performs calibration of driver side camera.

AXIS X

AXIS Y

ROTATE

CALIBRATING CAMERA IMAGE
(REAR CAMERA)

STATUS

Performs calibration of rear camera.

AXIS X

AXIS Y

ROTATE

FINE TUNING OF BIRDS-EYE VIEW

STATUS

Confirmation and adjustment of difference between each camera can be per-
formed.

SELECT

AXIS X

AXIS Y

ROTATE

Support Item

Setting

Description

AV

AV CONTROL UNIT

AV-417

< ECU DIAGNOSIS INFORMATION >

[PREMIUM AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS INFORMATION

AV CONTROL UNIT

Reference Value

INFOID:0000000009174667

VALUES ON THE DIAGNOSIS TOOL

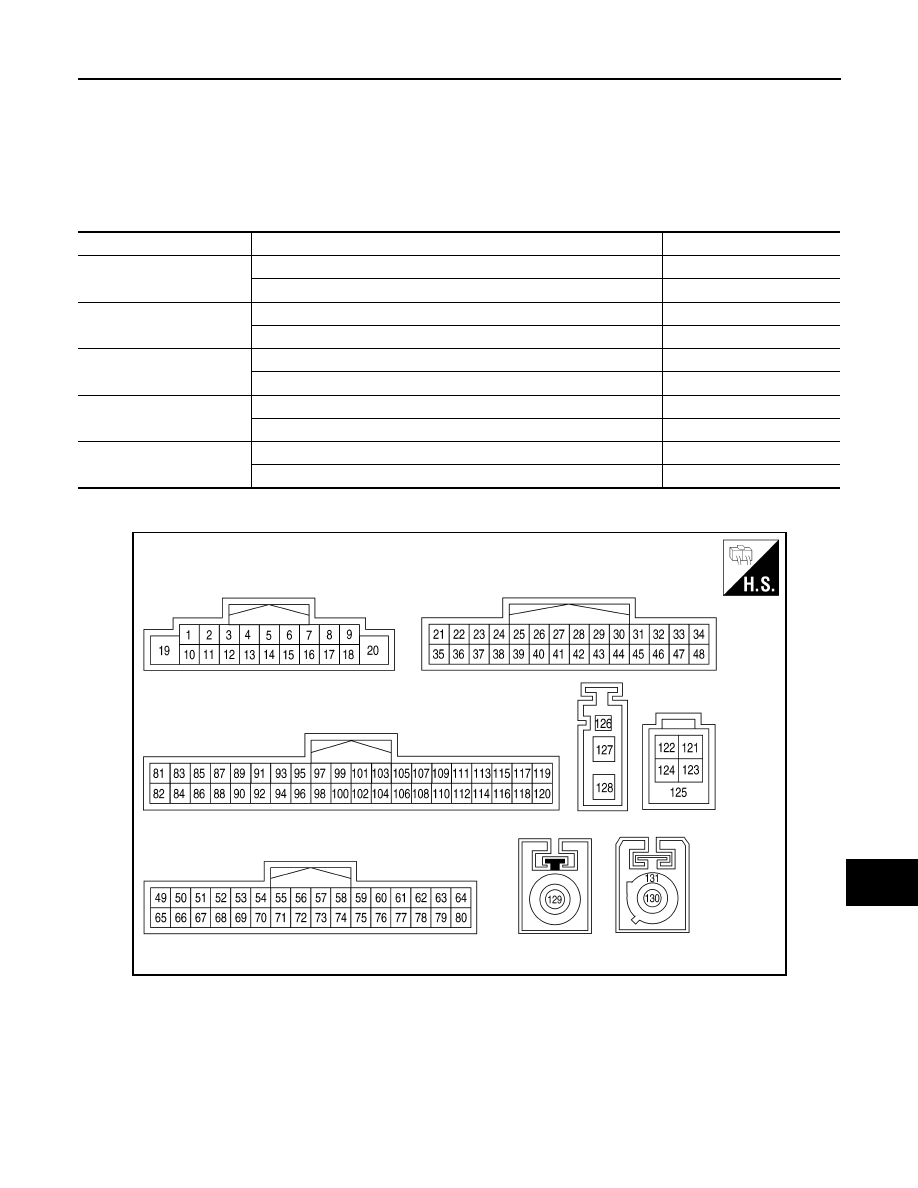

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

VHCL SPD SIG

Vehicle speed = 0 km/h (0 MPH).

Off

Vehicle speed > 0 km/h (0 MPH).

On

PKB SIG

Parking brake released.

Off

Parking brake applied.

On

ILLUM SIG

Illumination signal is not received.

Off

Illumination signal is received.

On

IGN SIG

Ignition switch OFF or ACC.

Off

Ignition switch ON.

On

REV SIG

Selector lever in any position other than R.

Off

Selector lever in R position.

On

AWNIA3157ZZ

AV-418

< ECU DIAGNOSIS INFORMATION >

[PREMIUM AUDIO WITH NAVIGATION]

AV CONTROL UNIT

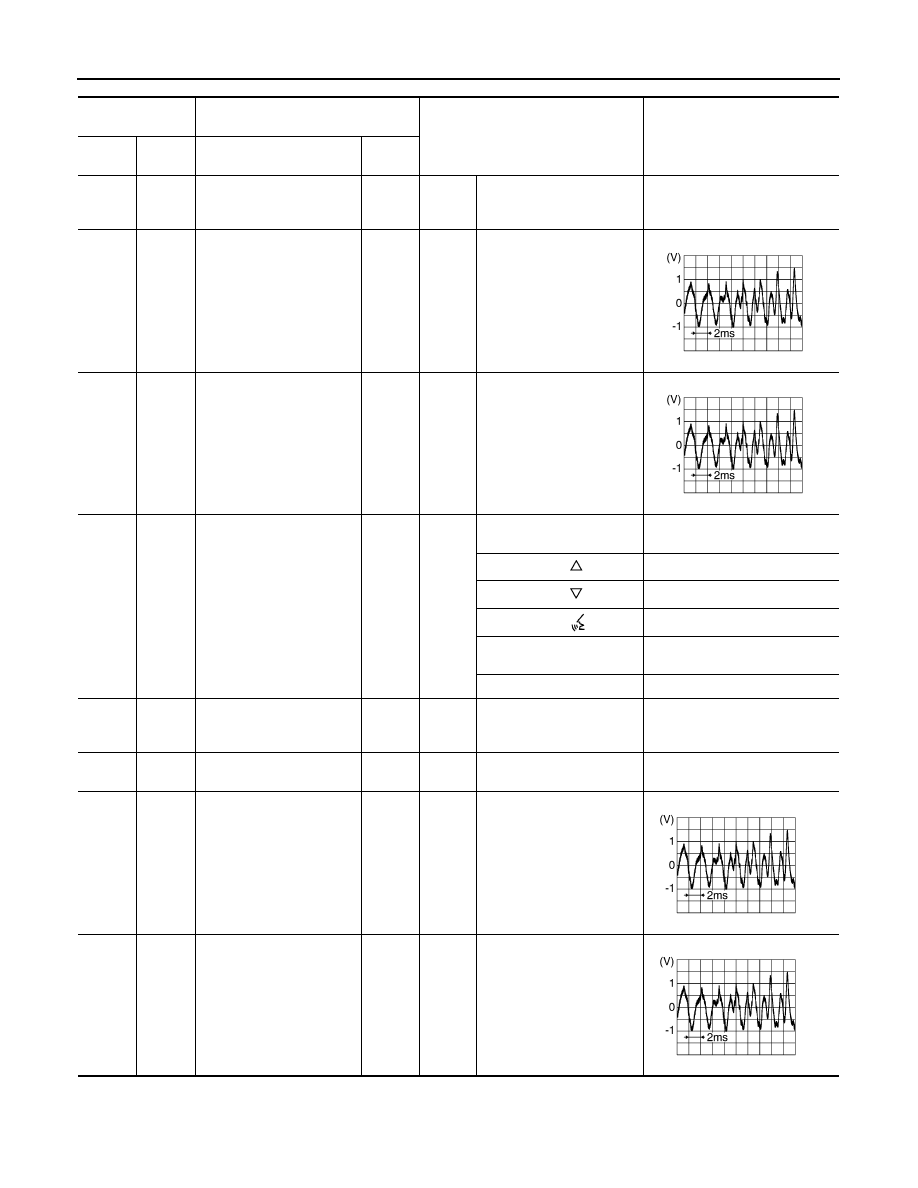

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

1

(SB)

Ground

Bose Amp. ON signal

Output

Ignition

switch

ACC

Battery voltage

2

(B)

3

(W)

Sound signal front LH

Output

Ignition

switch

ON

Sound output

4

(B)

5

(W)

Sound signal rear LH

Output

Ignition

switch

ON

Sound output

6

(G)

15

(B)

Steering switch signal A

Input

Ignition

switch

ON

Keep pressing SOURCE
switch.

 0 V

Keep pressing

 switch.

1.0 V

Keep pressing   switch.

2.0 V

Keep pressing

 switch

3.0 V

Keep pressing ENTER
switch.

4.0 V

Except for above.

5.0 V

7

(P)

Ground

ACC power supply

Input

Ignition

switch

ACC

Battery voltage

10

(GR)

Shield

11

(W)

12

(B)

Sound signal front RH

Output

Ignition

switch

ON

Sound output

13

(B)

14

(W)

Sound signal rear RH

Output

Ignition

switch

ON

Sound output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E
