AV

SATELLITE AUDIO SIGNAL CIRCUIT

AV-335

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

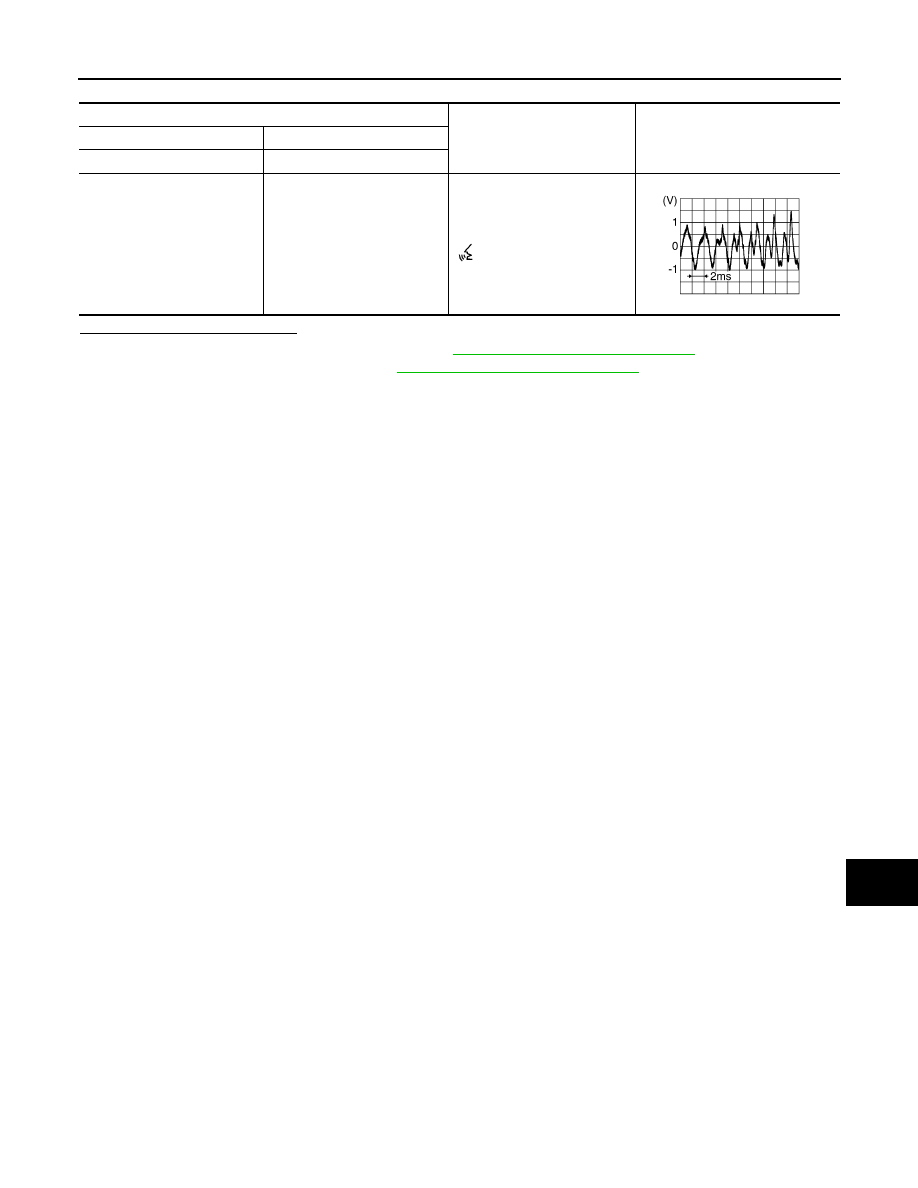

Is the inspection result normal?

YES

>> Replace satellite radio tuner. Refer to

AV-384, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-365, "Removal and Installation"

.

94

93

Satellite radio mode selected

96

95

SKIB3609E

AV-336

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO WITH BOSE]

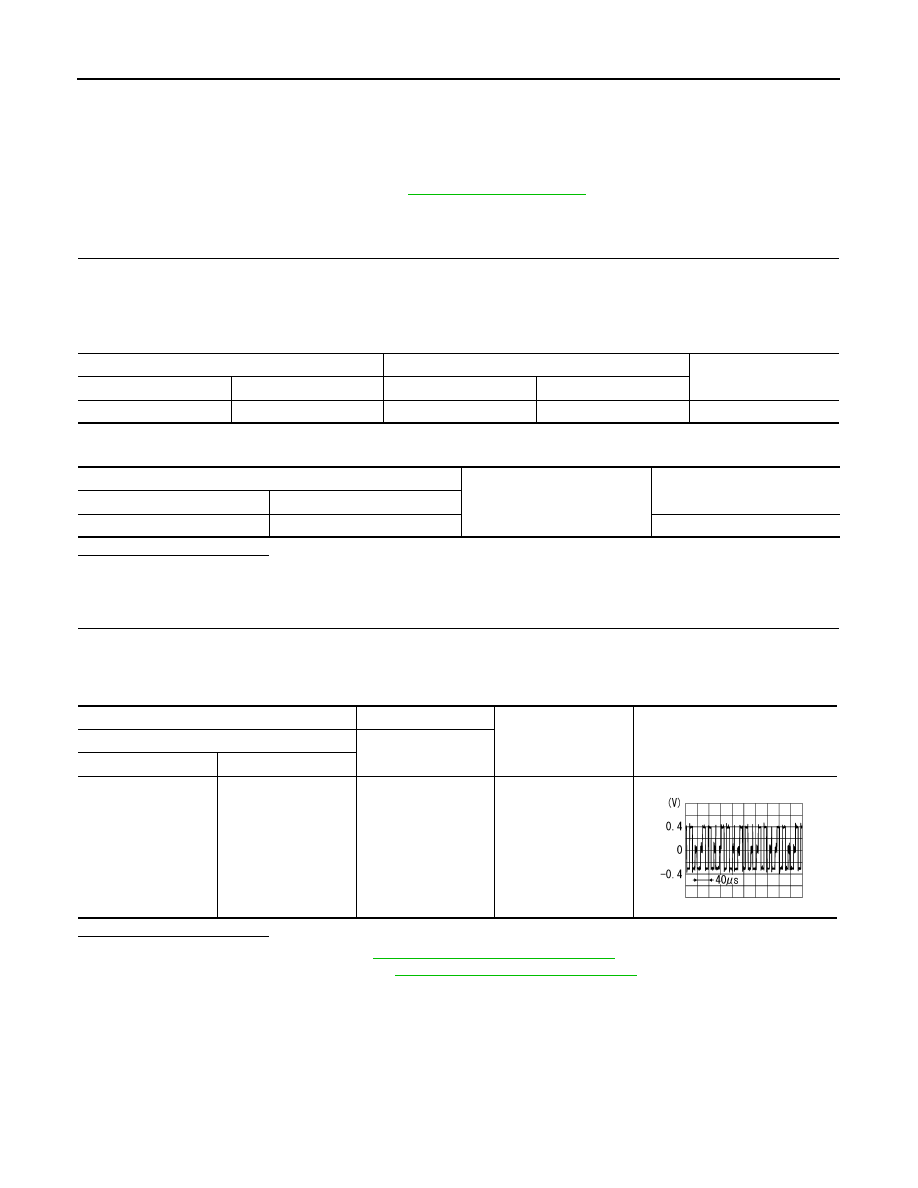

BLUETOOTH® VOICE SIGNAL CIRCUIT

BLUETOOTH® VOICE SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000009174601

Regarding Wiring Diagram information, refer to

AV-242, "Wiring Diagram"

.

1.

CHECK BLUETOOTH

®

 VOICE SIGNAL CIRCUIT CONTINUITY

1. Turn ignition switch OFF.
2. Disconnect AV control unit connector M42 and Bluetooth

®

 control unit connector B3.

3. Check continuity between AV control unit connector M42 terminal 5 and Bluetooth

®

 control unit connector

B3 terminal 9.

4. Check continuity between AV control unit connector M42 terminal 5 and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK BLUETOOTH

®

 VOICE SIGNAL GROUND CIRCUIT CONTINUITY

Check continuity between AV control unit connector M42 terminal 4 and Bluetooth

®

 control unit connector B3

terminal 10.

Is inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK BLUETOOTH

®

 VOICE SIGNAL

1. Connect AV control unit connector M42 and Bluetooth

®

 control unit connector B3.

2. Turn ignition switch to ACC.
3. Press

switch.

4. Check the signal between the terminals of AV control unit connector M42.

AV control unit

Bluetooth

®

 control unit

Continuity

Connector

Terminal

Connector

Terminal

M42

5

B3

9

Yes

AV control unit

Ground

Continuity

Connector

Terminal

M42

5

—

No

AV control unit

Bluetooth

®

 control unit

Continuity

Connector

Terminal

Connector

Terminal

M42

4

B3

10

Yes

AV

BLUETOOTH® VOICE SIGNAL CIRCUIT

AV-337

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is the inspection result normal?

YES

>> Replace Bluetooth

®

 control unit. Refer to

AV-382, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-365, "Removal and Installation"

.

AV control unit connector M42

Condition

Reference value

(+)

(

−)

Terminal

Terminal

5

4

During voice guide output with

 switch pressed.

SKIB3609E

AV-338

< DTC/CIRCUIT DIAGNOSIS >

[MID AUDIO WITH BOSE]

RGB (R: RED) SIGNAL CIRCUIT

RGB (R: RED) SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000009174602

Regarding Wiring Diagram information, refer to

AV-242, "Wiring Diagram"

.

1.

CHECK RGB (R: RED) SIGNAL CIRCUIT CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect AV control unit connector M45 and display unit connector.

3. Check continuity between AV control unit connector M45 terminal 57 and display unit connector M93 ter-

minal 17.

4. Check continuity between AV control unit connector M45 terminal 57 and ground.

Is inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connectors.

2.

CHECK RGB (R: RED) SIGNAL

1. Connect AV control unit connector M45 and display unit connector.

2. Turn ignition switch ON.

3. Check signal between display unit connector M93 terminal 17 and ground.

Is inspection result normal?

YES

>> Replace display unit. Refer to

AV-369, "Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-365, "Removal and Installation"

.

AV control unit

Display unit

Continuity

Connector

Terminal

Connector

Terminal

M45

57

M93

17

Yes

AV control unit

Ground

Continuity

Connector

Terminal

M45

57

No

Display unit

Ground

Condition

Reference value

(+)

(

−)

Connector

Terminal

M93

17

—

“Color Spectrum Bar”

on DISPLAY DIAG-

NOSIS screen.

SKIB2238J
