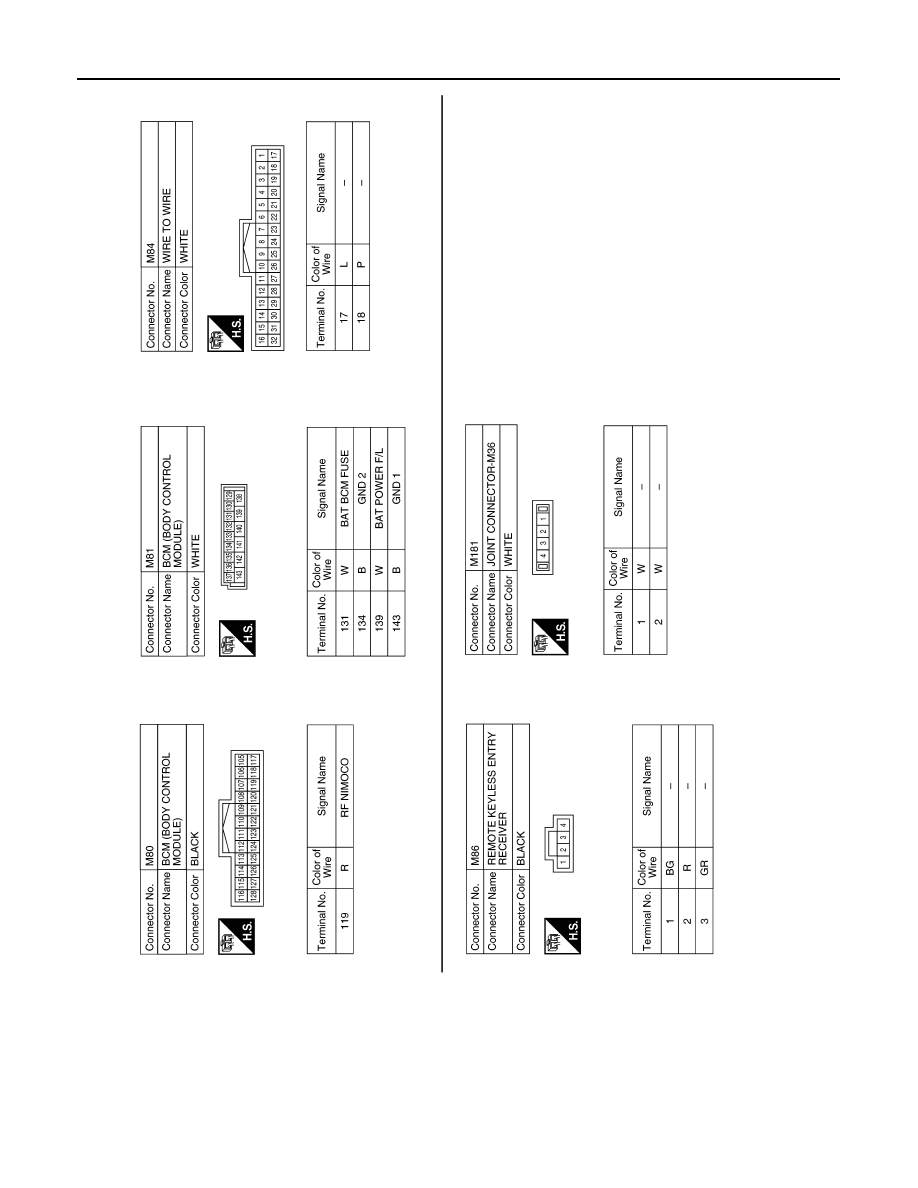

WT-26

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

ABEIA0219GB

TIRE PRESSURE MONITORING SYSTEM

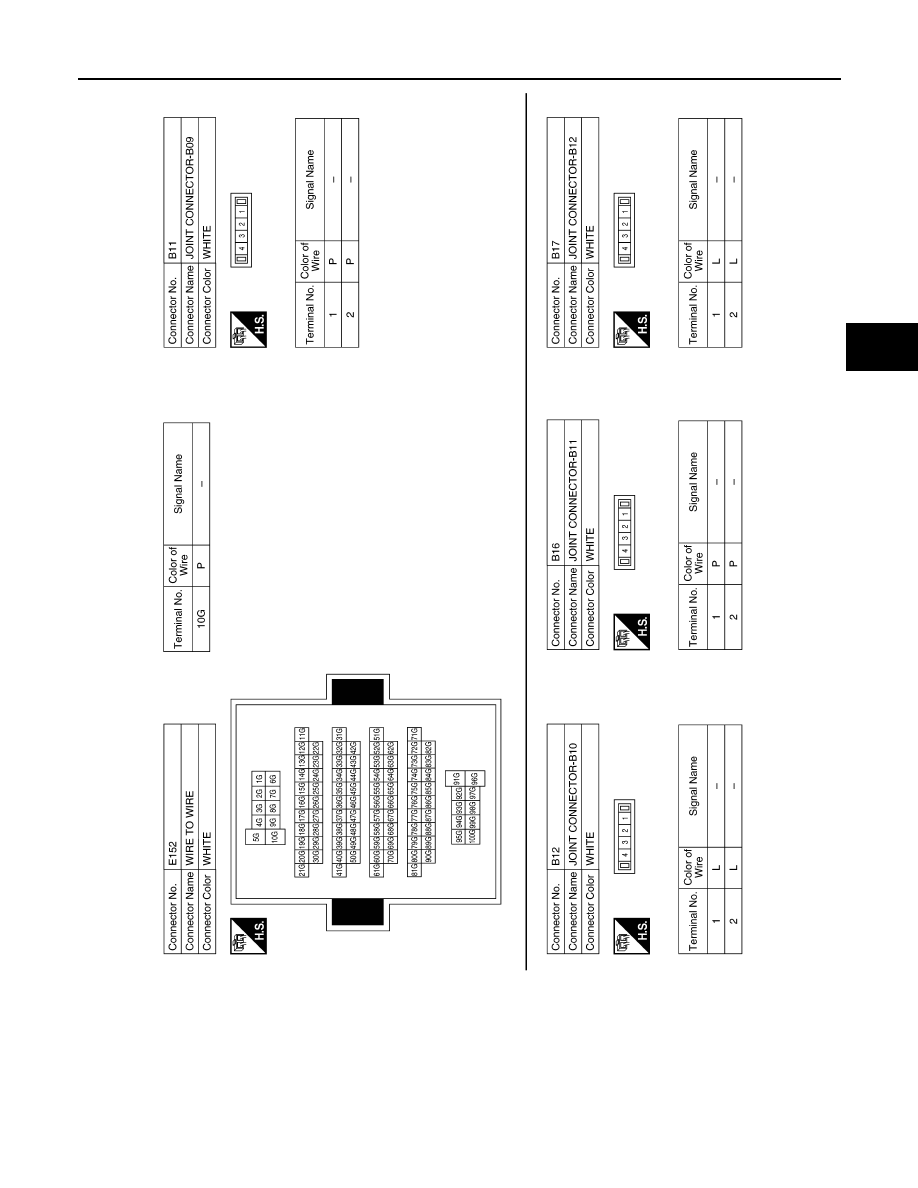

WT-27

< WIRING DIAGRAM >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

ABEIA0220GB

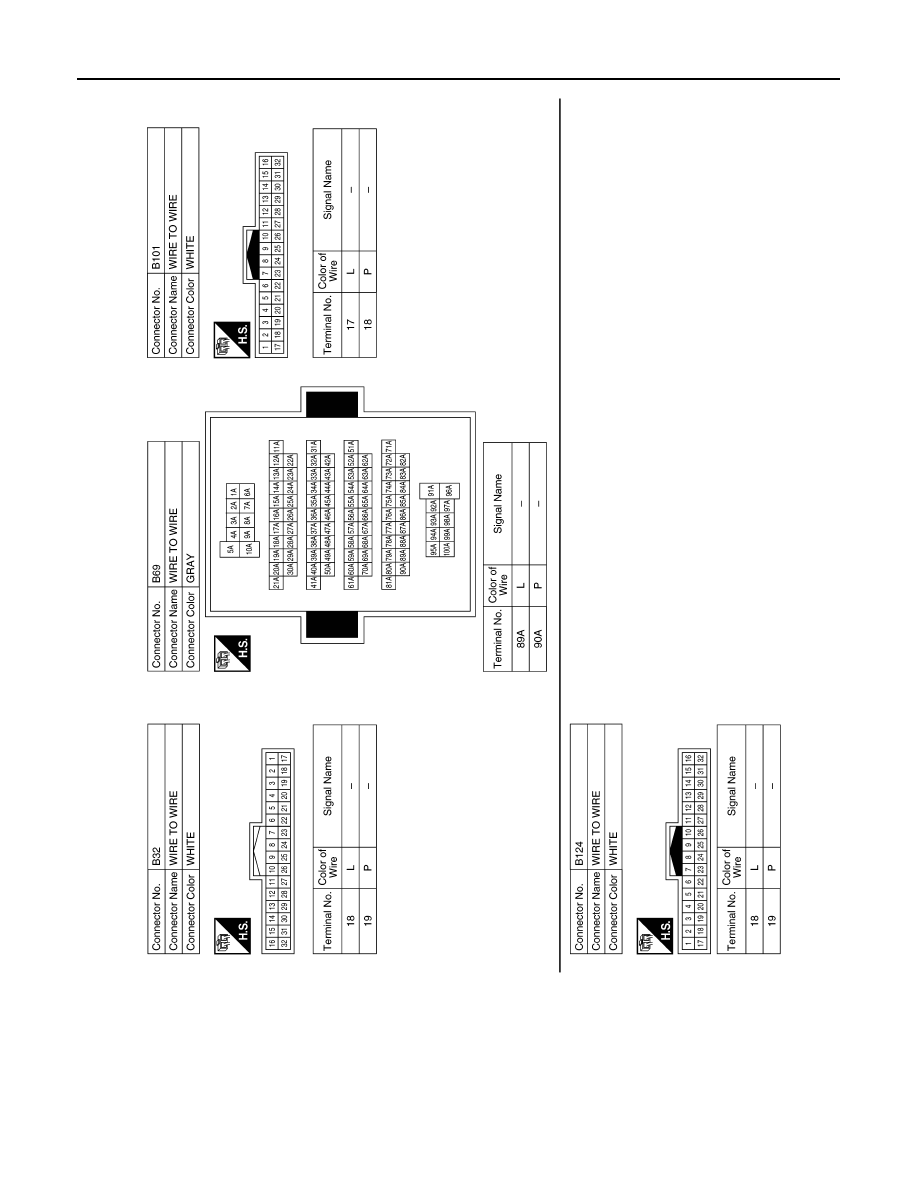

WT-28

< WIRING DIAGRAM >

TIRE PRESSURE MONITORING SYSTEM

ABEIA0221GB

DIAGNOSIS AND REPAIR WORK FLOW

WT-29

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009177432

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

1.

COLLECT INFORMATION FROM CUSTOMER

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

TIRE PRESSURE INSPECTION

Check the tire pressure for all wheels. Refer to

WT-65, "Tire Air Pressure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace tire(s) or wheel(s).

3.

CHECK LOW TIRE PRESSURE WARNING LAMP

Check that the low tire pressure warning lamp illuminates for approximately 1 second after the ignition switch

is turned ON, then turns OFF.
Does the low tire pressure warning lamp turn OFF?

YES

>> Inspection End.

NO

>> GO TO 4.

4.

PERFORM SELF DIAGNOSTIC RESULT

Perform self diagnostic result. Refer to

WT-11, "AIR PRESSURE MONITOR : CONSULT Function (BCM-AIR

PRESSURE MONITOR)"

.

Are any DTCs displayed?

YES

>> Refer to

BCS-52, "DTC Index"

. If two or more DTCs are displayed, refer to

BCS-50,

"DTC Inspection Priority Chart"

.

NO

>> GO TO 5.

5.

PERFORM DIAGNOSIS APPLICABLE TO THE SYMPTOM

Perform diagnosis applicable to the symptom. Refer to

WT-52, "Symptom Table"

.

>> GO TO 6.

6.

FINAL CHECK

Perform self diagnostic result again, and check that the malfunction is repaired. After checking, erase the self

diagnosis memory. Refer to

WT-11, "AIR PRESSURE MONITOR : CONSULT Function (BCM-AIR PRES-

SURE MONITOR)"

.

>> Inspection End.
