warn that the system is in the manual steering state. (This is not a system malfunction.) In addition, the fol-

lowing DTC remains to distinguish from malfunction.

DTC Inspection Priority Chart

INFOID:0000000009177133

When multiple DTCs are detected simultaneously, check one by one depending on the following priority list.

DTC Index

INFOID:0000000009177134

NOTE:

If two or more DTCs are detected, refer to

STC-13, "DTC Inspection Priority Chart"

.

DTC

vehicle condition

C160A

The system temporarily enters the manual steering state. (This is not a hydraulic pump electric
power steering system malfunction.)

Priority

Priority order item (DTC)

1

• C1601 BATTERY VOLT
• C1606 EPS MOTOR
• C1608 CONTROL UNIT

2

• C1607 EEPROM

3

• C160A HEAT PROTECTION

4

• C1143 ST ANG SEN CIRCUIT
• U1000 CAN COMM CIRCUIT

DTC

Items (CONSULT screen terms)

Reference

C1143

ST ANG SEN CIRCUIT

STC-21, "DTC Logic"

C1601

BATTERY VOLT

STC-22, "DTC Logic"

C1606

EPS MOTOR

STC-25, "DTC Logic"

C1607

EEPROM

STC-26, "DTC Logic"

C1608

CONTROL UNIT

STC-26, "DTC Logic"

C160A

HEAT PROTECTION

STC-27, "DTC Logic"

U1000

CAN COMM CIRCUIT

STC-28, "DTC Logic"

STC-14

< WIRING DIAGRAM >

HYDRAULIC PUMP ELECTRIC POWER STEERING SYSTEM

WIRING DIAGRAM

HYDRAULIC PUMP ELECTRIC POWER STEERING SYSTEM

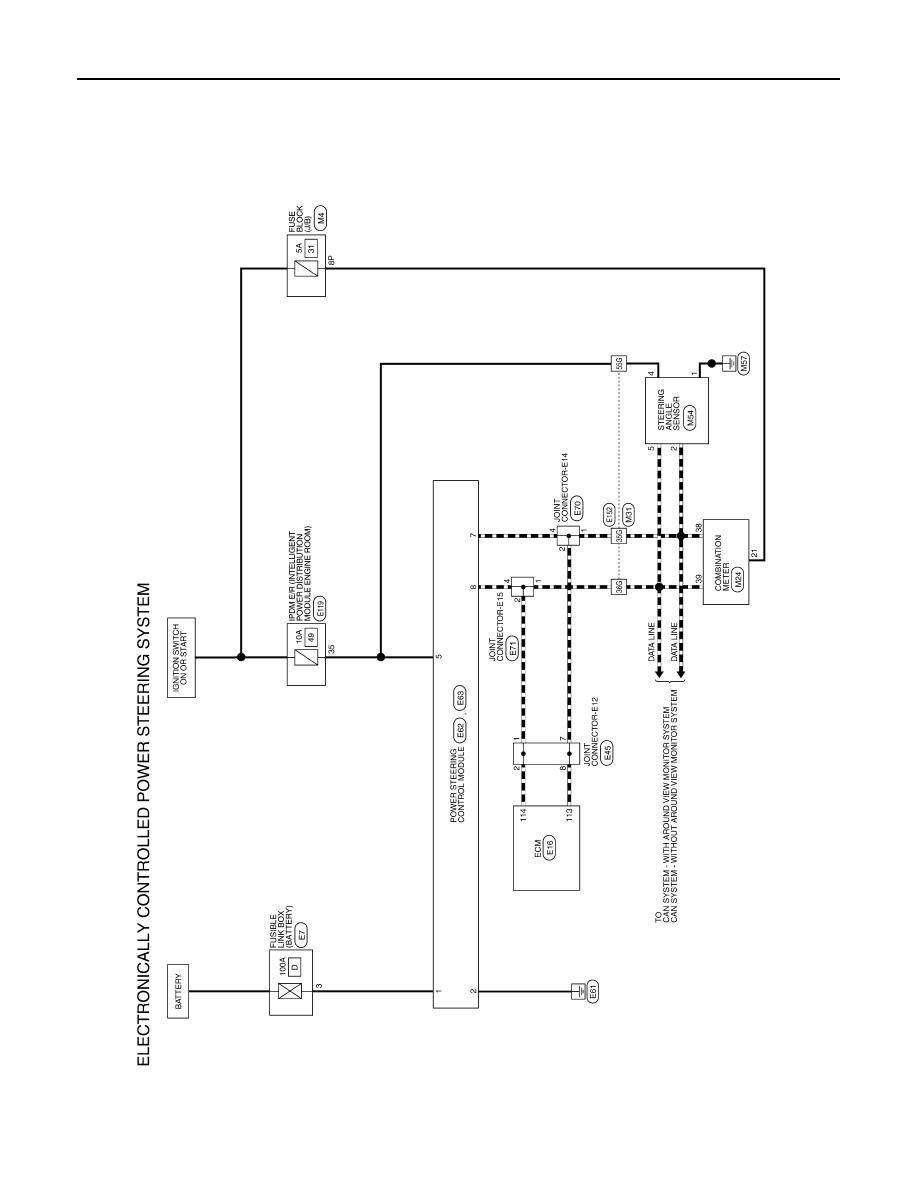

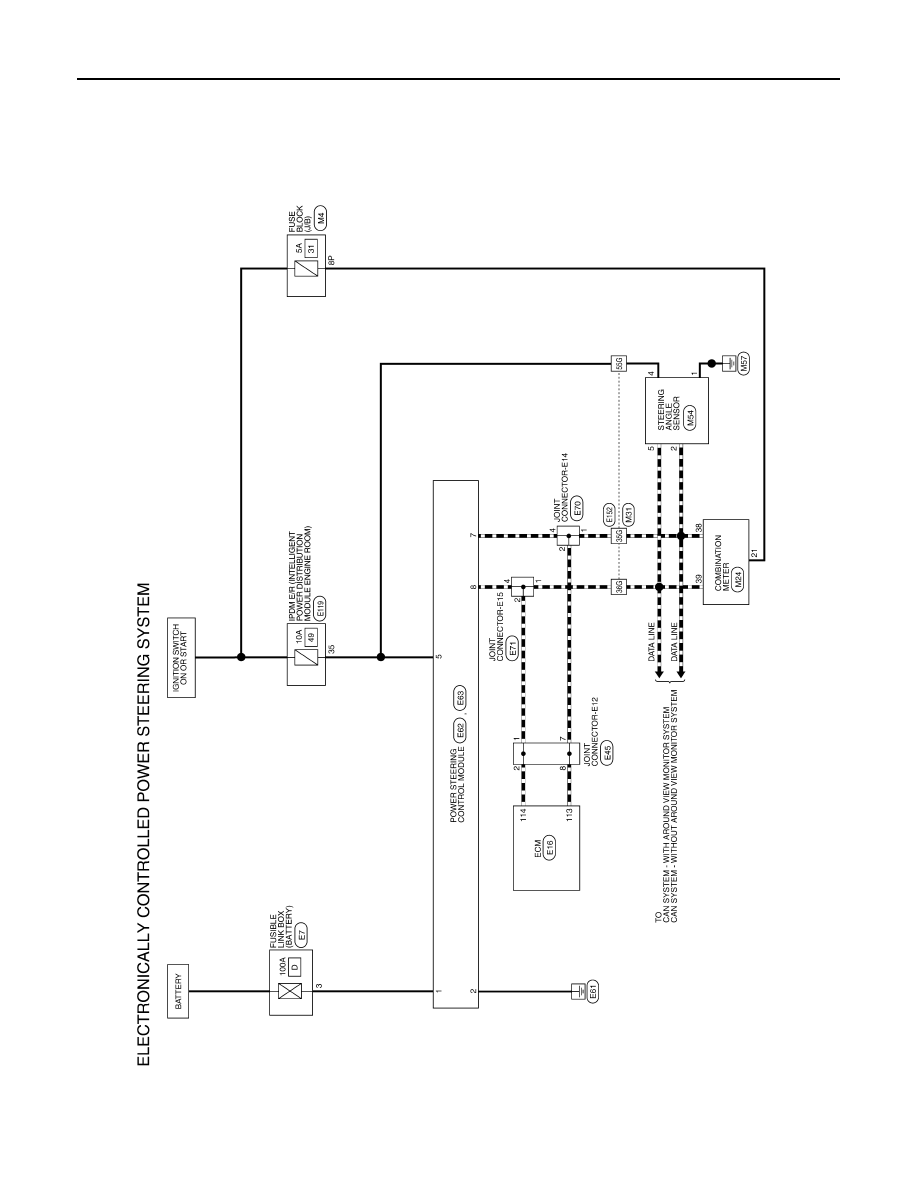

Wiring Diagram

INFOID:0000000009177135

ABGWA0056GB

HYDRAULIC PUMP ELECTRIC POWER STEERING SYSTEM

STC-15

< WIRING DIAGRAM >

C

D

E

F

H

I

J

K

L

M

A

B

STC

N

O

P

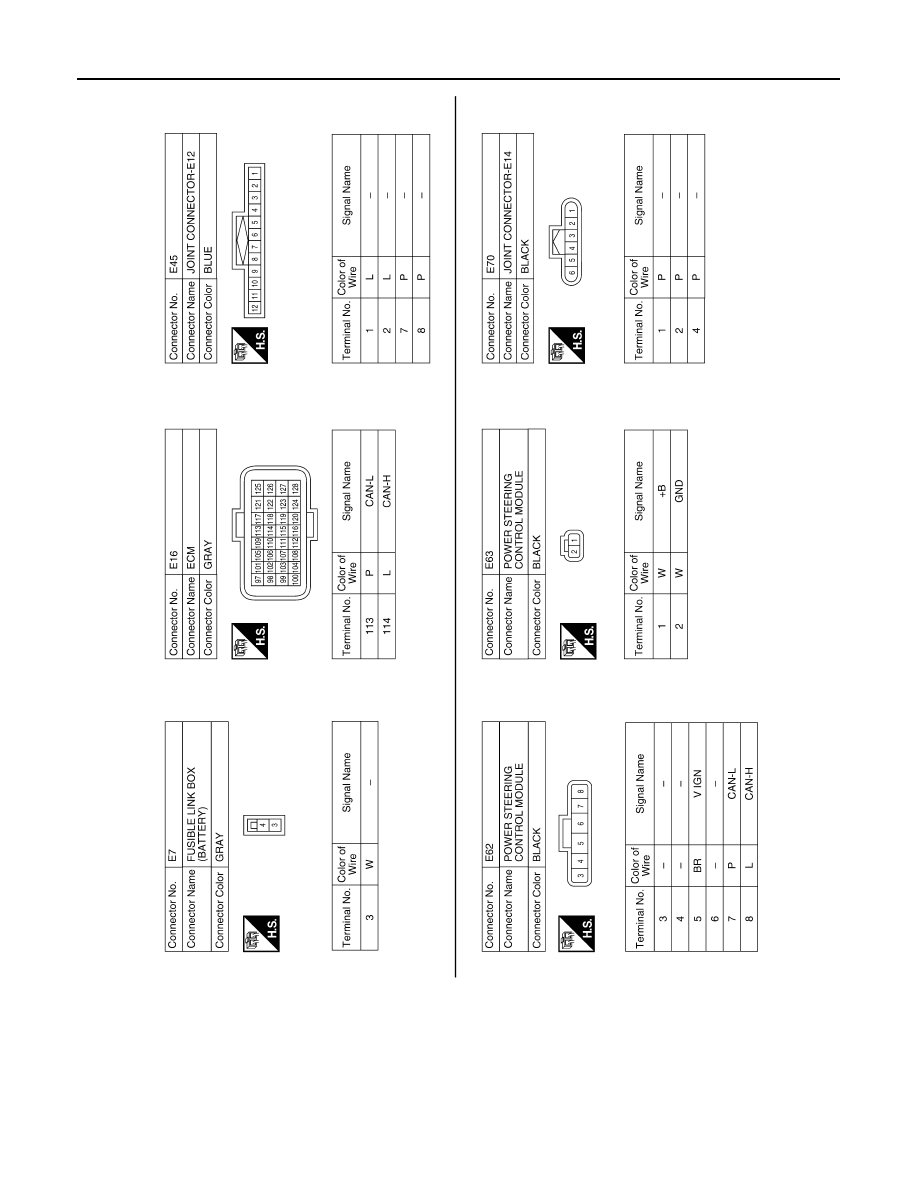

AAGIA0035GB

STC-16

< WIRING DIAGRAM >

HYDRAULIC PUMP ELECTRIC POWER STEERING SYSTEM

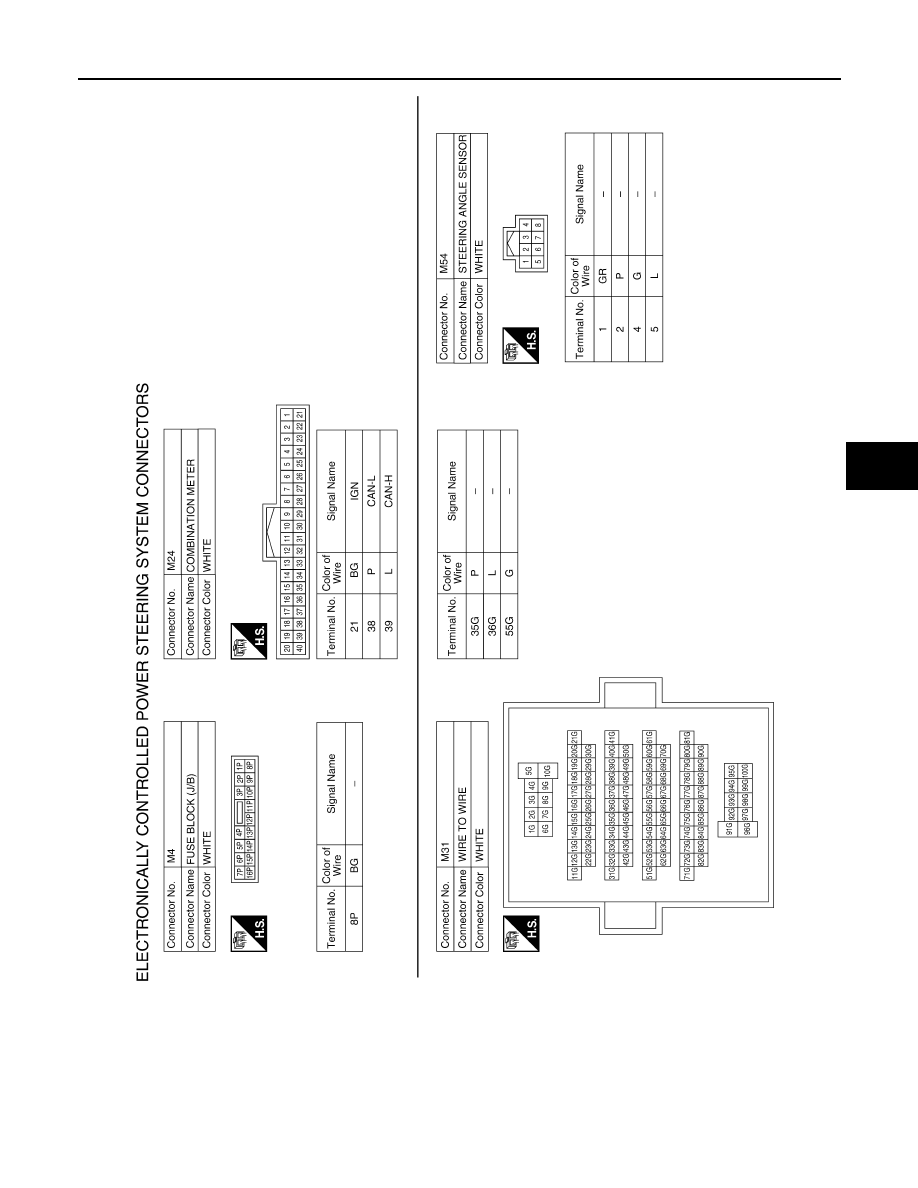

AAGIA0036GB
