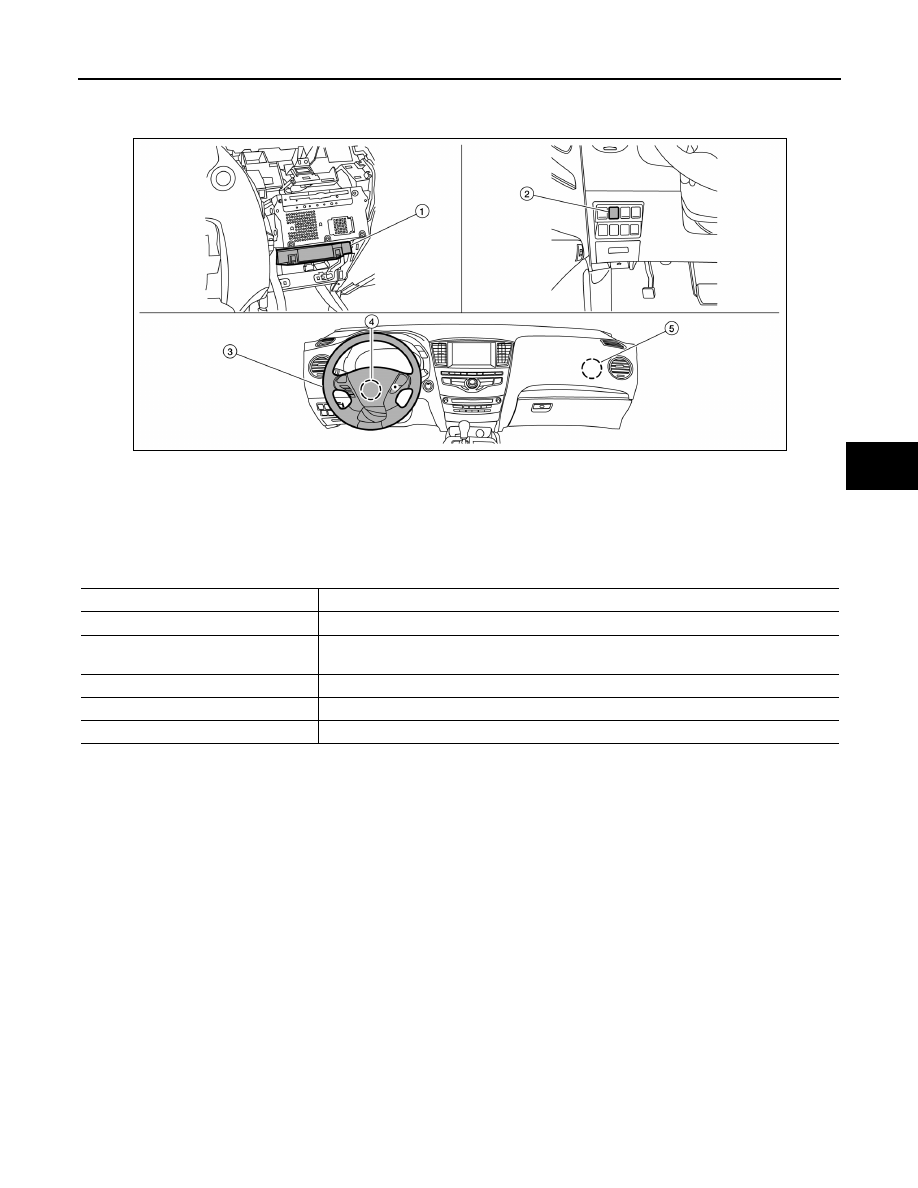

HEATED STEERING WHEEL SYSTEM : Component Parts Location

INFOID:0000000009177059

HEATED STEERING WHEEL SYSTEM : Component Description

INFOID:0000000009177060

1.

A/C Auto amp
(view with cluster lid C removed)

2.

Heated steering wheel switch

3.

Heated steering wheel

4.

Spiral cable

5.

Heated steering relay

AWGIA0230ZZ

Components

Description

A/C Auto amp

Controls the heated steering relay by providing a ground signal to the coil.

Heated steering wheel switch

• Controls the heated steering relay by providing a ground signal to A/C Auto amp.
• Provides switch indicator for system.

Heated steering relay

Provides battery power supply to heated steering wheel and switch indicator.

Heated steering wheel

Contains heating element and over-heat protection.

Spiral cable

Provides rotating electrical connection for heated steering wheel.

ST-8

< SYSTEM DESCRIPTION >

SYSTEM

SYSTEM

STEERING TILT & STEERING TELESCOPIC

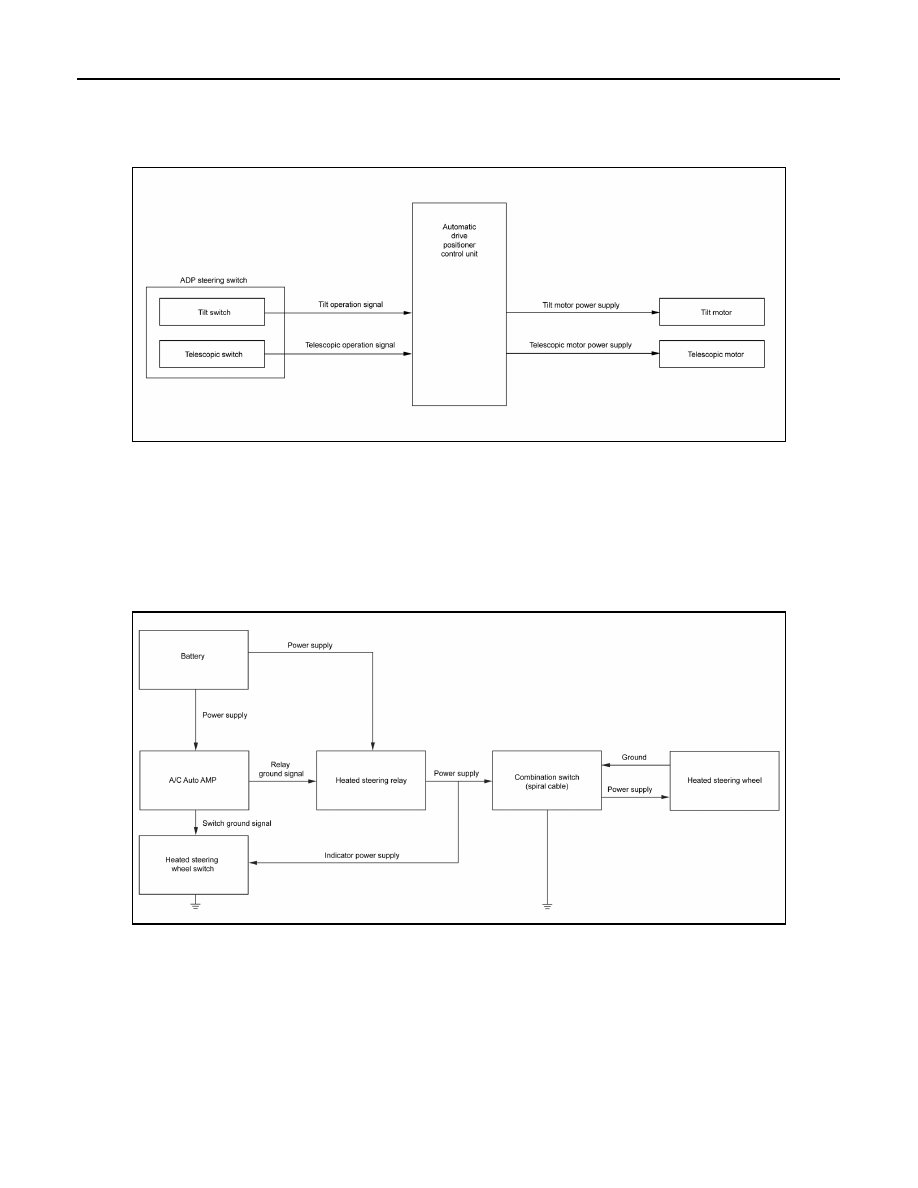

STEERING TILT & STEERING TELESCOPIC : System Diagram

INFOID:0000000009177061

STEERING TILT & STEERING TELESCOPIC : System Description

INFOID:0000000009177062

When the operator adjusts the steering column position using the ADP steering switch (tilt/telescopic), the

switch provides a ground signal to the ADP control unit.  Power and ground is supplied to the tilt or telescopic

motors to move the column in the desired direction.

HEATED STEERING WHEEL SYSTEM
HEATED STEERING WHEEL SYSTEM : System Diagram

INFOID:0000000009177063

HEATED STEERING WHEEL SYSTEM : System Description

INFOID:0000000009177064

The heated steering wheel switch controls the heated steering relay through the A/C Auto amp. When the

switch is turned on, the relay is energized and the heated steering system will operate. The heated steering

system will turn off when the steering wheel temperature reaches approximately 86

° F (30° C). Heated steer-

ing system operation can also be canceled by pressing the heated steering wheel switch again. If the surface

temperature of the steering wheel is below 68

° F (20° C), the system will heat the steering wheel and cycle off

and on to maintain a temperature above 68

° F (20° C). The indicator light will remain on as long as the system

is on.

ALGIA0155GB

AWGIA0214GB

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

ST-9

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

ECU DIAGNOSIS INFORMATION

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

List of ECU Reference

INFOID:0000000009177065

ECU

Reference

ADP Control Unit

ADP-36, "Reference Value"

ST-10

< WIRING DIAGRAM >

STEERING COLUMN

WIRING DIAGRAM

STEERING COLUMN

Wiring Diagram

INFOID:0000000009177066

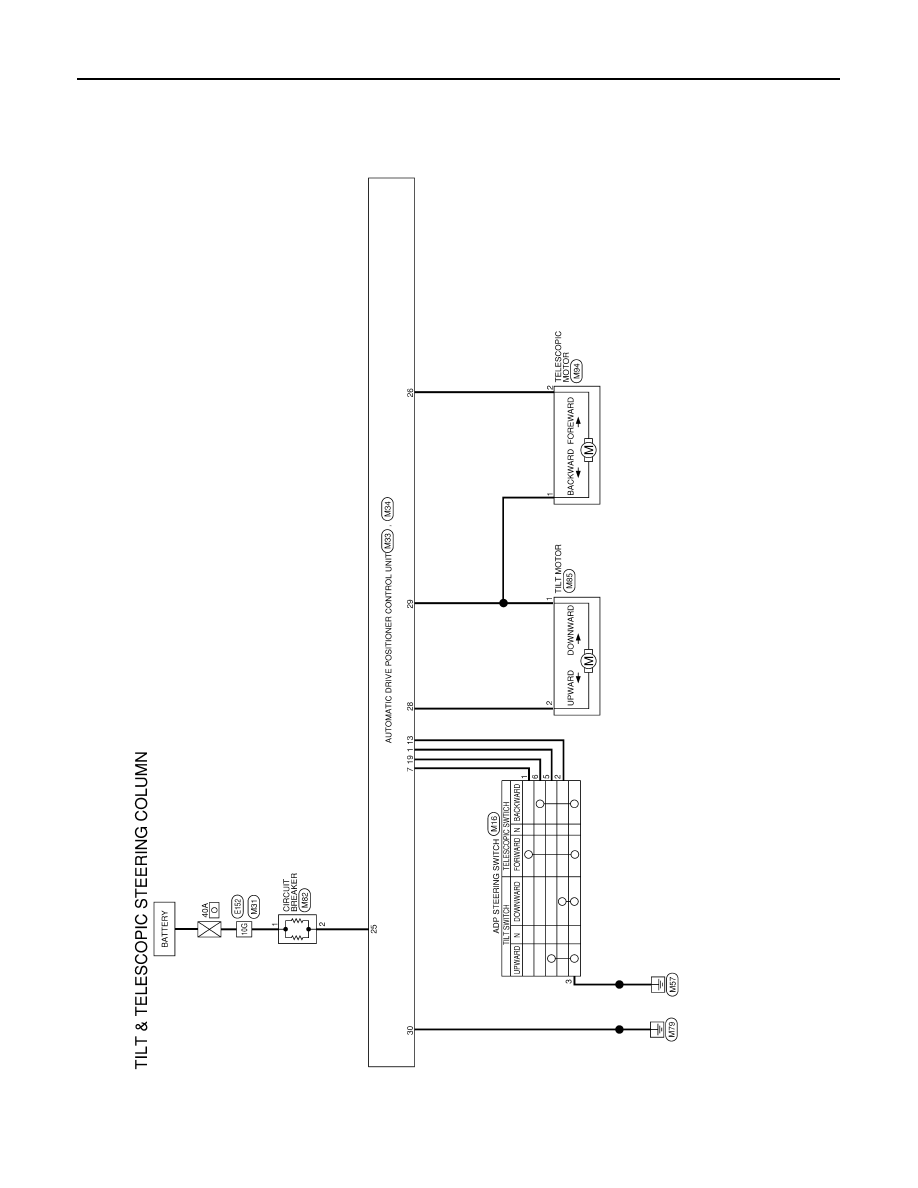

AAGWA0024GB
