SRS AIR BAG SYSTEM

SRC-37

< WIRING DIAGRAM >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

ABHIA0693GB

SRC-38

< WIRING DIAGRAM >

SRS AIR BAG SYSTEM

ABHIA0694GB

DIAGNOSIS AND REPAIR WORK FLOW

SRC-39

< BASIC INSPECTION >

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009176983

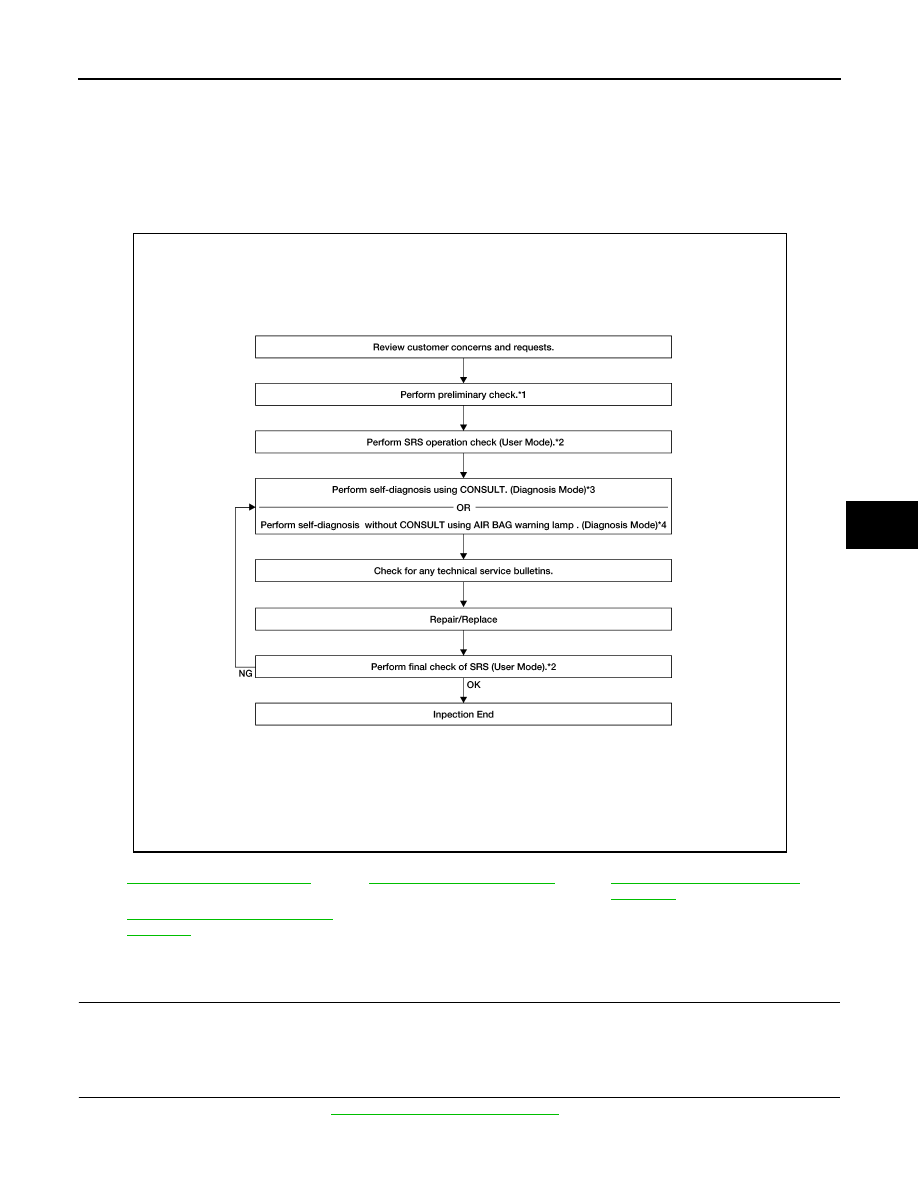

OVERALL SEQUENCE

DETAILED WORK FLOW

1.

CUSTOMER INFORMATION

Get detailed information from the customer about the symptom.

>> GO TO 2

2.

PRELIMINARY CHECK

Perform preliminary check. Refer to

SRC-14, "Diagnosis Description"

.

*1

SRC-14, "Diagnosis Description"

*2

SRC-14, "SRS Operation Check"

*3

SRC-15, "Trouble Diagnosis with
CONSULT"

*4

SRC-16, "Trouble Diagnosis without
CONSULT"

AWHIA0336GB

SRC-40

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

>> GO TO 3

3.

SRS OPERATION CHECK (USER MODE)

Perform SRS operation check in User Mode. Refer to

SRC-14, "SRS Operation Check"

.

>> GO TO 4

4.

SELF-DIAGNOSIS (DIAGNOSIS MODE)

Perform SELF-DIAGNOSIS. Refer to

SRC-15, "Trouble Diagnosis with CONSULT"

 or

SRC-16, "Trouble Diag-

nosis without CONSULT"

.

>> GO TO 5

5.

TECHNICAL SERVICE BULLETINS

Check for technical service bulletins.

>> GO TO 6

6.

REPLACE PART

Replace the malfunctioning part.

>> GO TO 7

7.

FINAL CHECK

Check SRS using Diagnosis Mode and User Mode.
Does Diagnosis Mode and User Mode indicate SRS normal?

YES

>> Inspection End.

NO

>> GO TO 4
