SYSTEM

SEC-15

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

• The panic alarm does not start when the theft warning alarm is activating and the panic alarm stops when

the theft warning alarm is activated.

The priority of the functions are as per the following.

THEFT WARNING ALARM

• The theft warning alarm function activates horns and headlamps intermittently when BCM detects that any

door or hood is opened by unauthorized means while the system is in the ARMED state.

• Security indicator lamp on combination meter always blinks when power supply position is any position other

than ON. Security indicator lamp blinking warns that the vehicle is equipped with a vehicle security system.

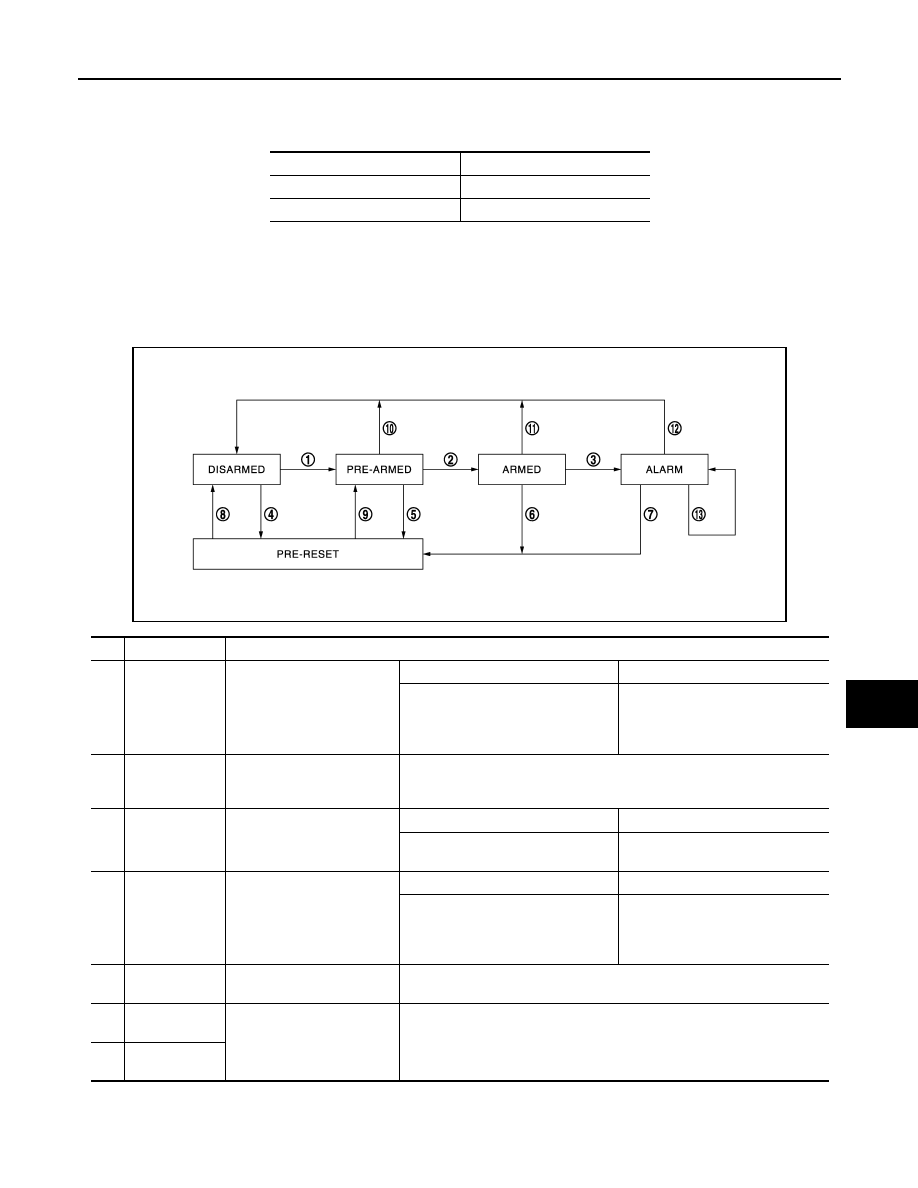

Operation Flow

Priority

Function

1

Theft warning alarm

2

Panic alarm

JMKIA5416GB

No.

System state

Switching condition

1

DISARMED to
PRE-ARMED

When all conditions of A and
one condition of B is satis-
fied.

A

B

• Power supply position: OFF/LOCK
• All doors: Closed
• Hood: Closed

All doors are locked by:
• Door key cylinder LOCK switch
• LOCK button of Intelligent Key
• Door request switch

2

PRE-ARMED
to ARMED

When all of the following
conditions are satisfied for
30 seconds.

• Power supply position: OFF/LOCK
• All doors: Locked
• Hood: Closed

3

ARMED  to
ALARM

When one condition of A and
one condition of B are satis-
fied.

A

B

Intelligent Key: Not used

• Any door: Open
• Hood: Open

4

DISARMED to
PRE-RESET

When all conditions of A and
one condition of B is satis-
fied.

A

B

• Power supply position: OFF/LOCK
• All doors: Closed
• Hood: Open

All doors are locked by:
• Door key cylinder LOCK switch
• LOCK button of Intelligent Key
• Door request switch

5

PRE-ARMED
to PRE-RESET

When one of the following
conditions is satisfied.

• Hood: Open

6

ARMED  to
PRE-RESET

No conditions.

7

ALARM to
PRE-RESET

SEC-16

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

SYSTEM

NOTE:
• BCM ignores the door key cylinder UNLOCK switch signal input for 1 second after the door key cylinder LOCK switch signal input.
• To lock/unlock all doors by operating remote controller button of Intelligent Key or door request switch, Intelligent Key must be within

the detection area of outside key antenna. For details, refer to

DLK-22, "INTELLIGENT KEY SYSTEM : System Description"

.

• To open back door by operating back door opener switch, Intelligent Key must be within the detection area of outside key antenna. For

details, refer to

DLK-22, "INTELLIGENT KEY SYSTEM : System Description"

.

DISARMED Phase

The vehicle security system is not set in the DISARMED phase. The vehicle security system stays in this

phase while any door is open because it is assumed that the owner is inside or nearby the vehicle. Security

indicator lamp blinks every 2.4 seconds.

When the vehicle security system is reset, each phase switches to the DISARMED phase directly.

PRE-ARMED Phase

The PRE-ARMED phase is the transient state between the DISARMED phase and the ARMED phase. This

phase is maintained for 30 seconds so that the owner can reset the setting due to a mis-operation. This phase

switches to the ARMED phase when vehicle conditions are not changed for 30 seconds. Security indicator

lamp illuminates while being in this phase.

To reset the PRE-ARMED phase, refer to the switching condition of No. 10 in the table above.

ARMED Phase

The vehicle security system is set and BCM monitors all necessary inputs. If any door or hood is opened with-

out using Intelligent Key, vehicle security system switches to the ALARM phase. Security indicator lamp blinks

every 2.4 seconds.

To reset the ARMED phase, refer to the switching condition of No. 11 in the table above.

ALARM Phase

BCM transmits “Theft Warning Horn Request” signal and “High Beam Request” signal intermittently to IPDM

E/R via CAN communication. In this phase, horns and headlamps are activated intermittently for approxi-

mately 50 seconds to warn that the vehicle is accessed by unauthorized means. ON/OFF timing of horns and

headlamps are synchronized. After 50 seconds, the vehicle security system returns to the ARMED phase. At

this time, if BCM still detects unauthorized access to the vehicle, the system is switched to the ALARM phase

again. This RE-ALARM operation is carried out a maximum of 2 times.

To cancel the ALARM operation, refer to the switching condition of No. 12 in the table above.

8

PRE-RESET to
DISARMED

When one of the following
conditions is satisfied.

• Power supply position: ACC/ON/CRANKING/RUN
• Door key cylinder UNLOCK switch: ON
• UNLOCK button of Intelligent Key: ON
• Door request switch: ON
• Back door opener switch: ON
• UNLOCK switch of door lock and unlock switch: ON
• Any door: Open

9

PRE-RESET to
PRE-ARMED

When all of the following
conditions are satisfied.

• Power supply position: OFF/LOCK
• All doors: Closed
• Hood: Closed

10

PRE-ARMED
to DISARMED

When one of the following
conditions is satisfied.

• Power supply position: ACC/ON/CRANKING/RUN
• Door key cylinder UNLOCK switch: ON
• UNLOCK button of Intelligent Key: ON
• AUTO BACK DOOR button of Intelligent Key: ON
• Door request switch: ON
• Back door opener switch: ON
• Any door: Open

11

ARMED to
DISARMED

When one of the following
conditions is satisfied.

• Power supply position: ACC/ON/CRANKING/RUN
• Door key cylinder UNLOCK switch: ON
• UNLOCK button of Intelligent Key: ON
• AUTO BACK DOOR button of Intelligent Key: ON
• Door request switch: ON
• Back door opener switch: ON

12

ALARM to
DISARMED

13

RE-ALARM

When one of the following
conditions is satisfied after
the ALARM operation is fin-
ished.

• Any door: Open
• Hood: Open

No.

System state

Switching condition

SYSTEM

SEC-17

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

NOTE:

If a battery terminal is disconnected during the ALARM phase, theft warning alarm stops. But when the battery

terminal is reconnected, theft warning alarm is activated again.

PRE-RESET Phase

The PRE-RESET phase is the transient state between each phase and DISARMED phase. If only the condi-

tion of hood is not satisfied, the system switches to the PRE-RESET phase. Then, when any condition is

changed, the system switches to the DISARMED phase or PRE-ARMED phase.

PANIC ALARM

• The panic alarm function activates horns and headlamps intermittently when the owner presses the PANIC

ALARM button of Intelligent Key outside the vehicle while the power supply position is OFF or LOCK.

• When BCM receives panic alarm signal from Intelligent Key, BCM transmits “Theft Warning Horn Request”

signal and “High Beam Request” signal intermittently to IPDM E/R via CAN communication. To prevent the

activation due to mis-operation of Intelligent Key by owner, the panic alarm function is activated when BCM

receives the signal for 0.4 - 0.6 seconds.

• Panic alarm operation is maintained for 25 seconds.

• Panic alarm operation is cancelled when BCM receives one of the following signals:

- LOCK button of Intelligent Key: ON

- UNLOCK button of Intelligent Key: ON

- PANIC ALARM button of Intelligent Key: Long pressed

- Any door request switch: ON

SEC-18

< SYSTEM DESCRIPTION >

[WITH INTELLIGENT KEY SYSTEM]

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000009764044

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

→ ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

Direct Diagnostic Mode

Description

Ecu Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

Ecu I

de

nti

ficat

ion

Se

lf Di

ag

no

sti

c

Res

ult

Dat

a Monitor

Active T

e

st

W

ork su

pp

ort

Co

nf

ig

ur

at

io

n

CAN Diag

Su

pp

ort

 Mn

tr

Door lock

DOOR LOCK

×

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEADLAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Intelligent Key system

INTELLIGENT KEY

×

×

×

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

Back door open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×
