DIAGNOSIS SYSTEM (BLUETOOTH® CONTROL UNIT)

AV-223

< SYSTEM DESCRIPTION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (BLUETOOTH® CONTROL UNIT)

Diagnosis Description

INFOID:0000000009174535

The Bluetooth

®

 control unit has two diagnostic checks. The first diagnostic check is performed automatically

every ignition cycle during control unit initialization. The second diagnostic check is performed by the techni-

cian using the steering wheel audio control switches prior to trouble diagnosis.

Bluetooth

®

 CONTROL UNIT INITIALIZATION CHECKS

• Internal control unit failure
• Bluetooth

®

 antenna connection open or shorted

• Steering wheel audio control switches

 (PHONE/SEND),

 (PHONE/END) stuck closed

• Vehicle speed pulse count

• Microphone connection test (with playback to operator)
• Bluetooth

®

 inquiry check

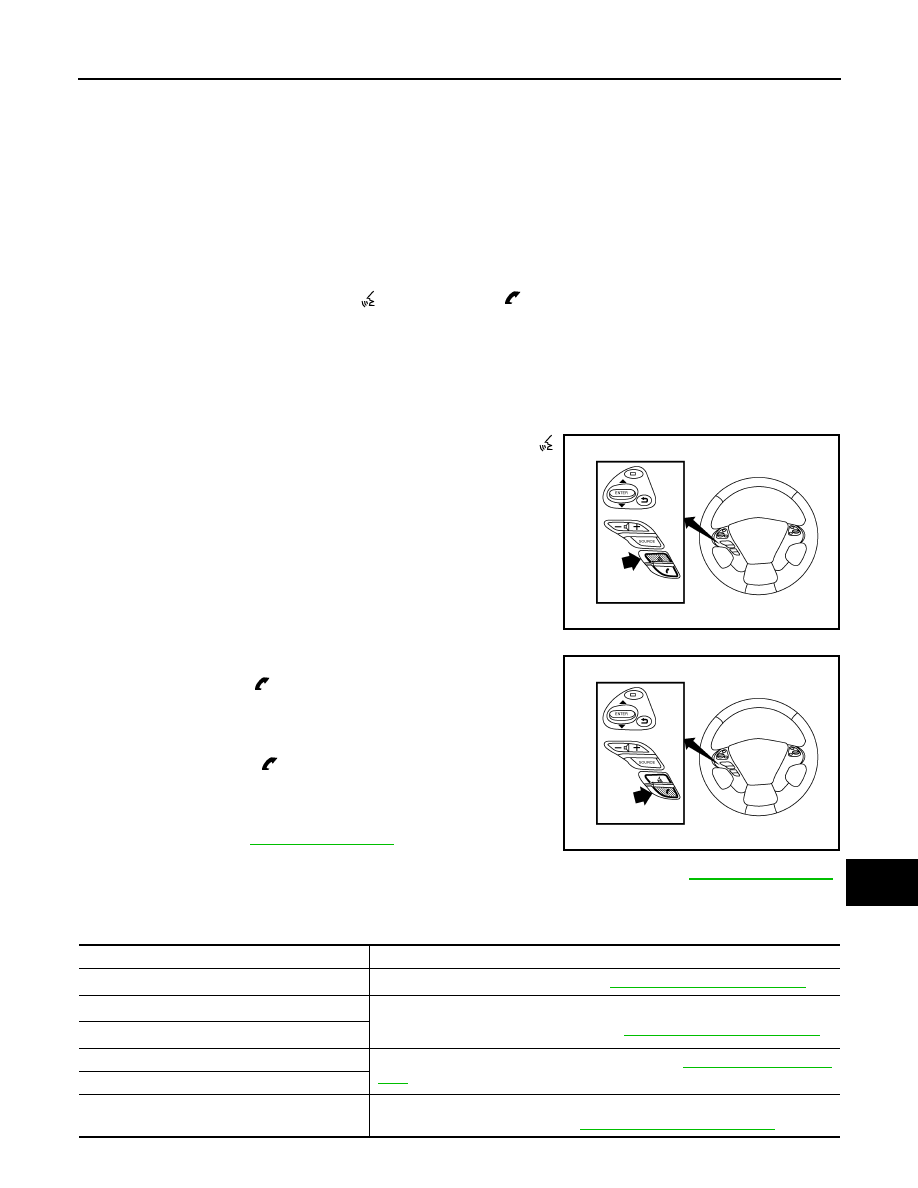

OPERATION PROCEDURE

1. Turn ignition switch to ACC or ON.
2. Wait for the Bluetooth

®

 system to complete initialization. This may take up to 20 seconds.

3. Press and hold the steering wheel audio control switch

(PHONE/SEND) button for at least 5 seconds. The Bluetooth

®

system will begin to play a verbal prompt.

4. While the prompt is playing, press and hold the steering wheel

audio control switch   (PHONE/END) button until you hear the
“Diagnostics mode” prompt. The Bluetooth

®

 system will sound a

5-second beep.

5. While the beep is sounding, press and hold the steering wheel

audio control switch

 (PHONE/END) button again until you

hear prompts.

6. The Bluetooth

®

 system has now entered into the diagnostic

mode. Results of the diagnostic checks will be verbalized to the

technician. Refer to

AV-223, "Work Flow"

.

7. After the failure records are reported, an interactive microphone

test will be performed. Follow the voice prompt. If the microphone test fails, refer to

AV-223, "Work Flow"

.

Work Flow

INFOID:0000000009174536

AWNIA3161ZZ

AWNIA3162ZZ

Failure Message

Action

“Internal failure”

Replace Bluetooth

®

 control unit. Refer to

AV-382, "Removal and Installation"

.

“Bluetooth

®

 antenna open”

1.

Inspect harness connection.

2.

Replace Bluetooth

®

 antenna. Refer to

AV-382, "Removal and Installation"

.

“Bluetooth

®

 antenna shorted”

“Phone/Send for Hands Free System is stuck”

Check steering wheel audio control switches. Refer to

AV-355, "Diagnosis Proce-

dure"

.

“Phone/End for the Hands Free System is stuck”

“Microphone test” (failed interactive test)

1.

Inspect harness between Bluetooth

®

 control unit and microphone.

2.

Replace microphone. Refer to

AV-383, "Removal and Installation"

 .

AV-224

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO WITH BOSE]

AV CONTROL UNIT

ECU DIAGNOSIS INFORMATION

AV CONTROL UNIT

Reference Value

INFOID:0000000009174537

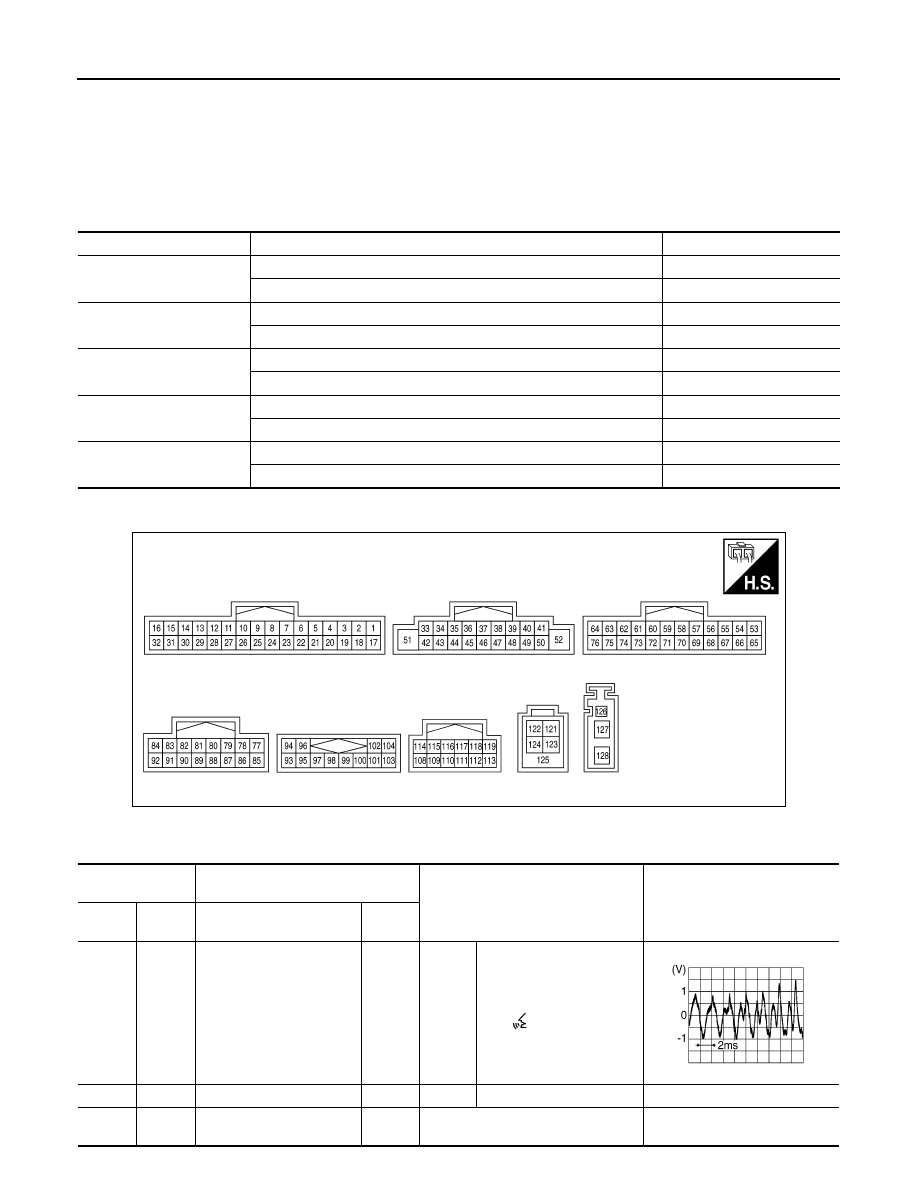

VALUES ON THE DIAGNOSIS TOOL

TERMINAL LAYOUT

PHYSICAL VALUES

Monitor Item

Condition

Value/Status

VHCL SPD SIG

Vehicle speed = 0 km/h (0 MPH).

Off

Vehicle speed > 0 km/h (0 MPH).

On

PKB SIG

Parking brake released.

Off

Parking brake applied.

On

ILLUM SIG

Optical sensor signal is not received.

Off

Optical sensor signal is received.

On

IGN SIG

Ignition switch OFF or ACC.

Off

Ignition switch ON.

On

REV SIG

Selector lever in any position other than R.

Off

Selector lever in R position.

On

AWNIA3158ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

5

(W)

4

(B)

Bluetooth

®

 voice signal

Input

Ignition

switch

ON

During voice guide output
with

 switch pressed.

6

—

Shield

—

—

—

—

10

(V)

Ground

Switch ground

—

Ignition switch ON

0 V

SKIB3609E

AV

AV CONTROL UNIT

AV-225

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

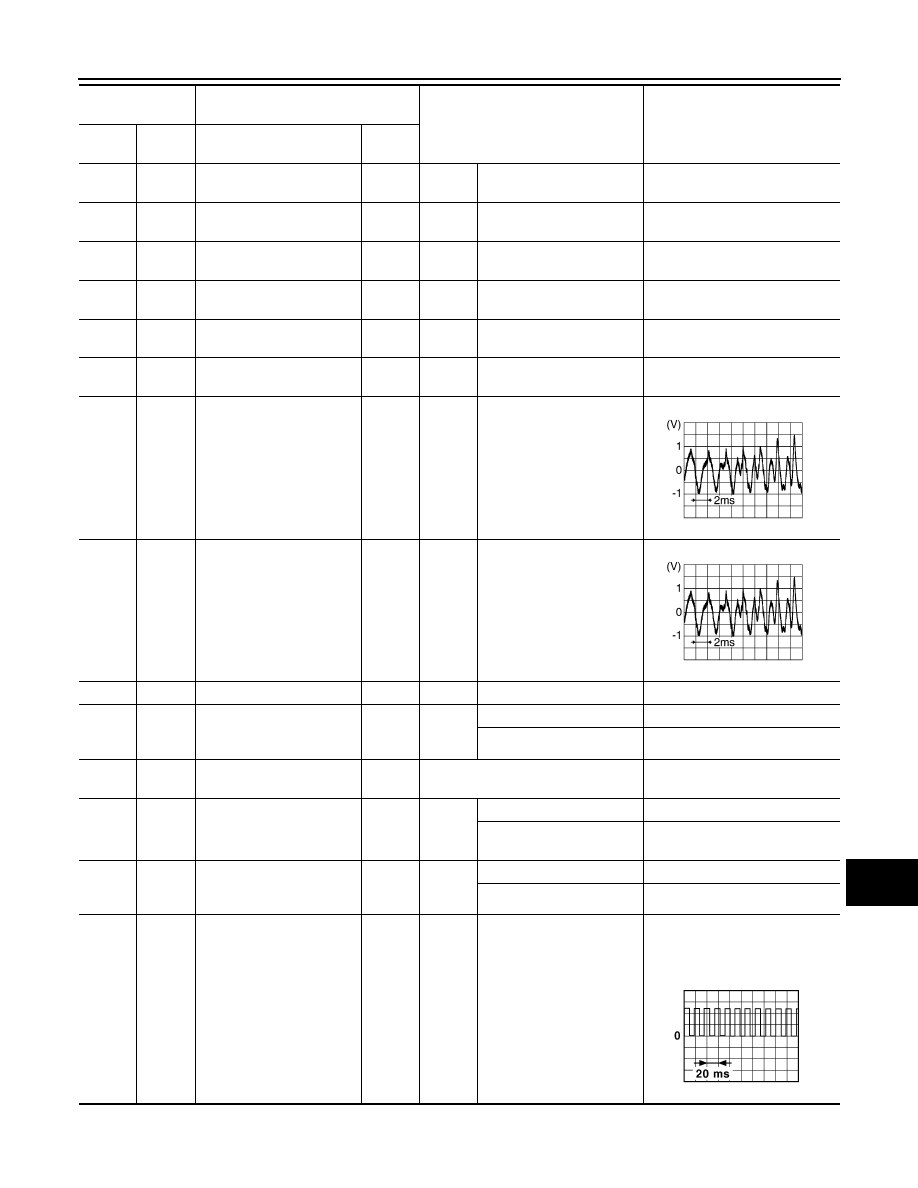

11

(L)

—

CAN–H

Input/

Output

—

—

—

12

(P)

—

CAN–L

Input/

Output

—

—

—

13

(SB)

—

AV communication signal
(H)

Input/

Output

—

—

—

14

(LG)

—

AV communication signal
(L)

Input/

Output

—

—

—

15

(SB)

—

AV communication signal
(H)

Input/

Output

—

—

—

16

(LG)

—

AV communication signal
(L)

Input/

Output

—

—

—

20

(W)

22

(B)

AUX sound signal RH

Input

Ignition

switch

ON

AUX mode selected.

21

(R)

22

(B)

AUX sound signal LH

Input

Ignition

switch

ON

AUX mode selected.

25

—

Shield

—

—

—

—

28

(Y)

Ground

Disk eject signal

Input

Ignition

switch

ON

Pressing eject switch.

0 V

Except above.

5.0 V

29

(LG)

Ground

Ignition signal

Input

Ignition switch ON

Battery voltage

30

(R)

Ground

Reverse signal

Input

Ignition

switch

ON

Selector lever in R position.

Battery voltage

Selector lever in any posi-
tion other than R.

0 V

31

(G)

Ground

Parking brake signal

Input

Ignition

switch

ON

Parking brake applied.

4.5 V

Parking brake released.

0 V

32

(GR)

Ground

Vehicle speed signal

Input

Ignition

switch

ON

Vehicle speed approx. 40
km/h (25 MPH)

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

JSNIA0012GB

AV-226

< ECU DIAGNOSIS INFORMATION >

[MID AUDIO WITH BOSE]

AV CONTROL UNIT

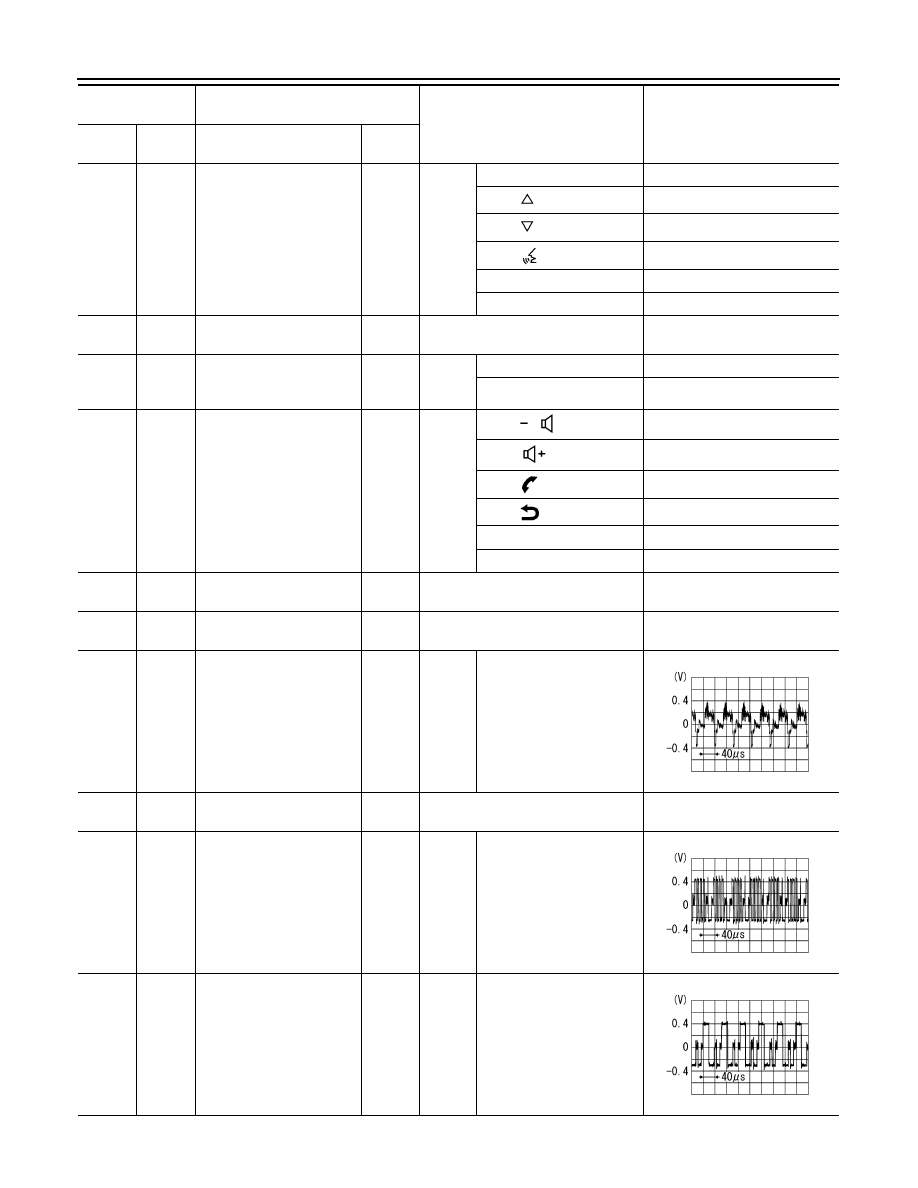

38

(G)

47

(B)

Steering switch signal A

Input

Ignition

switch

ON

Press SOURCE switch

 0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Press ENTER switch

4.0V

Except above

5.0V

39

(P)

Ground

ACC power supply

Input

Ignition switch ACC

Battery voltage

41

(R)

Ground

Illumination signal

Input

Ignition

switch

OFF

Lighting switch OFF

0 V

Lighting switch ON

Battery voltage

48

(W)

47

(B)

Steering switch signal B

Input

Ignition

switch

ON

Press

switch

0V

Press

switch

1.0V

Press

switch

2.0V

Press

switch

3.0V

Press DISP switch

4.0V

Except above

5.0V

51

(Y)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

52

(B)

Ground

Ground

—

Ignition switch ON

0 V

53

(B)

Ground

Composite image signal

Output

Ignition

switch

ON

Camera image or AUX im-
age displayed

54

(W)

Ground

Composite image signal
ground

—

Ignition switch ON

0 V

55

(W)

Ground

RGB signal (B: blue)

Output

Ignition

switch

ON

Begin Confirmation/Adjust-

ment mode, then select

“Color Spectrum Bar”

56

(B)

Ground

RGB signal (G: green)

Output

Ignition

switch

ON

Begin Confirmation/Adjust-

ment mode, then select

“Color Spectrum Bar”

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

SKIB2251J

SKIB2237J

SKIB2236J
