Nissan Pathfinder. Manual - part 71

AV

MID AUDIO WITHOUT BOSE

AV-111

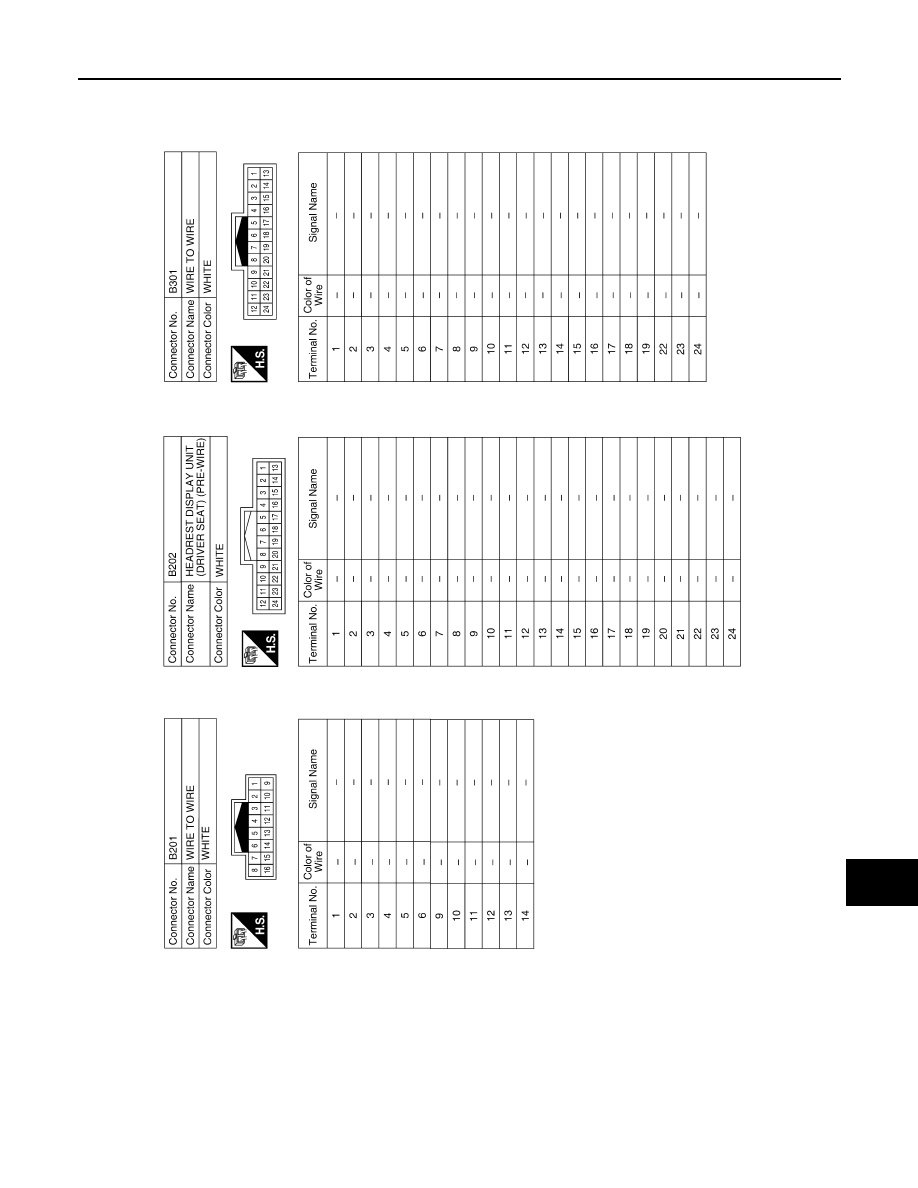

< WIRING DIAGRAM >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA4785GB

AV-112

< WIRING DIAGRAM >

[MID AUDIO WITHOUT BOSE]

MID AUDIO WITHOUT BOSE

ABNIA4786GB

AV

MID AUDIO WITHOUT BOSE

AV-113

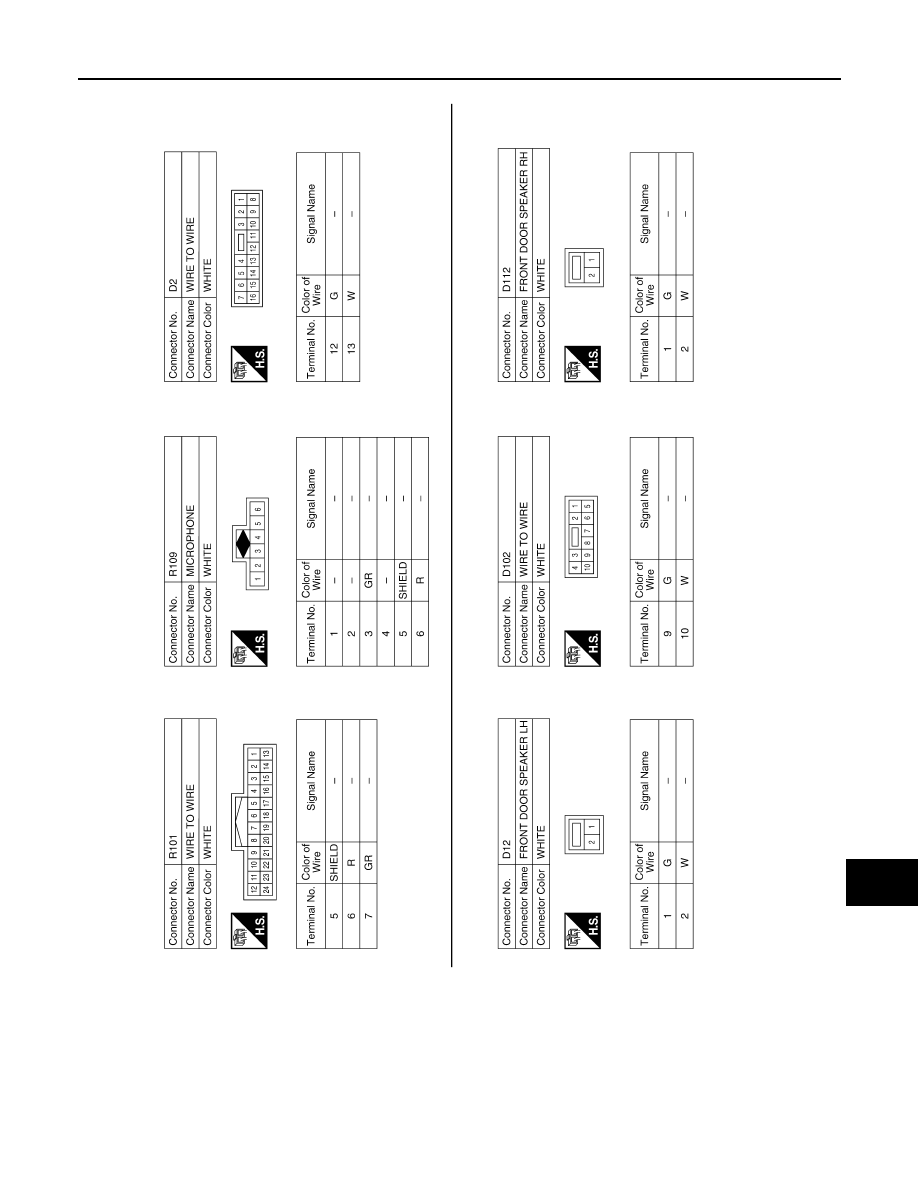

< WIRING DIAGRAM >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA4787GB

AV-114

< BASIC INSPECTION >

[MID AUDIO WITHOUT BOSE]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009174431

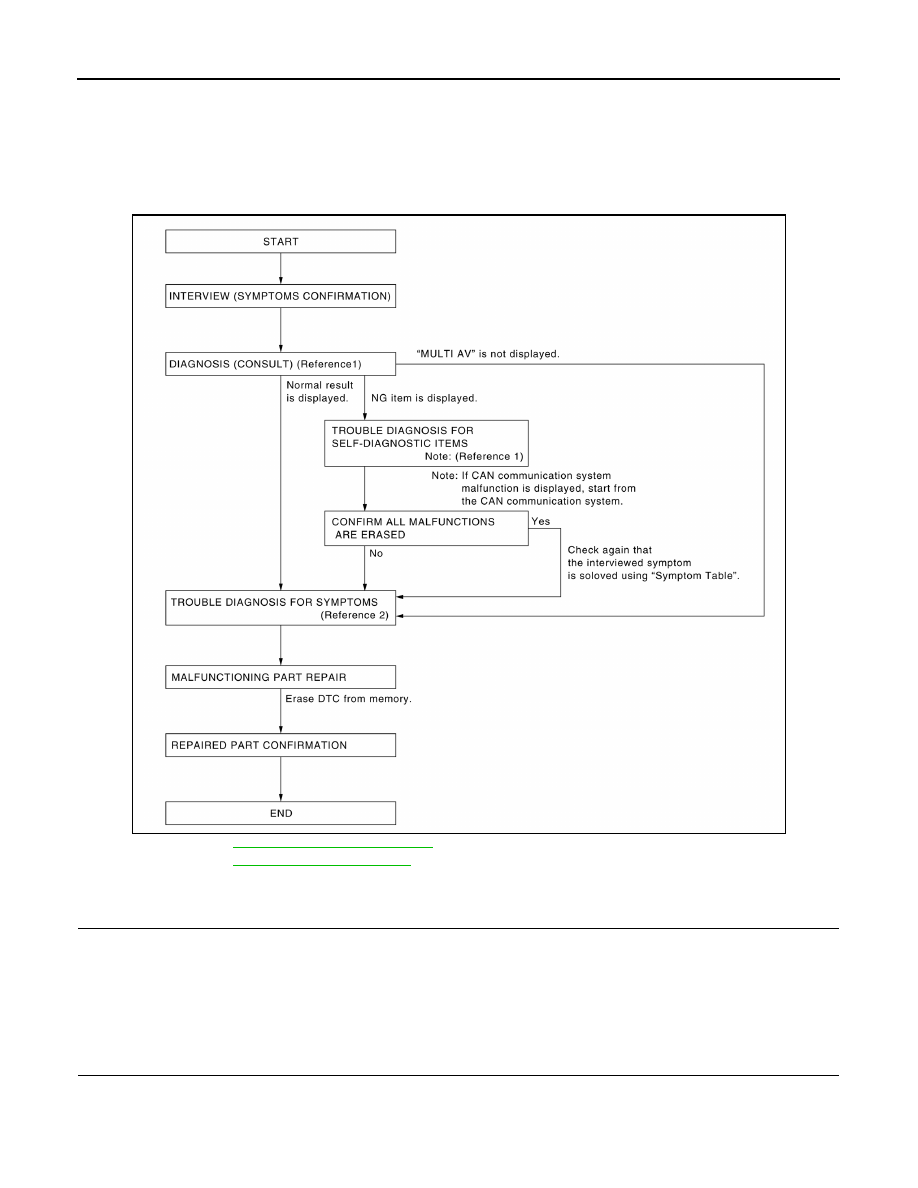

OVERALL SEQUENCE

Reference 1: Refer to

AV-70, "CONSULT Function"

.

Reference 2: Refer to

AV-181, "Symptom Table"

.

DETAILED FLOW

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items:

• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2

2.

SELF-DIAGNOSIS (CONSULT)

1. Connect CONSULT and perform “SELF-DIAGNOSIS” for “MULTI AV”.

NOTE:

Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2. Check if any DTC No. is displayed in the self-diagnosis results.

AWNIA2486GB
