AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-67

< SYSTEM DESCRIPTION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

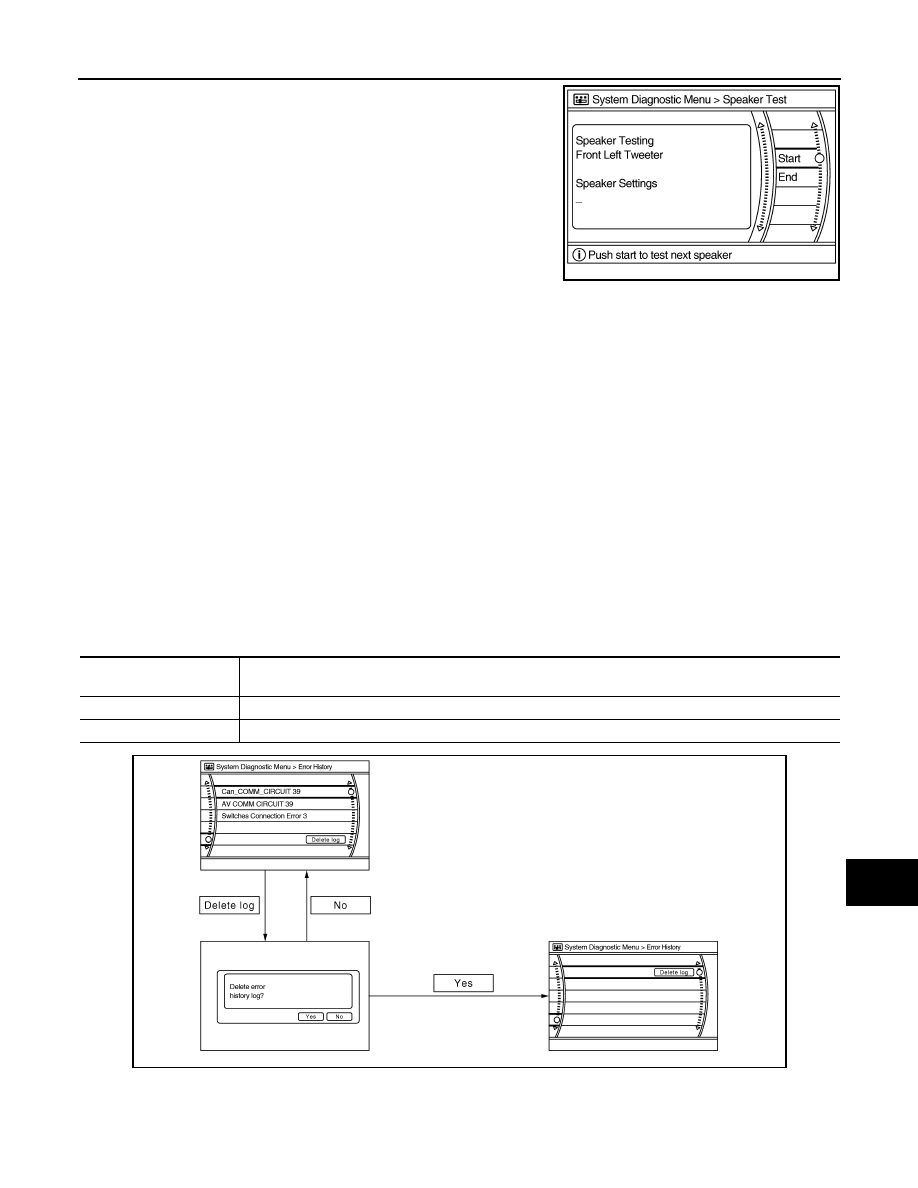

Select Speaker Test to display the Speaker Diagnosis screen. Press

Start to generate a test tone in a speaker. Press Start again to gener-

ate a test tone in the next speaker. Press End to stop the test tones.

Error History

The self diagnosis results are judged depending on whether any error occurs from when Self diagnosis is

selected until the self diagnosis results are displayed.

However, the diagnosis results are judged normal if an error has occurred before the ignition switch is turned

ON and then no error has occurred until the self

diagnosis start. Check the Error Record to detect any error that may have occurred before the self diagnosis

start because of this situation.

The frequency of occurrence is displayed in a count up manner. The actual count up method differs depending

on the error item.

Count up method A

• The counter resets to 0 if an error occurs when ignition switch is turned ON. The counter increases by 1 if

the condition is normal at a next ignition ON cycle.

• The counter upper limit is 39. Any counts exceeding 39 are ignored.“ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT.

Count up method B

• The counter increases by 1 if an error occurs when ignition switch is ON. The counter will not decrease even

if the condition is normal at the next ignition ON cycle.

• The counter upper limit is 50. Any counts exceeding 50 are ignored. “ The counter can be reset (no error

record display) with the “Delete log” switch or CONSULT.

Error item

Some error items may be displayed simultaneously according to the cause. If some error items are displayed

simultaneously, the detection of the cause can be performed by the combination of display items

JSNIA0150GB

Display type of occur-

rence frequency

Error history display item

Count up method A

CAN communication line, control unit (CAN), AV communication line, control unit (AV)

Count up method B

Other than the above

JSNIA0151GB

AV-68

< SYSTEM DESCRIPTION >

[MID AUDIO WITHOUT BOSE]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

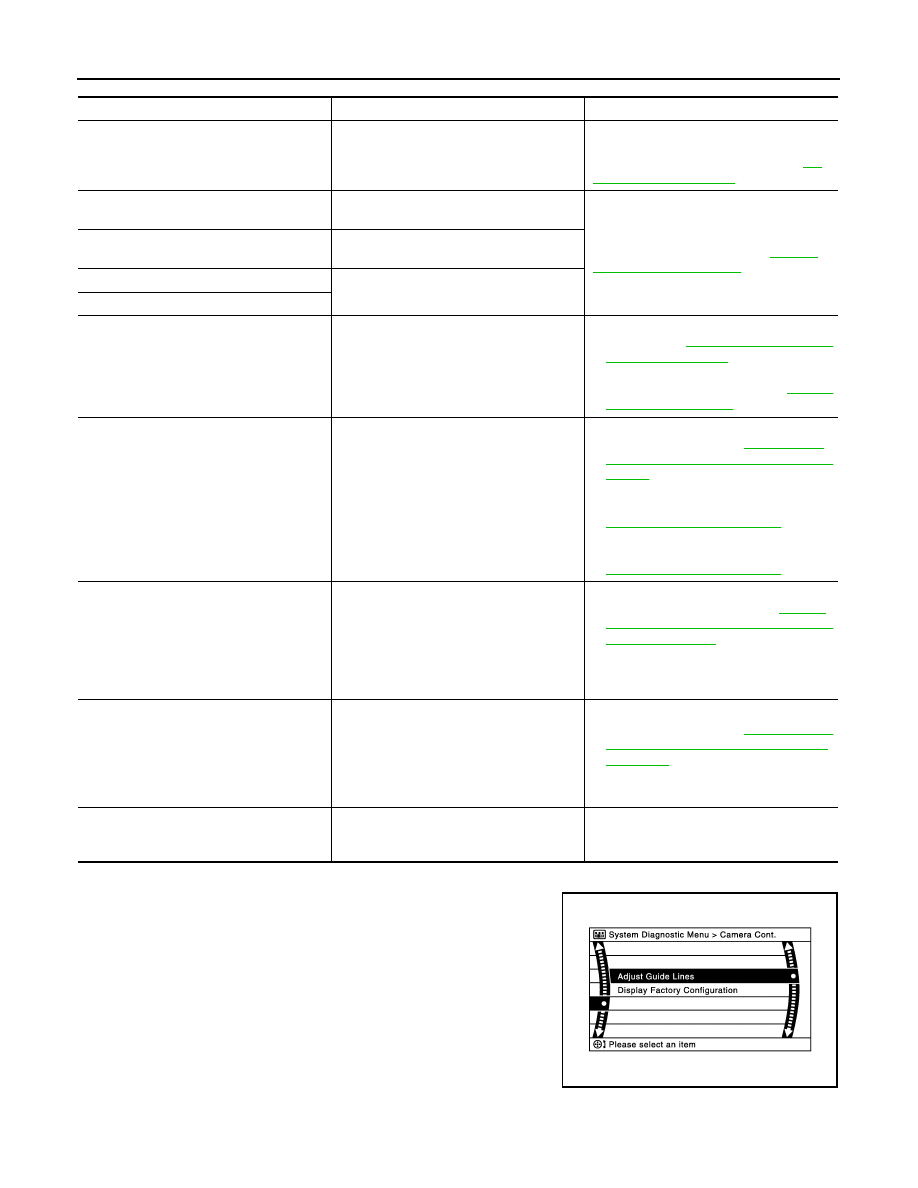

Camera Cont.

The two functions of “Correct Draw Line of Rear view Cam”, “Con-

firm Configuration” are available.

Adjust Offset of Rear view Camera

Error item

Description

Possible cause

CAN COMM CIRCUIT

CAN communication malfunction is detect-
ed.

Perform diagnosis with CONSULT, then re-
pair the malfunctioning components ac-
cording to diagnosis results. Refer to

AV-

70, "CONSULT Function"

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detect-
ed.

Replace the AV control unit if the malfunc-
tion occurs constantly. Refer to

AV-187,

"Removal and Installation"

.

CONTROL UNIT (AV)

AV communication circuit initial diagnosis
malfunction is detected.

FLASH-ROM Error Of Control Unit

AV control unit malfunction is detected.

CAN Controller Memory Error

Display Connection Error

When any of the following is detected:
• display unit power supply or ground cir-

cuits malfunction.

• communication circuit malfunction be-

tween AV control unit and display unit.

• Display unit power supply or ground cir-

cuits. Refer to

AV-144, "DISPLAY UNIT :

Diagnosis Procedure"

.

• Communication circuits between AV con-

trol unit and display unit. Refer to

AV-136,

"Diagnosis Procedure"

.

XM Connection Error

When any of the following is detected:
• satellite radio tuner power supply or

ground circuit malfunction.

• communication circuit malfunction be-

tween AV control unit and satellite radio
tuner.

• request signal circuit malfunction be-

tween AV control unit and satellite radio
tuner.

• Satellite radio tuner power supply or

ground circuits. Refer to

AV-146, "SAT-

ELLITE RADIO TUNER : Diagnosis Pro-
cedure"

.

• Communication circuit between AV con-

trol unit and satellite radio tuner. Refer to

AV-138, "Diagnosis Procedure"

.

• Request signal circuit between AV con-

trol unit and satellite radio tuner. Refer to

AV-138, "Diagnosis Procedure"

.

• AV COMM CIRCUIT
• Switches Connection Error

When any of the following is detected:
• A/C and AV switch assembly power sup-

ply or ground circuit malfunction.

• AV communication circuit malfunction

between AV control unit and A/C and AV
switch assembly.

• A/C and AV switch assembly power sup-

ply or ground circuits. Refer to

AV-148,

"A/C AND AV SWITCH ASSEMBLY : Di-
agnosis Procedure"

.

• AV communication circuits between AV

control unit and A/C and AV switch as-
sembly.

• AV COMM CIRCUIT
• BTHF Unit Connection Error

When any of the following is detected:
• Bluetooth

®

 control unit power supply or

ground circuit malfunction.

• AV communication circuit malfunction

between AV control unit and Bluetooth

®



control unit.

• Bluetooth

®

 control unit power supply or

ground circuits. Refer to

AV-147, "BLUE-

TOOTH® CONTROL UNIT : Diagnosis
Procedure"

.

• AV communication circuits between AV

control unit and Bluetooth

®

 control unit.

• AV COMM CIRCUIT
• Switches Connection Error
• BTHF Unit Connection Error

AV communication circuit malfunction be-
tween AV control unit and A/C and AV
switch assembly.

AV communication circuits between AV
control unit and A/C and AV switch assem-
bly.

JSNIA2230ZZ

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-69

< SYSTEM DESCRIPTION >

[MID AUDIO WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

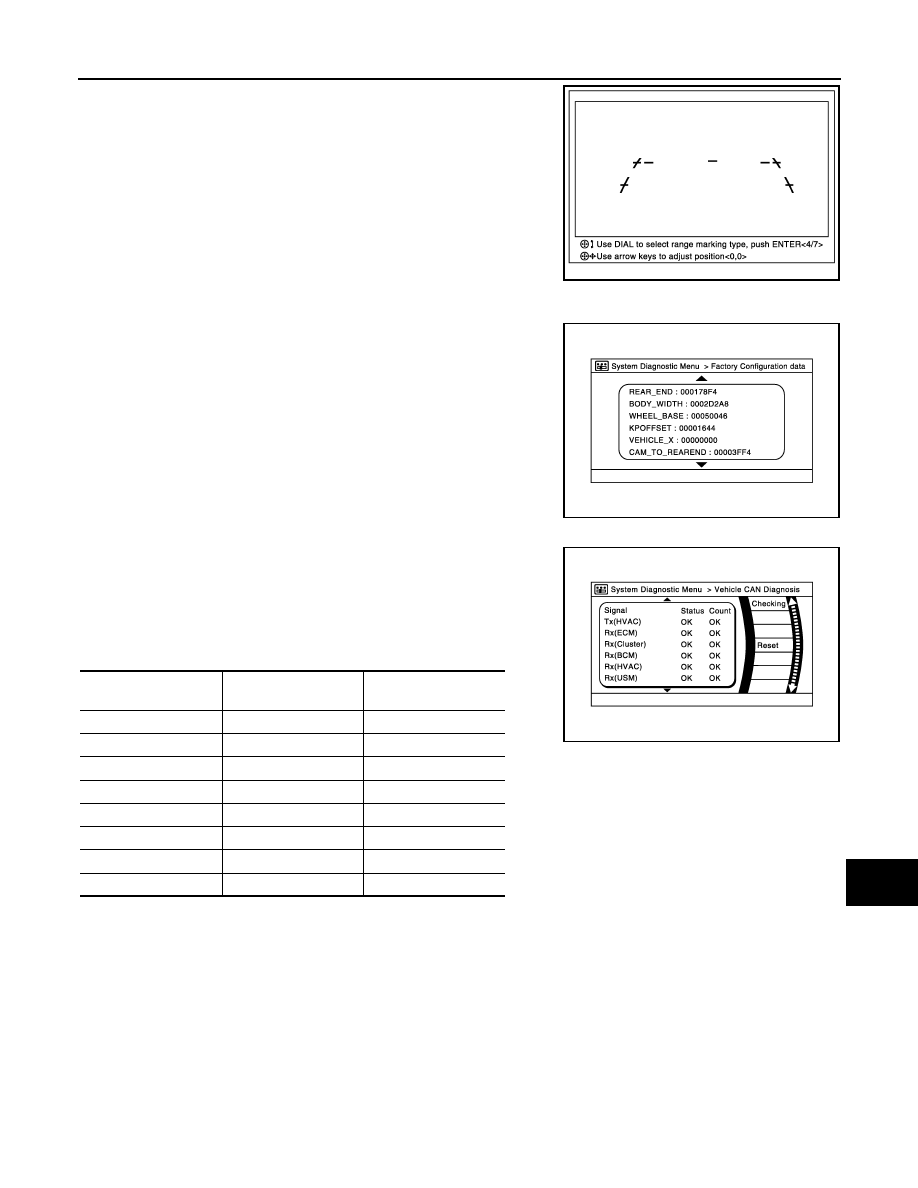

• Use this mode to adjust the guide line display position of the rear

view monitor if necessary after removing the rear view monitor

camera.

CAUTION:

After the adjustment, never perform other operations for one

minute.

Factory Configuration Confirmation

• Configuration stored in the AV control unit can be checked.

Vehicle CAN Diagnosis

• CAN communication status and error counter is displayed.

• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It

increases by 1 if the condition is normal at the next ignition switch

ON cycle. The upper limit of the counter is 39.

• The error counter is erased if “Reset” is pressed.

NOTE:

“???” indicates UNKWN.

AV COMM Diagnosis

JSNIA2231ZZ

JSNIA2234ZZ

Items

Display (Current)

Malfunction counter

(Past)

Tx(HVAC)

OK / ???

OK / 0 – 39

Rx(ECM)

OK / ???

OK / 0 – 39

Rx(Cluster)

OK / ???

OK / 0 – 39

Rx(BCM)

OK / ???

OK / 0 – 39

Rx(HVAC)

OK / ???

OK / 0 – 39

Rx(USM)

OK / ???

OK / 0 – 39

Rx(VDC)

OK / ???

OK / 0 – 39

Rx(STRG)

OK / ???

OK / 0 – 39

JSNIA2235ZZ

AV-70

< SYSTEM DESCRIPTION >

[MID AUDIO WITHOUT BOSE]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

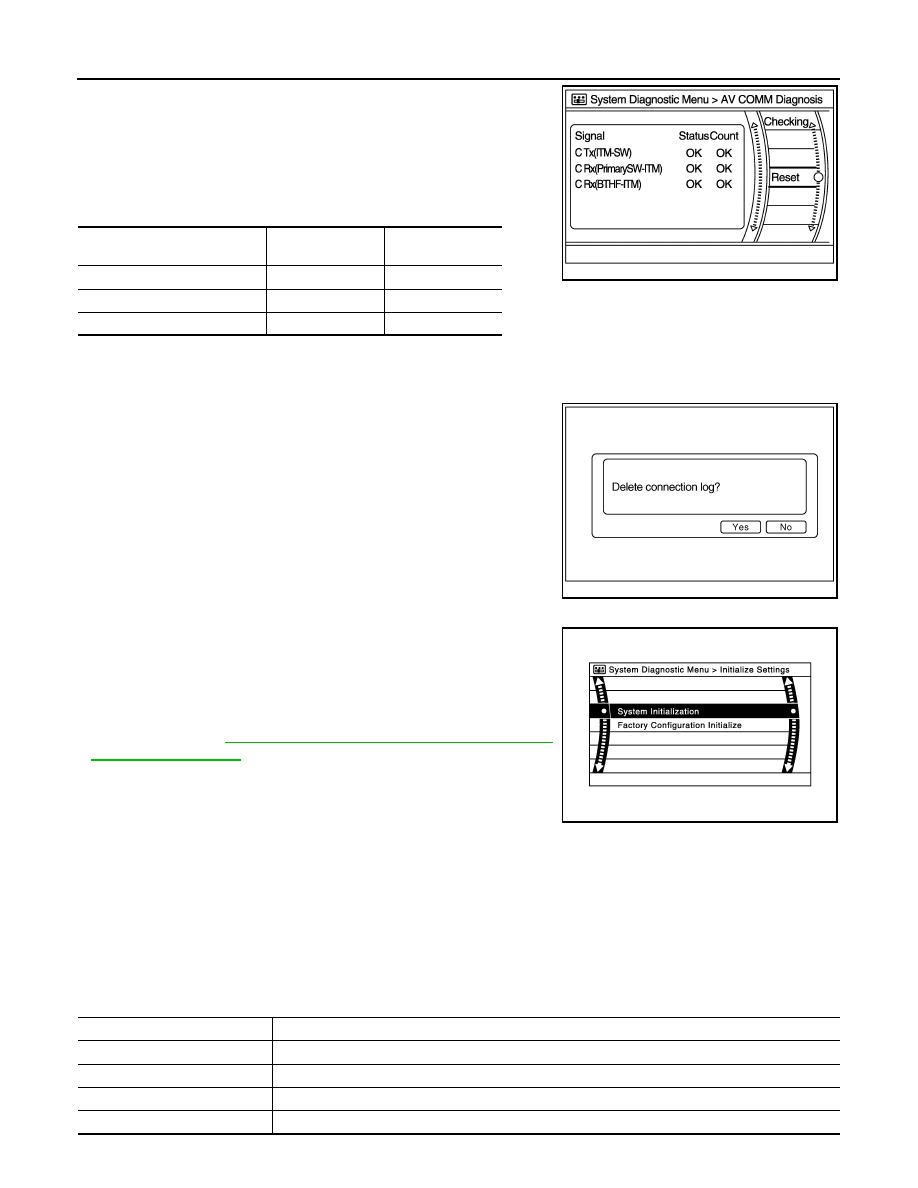

• Displays the communication status between AV control unit and

each unit.

• The error counter displays “OK” if any malfunction was not

detected in the past and displays “0” if a malfunction is detected. It

increases by 1 if the condition is normal at the next ignition switch

ON cycle. The upper limit of the counter is 39.

• The error counter is erased if “Reset” is pressed.

NOTE:

“???” indicates UNKWN.

Delete Unit Connection Log

Deletes any unit connection records and error records from the AV

control unit memory. (Clear the records of the unit that has been

removed.)

Initialize Settings

“User Data Initialization” and “Accessory Number Initialization” are

possible.

CAUTION:

• Never perform Accessory Number Initialization except when

configuration is unsuccessful.

• Accessory Number Initialization requires configuration. For

details, refer to

AV-117, "CONFIGURATION (AV CONTROL

UNIT) : Description"

.

CONSULT Function

INFOID:0000000009174422

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

 ON (for at least 5 seconds)  OFF. If this step is not performed, the BCM may not go

to ”sleep mode”, potentially causing a discharged battery and no-start condition.

CONSULT FUNCTIONS

CONSULT performs the following functions via communication with the AV control unit.

Items

Status

(Current)

Counter

(Past)

C Tx(ITM-SW)

OK / ???

OK / 0 – 39

C Rx(PrimarySW-ITM)

OK / ???

OK / 0 – 39

C Rx(BTHF-ITM)

OK / ???

OK / 0 – 39

JSNIA2505ZZ

JSNIA0154GB

JSNIA2237ZZ

Direct Diagnostic Mode

Description

Ecu Identification

The AV control unit part number is displayed.

Self Diagnostic Result

The AV control unit self diagnostic results are displayed.

Data Monitor

The AV control unit input/output data is displayed in real time.

Work support

The settings for AV control unit functions can be changed.
