Nissan Pathfinder. Manual - part 46

AV-11

USB INTERFACE .............................................

626

Removal and Installation .......................................

626

FRONT AUXILIARY INPUT JACKS ................

627

Removal and Installation .......................................

627

MICROPHONE .................................................

628

Removal and Installation .......................................

628

AROUND VIEW MONITOR CONTROL UNIT ..

629

Exploded View ......................................................

629

Removal and Installation .......................................

629

FRONT CAMERA .............................................

630

Removal and Installation .......................................

630

REAR VIEW CAMERA .....................................

631

Removal and Installation .......................................

631

SIDE CAMERA ................................................

632

Removal and Installation .......................................

632

VIDEO DISTRIBUTOR ....................................

633

Removal and Installation .......................................

633

REAR AUXILIARY INPUT JACKS .................

634

Removal and Installation .......................................

634

AUDIO ANTENNA ...........................................

635

Location of Antennas .............................................

635

Window Antenna Repair ........................................

635

GPS ANTENNA ...............................................

637

Removal and Installation .......................................

637

SATELLITE RADIO ANTENNA ......................

638

Removal and Installation .......................................

638

Disassembly and Assembly ...................................

638

AV-12

< PRECAUTION >

[BASE AUDIO]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009174373

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Trouble Diagnosis

INFOID:0000000009174375

AV COMMUNICATION SYSTEM

• Do not apply voltage of 7.0 V or higher to the measurement terminals.

• Use the tester with its open terminal voltage being 7.0 V or less.

• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

Precaution for Harness Repair

INFOID:0000000009174376

AV COMMUNICATION SYSTEM

• Solder the repaired parts, and wrap with tape. [Frays of twisted line

must be within 110 mm (4.33 in).]

PKIA0306E

PRECAUTIONS

AV-13

< PRECAUTION >

[BASE AUDIO]

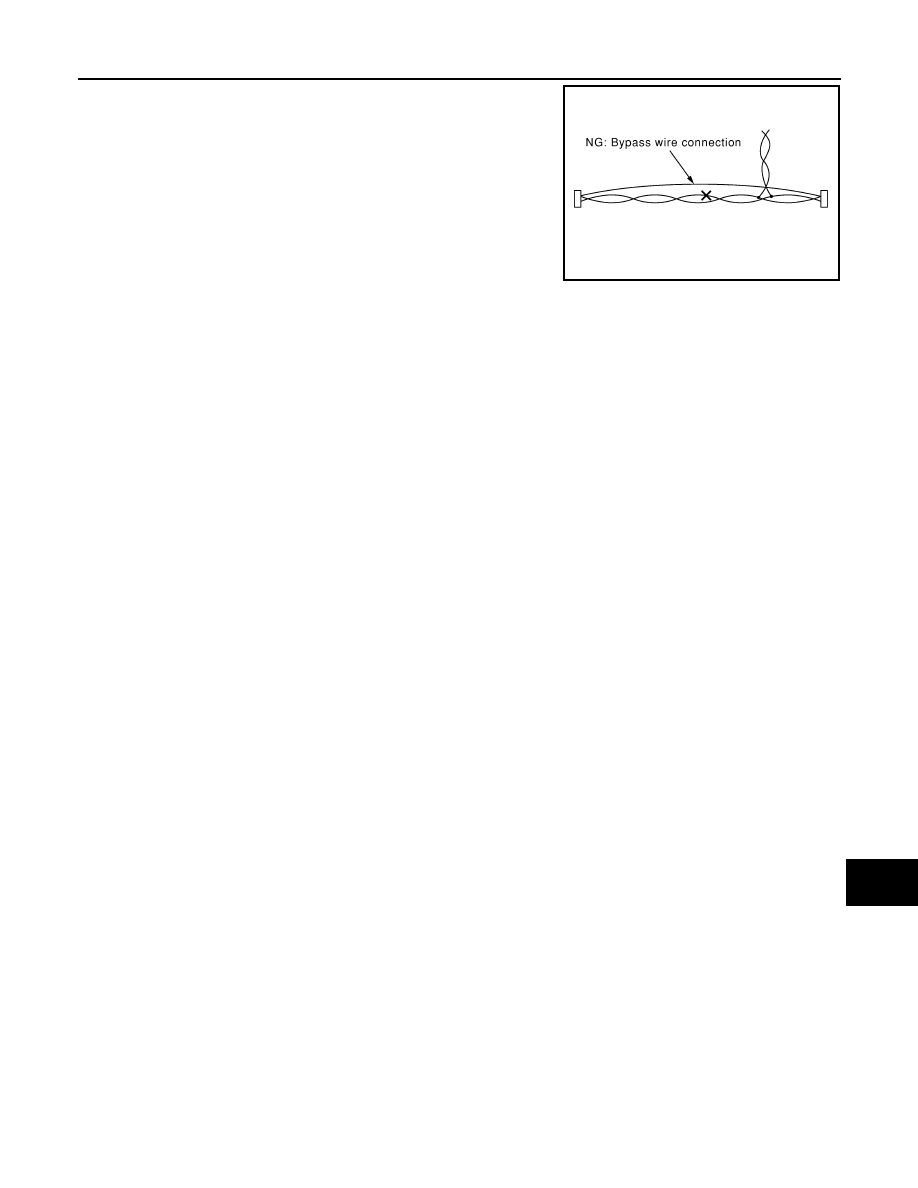

• Do not perform bypass wire connections for the repair parts. (The

spliced wire will become separated and the characteristics of

twisted line will be lost.)

Precaution for Work

INFOID:0000000009174377

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and prevent them from being dropped.

• Replace a deformed or damaged clip.

• If a part is specified as a non-reusable part, always replace it with a new one.

• Be sure to tighten bolts and nuts securely to the specified torque.

• After installation is complete, be sure to check that each part works properly.

• Follow the steps below to clean components:

- Water soluble dirt:

• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.

• Then rub with a soft, dry cloth.

- Oily dirt:

• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty

area.

• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.

• Then rub with a soft, dry cloth.

- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.

- For genuine leather seats, use a genuine leather seat cleaner.

PKIA0307E

AV-14

< PREPARATION >

[BASE AUDIO]

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009174378

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000009174379

Tool number
(Kent-Moore No.)
Tool name

Description

—

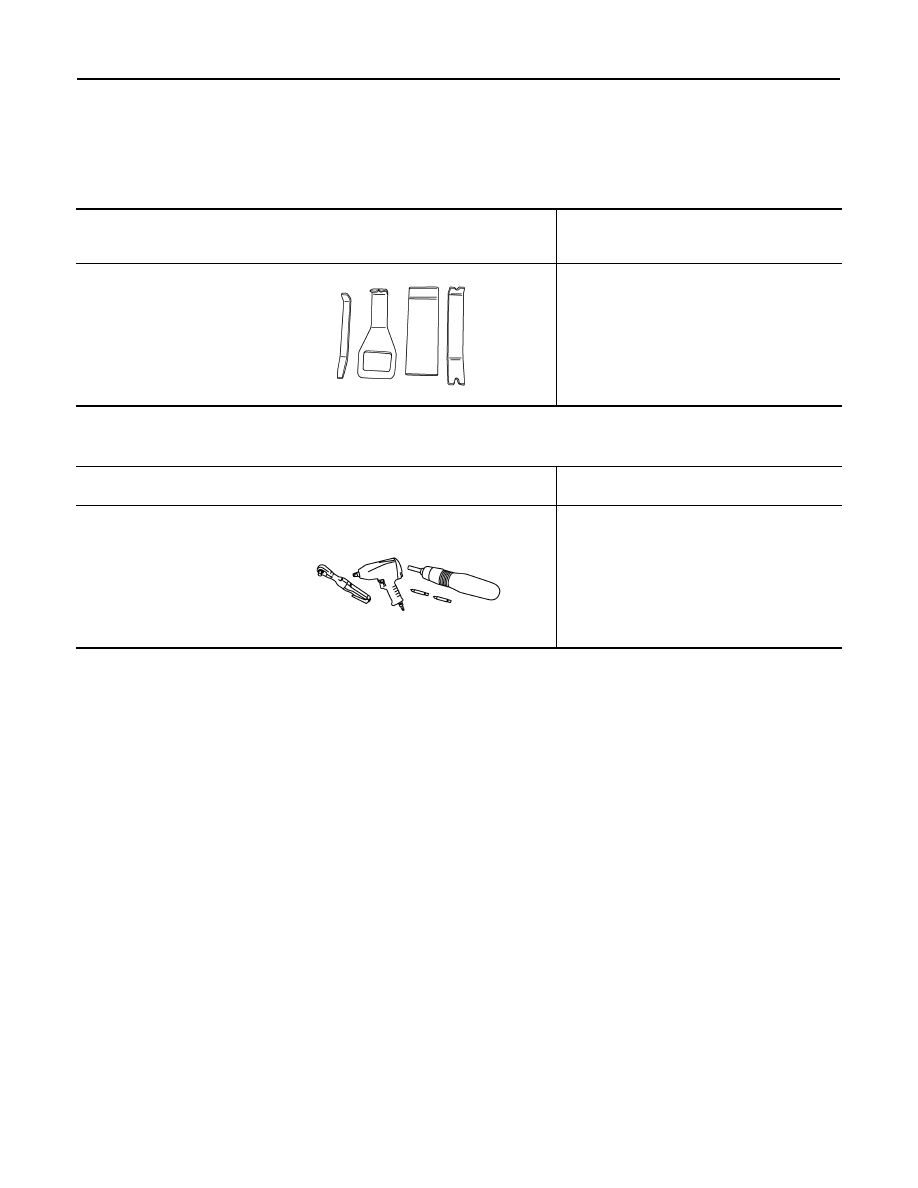

(J-46534)
Trim tool set

Removing trim components

AWJIA0483ZZ

(Kent-Moore No.)
Tool name

Description

( — )
Power tools

Loosening nuts, screws and bolts

PIIB1407E
