Nissan Pathfinder. Manual - part 1





ACC-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009726118

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

ACCELERATOR PEDAL ASSEMBLY

ACC-3

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

REMOVAL AND INSTALLATION

ACCELERATOR PEDAL ASSEMBLY

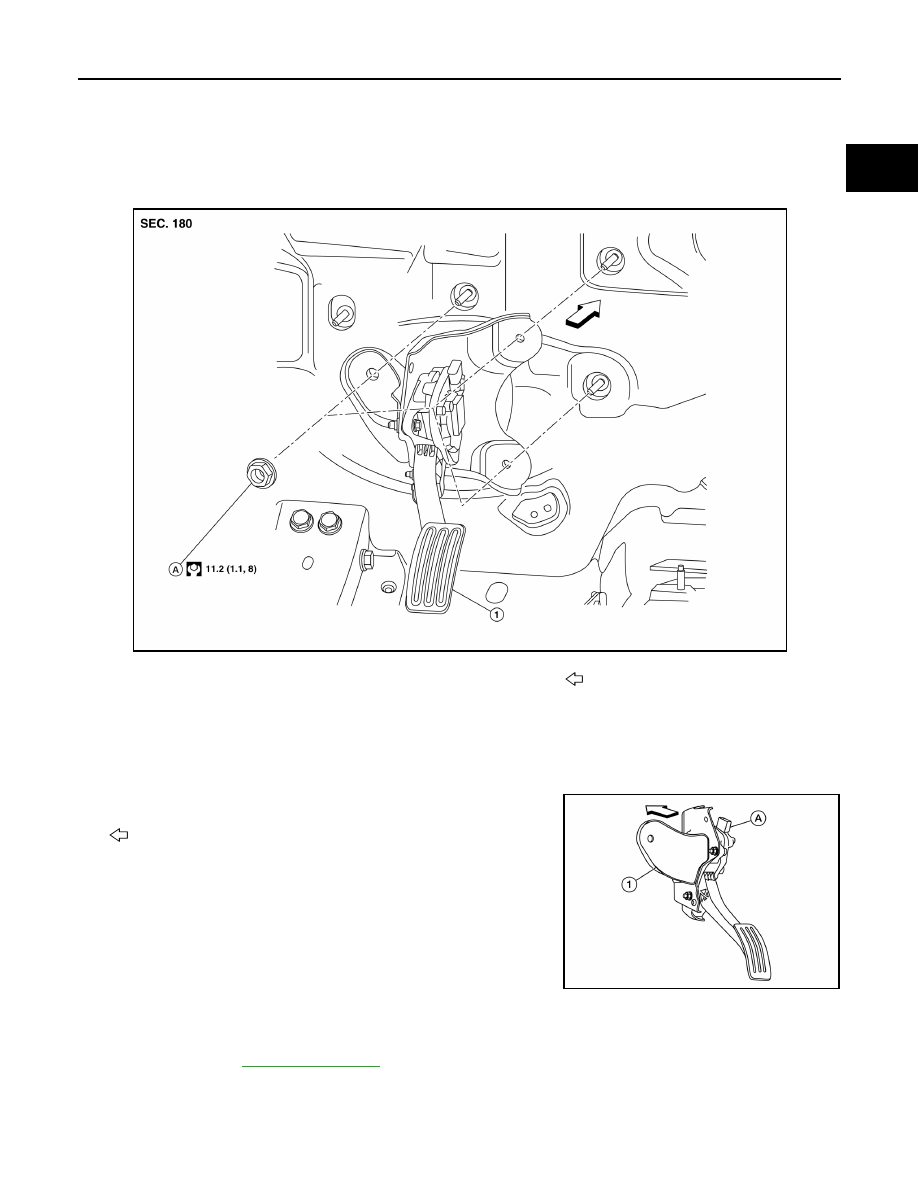

Exploded View

INFOID:0000000009178440

Removal and Installation

INFOID:0000000009178441

REMOVAL

1. Remove three accelerator pedal assembly nuts.
2. Disconnect harness connector (A) from the accelerator pedal

assembly (1).

: Front

3. Remove the accelerator pedal assembly.

CAUTION:

• Do not disassemble accelerator pedal assembly.

• Do not drop or impact accelerator pedal assembly.

• Do not expose accelerator pedal assembly to water.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

For inspection, refer to

ACC-3, "Inspection"

.

Inspection

INFOID:0000000009178442

INSPECTION AFTER INSTALLATION

1.

Accelerator pedal assembly

A. Nut

Front

ALBIA0775GB

ALBIA0776GB

ACC-4

< REMOVAL AND INSTALLATION >

ACCELERATOR PEDAL ASSEMBLY

• Check that the accelerator pedal moves smoothly within the speci-

fied range.

: Front

• Check the accelerator pedal height.

• Depress and release the accelerator pedal to check that it returns quickly and smoothly to the original

released position.

CAUTION:

• Whenever the harness connector of the accelerator pedal position sensor has been disconnected,

perform "Accelerator Pedal Released Position Learning". Refer to

EC-141, "Work Procedure"

.

• The accelerator pedal should operate smoothly without catching when the pedal operating force is

released. The pedal should return smoothly to the fully raised position. The spring should be free

from damage.

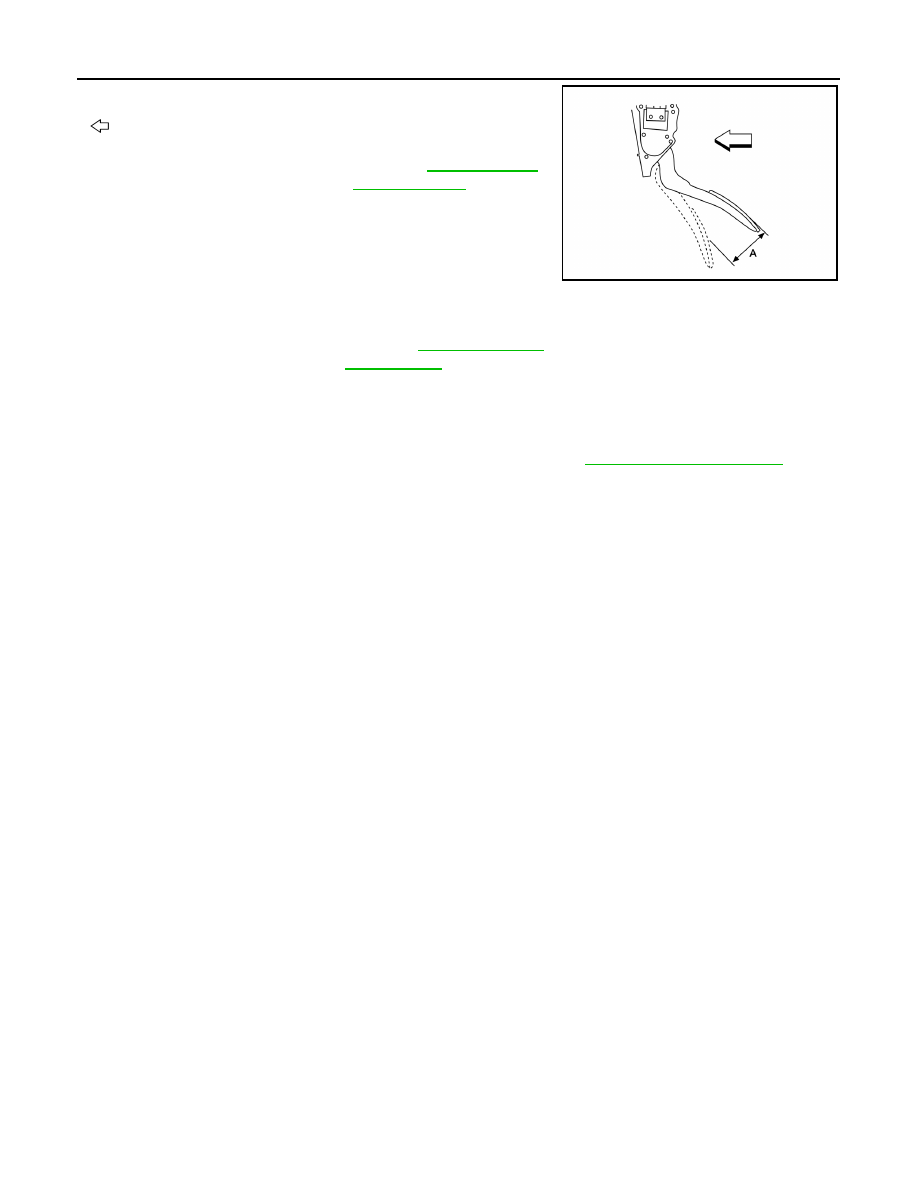

Accelerator pedal stroke (A) : Refer to

ACC-5, "Accel-

erator Control"

ALBIA0798ZZ

Accelerator pedal height

: Refer to

ACC-5, "Acceler-

ator Control"
