EC-286

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

P1800 VIAS CONTROL SOLENOID VALVE 1

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK VIAS CONTROL SOLENOID VALVE 1

Refer to

EC-286, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace VIAS control solenoid valve 1.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

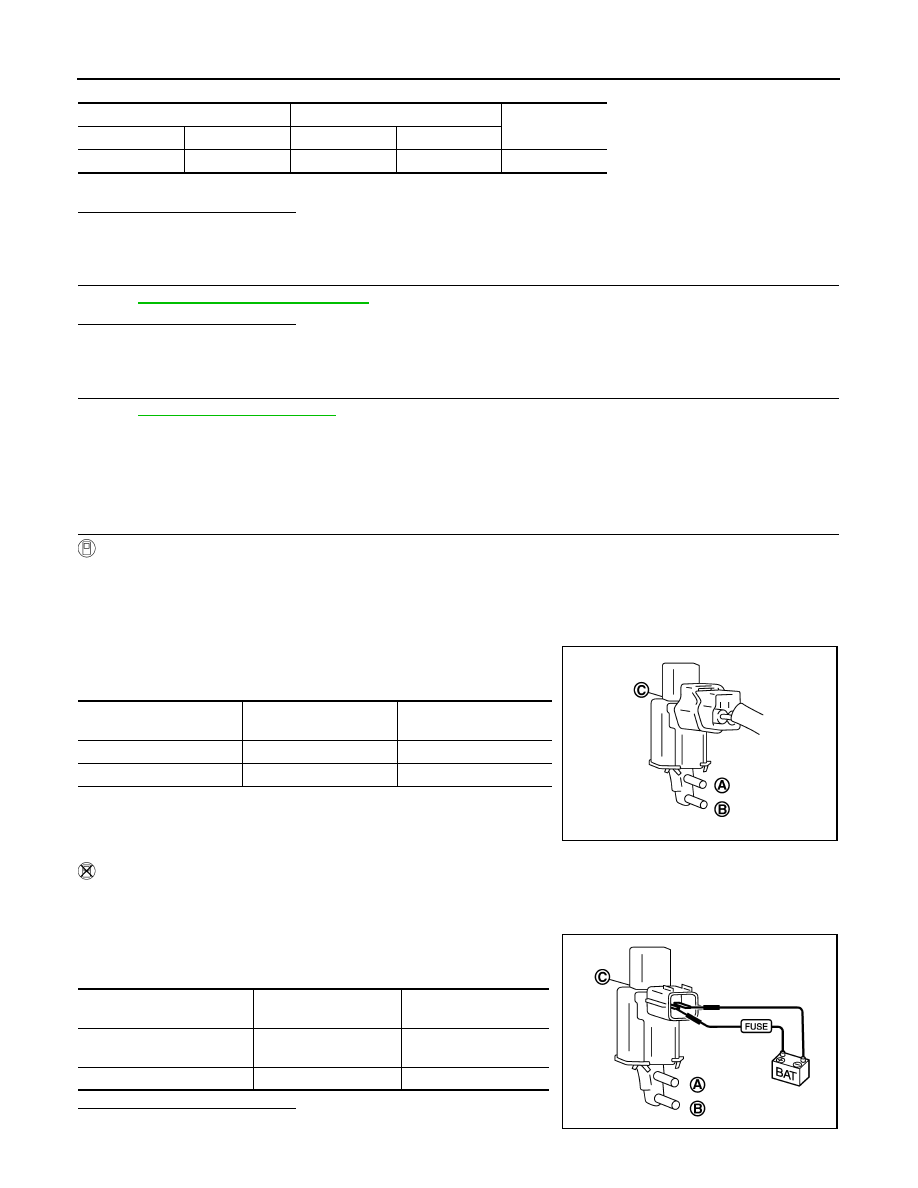

Component Inspection

INFOID:0000000003856771

1.

CHECK VIAS CONTROL SOLENOID VALVE 1

With CONSULT-III

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect vacuum hoses connected to VIAS control solenoid valve 1.

4.

Turn ignition switch ON.

5.

Select “VIAS S/V-1” in “ACTIVE TEST” mode with CONSULT-III.

6.

Check air passage continuity and operation delay time under the
following conditions.

Without CONSULT-III

1.

Turn ignition switch OFF.

2.

Disconnect VIAS control solenoid valve 1 harness connector.

3.

Disconnect vacuum hoses connected to VIAS volume control solenoid valve 1.

4.

Check air passage continuity and operation delay time under the
following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

VIAS control solenoid valve 1

ECM

Continuity

Connector

Terminal

Connector

Terminal

F74

2

F7

27

Existed

Condition

(VIAS S/V 1)

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

ON

Existed

Not existed

OFF

Not existed

Existed

JMBIA0180ZZ

Condition

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

12 V direct current supply be-
tween terminals 1 and 2

Existed

Not existed

No supply

Not existed

Existed

PBIB2532E

P1800 VIAS CONTROL SOLENOID VALVE 1

EC-287

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> Replace VIAS control solenoid valve 1

EC-288

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

P1801 VIAS CONTROL SOLENOID VALVE 2

P1801 VIAS CONTROL SOLENOID VALVE 2

Description

INFOID:0000000003856772

The VIAS control solenoid valve 2 cuts the intake manifold vacuum signal for power valve 2 control. It
responds to ON/OFF signals from the ECM. When the solenoid is OFF, the vacuum signal from the intake
manifold is cut. When the ECM sends an ON signal the coil pulls the plunger downward and sends the vac-
uum signal to the power valve actuator 2.

DTC Logic

INFOID:0000000003856773

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CONDITIONING

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm battery voltage is more than 11 V at idle.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start engine and let it idle for at least 5 seconds.

2.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-288, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000003856774

1.

CHECK VIAS CONTROL SOLENOID VALVE 2 POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect VIAS control solenoid valve 2 harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between VIAS control solenoid valve 2 harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

2.

CHECK VIAS CONTROL SOLENOID VALVE 2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between VIAS control solenoid valve 2 harness connector and ECM harness con-
nector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1801

VIAS control solenoid valve 2
circuit

An excessively low or high voltage signal
is sent to ECM through the VIAS control
solenoid valve 2.

• Harness or connectors

(The solenoid valve 2 circuit is open or
shorted.)

• VIAS control solenoid valve 2

VIAS control solenoid valve 2

Ground

Voltage

Connector

Terminal

F75

1

Ground

Battery voltage

P1801 VIAS CONTROL SOLENOID VALVE 2

EC-289

< COMPONENT DIAGNOSIS >

[VQ25DE, VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit, short to ground or short to power in harness or connectors.

3.

CHECK VIAS CONTROL SOLENOID VALVE 2

Refer to

EC-289, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace VIAS control solenoid valve 2.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-35, "Intermittent Incident"

.

>> INSPECTION END

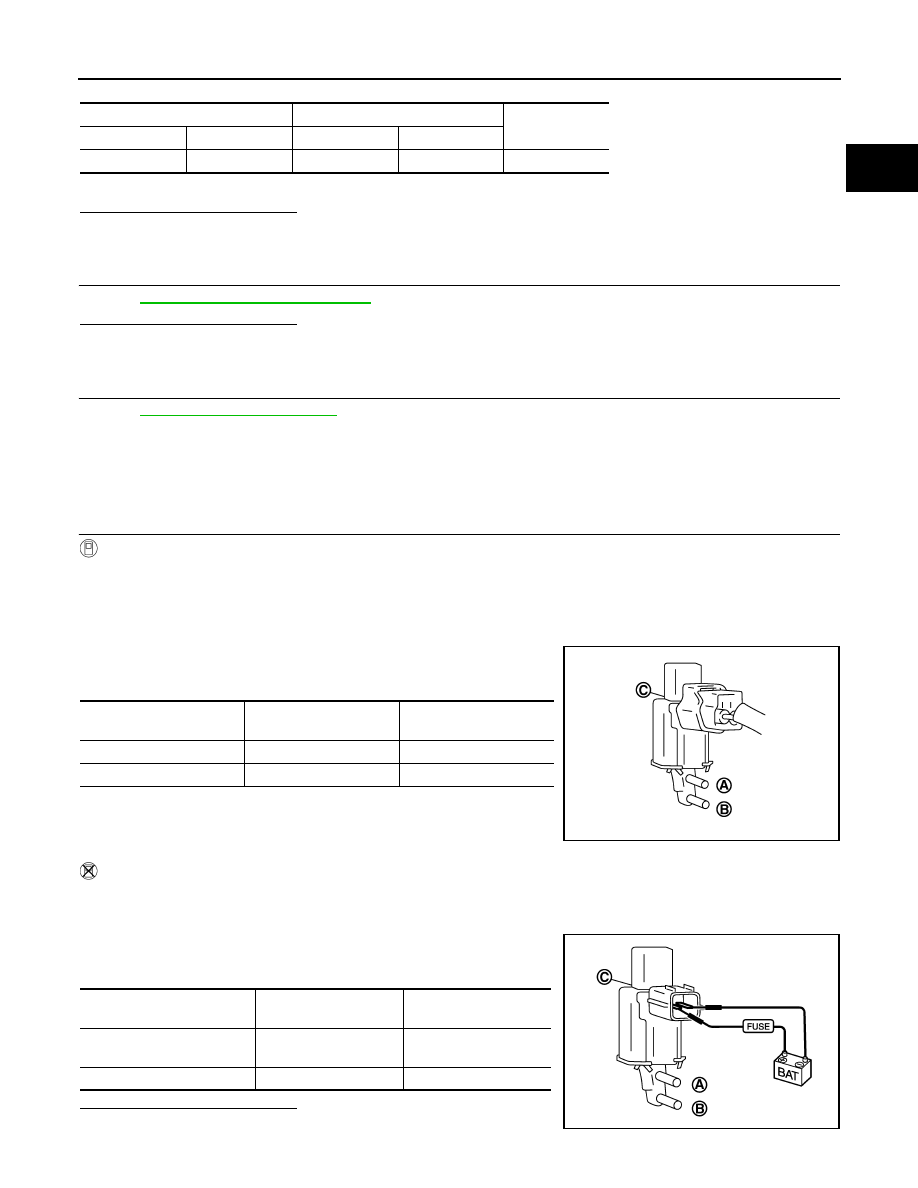

Component Inspection

INFOID:0000000003856775

1.

CHECK VIAS CONTROL SOLENOID VALVE 2

With CONSULT-III

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Disconnect vacuum hoses connected to VIAS control solenoid valve 2.

4.

Turn ignition switch ON.

5.

Select “VIAS S/V-2” in “ACTIVE TEST” mode with CONSULT-III.

6.

Check air passage continuity and operation delay time under the
following conditions.

Without CONSULT-III

1.

Turn ignition switch OFF.

2.

Disconnect VIAS control solenoid valve 2 harness connector.

3.

Disconnect vacuum hoses connected to VIAS volume control solenoid valve 2.

4.

Check air passage continuity and operation delay time under the
following conditions.

Is the inspection result normal?

YES

>> INSPECTION END

VIAS control solenoid valve 2

ECM

Continuity

Connector

Terminal

Connector

Terminal

F75

2

F7

26

Existed

Condition

(VIAS S/V 2)

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

ON

Existed

Not existed

OFF

Not existed

Existed

JMBIA0180ZZ

Condition

Air passage continuity

between (A) and (B)

Air passage continuity

between (A) and (C)

12 V direct current supply be-
tween terminals 1 and 2

Existed

Not existed

No supply

Not existed

Existed

PBIB2532E
