COMBINATION METER

INL-101

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

NOTE:

Some items are not available according to vehicle specification.

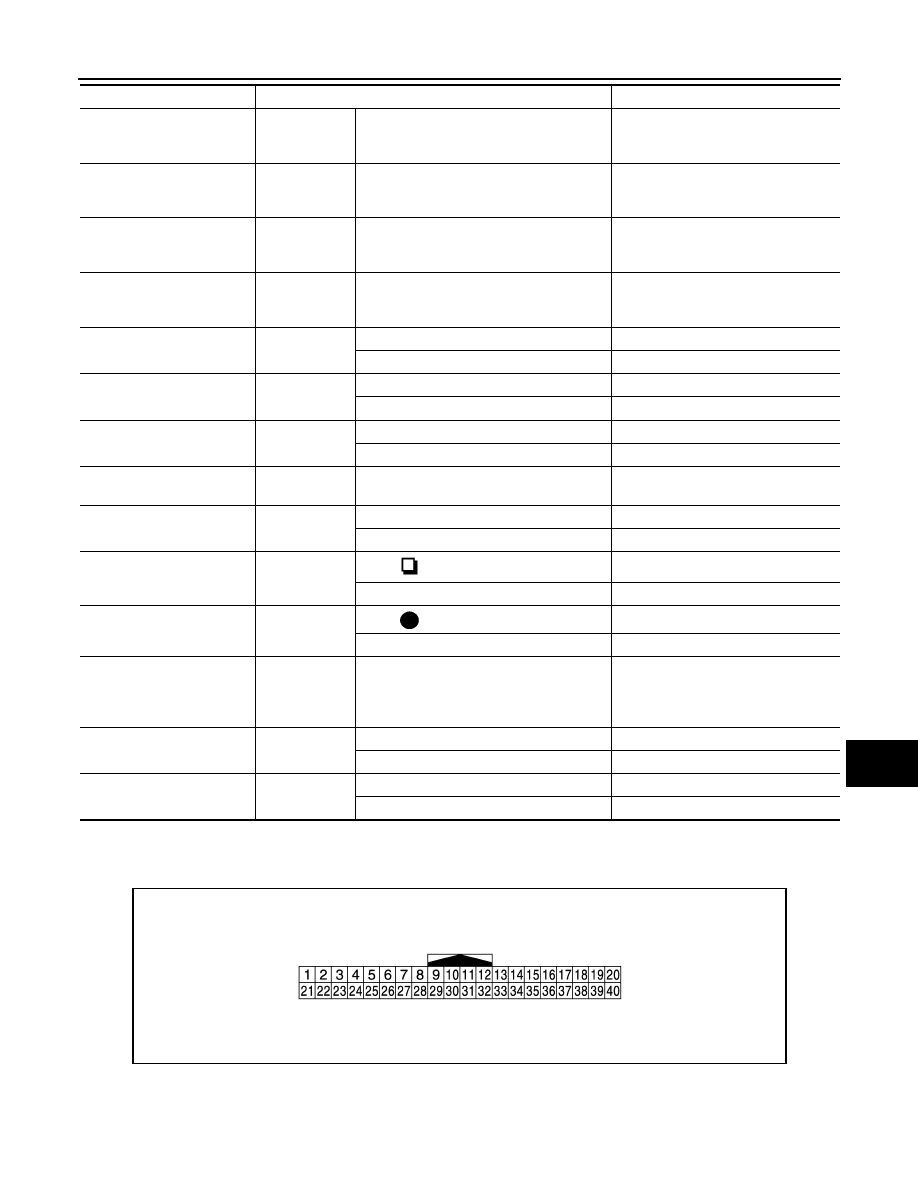

TERMINAL LAYOUT

PHYSICAL VALUES

AT SFT UP SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

AT SFT DWN SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ST SFT UP SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ST SFT DWN SW

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Seat belt (driver side) not fastened

On

Seat belt (driver side) fastened

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

DISTANCE
[km]

Ignition switch
ON

—

Possible driving distance calculated by
combination meter

A/C AMP CONN

Ignition switch
ON

Other than the following

On

Receives ambient sensor power signal

Off

ENTER SW

Ignition switch
ON

When

is

pressed

On

Other than the above

Off

SELECT SW

Ignition switch
ON

When

is

pressed

On

Other than the above

Off

OUTSIDE TEMP
[

°

C] or [

°

F]

Ignition switch
ON

—

Equivalent to ambient temperature
NOTE:
This may not match the indicated value
on the information display.

FUEL LOW SIG

Ignition switch
ON

Low fuel warning displayed

On

Low fuel warning not displayed

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

Monitor Item

Condition

Value/Status

JPNIA0968GB

INL-102

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(Y)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

2

(O)

Ground

IGN signal

Input

Ignition
switch
ON

—

Battery voltage

3

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

5

(SB)

Ground

Illumination control signal

Output

Ignition
switch
ON

• Lighting switch 1ST
• When meter illumination

is maximum

• Lighting switch 1ST
• When meter illumination

is minimum

8

(SB)

10

(O)

Trip reset signal

Input

Ignition
switch
ON

When trip reset switch is
pressed.

0 V

Other than the above

5 V

10

(O)

Ground

Meter control switch ground

—

Ignition
switch
ON

—

0  V

11

(L)

10

(O)

Enter switch signal

Input

Ignition
switch
ON

When

is

pressed.

0 V

Other than the above

5 V

12

(R)

10

(O)

Select switch signal

Input

Ignition
switch
ON

When

 is pressed.

0 V

Other than the above

5 V

13

(Y

*1

 or

V

*2

)

10

(O)

Illumination control switch
signal (+)

Input

Ignition
switch
ON

When

is

pressed.

0 V

Other than the above

5 V

14

(GR)

10

(O)

Illumination control switch
signal (-)

Input

Ignition
switch
ON

When

is

pressed.

0 V

Other than the above

5 V

15

(BR)

Ground

Air bag signal

Input

Ignition
switch
ON

Air bag warning lamp
ON

4 V

Air bag warning lamp
OFF

0 V

JPNIA0828GB

JPNIA0827GB

COMBINATION METER

INL-103

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

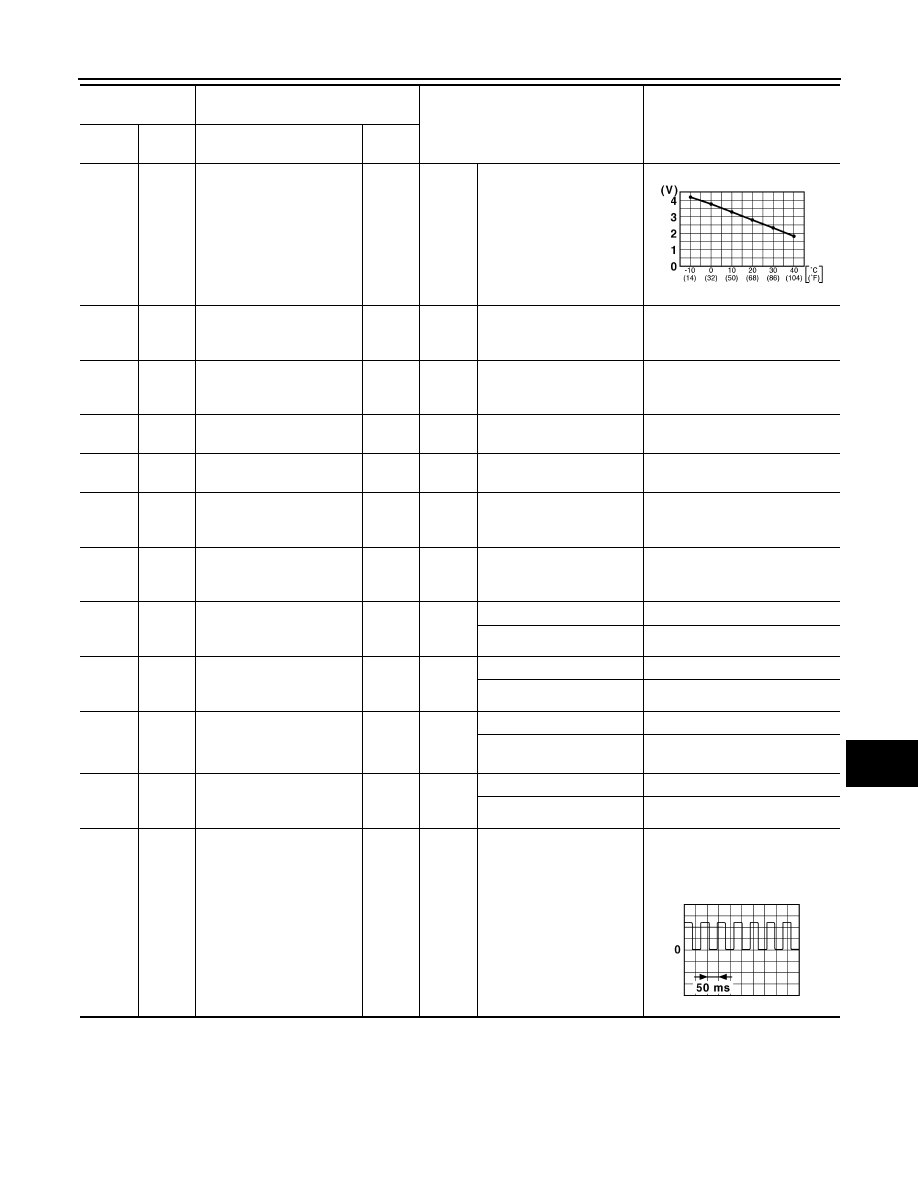

18

(L)

Ground

Ambient sensor signal

Input

Ignition
switch
ON

Changes depending to am-
bient temperature.

19

(P)

Ground

Ambient sensor power

Input

Ignition
switch
ON

—

5  V

20

(Y)

Ground

Ambient sensor ground

Input

Ignition
switch
ON

—

0  V

21

(L)

—

CAN-H

—

—

—

—

22

(P)

—

CAN-L

—

—

—

—

23

(B)

Ground

Ground

—

Ignition
switch
ON

—

0  V

24

(W)

Ground

Fuel level sensor signal
ground

—

Ignition
switch
ON

—

0  V

25

(BR)

Ground

Alternator signal

Input

Ignition
switch
ON

Charge warning lamp ON

2 V

Charge warning lamp OFF

12 V

26

(G)

Ground

Parking brake switch signal

Input

Ignition
switch
ON

Parking brake ON

0 V

Parking brake OFF

5 V

27

(V)

Ground

Brake fluid level switch sig-
nal

Input

Ignition
switch
ON

Brake fluid level is normal

12 V

Brake fluid level is less than
LOW level

0 V

29

(R)

Ground

Washer level switch signal

Input

Ignition
switch
ON

Washer level switch ON

0 V

Washer level switch OFF

5 V

30

(P)

Ground

Vehicle speed signal output
(2-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0014GB

JSNIA0015GB

INL-104

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

*1: Without automatic drive positioner

*2: With automatic drive positioner

31

(V)

Ground

Vehicle speed signal output
(8-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

32

(LG)

Ground

Overdrive control switch
signal

Input

Ignition
switch
ON

Overdrive control switch
pressed.

0 V

Overdrive control switch
not pressed.

12 V

34

(G)

Ground

Fuel level sensor signal

Input

Ignition
switch
ON

—

35

(SB)

Ground

Seat belt buckle switch sig-
nal (driver side)

Input

Ignition
switch
ON

When driver seat belt is fas-
tened.

12 V

When driver seat belt is un-
fastened.

0 V

36

(R)

Ground

Seat belt buckle switch sig-
nal (passenger side)

Input

Ignition
switch
ON

• When getting in the pas-

senger seat.

• When passenger seat

belt is fastened.

12 V

• When getting in the pas-

senger seat.

• When passenger seat

belt is unfastened.

0 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0012GB

JPNIA0740ZZ
