GW-20

< REMOVAL AND INSTALLATION >

FRONT DOOR GLASS

4.

Operate the power window main switch to raise or lower the
door window until the glass mounting bolts can be seen.

5.

Remove the glass mounting bolts.

6.

Remove the front door mirror inner cover.

7.

Remove the front door inside seal.

8.

Hold securely the front door glass and pull it out of the sash to
remove the door glass.
NOTE:
Never raise the front glass at the top upper of the door after the
door glass is removed.

9.

Remove the front door glass run.

10. Remove the front door lower sash lower bolt, then remove the front door lower sash.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000005513265

SYSTEM INITIALIZATION

Initialize the system if any of the following work has been done.
• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.
• Removal and installation of the motor from the regulator assembly.
• Removal and installation of the harness connector of the power window switch.
• Removal and installation of the door glass.
• Removal and installation of the front door glass run.
• Disconnection and connection of the minus terminal of the battery.

 Initialization

Follow the steps below after installing each component to the vehicle.

1.

Disconnect the minus terminal of battery or disconnect power window switch harness connector tempo-
rarily. Then reconnect after at least 1 minute.

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window.

4.

Draw fully the power window switch in the up direction (auto close position) and hold. Continue holding
the switch even when window is completely closed and then release after more than 3 seconds.

5.

Inspect the anti-pinch system function.
NOTE:
Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the
system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM

: Bolt

JMKIA1785ZZ

JMKIA0626ZZ

FRONT DOOR GLASS

GW-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

1.

Fully open the door glass.

2.

Place a wooden piece (wooden hammer handle, etc.) at near fully closed position.

3.

Perform fully closing operation with auto up switch.

• Check that the glass reverses without pinching the wooden piece, is lowered approximately 150 mm (5.906

in) or for more than 3 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lowering.

CAUTION:

• Be careful not to be pinched.
• Check that the auto up function is normal before the inspection following the system initialization.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and guide rail
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

GW-22

< REMOVAL AND INSTALLATION >

FRONT REGULATOR

FRONT REGULATOR

Exploded View

INFOID:0000000005513266

Removal and Installation

INFOID:0000000005513267

REMOVAL

1.

Remove the front door glass. Refer to

GW-19, "Removal and Installation"

.

2.

Disconnect the power window motor harness connector.

3.

Remove the mounting bolts, and pull out the module assembly.

4.

Disengage the harness clip from the back of the module assem-
bly, and then remove the module assembly.

INSTALLATION

Install in the reverse order of removal.

1.    Front door glass run

2.

Front door glass

3.

Regulator assembly

4.

Module base

5.

Power window motor

6.

Front door inside seal

7.

Front door lower sash

8.

Front door panel

: Vehicle front

JMKIA3604ZZ

: Bolt

JMKIA1786ZZ

FRONT REGULATOR

GW-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Disassembly and Assembly

INFOID:0000000005513268

DISASSEMBLY

1.

Remove the power window motor from the module assembly.

2.

Remove the regulator assembly mounting bolts, then remove the regulator assembly from module base.

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000005513269

Inspection after Removal

Check the regulator assembly for the following items. Replace or
grease it if a malfunction is detected.
• Wire wear
• Regulator deformation

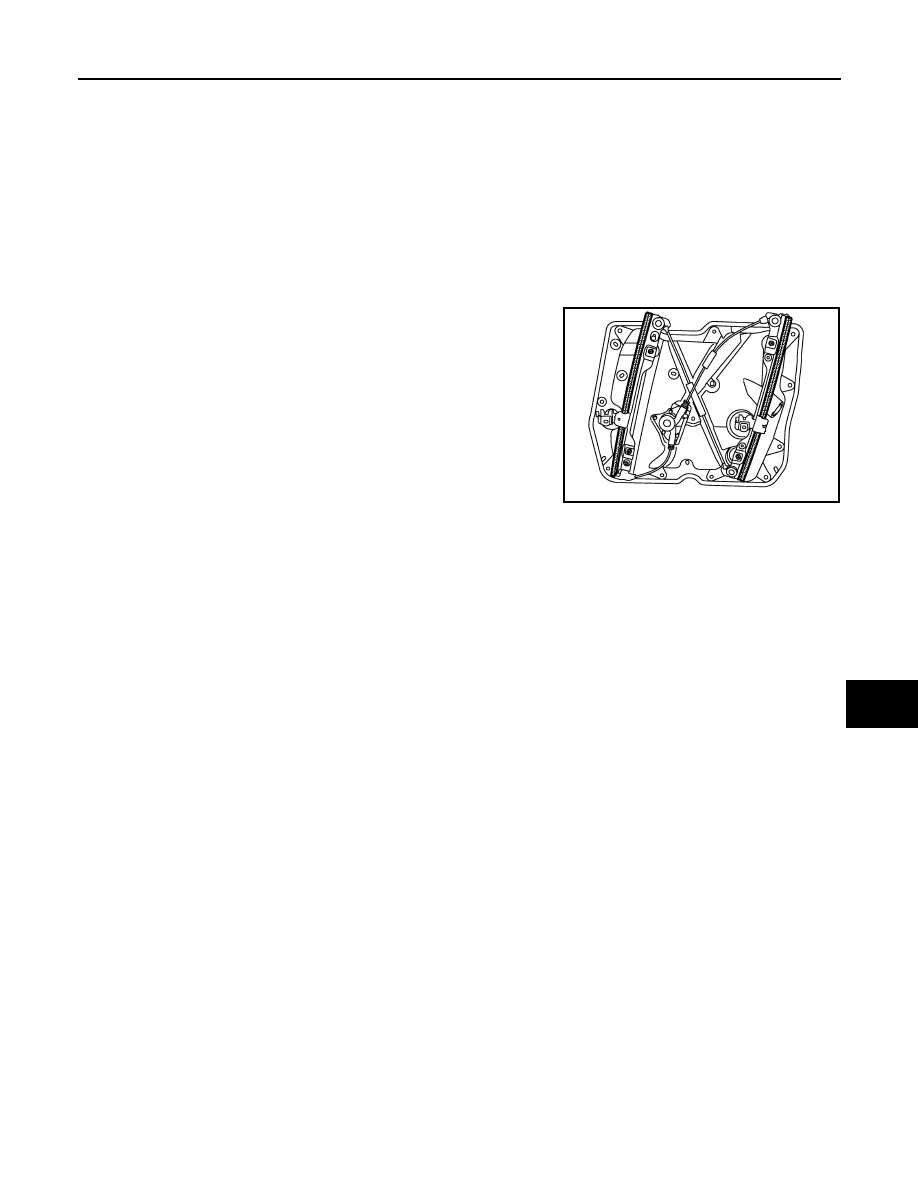

The shadow area in the figure show the application points of the
multi-purpose grease.

SYSTEM INITIALIZATION

Initialize the system if any of the following work has been done.
• Electric power supply to power window switch or motor is interrupted by blown fuse or disconnecting battery

cable, etc.

• Removal and installation of the regulator assembly.
• Removal and installation of the motor from the regulator assembly.
• Removal and installation of the harness connector of the power window switch.
• Removal and installation of the door glass.
• Removal and installation of the front door glass run.
• Disconnection and connection of the minus terminal of battery.

Initialization

Follow the steps below after installing each component to the vehicle.
1.

Disconnect the minus terminal of battery or disconnect power window switch harness connector tempo-
rarily. Then reconnect after at least 1 minute.

2.

Turn ignition switch ON.

3.

Operate power window switch to fully open the window.

4.

Draw fully the power window switch in the up direction (auto close position) and hold. Continue holding
the switch even when window is completely closed and then release after more than 3 seconds.

5.

Inspect the anti-pinch system function.
NOTE:
Initialization may be cancelled with continuous opening and closing operation. In this case, initialize the
system.

INSPECT THE FUNCTION OF THE ANTI-PINCH SYSTEM

1.

Fully open the door glass.

2.

Place a wooden piece (wooden hammer handle, etc.) at near fully closed position.

3.

Perform fully closing operation with auto up switch.

• Check that the glass reverses without pinching the wooden piece, is lowered approximately 150 mm (5.906

in) or for more than 3 seconds and then stops.

• The glass should not be raised with power window main switch operated while it is reversing or lowering.

CAUTION:

• Be careful not to be pinched.
• Check that the auto up function is normal before the inspection following the system initialization.

JMKIA1787ZZ
