IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-343

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

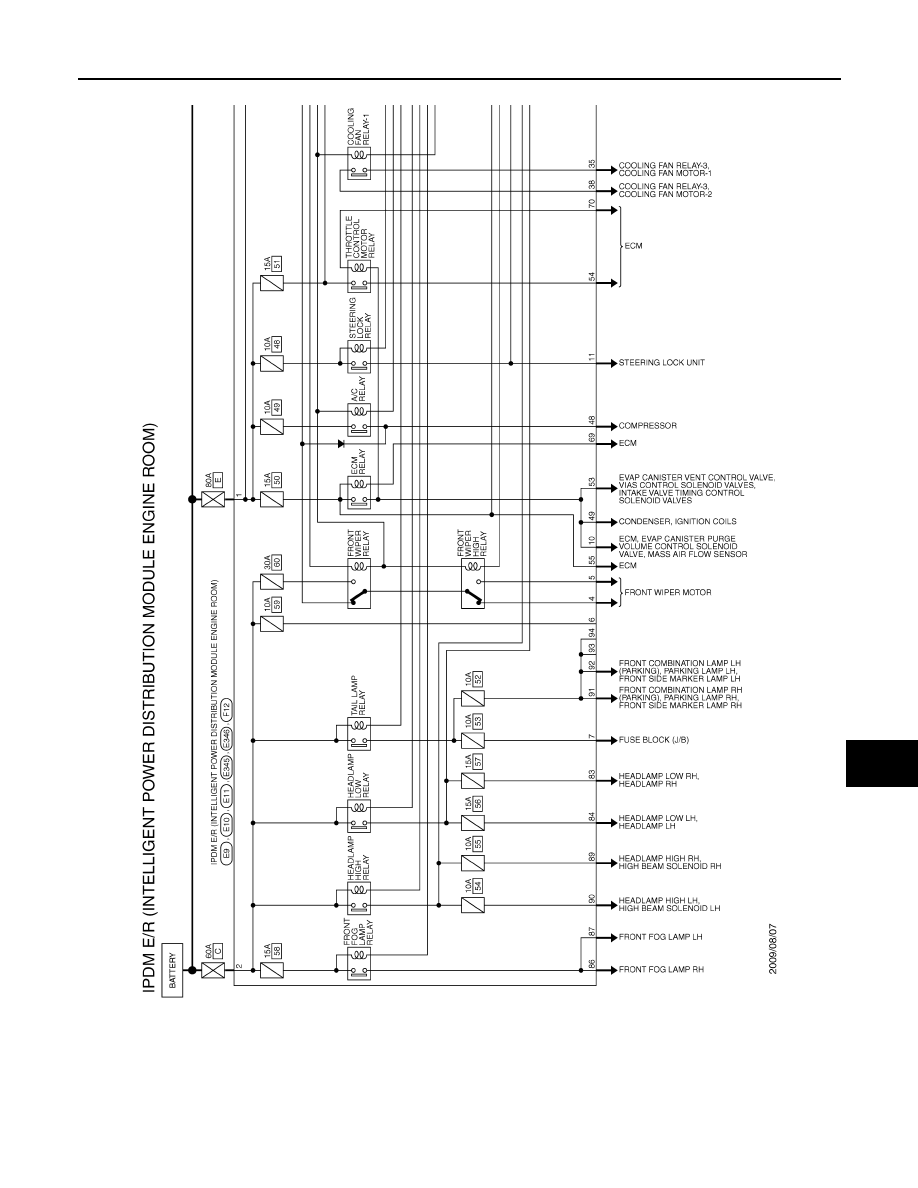

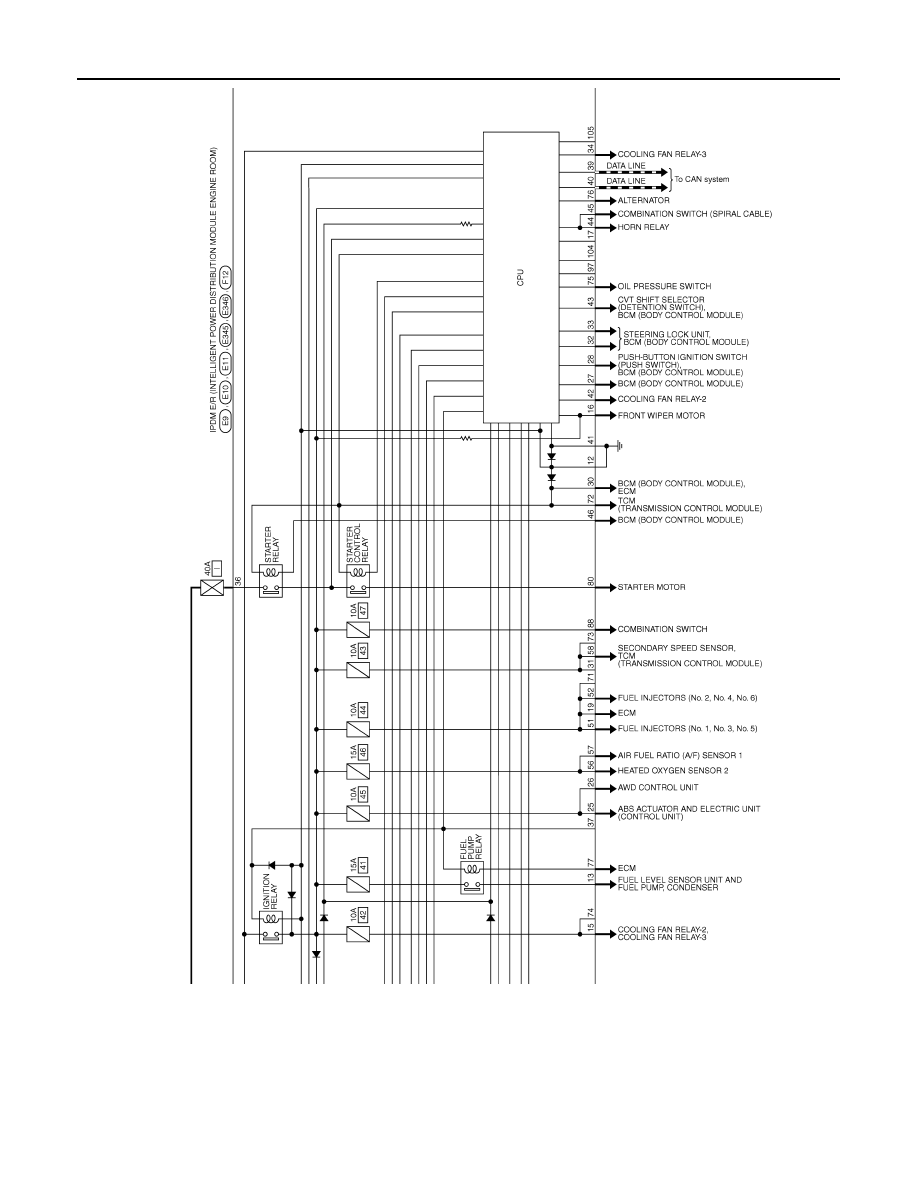

Wiring Diagram - IPDM E/R -

INFOID:0000000005681425

JCMWM4888GB

EXL-344

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

JCMWM4889GB

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

EXL-345

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

JCMWM4890GB

EXL-346

< ECU DIAGNOSIS INFORMATION >

[HALOGEN TYPE]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

Fail-safe

INFOID:0000000005681426

CAN COMMUNICATION CONTROL

When CAN communication with ECM and BCM is impossible, IPDM E/R performs fail-safe control. After CAN
communication recovers normally, it also returns to normal control.

If No CAN Communication Is Available With ECM

JCMWM4891GB
