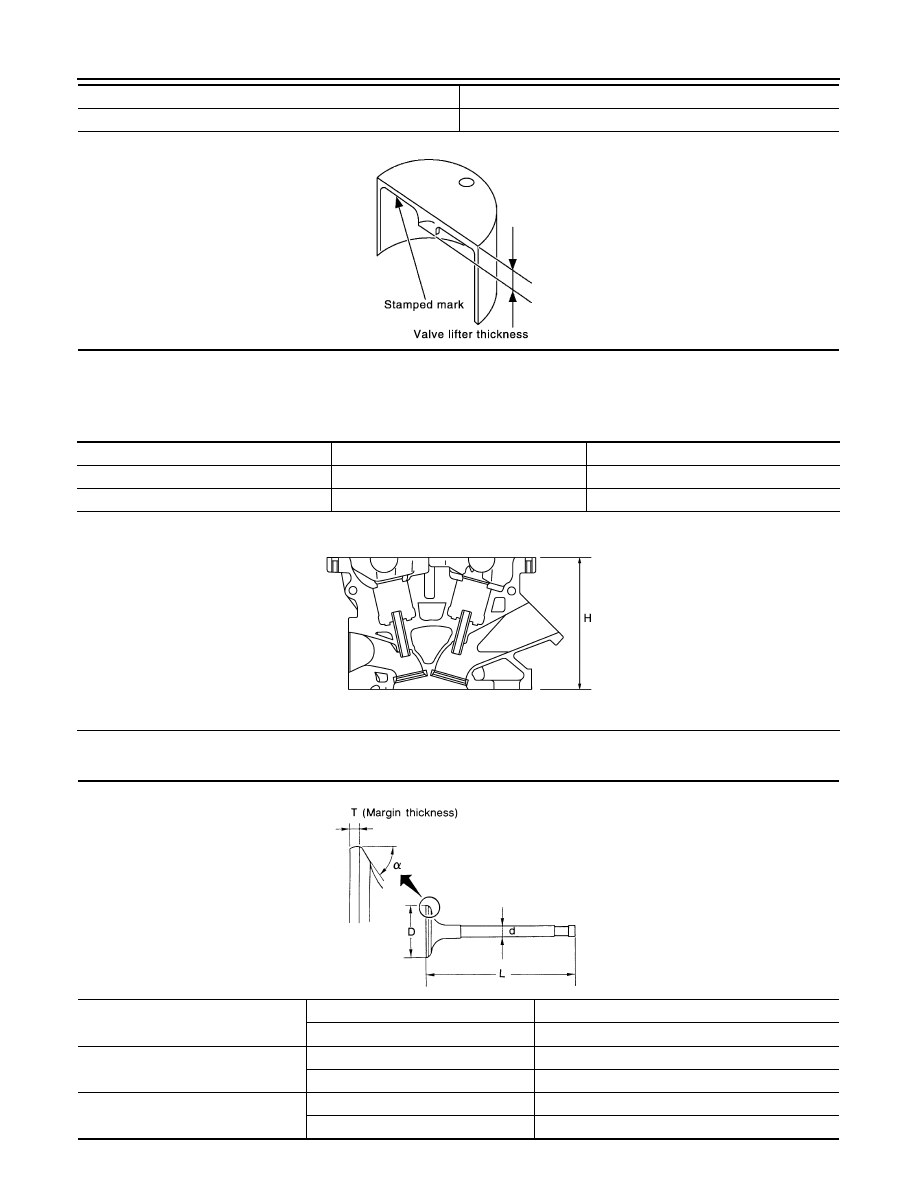

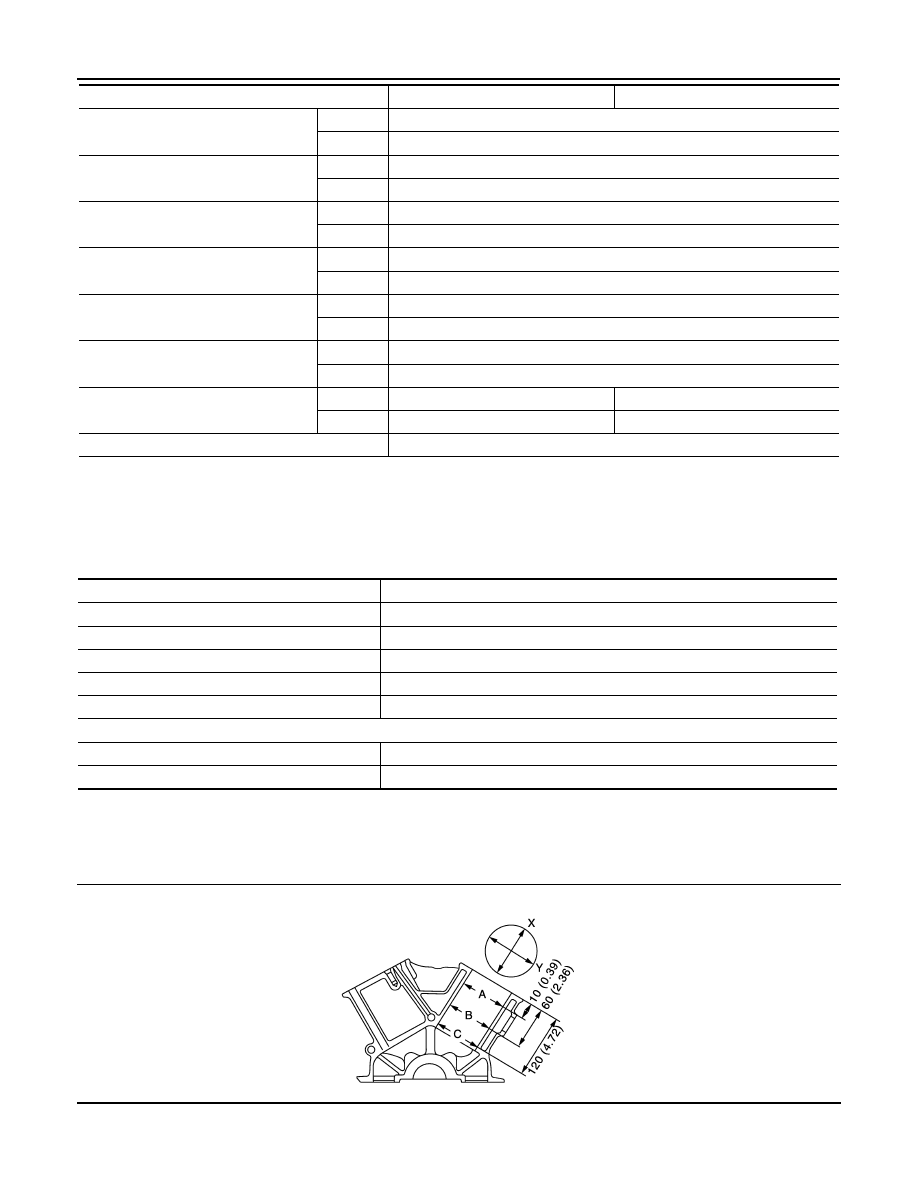

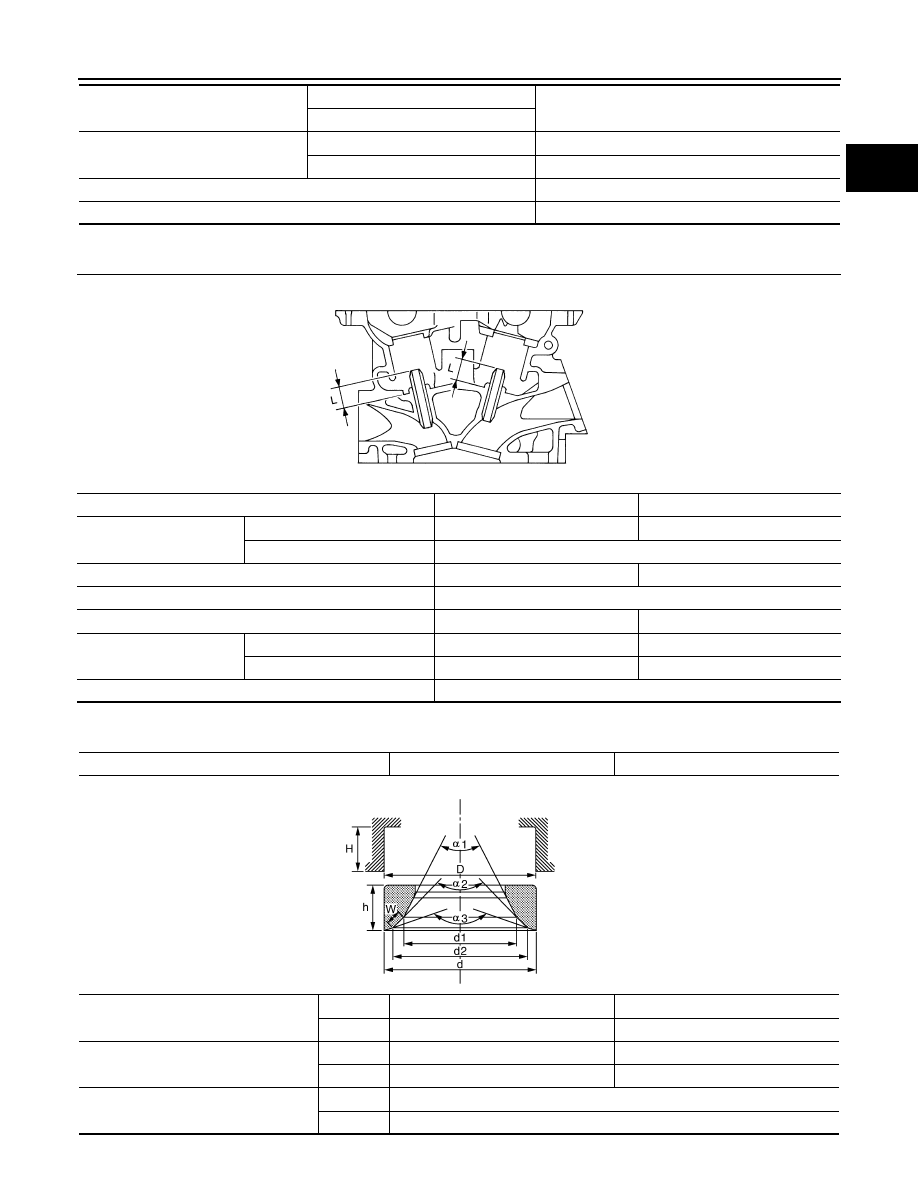

EM-148 < SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) Cylinder Head INFOID:0000000005515984 CYLINDER HEAD Unit: mm (in) VALVE DIMENSIONS Unit: mm (in) 840 8.40 (0.3307) Identification (stamped) mark Thickness SEM758G Items Standard Limit Head surface distortion Less than 0.03 (0.0012) 0.1 (0.004) Normal cylinder head height “H” 126.3 - 126.5 (4.97 - 4.98) — PBIC0924E Valve head diameter “D” Intake 36.6 - 36.9 (1.441 - 1.453) Exhaust 30.2 - 30.5 (1.189 - 1.201) Valve length “L” Intake 97.13 (3.8240) Exhaust 94.67 (3.7272) Valve stem diameter “d” Intake 5.965 - 5.980 (0.2348 - 0.2354) Exhaust 5.962 - 5.970 (0.2347 - 0.2350) SEM188 |
