DLN-62

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

GEAR RING

8.

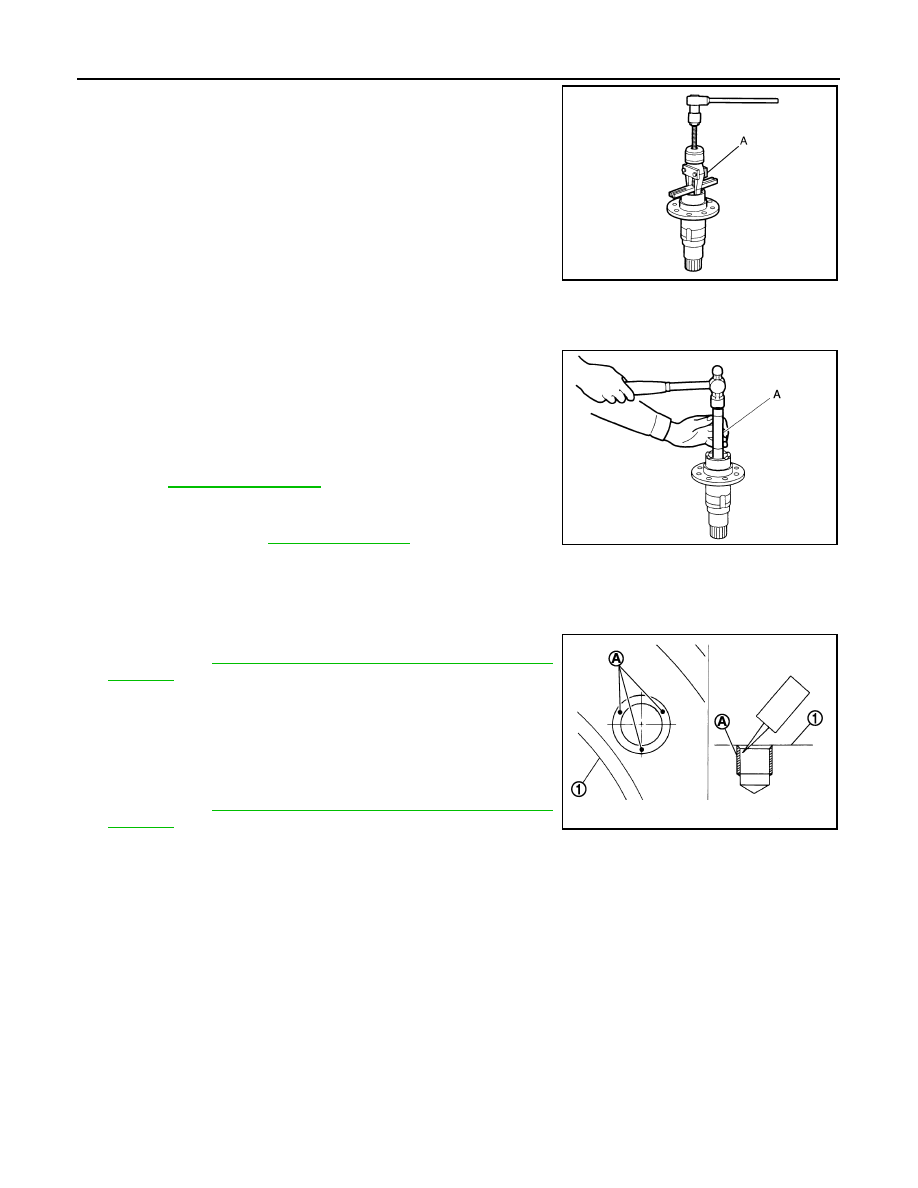

Remove gear ring oil seal from the gear ring with a puller (A)
[SST: KV381054S0 (J-34286)].

Assembly

INFOID:0000000005514220

1.

Install gear ring oil seal to the gear ring with the drift (A) [SST: ST33230000 (J-25805-01)].
Apply multi-purpose grease onto oil seal lips, and gear oil onto
the circumference of the oil seal.

CAUTION:

• Never reuse the oil seal.
• The oil seal back position after the installation shall be

56.5 mm (2.224 in) from the gear ring end.

2.

Select gear ring bearing adjusting shim (transfer case side).
Refer to

DLN-68, "Adjustment"

.

3.

Assemble the selected gear ring adjusting shim (transfer case
side) and gear ring bearing outer race (transfer case side) to the
transfer case. Refer to

DLN-76, "Assembly"

.

Apply gear oil to the gear ring bearing (transfer case side).

CAUTION:

Never reuse gear ring bearing (transfer case side).

4.

Apply thread locking sealant into the thread hole for the drive gear (1).
Use Genuine High Strength Thread Locking Sealant or equiva-
lent. Refer to

GI-18, "Recommended Chemical Products and

Sealants"

.

a.

Completely clean and degrease the drive gear back face, thread
holes, and drive gear mounting bolts.

b.

Apply thread locking sealant onto the first and second threads
under the thread hole chamfering of the drive gear on 3 or more
different points (A).
Use Genuine High Strength Thread Locking Sealant or equiva-
lent. Refer to

GI-18, "Recommended Chemical Products and

Sealants"

.

5.

Install the drive gear to gear ring, and apply anti-corrosive oil
onto threads and seats on the mounting bolts.

CAUTION:

If the thread locking sealant is applied aside, quickly wipe it off.

6.

The drive gear mounting bolts are tightened according to the following torque.

CAUTION:

Temporary installation before tightening the bolts through to the completion of the tightening
should be within 90 seconds.

JPDIE0032ZZ

JPDIE0037ZZ

1st step

: 27 N·m (2.8 kg-m, 20 ft-lb)

2nd step

: 98.5 N·m (10 kg-m, 73 ft-lb)

JPDIE0038ZZ

GEAR RING

DLN-63

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

7.

Apply gear oil to gear ring bearing inner race (transfer case
side). Install the gear ring bearing inner race (transfer case side)
to gear ring with the drifts.

8.

Install gear ring bearing inner race (adaptor case side) with the
drifts.

Apply gear oil to the gear ring bearing (adapter case side).

CAUTION:

Never reuse gear ring bearing (adapter case side).

9.

Install the drive gear assembly to the transfer case.

10. Install adapter case. Refer to

DLN-58, "Assembly"

.

11. Check backlash, tooth contact, total preload and companion

flange runout. Refer to

DLN-68, "Adjustment"

.

CAUTION:

Measure the total preload without the adapter case oil seal.

Inspection After Disassembly

INFOID:0000000005514221

Check items below. If necessary, replace them with new ones.

GEAR

Check gear face and shaft for wear, cracks, damage, and seizure.

CAUTION:

If malfunction is detected on the drive gear or drive pinion, replace the drive gear and drive pinion as a
set.

BEARING

Check for seizure, peeling, wear, corrosion, sticking, unusual noise, roughness in hand turning, and other
damage.

CAUTION:

When replacing the bearing, always replace the inner race and outer race as a pair.

SHIM

Check for seizure, damage, and unusual wear.

CASE

Check the bearing mounting surface for wear, cracks and damages.

A

: Drift [SST: ST30720000 (J-25405)]

B

: Drift [SST: ST27863000 (   —   )]

C

: Drift [SST: KV40101630 (J-35870)]

JPDIE0039ZZ

A

: Drift [SST: ST30720000 (J-25405)]

B

: Drift [SST: KV38102510 (   —   )]

JPDIE0040ZZ

DLN-64

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

DRIVE PINION

DRIVE PINION

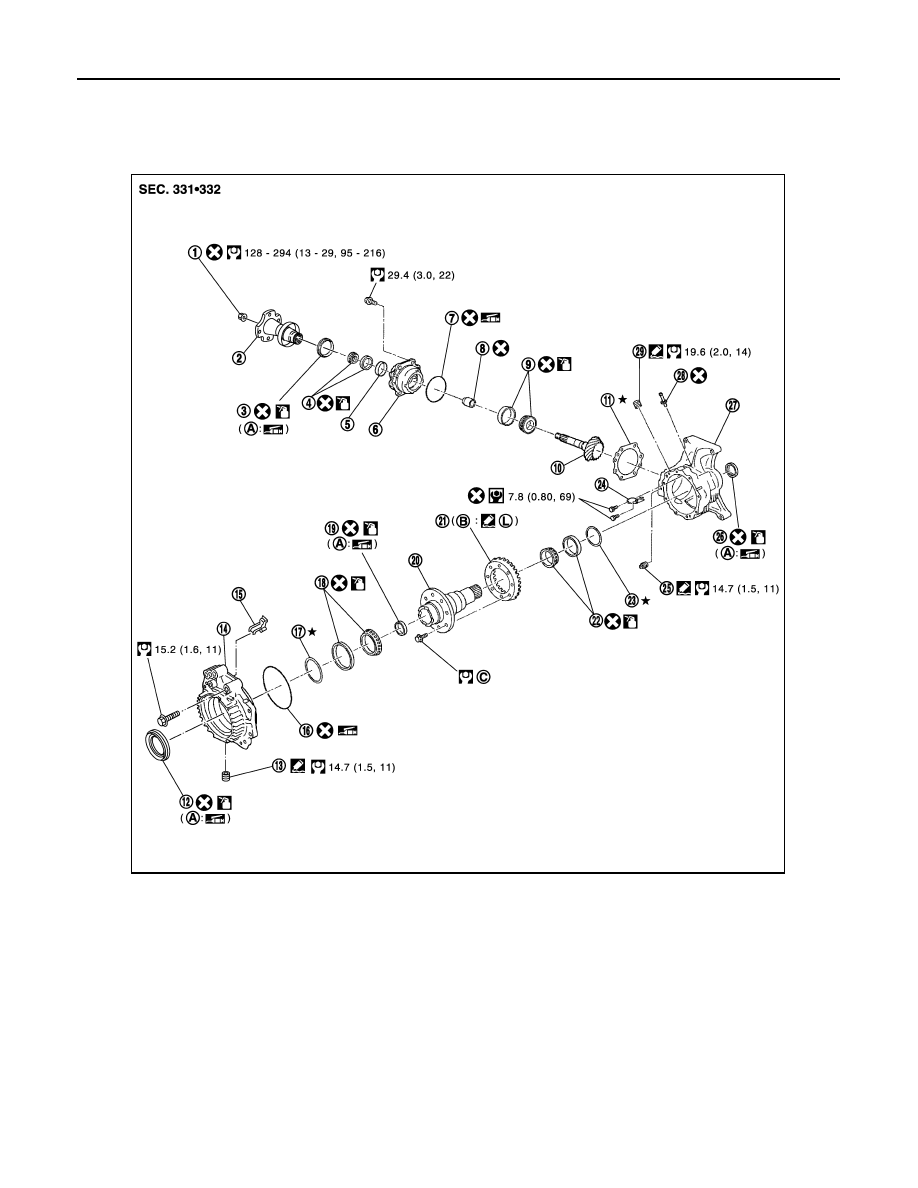

Exploded View

INFOID:0000000005514222

1.

Pinion lock nut

2.

Companion flange

3.

Pinion sleeve oil seal

4.

Pinion rear bearing

5.

Dust cover

6.

Pinion sleeve

7.

O-ring

8.

Collapsible spacer

9.

Pinion front bearing

10. Drive pinion

11.

Pinion sleeve shim

12. Adapter case oil seal

13. Drain plug

14. Adapter case

15. Oil gutter

16. O-ring

17. Gear ring bearing adjusting shim

(adapter case side)

18. Gear ring bearing

(adapter case side)

19. Gear ring oil seal

20. Gear ring

21. Drive gear

22. Gear ring bearing

(transfer case side)

23. Gear ring bearing adjusting shim

(transfer case side)

24. Oil defense

25. Filler plug

26. Transfer case oil seal

27. Transfer case

JPDIE0022GB

DRIVE PINION

DLN-65

< UNIT DISASSEMBLY AND ASSEMBLY >

[TRANSFER: TY20A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

Disassembly

INFOID:0000000005514223

1.

Remove pinion sleeve mounting bolts.

2.

Lightly tap adapter case with a plastic hammer to remove pinion
sleeve assembly.

3.

Remove the pinion sleeve shim.

4.

Remove the pinion lock nut.

5.

Remove drive pinion assembly from pinion sleeve with the drift
(A) [SST: ST33220000 (J-25804-01)].

6.

Remove companion flange.

7.

Remove the O-ring from pinion sleeve.

28. Breather tube

29. Plug

A. Oil seal lip

B. Screw hole

C. For the tightening torque, refer to

DLN-

62, "Assembly"

.

: Apply gear oil.

: Apply multi-purpose grease.

: Apply Genuine Silicone RTV or equivalent. Refer to

GI-18, "Recommended Chemical Products and Sealants"

.

: Apply Genuine High Strength Thread Locking Sealant or equivalent. Refer to

GI-18, "Recommended Chemical Products

and Sealants"

.

Refer to

GI-4, "Components"

 for symbols not described above.
