AV

CENTER SPEAKER

AV-543

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

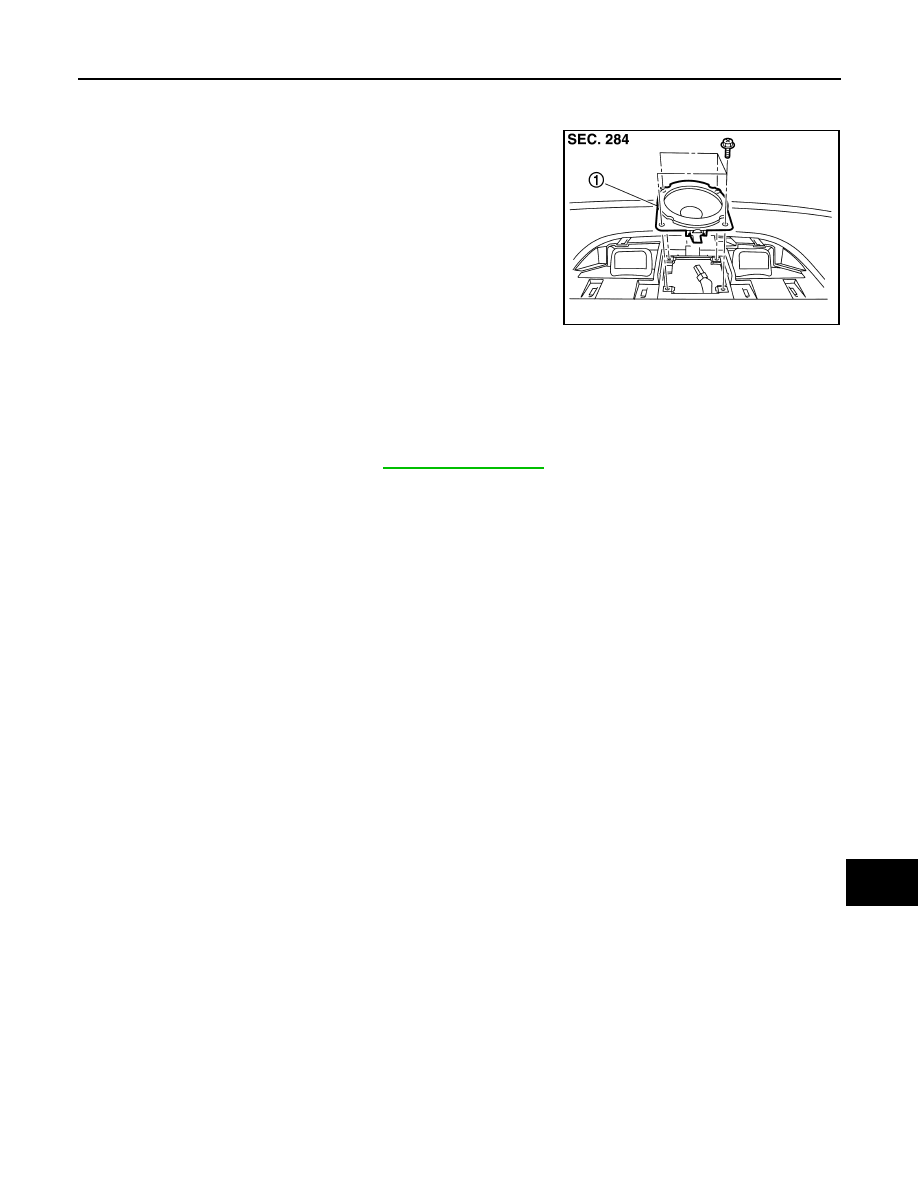

CENTER SPEAKER

Exploded View

INFOID:0000000005528631

Removal and Installation

INFOID:0000000005528632

REMOVAL

1.

Remove center speaker grille. Refer to

IP-12, "Exploded View"

.

2.

Remove center speaker screws, lift up the center speaker and disconnect center speaker connector. Then
remove the center speaker.

INSTALLATION

Install in the reverse order of removal.

JPNIA0780ZZ

1.

Center speaker

AV-544

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

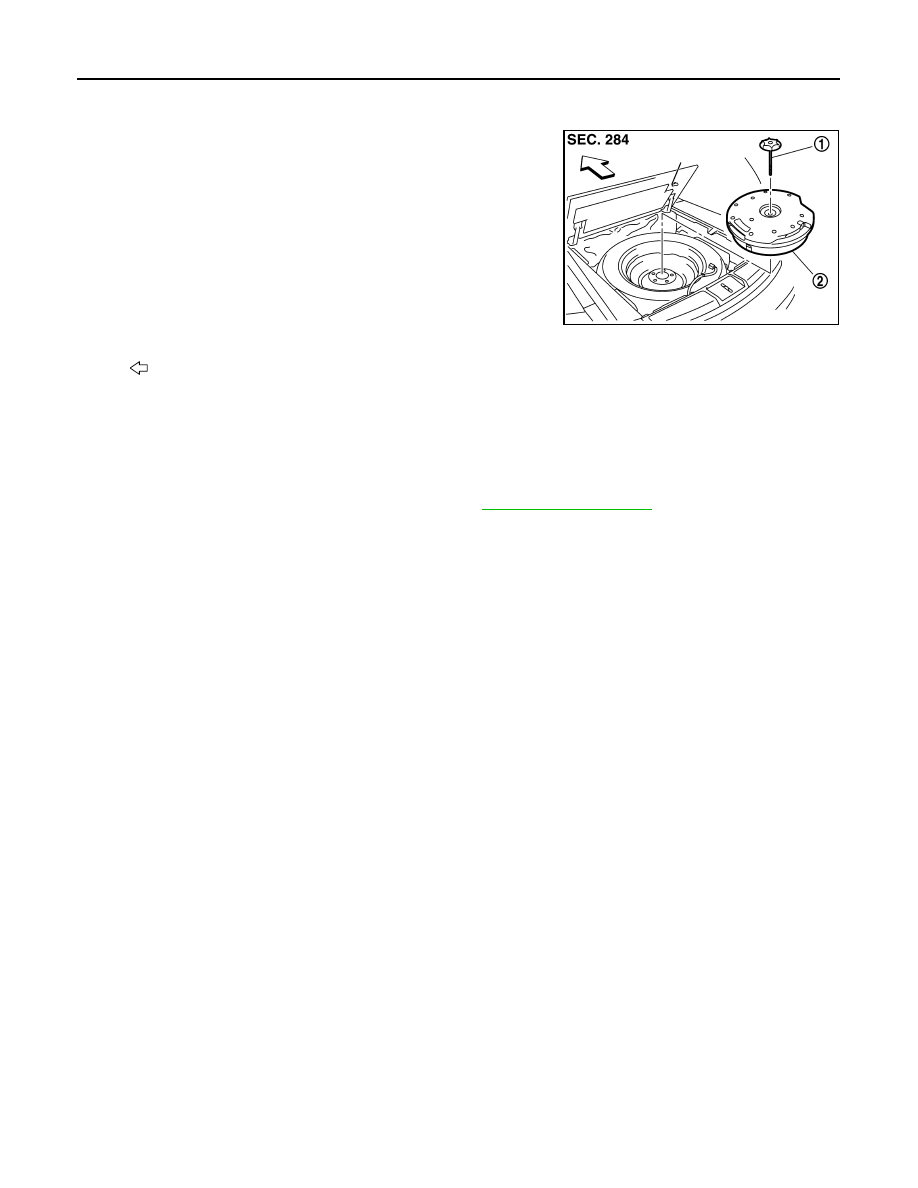

WOOFER

WOOFER

Exploded View

INFOID:0000000005528633

Removal and Installation

INFOID:0000000005528634

REMOVAL

1.

Remove luggage floor finisher center (back). Refer to

INT-34, "Exploded View"

.

2.

Remove clamp, disconnect woofer connector and remove the woofer.

INSTALLATION

Install in the reverse order of removal.

JPNIA0782ZZ

:

Vehicle front

1.

Clamp

2.

Woofer

AV

BOSE AMP.

AV-545

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

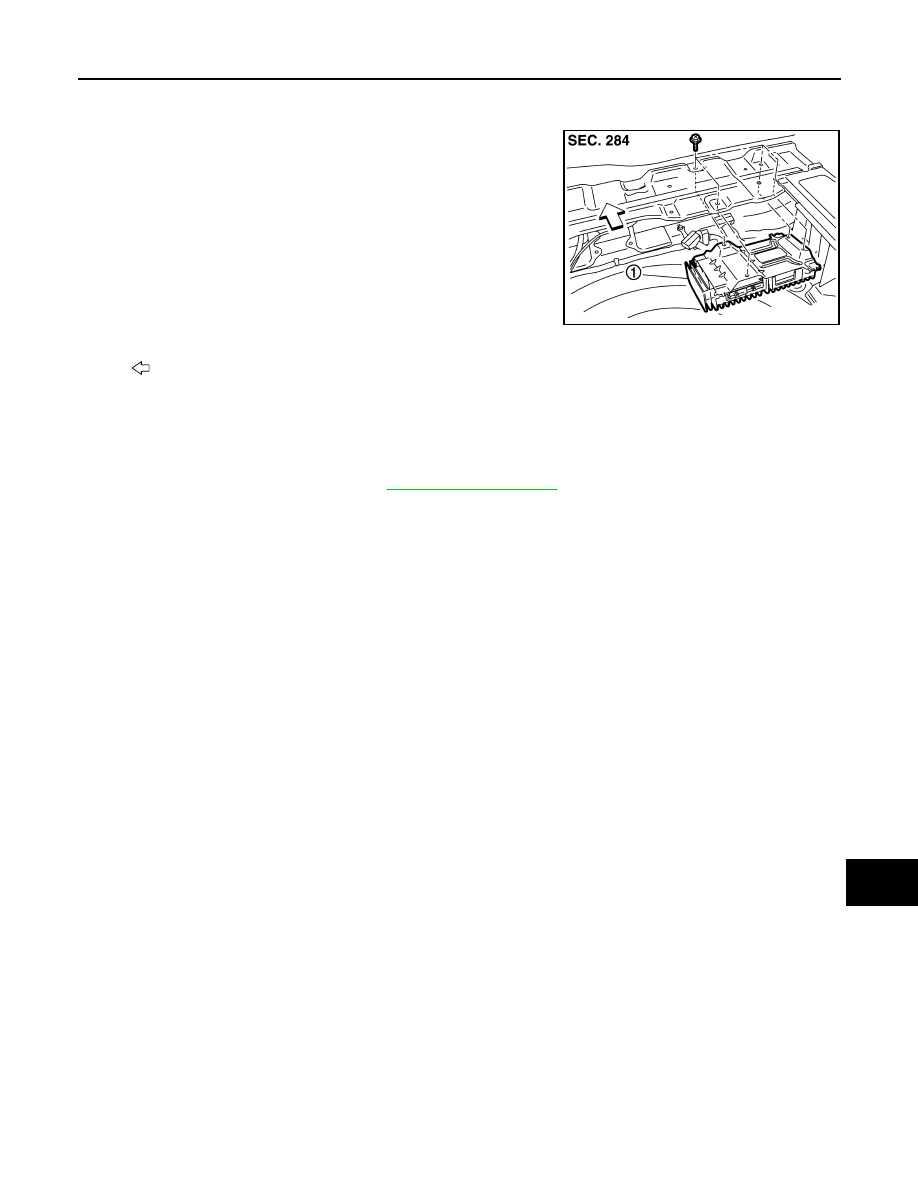

BOSE AMP.

Exploded View

INFOID:0000000005528635

Removal and Installation

INFOID:0000000005528636

REMOVAL

1.

Remove luggage floor finisher. Refer to

INT-34, "Exploded View"

.

2.

Remove BOSE amp. screws, disconnect BOSE amp. connector and remove the BOSE amp.

INSTALLATION

Install in the reverse order of removal.

JPNIA0783ZZ

:

Vehicle front

1.

BOSE amp.

AV-546

< REMOVAL AND INSTALLATION >

[BOSE AUDIO WITHOUT NAVIGATION]

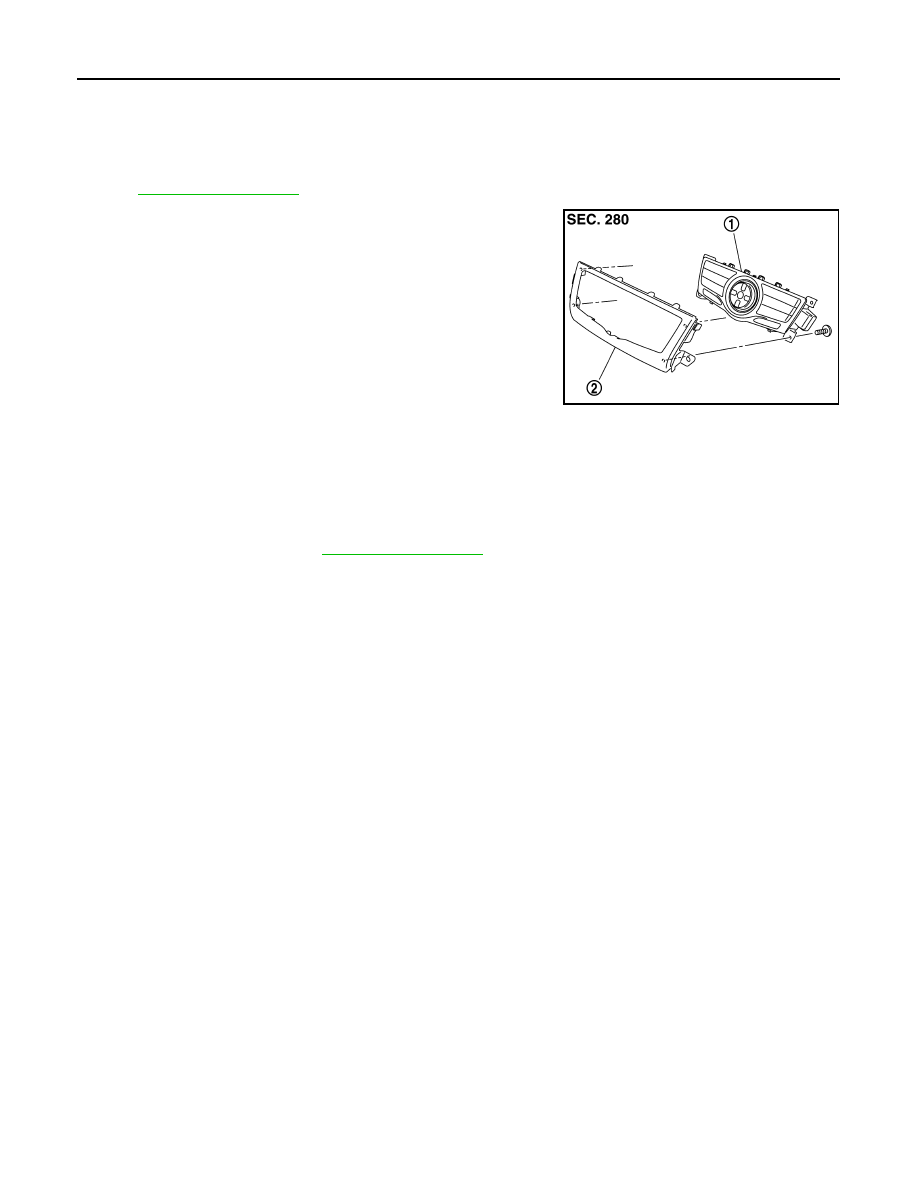

MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000005528637

REMOVAL

Refer to

IP-12, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000005528638

REMOVAL

1.

Remove cluster lid D. Refer to

IP-12, "Exploded View"

.

2.

Remove multifunction switch with center ventilator grille as a single unit.

3.

Remove multifunction switch screws, remove multifunction switch from cluster lid D.

INSTALLATION

Install in the reverse order of removal.

JPNIA0789ZZ

1.

Multifunction switch

2.

Cluster lid D
