Nissan Murano Z51. Manual - part 1530

WT-58

< REMOVAL AND INSTALLATION >

TRANSMITTER

1.

Put first side of tire onto rim.

2.

Mount transmitter on rim and tighten nut.

CAUTION:

Speed for tightening nut should be less than 10 rpm.

3.

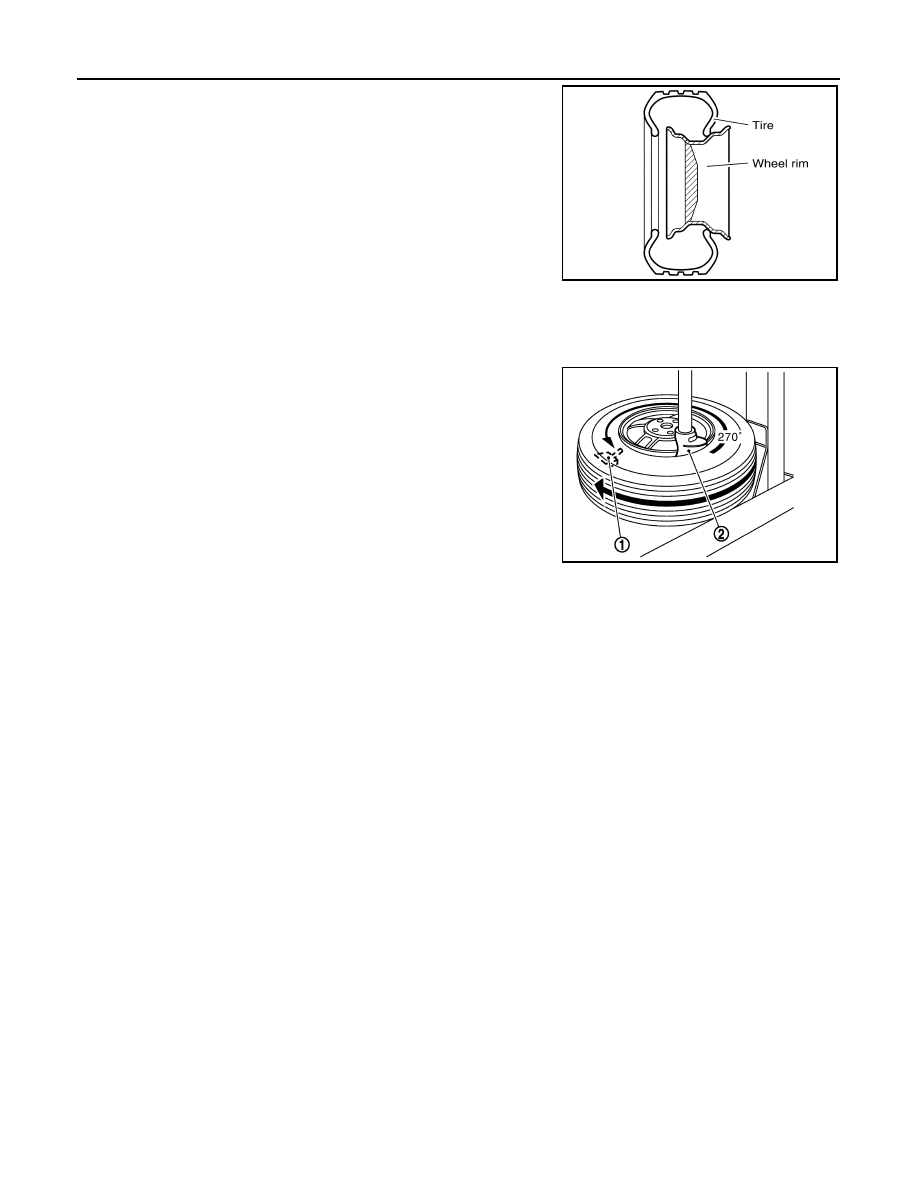

Place wheel on turntable of tire machine. Ensure that transmitter
(1) is 270 degree from mounting head (2) when second side of
tire is fitted.
NOTE:
Do not touch transmitter at mounting head.

4.

Lubricate tire well and fit second side of tire as normal. Ensure
that tire does not rotate relative to rim.

5.

Inflate tire and fit to appropriate wheel position.

SEIA0049E

JPEIC0014GB

TIRE PRESSURE RECEIVER

WT-59

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TIRE PRESSURE RECEIVER

Removal and Installation

INFOID:0000000005514458

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Disconnect tire pressure receiver harness connector.

3.

Remove tire pressure receiver.

INSTALLATION

Install is the reverse order of removal.

WT-60

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Road Wheel

INFOID:0000000005514459

ALUMINUM WHEEL (CONVENTIONAL)

STEEL WHEEL (FOR EMERGENCY USE)

Tire Air Pressure

INFOID:0000000005514461

Unit: kPa (kg/cm

2

, psi)

Item

Limit

Radial runout

Lateral deflection

Less than 0.3 mm (0.012 in)

Vertical deflection

Allowable unbalance

Dynamic (At flange)

Less than 5 g (0.17 oz) (one side)

Static (At flange)

Less than 10 g (0.35 oz)

Item

Limit

Radial runout

Lateral deflection

Less than 1.5 mm (0.059 in)

Vertical deflection

Item

Standard

Front

Rear

P235/65R18 104T

230 (2.3, 33)

P235/55R20 102T

230 (2.3, 33)

T165/90D18 107M

420 (4.2, 60)

WW-1
