DUCT AND GRILLE

VTL-67

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

FOOT DUCT : Exploded View

INFOID:0000000005517167

FOOT DUCT : Removal and Installation

INFOID:0000000005517168

REMOVAL

Driver side

1.

Remove instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

Remove mounting screws (A), and then remove foot duct (left)
(1).

Passenger side

1.

Defroster nozzle

2.

Side defroster nozzle (left)

3.

Foot duct (left)

4.

Heater duct

5.

Heater & cooling unit assembly

6.

Ventilator duct

7.

Side defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille assembly

11. Side ventilator grille (right)

12. Side defroster grille (right)

13. Center speaker grille

14. Blower unit assembly

15. Foot duct (right)

16. Side defroster nozzle (right)

17. Upper ventilator duct

JPIIA1225ZZ

: Vehicle front

JPIIA1226ZZ

VTL-68

< REMOVAL AND INSTALLATION >

[WITHOUT 7 INCH DISPLAY]

DUCT AND GRILLE

1.

Remove blower unit assembly. Refer to

VTL-30, "Exploded View"

.

2.

Remove mounting screws (A) and harness clip, and then
remove foot duct (right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

: Vehicle front

JPIIA1227ZZ

SWITCHES AND THEIR CONTROL FUNCTION

VTL-69

< SYSTEM DESCRIPTION >

[WITH 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SYSTEM DESCRIPTION

SWITCHES AND THEIR CONTROL FUNCTION

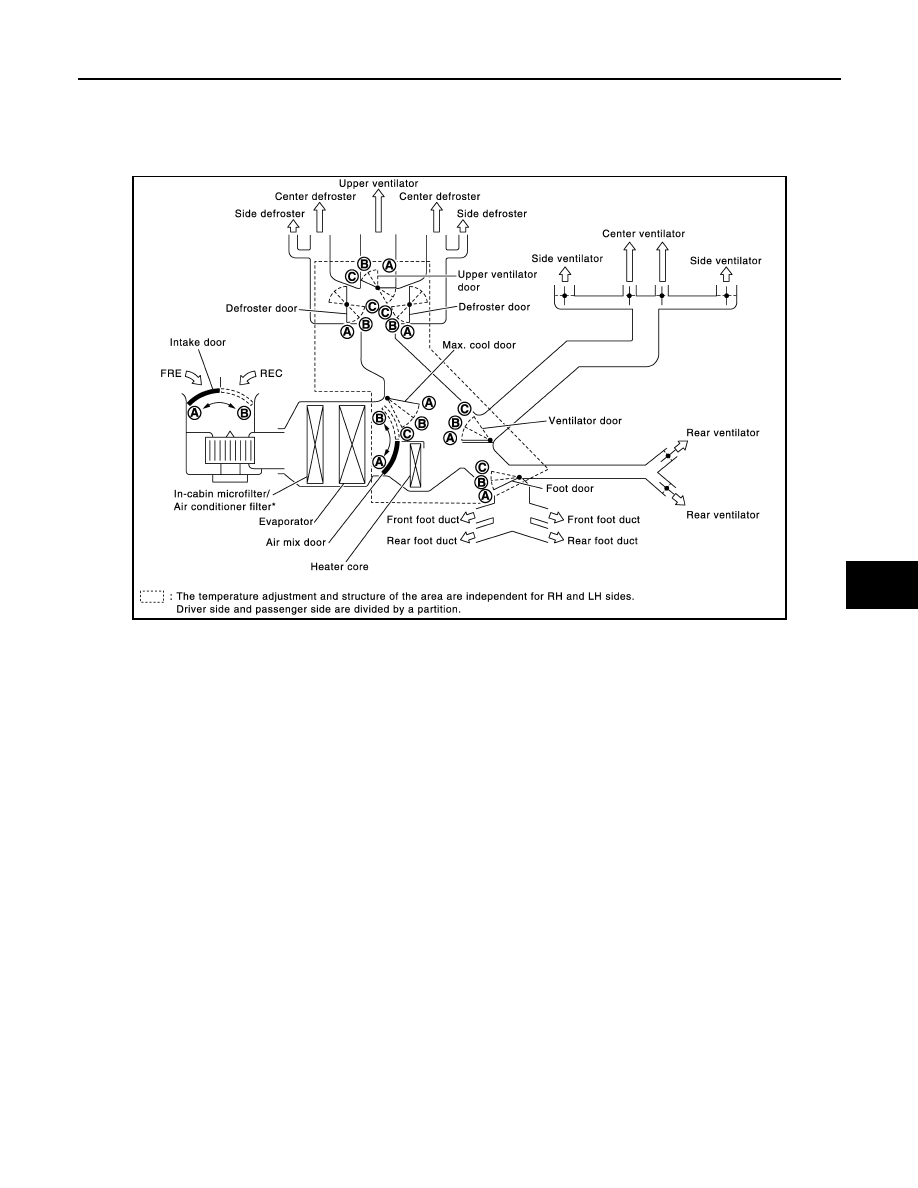

System Description

INFOID:0000000005517169

JMIIA0492GB

*

: Models for Mexico.

VTL-70

< SYSTEM DESCRIPTION >

[WITH 7 INCH DISPLAY]

SWITCHES AND THEIR CONTROL FUNCTION

*: Inlet status is displayed by indicator when activating automatic control.

Switch position

Door position

Ventilator

door

Max.

cool

door

Defroster

door

Foot
door

Upper

ventila-

tor door

Intake

door

Air mix

door

(Driver

side)

Air mix

door

(Pas-

senger

 side)

AUTO switch

AUTO

—

—

AUTO

MODE

switch

VENT

A

A

A

A

—

—

B/L

B

B

A

B

FOOT

C

B

B

C

D/F

C

B

B

B

B

DEF switch

C

C

C

A

B

UPPER VENT

switch

ON

—

A-B

—

OFF

C

Intake

switch

ON

—

—

—

—

—

A

*

OFF

B

*

Temperature

control dial

(Driver side)

DUAL
switch:
OFF

18.0

°

C

(60

°

F)

—

A

18.5

°

C

⇔

 31.5

°

C

(61

°

F

⇔

 89

°

F)

AUTO

32.0

°

C

(90

°

F)

B

Temperature

control dial

(Driver side)

DUAL
switch:
ON

18.0

°

C

(60

°

F)

A

—

18.5

°

C

⇔

 31.5

°

C

(61

°

F

⇔

 89

°

F)

AUTO

32.0

°

C

(90

°

F)

B

Temperature

control dial

(Passenger

side)

18.0

°

C

(60

°

F)

—

A

18.5

°

C

⇔

 31.5

°

C

(61

°

F

⇔

 89

°

F)

AUTO

32.0

°

C

(90

°

F)

B

ON/OFF switch

C

C

B

C

—

B

—

—
