OIL PAN

TM-167

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

6.

Remove oil pan gasket (1) from oil pan (2).

7.

Remove magnet (3) from oil pan.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Completely remove all moisture, oil and old gasket, etc. from the oil pan gasket mounting surface of

transaxle case and oil pan.

• Never reuse oil pan gasket, O-ring and oil pan fitting bolts.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000005514114

Check foreign materials in oil pan to help determine causes of malfunction. If the CVT fluid is very dark, smells
burned, or contains foreign particles, frictional material (clutches) may need replacement. A tacky film that will
not wipe clean indicates varnish build up. Varnish can cause valves and clutches to stick and can inhibit pump
pressure.

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-146, "Inspection"

.

SCIA8219J

TM-168

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

SECONDARY SPEED SENSOR

SECONDARY SPEED SENSOR

Exploded View

INFOID:0000000005514115

Removal and Installation

INFOID:0000000005514116

REMOVAL

1.

Disconnect the battery cable from negative terminal.

2.

Remove air duct (inlet). Refer to

EM-31, "Exploded View"

.

3.

Remove air cleaner case. Refer to

EM-31, "Exploded View"

4.

Disconnect secondary speed sensor connector.

5.

Remove secondary speed sensor (1) and shim (2).

CAUTION:

Never lose the shim.

6.

Remove O-ring (3) from secondary speed sensor.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply CVT fluid to O-ring.

Inspection

INFOID:0000000005514117

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-146, "Inspection"

.

1.

Secondary speed sensor

2.

Shim

3.

Transaxle assembly

4.

O-ring

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0687GB

JPDIA0617ZZ

DIFFERENTIAL SIDE OIL SEAL

TM-169

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DIFFERENTIAL SIDE OIL SEAL

2WD

2WD : Exploded View

INFOID:0000000005514118

2WD : Removal and Installation

INFOID:0000000005514119

REMOVAL

1.

Remove front drive shafts. Refer to

FAX-17, "Exploded View"

.

2.

Remove differential side oil seals (1) using a flat-bladed screw-
driver (A).

CAUTION:

Be careful not to scratch transaxle case and converter
housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Drive each differential side oil seal evenly using a commercial ser-

vice tool so that differential side oil seal protrudes by the dimension
(C) respectively.

Unit: mm (in)

NOTE:
Differential side oil seal pulling direction is used as the reference.

1.

RH differential side oil seal

2.

LH differential side oil seal

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0593ZZ

JPDIA0118ZZ

A

: Transaxle case side

B

: Converter housing side

Dimension C

0

±

 0.5 (0

±

 0.020)

JPDIA0618ZZ

TM-170

< REMOVAL AND INSTALLATION >

[CVT: RE0F09B]

DIFFERENTIAL SIDE OIL SEAL

CAUTION:

• Never reuse differential side oil seals.
• Apply CVT fluid to differential side oil seals.

Drift to be used:

2WD : Inspection

INFOID:0000000005514120

INSPECTION AFTER INSTALLATION

Check for CVT fluid leakage and check CVT fluid level. Refer to

TM-146, "Inspection"

.

AWD

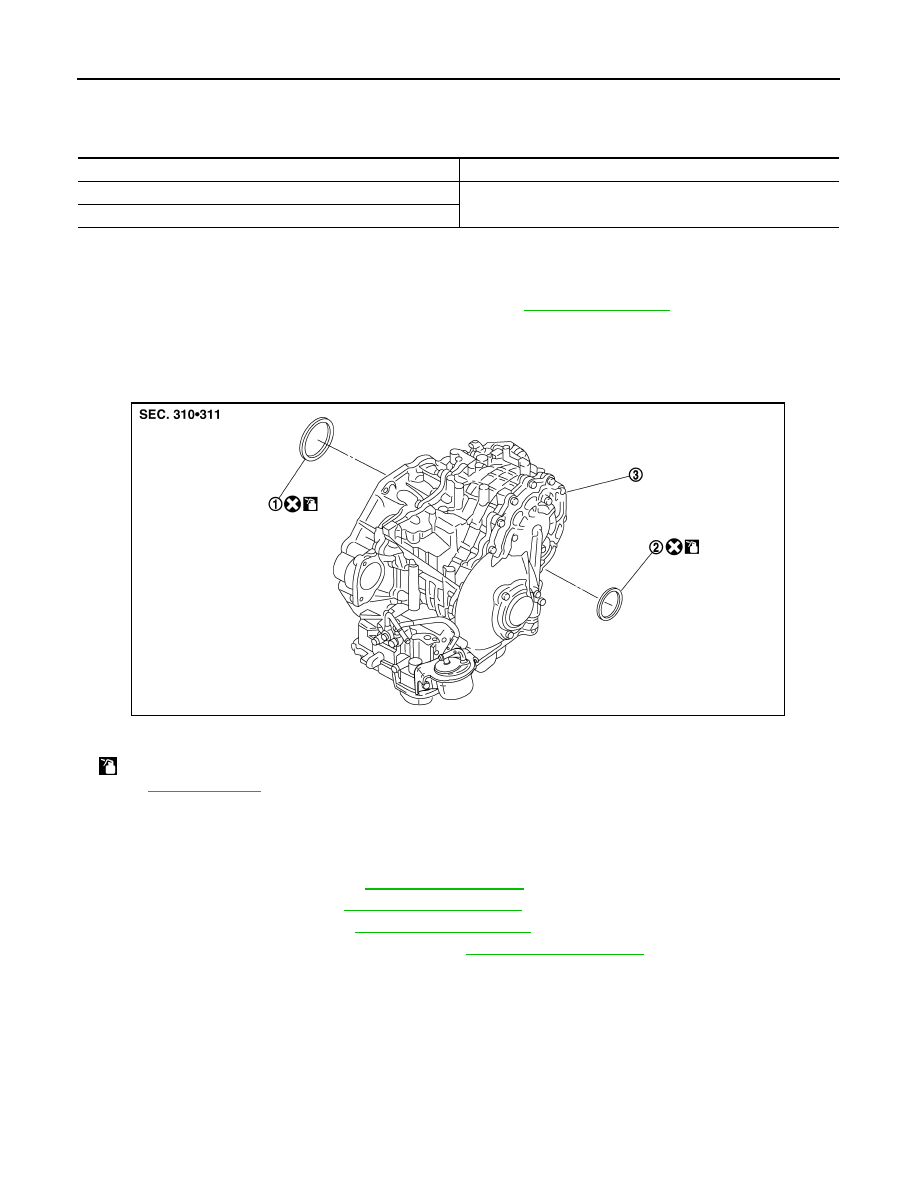

AWD : Exploded View

INFOID:0000000005514121

AWD : Removal and Installation

INFOID:0000000005514122

REMOVAL

1.

Remove exhaust front tube. Refer to

EX-5, "Exploded View"

.

2.

Separate propeller shaft. Refer to

DLN-83, "Exploded View"

.

3.

Remove front drive shafts. Refer to

FAX-44, "Exploded View"

.

4.

Remove transfer from transaxle assembly. Refer to

DLN-54, "Exploded View"

.

Location

Tool number (Kent-Moore No.)

Transaxle case side

ST33400001 (J-26082)

Converter housing side

1.

Side oil seal (transfer joint)

2.

LH differential side oil seal

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described above.

JPDIA0594ZZ
