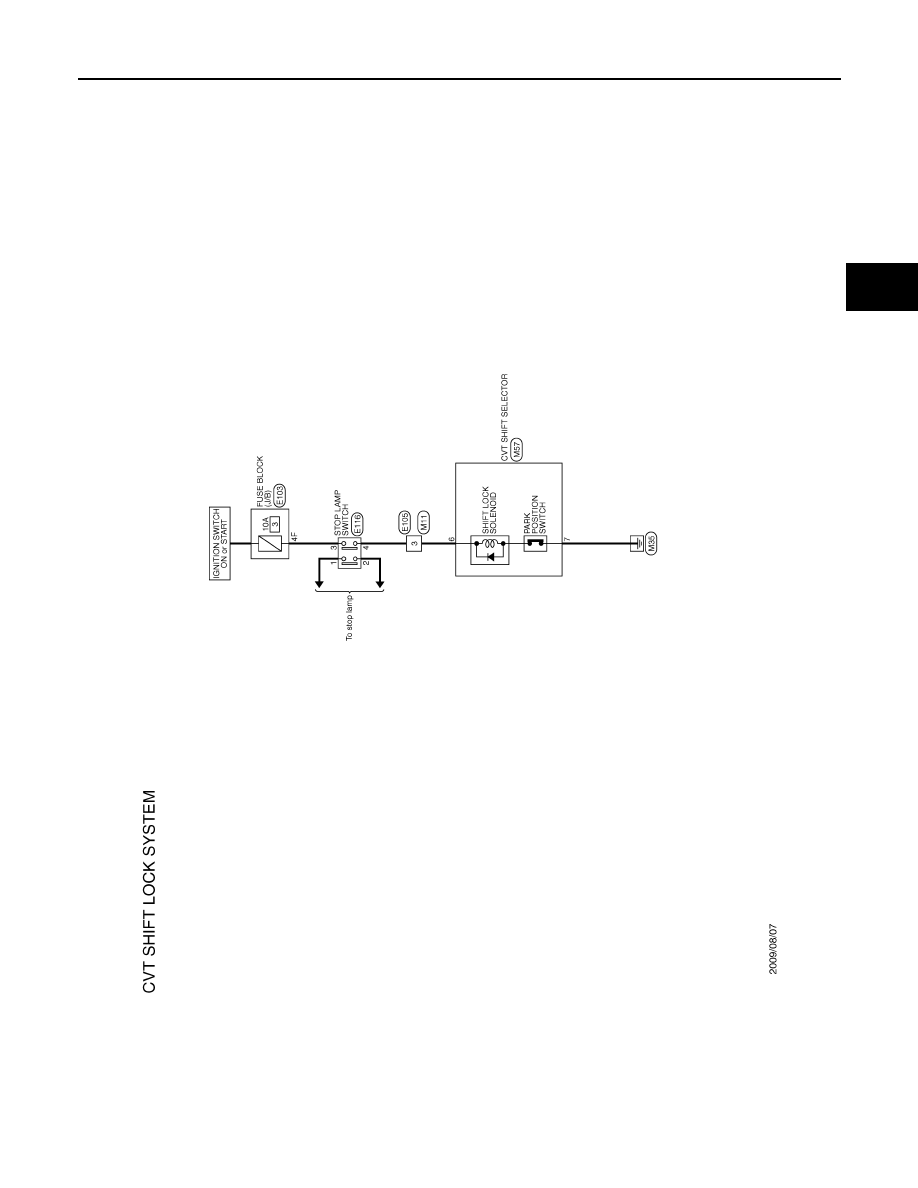

Wiring Diagram - CVT SHIFT LOCK SYSTEM -

INFOID:0000000005514067

JCDWM0719GB

TM-104

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

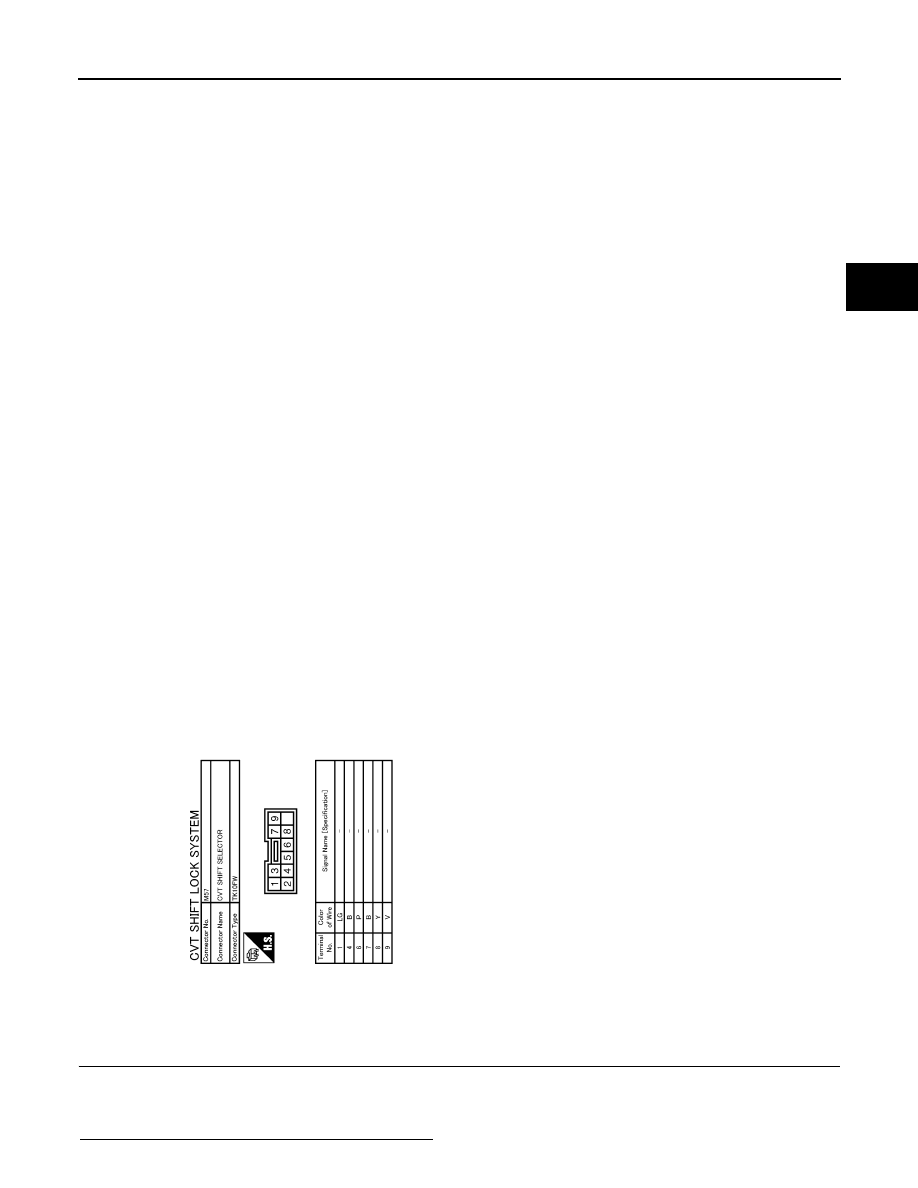

SHIFT LOCK SYSTEM

JCDWM0720GB

SHIFT LOCK SYSTEM

TM-105

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Component Function Check

INFOID:0000000005514068

1.

 CHECK CVT SHIFT LOCK OPERATION

1.

Turn ignition switch ON.

2.

Move selector lever to “P” position.

3.

Attempt to shift selector lever to any other position with brake pedal released.

Can selector lever be shifted to any other position?

JCDWM0721GB

TM-106

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

SHIFT LOCK SYSTEM

YES

>> Go to

TM-106, "Diagnosis Procedure"

.

NO

>> GO TO 2.

2.

 CHECK CVT SHIFT LOCK OPERATION

Attempt to shift selector lever to any other position with brake pedal depressed.

Can the selector lever be shifted to any other position?

YES

>> INSPECTION END

NO

>> Go to

TM-106, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000005514069

1.

 CHECK POWER SOURCE

1.

Turn ignition switch OFF.

2.

Disconnect fuse block (J/B) connector.

3.

Turn ignition switch ON.

4.

Check voltage between fuse block (J/B) connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>>

Check the following.

• 10A fuse [No. 3, located in fuse block (J/B)]
• Ignition switch

2.

CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND STOP LAMP SWITCH (PART 1)

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch connector.

3.

Check continuity between fuse block (J/B) vehicle side harness connector terminal and stop lamp switch
vehicle side harness connector terminal.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK HARNESS BETWEEN FUSE BLOCK (J/B) AND STOP LAMP SWITCH (PART 2)

Check continuity between stop lamp switch vehicle side harness connector terminal and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK STOP LAMP SWITCH

Check stop lamp switch. Refer to

TM-108, "Component Inspection (Stop Lamp Switch)"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace stop lamp switch. Refer to

BR-20, "Exploded View"

.

Fuse block (J/B) connector

Ground

Voltage (Approx.)

Connector

Terminal

E103

4F

Battery voltage

Fuse block (J/B) vehicle side harness connector

Stop lamp switch vehicle side harness connector

Continuity

Connector

Terminal

Connector

Terminal

E103

4F

E116

3

Existed

Stop lamp switch vehicle side harness connector

Ground

Continuity

Connector

Terminal

E116

3

Not existed
