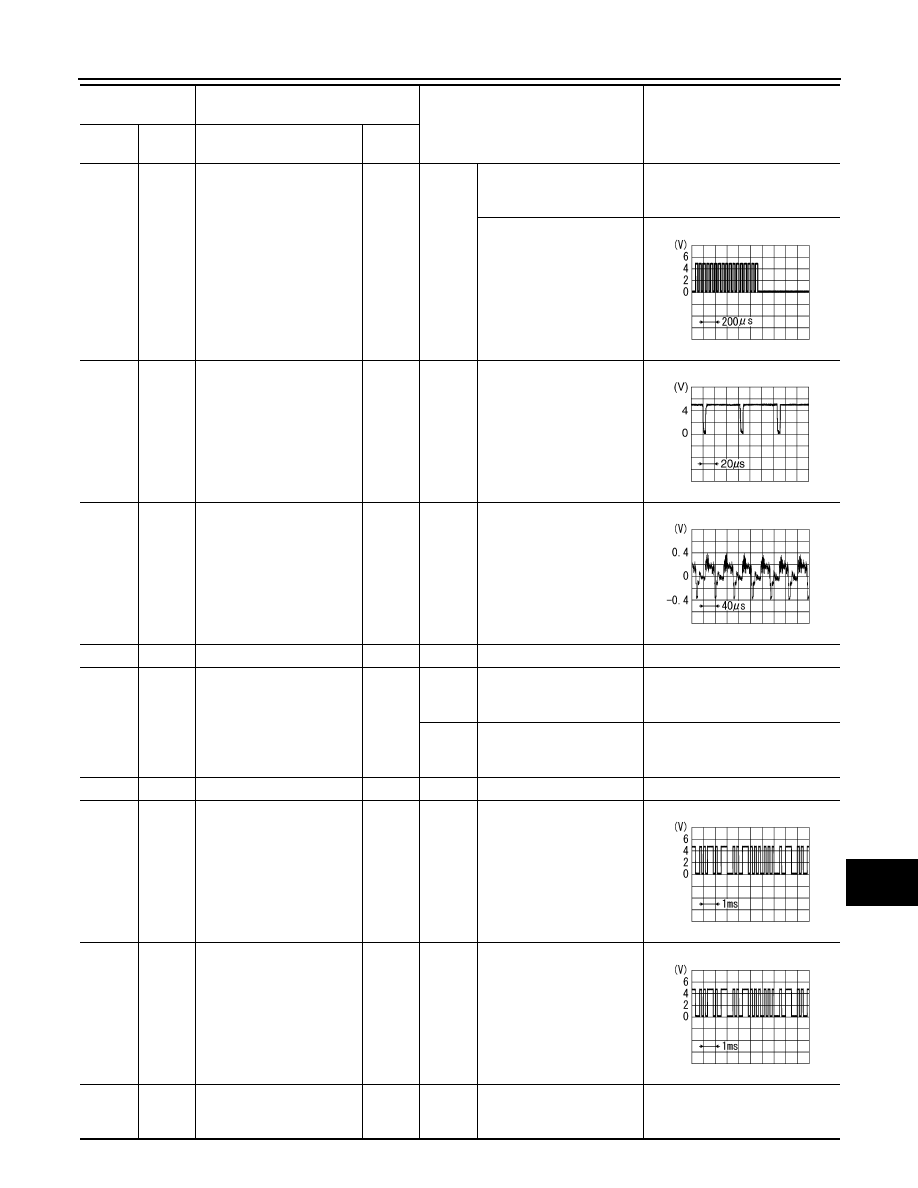

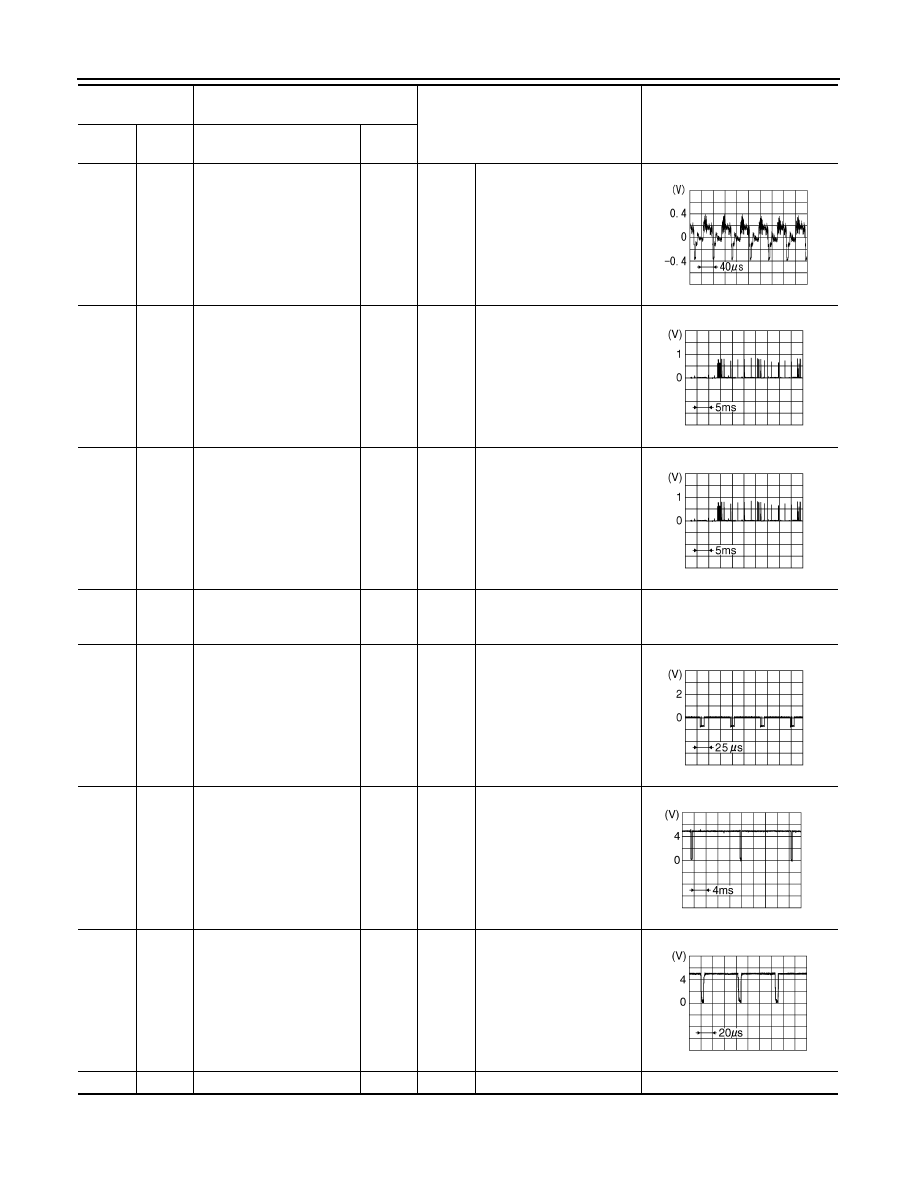

VIDEO DISTRIBUTOR

Reference Values

INFOID:0000000005528591

TERMINAL LAYOUT

PHYSICAL VALUES

JSNIA0985ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(R)

—

AV communication signal
(H)

Input/

Output

—

—

—

2

(G)

—

AV communication signal
(L)

Input/

Output

—

—

—

3

(R)

—

AV communication signal
(H)

Input/

Output

—

—

—

4

(L)

—

AV communication signal
(L)

Input/

Output

—

—

—

8

(L)

6

(R)

Composite image signal for
AV control unit

Output

Ignition

switch

ON

When AUX or DVD image
is displayed on front display
unit.

15

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

16

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

19

(G)

Ground

AUX image signal

Input

Ignition

switch

ON

When AUX image is dis-
played.

21

—

Shield (AUX image GND)

—

—

—

—

22

—

Shield (DVD image GND)

—

—

—

—

SKIB2251J

SKIB2251J

AV-308

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

VIDEO DISTRIBUTOR

23

(P)

Ground

DVD image signal

Input

Ignition

switch

ON

When DVD image is dis-
played.

25

(R)

Ground

RGB image signal (R: red)
for rear display unit

Output

Ignition

switch

ON

Rear seat remote controller
operation when AUX or
DVD image is displayed on
rear display unit.

26

(L)

Ground

RGB image signal (G:
green) for rear display unit

Output

Ignition

switch

ON

Rear seat remote controller
operation when AUX or
DVD image is displayed on
rear display unit.

27

(W)

Ground

RGB ground for rear dis-
play unit

—

Ignition

switch

ON

—

0  V

28

(G)

Ground

RGB image signal (B: blue)
for rear display unit

Output

Ignition

switch

ON

Rear seat remote controller
operation when AUX or
DVD image is displayed on
rear display unit.

29

(R)

Ground

Vertical synchronizing (VP)
signal for rear display unit

Input

Ignition

switch

ON

—

30

(W)

Ground

Horizontal synchronizing
(HP) signal for rear display

Input

Ignition

switch

ON

—

31

—

Shield

—

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB2251J

JSNIA0984ZZ

JSNIA0984ZZ

JSNIA1090ZZ

SKIB3598E

SKIB0825E

AV

VIDEO DISTRIBUTOR

AV-309

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

32

(B)

Ground

RGB area (YS) signal for
rear display

Output

Ignition

switch

ON

When AUX or DVD image
is displayed on rear display
unit.

0 V

Rear seat remote controller
operation when AUX or
DVD image is displayed on
rear display unit.

33

(G)

Ground

Composite and RGB image
synchronizing signal for
rear display

Output

Ignition

switch

ON

When AUX or DVD image
is displayed on rear display
unit.

34

(R)

Ground

Composite image signal for
rear display unit

Output

Ignition

switch

ON

When AUX or DVD image
is displayed on rear display
unit.

35

—

Shield

—

—

—

—

36

(G)

Ground

Ignition signal

Output

Ignition

switch

ON

—

0  V

Ignition

switch

OFF

—

3.3  V

38

—

Shield

—

—

—

—

39

(V)

Ground

Communication signal
(DISP

→

DIST)

Input

Ignition

switch

ON

Rear seat remote controller
operation when AUX or
DVD image is displayed on
rear display unit.

40

(LG)

Ground

Communication signal
(DIST

→

DISP)

Output

Ignition

switch

ON

Rear seat remote controller
operation when AUX or
DVD image is displayed on
rear display unit.

51

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

PKIB4948J

SKIB0825E

SKIB2251J

PKIB5039J

PKIB5039J

AV-310

< ECU DIAGNOSIS INFORMATION >

[BOSE AUDIO WITHOUT NAVIGATION]

VIDEO DISTRIBUTOR

Wiring Diagram - BOSE AUDIO WITHOUT NAVIGATION WITH DVD ENTERTAIN-
MENT SYSTEM -

INFOID:0000000005528592

NOTE:

53

(B)

Ground

Ground

—

Ignition

switch

ON

—

0  V

54

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

55

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

56

(G)

Ground

Ignition signal

Input

Ignition

switch

ON

—

Battery voltage

60

(R)

Ground

Headphone amp. ON sig-
nal

Output

Ignition

switch

ON

Headphone mode is ON.

4.5 V

Headphone mode is OFF.

0 V

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output
