DIAGNOSIS SYSTEM (AIRBAG)

DIAGNOSTIC PROCEDURE (User mode)

Checking air bag operation according to air bag warning lamp-User mode

1.

Turn the ignition switch from OFF to ON, and check that the air bag warning lamp blinks.

2.

Compare the air bag warning lamp blinking pattern with the
examples.

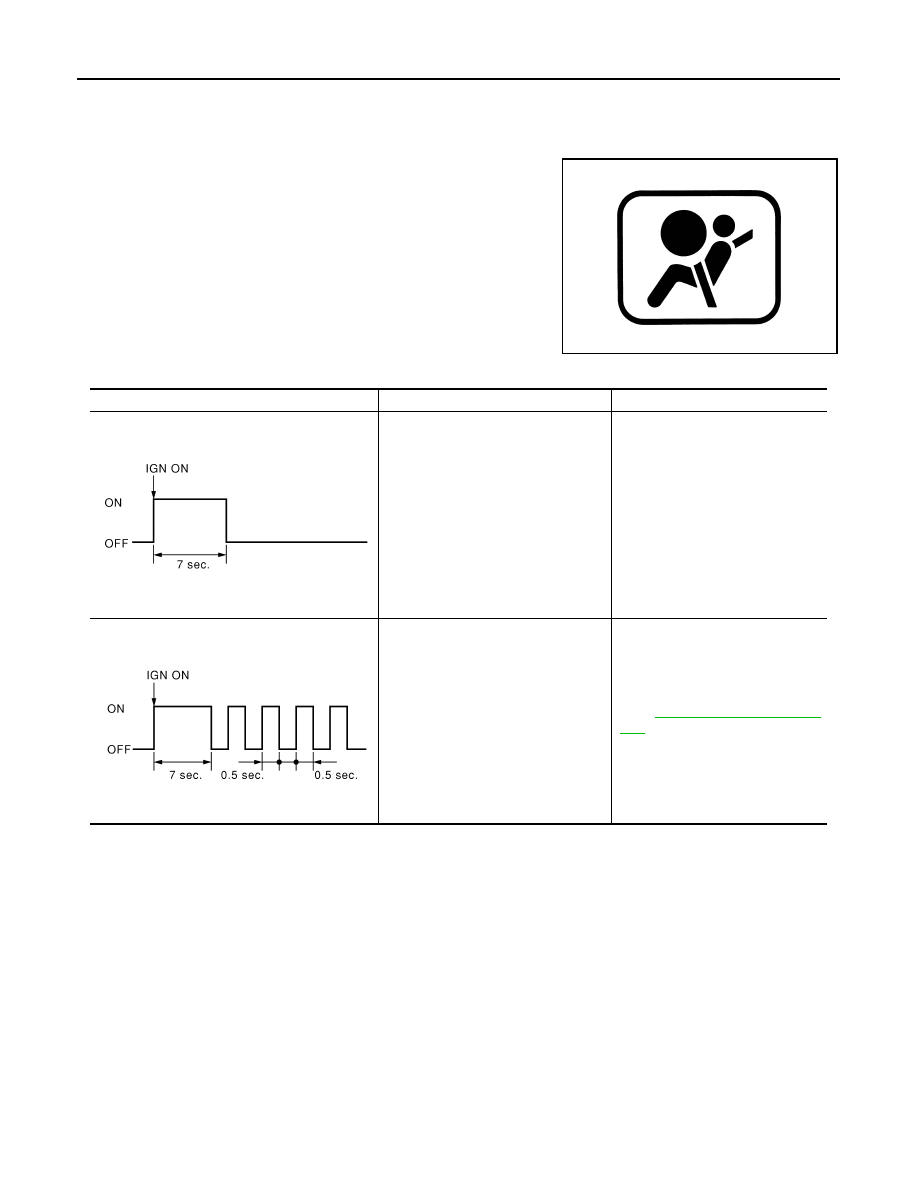

Warning lamp examples (User mode)

BF-1845D

Air bag warning lamp operation -User mode

SRS condition

Reference item

• No malfunction is detected
• No further action is necessary

—

• The system is malfunctioning and

needs to be repaired as indicated

Go to

SRC-19, "CONSULT-III Func-

tion"

SHIA0011E

SHIA0012E

DIAGNOSIS SYSTEM (AIRBAG)

SRC-19

< SYSTEM DESCRIPTION >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

DIAGNOSTIC PROCEDURE (With CONSULT-III)

CONSULT-III Function

INFOID:0000000005513489

DIAGNOSIS MODE FOR CONSULT-III

• “SELF-DIAG [CURRENT]”

A current self-diagnosis results (also indicated with the number of air bag warning lamp blinks in diagnosis
mode) are displayed on CONSULT-III screen in real time. This refers to a malfunctioning part requiring
repairs.

• “SELF-DIAG [PAST]”

Diagnosis results previously stored in the memory are displayed on CONSULT-III screen. The stored results
are not erased until memory erasing is executed.

• “TROUBLE DIAG RECORD”

With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be displayed
on CONSULT-III screen.

• “DISCRIMINATED NO.”

The air bag diagnosis sensor unit for each vehicle model has its own individual classification number. This
number will be displayed on CONSULT-III screen, as shown. When replacing the air bag diagnosis sensor
unit, refer to the part number for the compatibility. After installation, replacement with a correct unit can be
checked by confirming this classification number on CONSULT-III screen.
After repair, check that the discriminated number of air bag diagnosis sensor unit installed to vehicle are the
same. Refer to

SR-25, "Removal and Installation"

.

 HOW TO CHANGE SELF-DIAGNOSIS MODE WITH CONSULT-III

From User Mode to Diagnosis Mode

After selecting “AIR BAG” on the “SELECT SYSTEM” screen, User mode automatically changes to Diagnosis
mode.

• Air bag is deployed
• Seat belt pre-tensioner is deployed

Go to

SRC-147, "Diagnosis Proce-

dure"

 or

SRC-149, "Diagnosis Pro-

cedure"

• Air bag diagnosis sensor unit is mal-

functioning

• Air bag power supply circuit is mal-

functioning

• Air bag warning lamp circuit is mal-

functioning

Go to

SRC-176, "Diagnosis Proce-

dure"

• Air bag diagnosis sensor unit is mal-

functioning

• Air bag warning lamp circuit is mal-

functioning

Go to

SRC-176, "Diagnosis Proce-

dure"

Air bag warning lamp operation -User mode

SRS condition

Reference item

SHIA0013E

SHIA0014E

Diagnostic Mode

Description

SELF-DIAG RESULT

The self-diagnosis result is displayed (SELF-DIAG [CURRENT], [PAST], [RECORD])

DISCRIMINATED No.

The part number of diagnosis sensor unit is displayed

SRC-20

< SYSTEM DESCRIPTION >

[FOR USA AND CANADA]

DIAGNOSIS SYSTEM (AIRBAG)

From Diagnosis Mode to User Mode

To return to User mode from Diagnosis mode, touch “BACK” key of CONSULT-III until “SELECT SYSTEM”
appears, then diagnosis mode automatically changes to User mode.

SELF-DIAGNOSIS FUNCTION (Without CONSULT-III)

• The reading of these results is accomplished by “User mode” and “Diagnosis mode”.
• After a malfunction is repaired, turn ignition switch ON. Diagnosis mode returns to the user mode. At that

time, the self-diagnosis result is cleared.

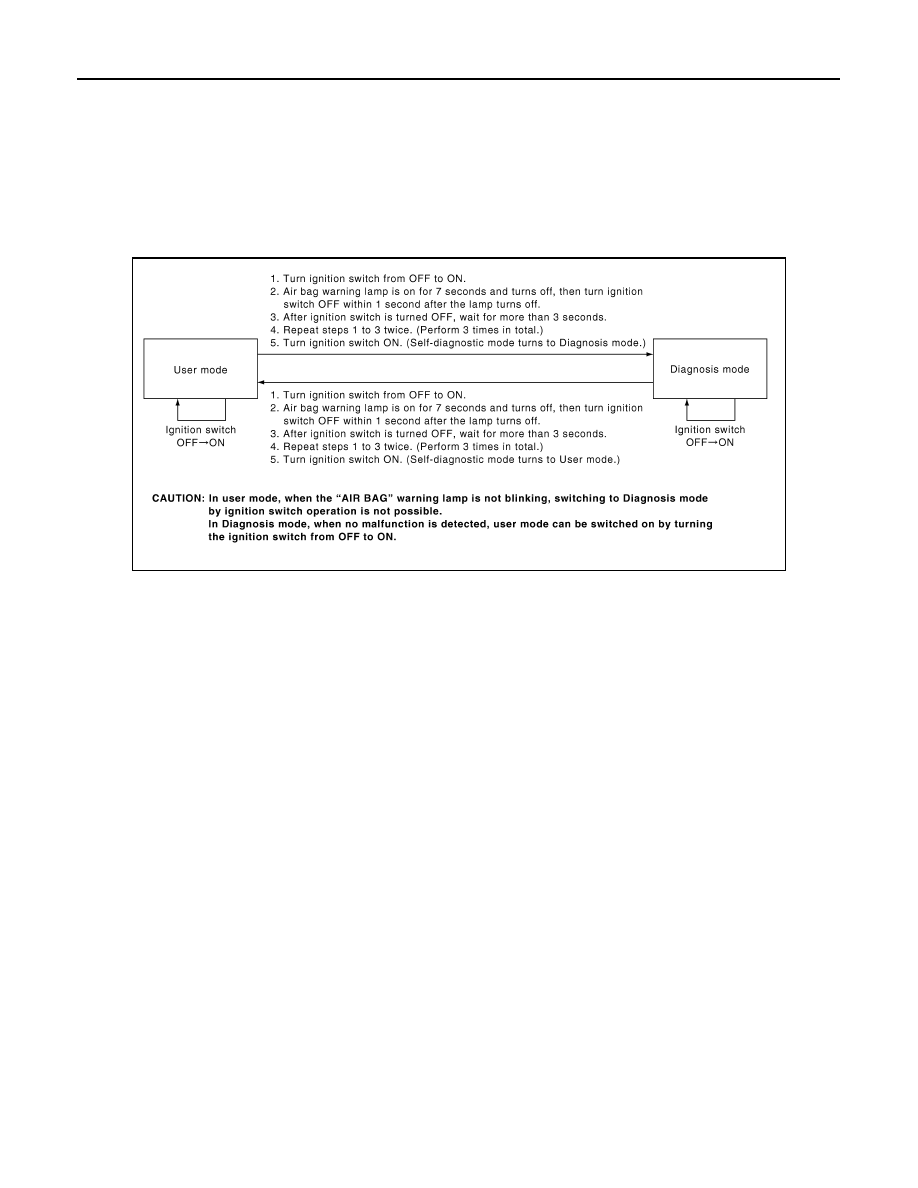

HOW TO CHANGE SELF-DIAGNOSIS MODE WITHOUT CONSULT-III

PHIA0709E

B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

SRC-21

< DTC/CIRCUIT DIAGNOSIS >

[FOR USA AND CANADA]

C

D

E

F

G

I

J

K

L

M

A

B

SRC

N

O

P

DTC/CIRCUIT DIAGNOSIS

B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

Description

INFOID:0000000005513490

DTC B1001, B1002, B1003, B1004, B1005 DIAGNOSIS SENSOR UNIT

Detects the whole SRS electrical system and displays the malfunction either by illuminating or blinking the air
bag warning lamp in the combination meter. Malfunctioning part can be detected by on board self-diagnosis
system and electro-diagnosis tester CONSULT-III.

OPERATION

It detects a shock that exceeds specified level and monitors such systems as the driver and passenger air
bag, side air bag, curtain air bag, pre-tensioner seat belts and Occupant Classification System (OCS) operate
properly.

STRUCTURE

It contains the “G” sensors for both frontal and side collisions and spare battery function in case of main bat-
tery damage in collision.

INSTALLATION

Air bag diagnosis sensor unit is installed under the center console with fixed bolts.

DTC Logic

INFOID:0000000005513491

DTC DETECTION LOGIC

With CONSULT-lll

DTC No. Index (“SELF-DIAG [CURRENT]”), (“SELF-DIAG [PAST]” or “TROUBLE DIAG RECORD”)

DTC CONFIRMATION PROCEDURE (With CONSULT-III)

1.

INSPECTION START

Turn ignition switch ON.

>> GO TO 2.

2.

CHECK SELF-DIAG RESULT

Check the screen of CONSULT-III.

Is malfunctioning part detected?

YES

>> Refer to

SRC-22, "Diagnosis Procedure"

.

NO

>> INSPECTION END.

DTC CONFIRMATION PROCEDURE (Without CONSULT-III)

NOTE:
• SRS will not enter diagnosis mode if no malfunction is detected in user mode.

1.

INSPECTION START

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

B1001
B1002
B1003
B1004
B1005

CONTROL  UNIT

Air bag diagnosis sensor unit is out of
order or mis-match

• Internal breakdown in air bag diag-

nosis sensor unit

• Mis-match between specification on

vehicle and configuration in air bag
diagnosis sensor unit
