RADIUS ROD

RADIUS ROD

Exploded View

INFOID:0000000005514354

Removal and Installation

INFOID:0000000005514355

REMOVAL

1.

Remove tire with power tool.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-111, "REAR WHEEL SENSOR : Exploded

View"

.

3.

Remove rear lower link and coil spring. Refer to

RSU-8, "Exploded View"

.

4.

Remove shock absorber mounting bolt (lower side) with power tool. Refer to

RSU-10, "Exploded View"

.

5.

Remove front lower link mounting bolt and nut (axle housing side) with power tool. Refer to

RSU-14,

"Exploded View"

.

6.

Loosen front lower link mounting bolt and nut (suspension member side). Refer to

RSU-14, "Exploded

View"

.

7.

Remove radius rod mounting bolts and nuts (axle housing side) with power tool.

8.

Remove radius rod mounting bolt (rear suspension member side) with power tool, then remove radius
rod.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000005514356

INSPECTION AFTER REMOVAL

Check radius rod and bushing for any deformation, cracks, or damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-111, "REAR WHEEL SENSOR :

Exploded View"

.

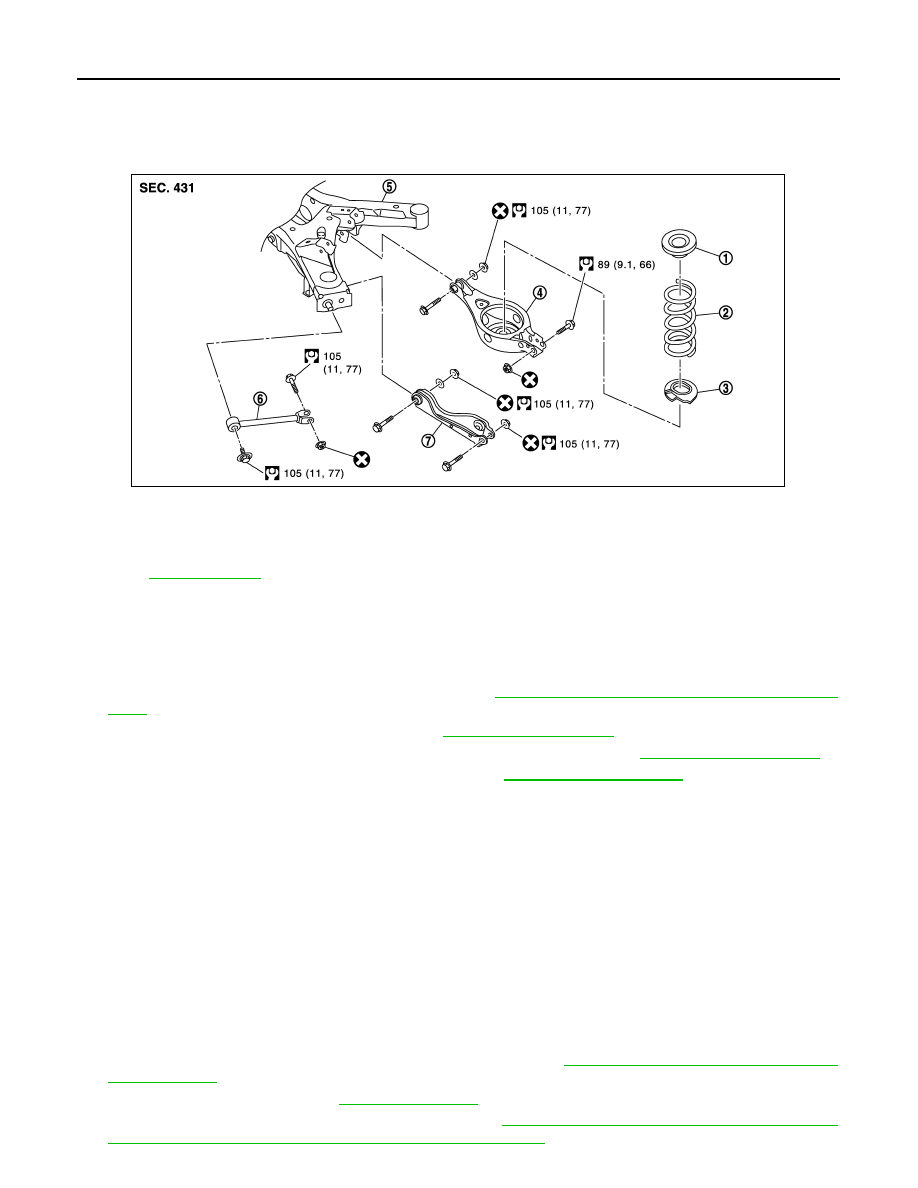

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Rear suspension member

6.

Radius rod

7.

Front lower link

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0146GB

RADIUS ROD

RSU-13

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

2.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

RSU-14

< REMOVAL AND INSTALLATION >

FRONT LOWER LINK

FRONT LOWER LINK

Exploded View

INFOID:0000000005514357

Removal and Installation

INFOID:0000000005514358

REMOVAL

1.

Remove tire with power tool.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-111, "REAR WHEEL SENSOR : Exploded

View"

.

3.

Remove rear lower link and coil spring. Refer to

RSU-8, "Exploded View"

.

4.

Remove shock absorber mounting bolt (lower side) with power tool. Refer to

RSU-10, "Exploded View"

.

5.

Remove stabilizer bushing and stabilizer clamp. Refer to

RSU-15, "Exploded View"

.

6.

Remove front lower link mounting bolts and nuts (rear suspension member side) with power tool.

7.

Remove front lower link mounting bolts and nuts (axle housing side) with power tool.

8.

Remove front lower link.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000005514359

INSPECTION AFTER REMOVAL

Check front lower link and bushing for any deformation, cracks, or damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-111, "REAR WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Rear suspension member

6.

Radius rod

7.

Front lower link

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0146GB

REAR STABILIZER

RSU-15

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REAR STABILIZER

Exploded View

INFOID:0000000005514360

Removal and Installation

INFOID:0000000005514361

REMOVAL

1.

Remove tires with power tool.

2.

Remove stabilizer connecting rod mount bracket.

3.

Remove stabilizer connecting rod.

CAUTION:

Apply a matching mark to identify the installation position.

4.

Remove mounting bolts on stabilizer clamp and remove stabilizer bar with power tool.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Check the matching mark when installing.
• Tighten the mounting nut to the specified torque while holding a hexagonal part of stabilizer connecting rod

side.

Inspection

INFOID:0000000005514362

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer bushing, stabilizer clamp, stabilizer connecting rod, stabilizer connecting rod
mounting bracket for any deformation, crack or damage. Replace if necessary.

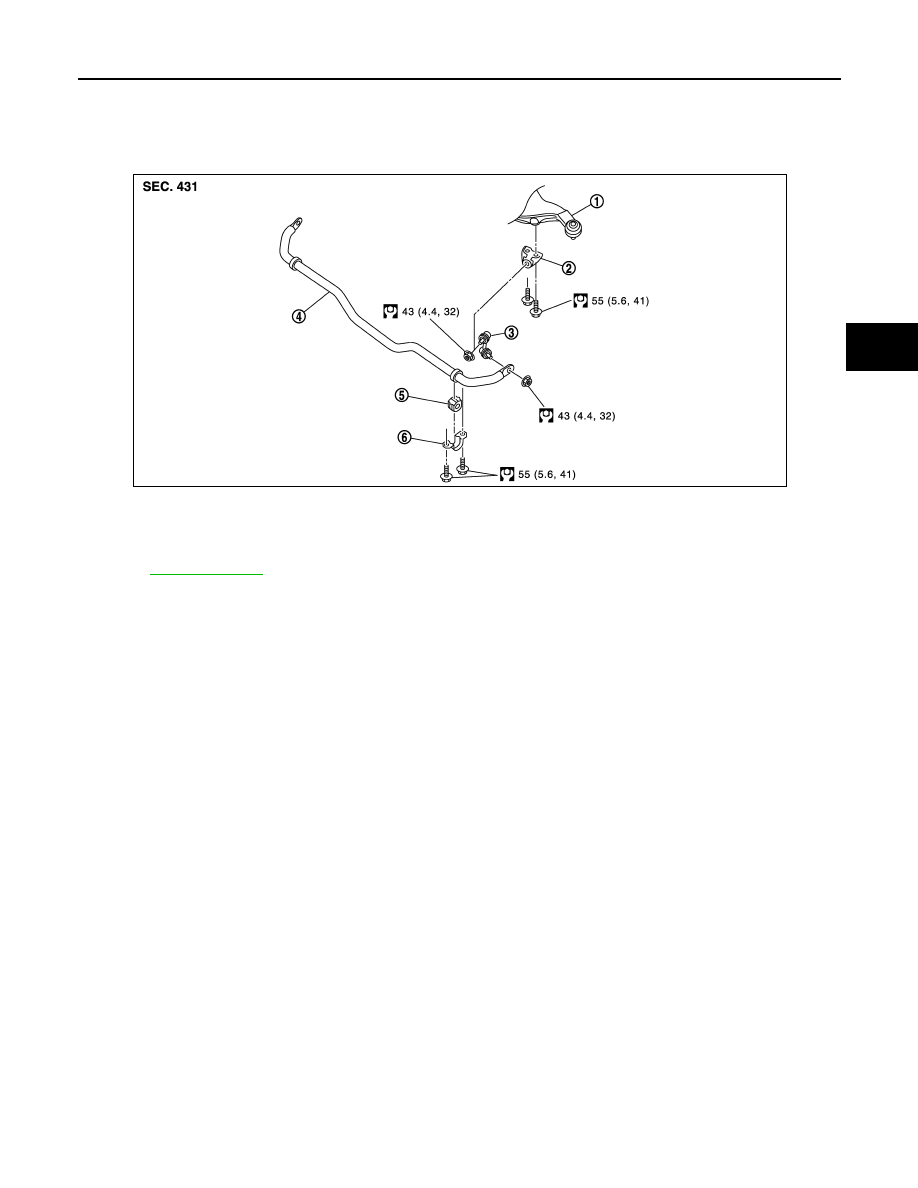

1.

Suspension arm

2.

Stabilizer connecting rod mount
bracket

3.

Stabilizer connecting rod

4.

Stabilizer bar

5.

Stabilizer bushing

6.

Stabilizer clamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0085GB
