with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

PG-118

< PREPARATION >

[POWER SUPPLY&GROUND CIRCUIT]

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000005516924

Tool number
(Kent-Moore No.)
Tool name

Description

—

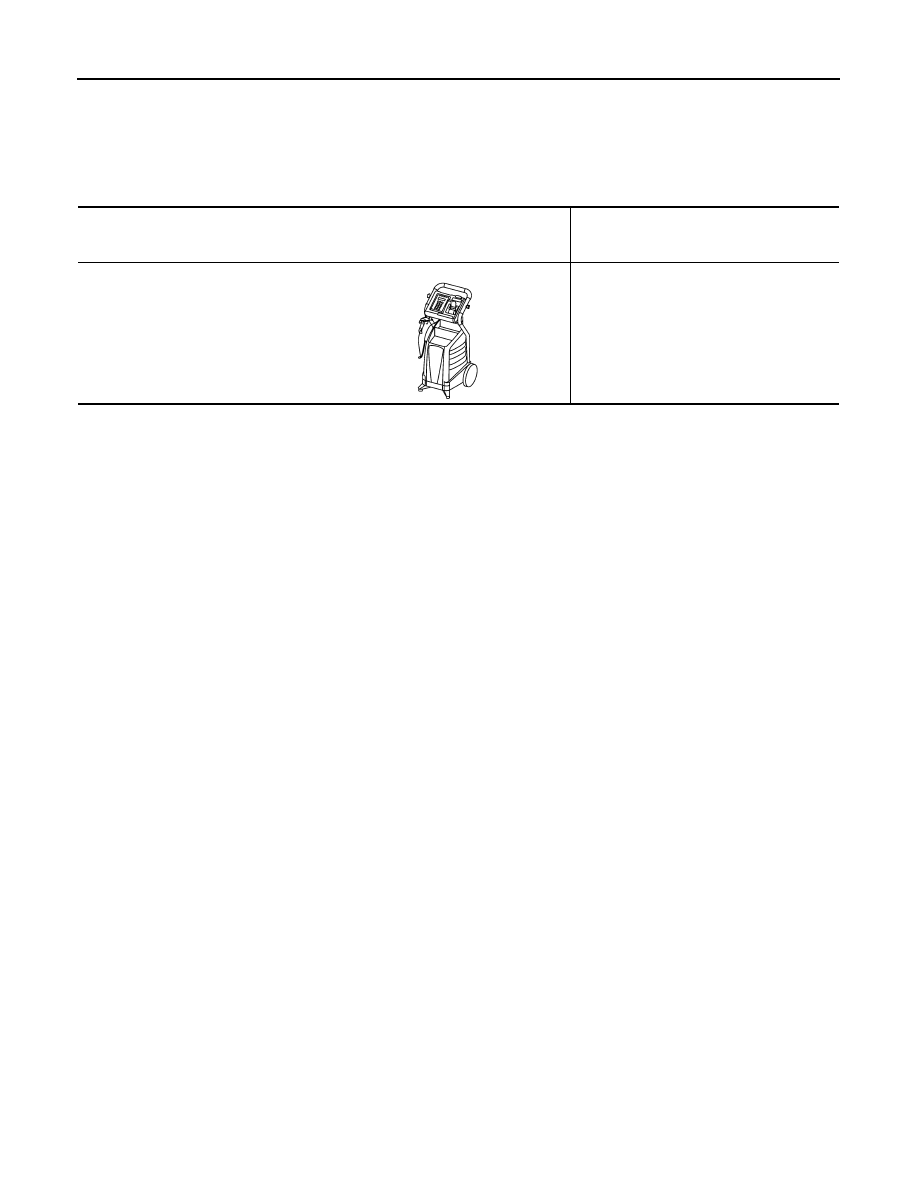

(J-48087)
Battery Service Center

Tests battery.
For operating instructions, refer to Technical
Service Bulletin and Battery Service Center
User Guide.

WKIA5280E

PG

BATTERY

PG-119

< REMOVAL AND INSTALLATION >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

REMOVAL AND INSTALLATION

BATTERY

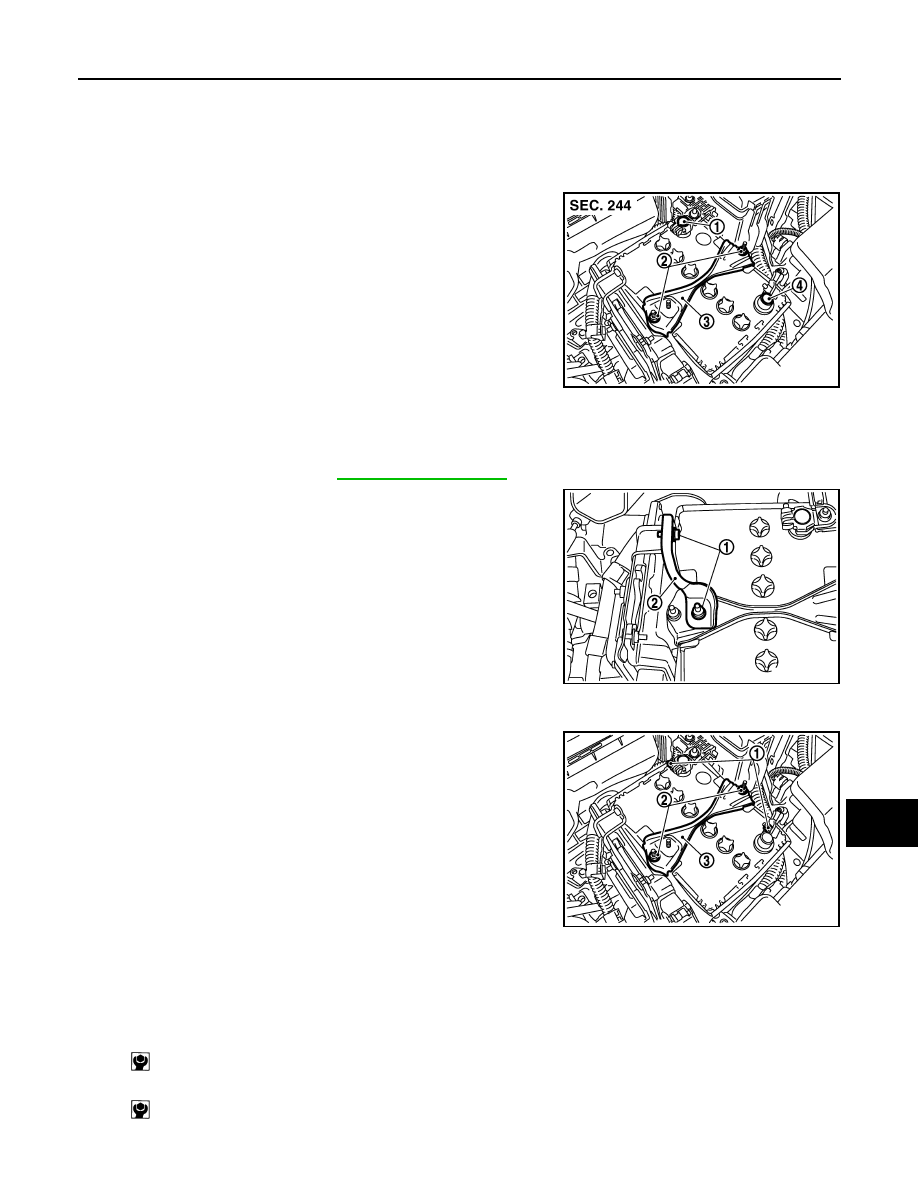

Exploded View
