Engine Room Harness

INFOID:0000000005516908

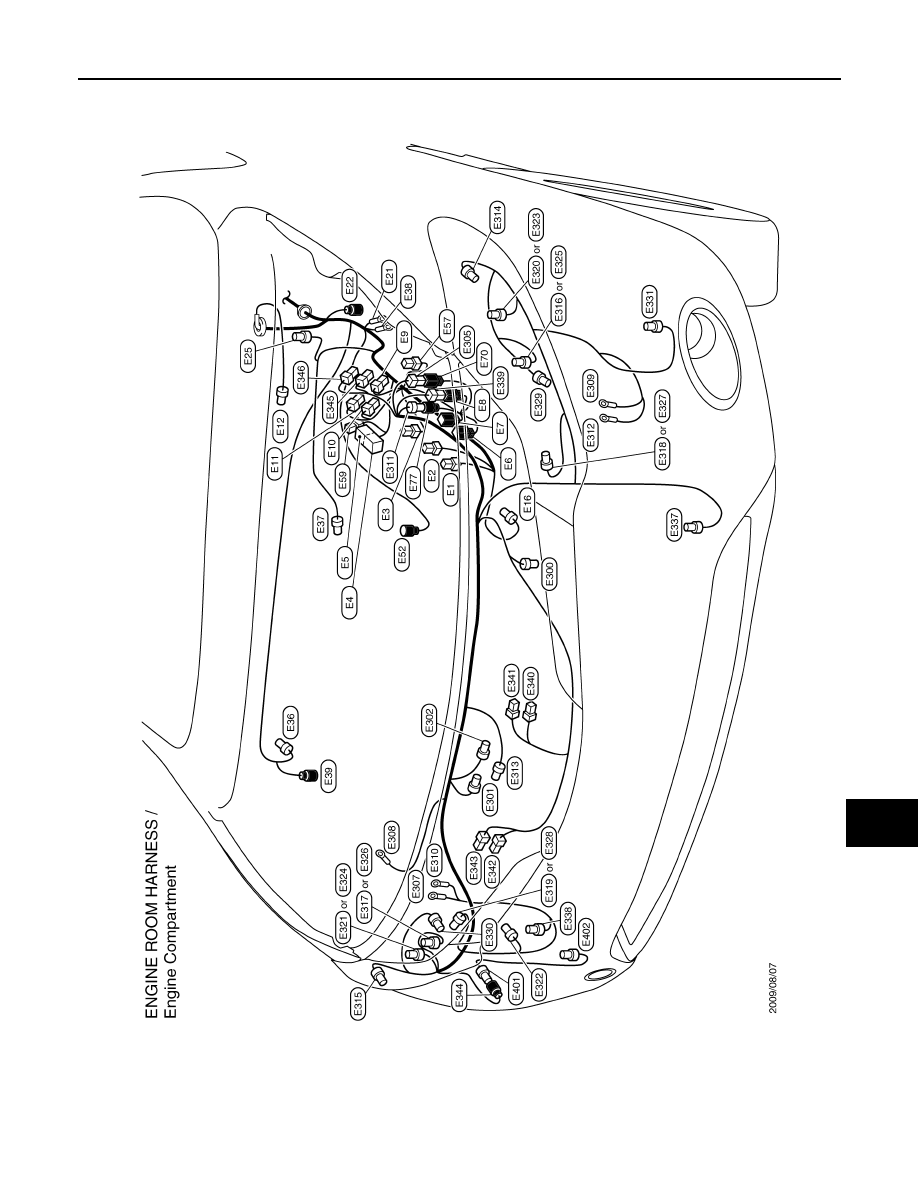

ENGINE COMPARTMENT

JCMIM0857GB

PG-98

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

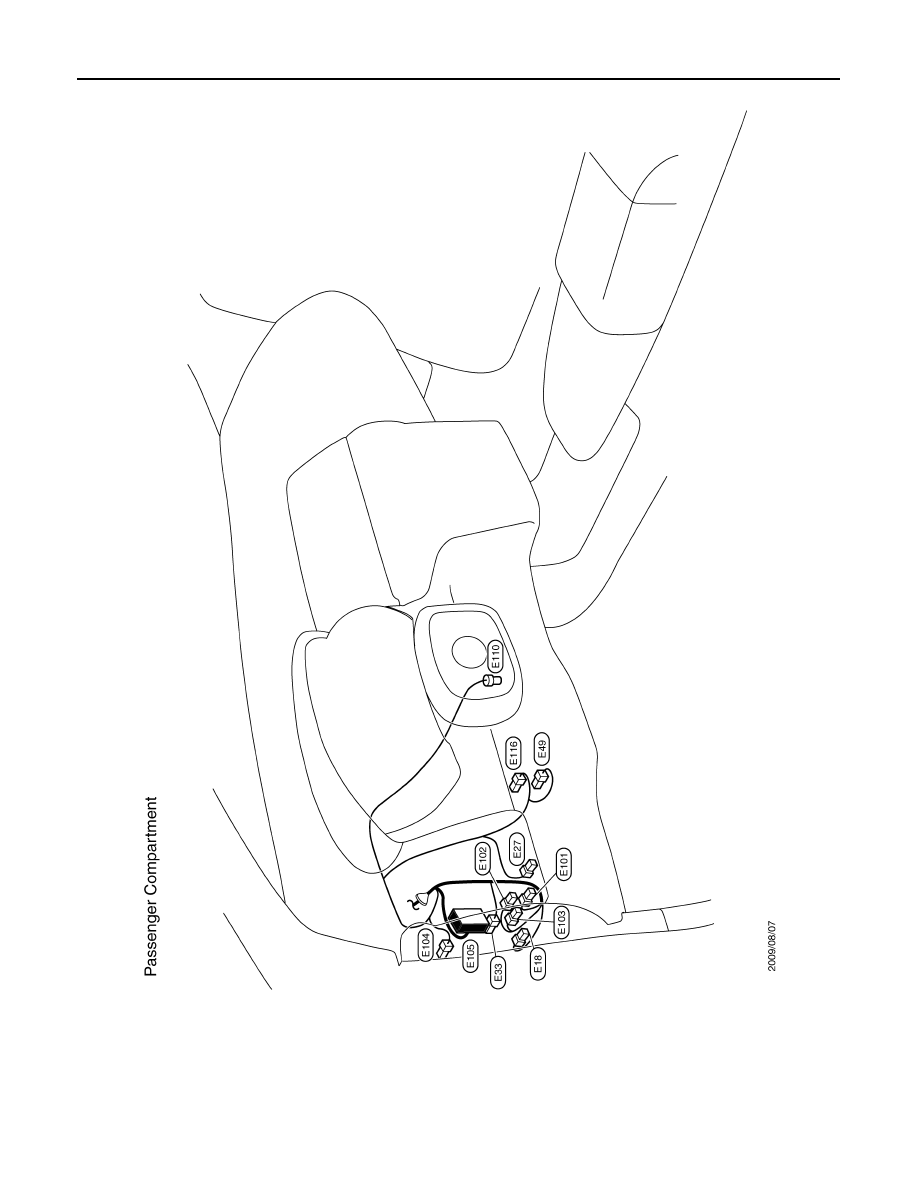

PASSENGER COMPARTMENT

JCMIM0858GB

PG

HARNESS LAYOUT

PG-99

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Engine Control Harness

INFOID:0000000005516909

JCMIM0859GB

PG-100

< DTC/CIRCUIT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

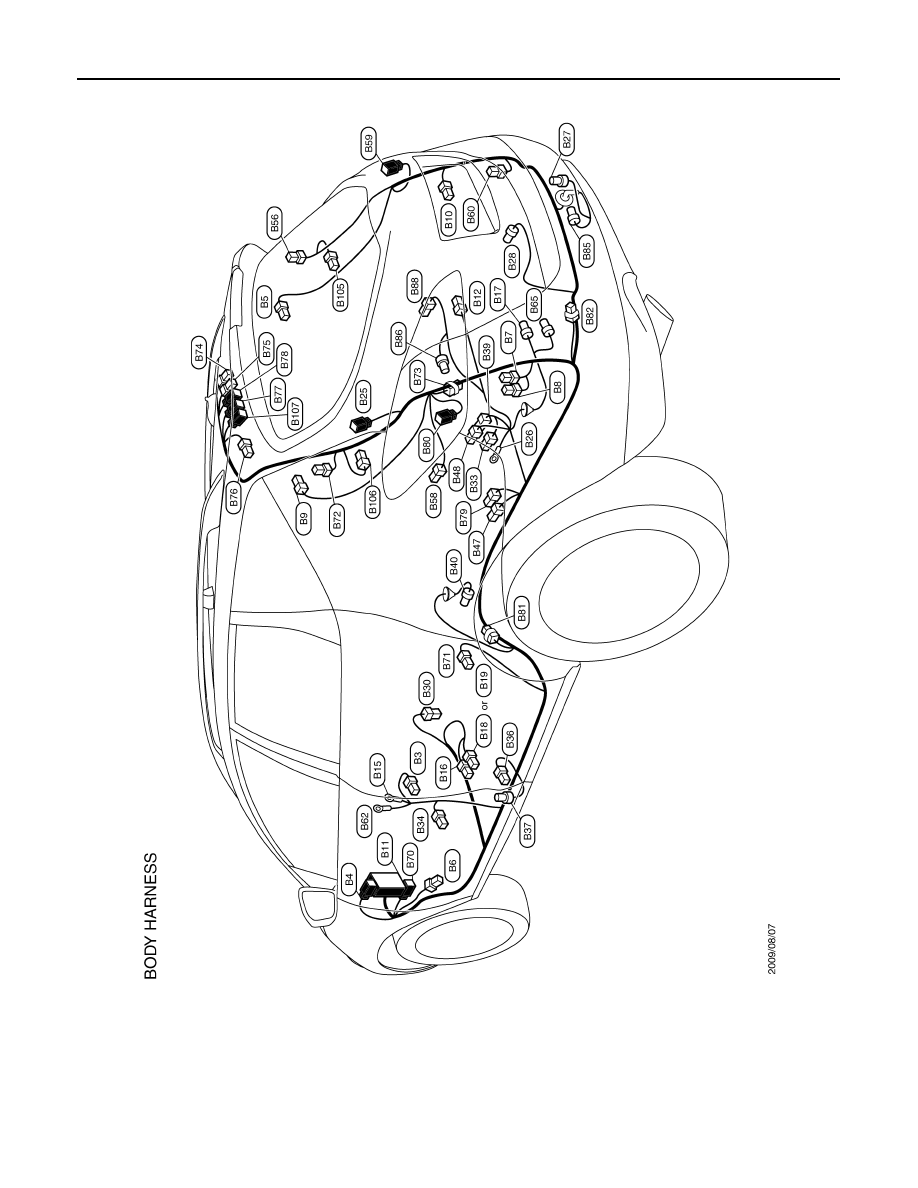

Body Harness

INFOID:0000000005516910

JCMIM0860GB
