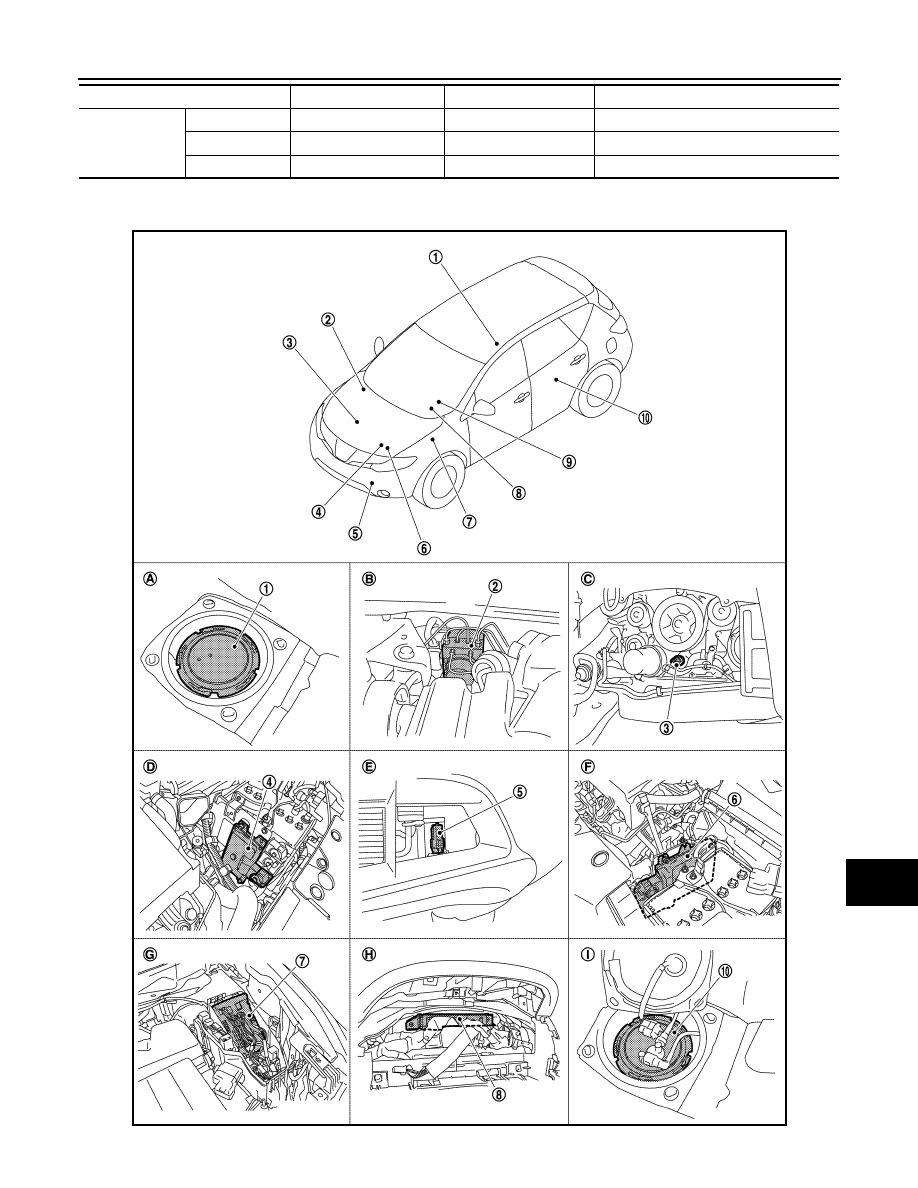

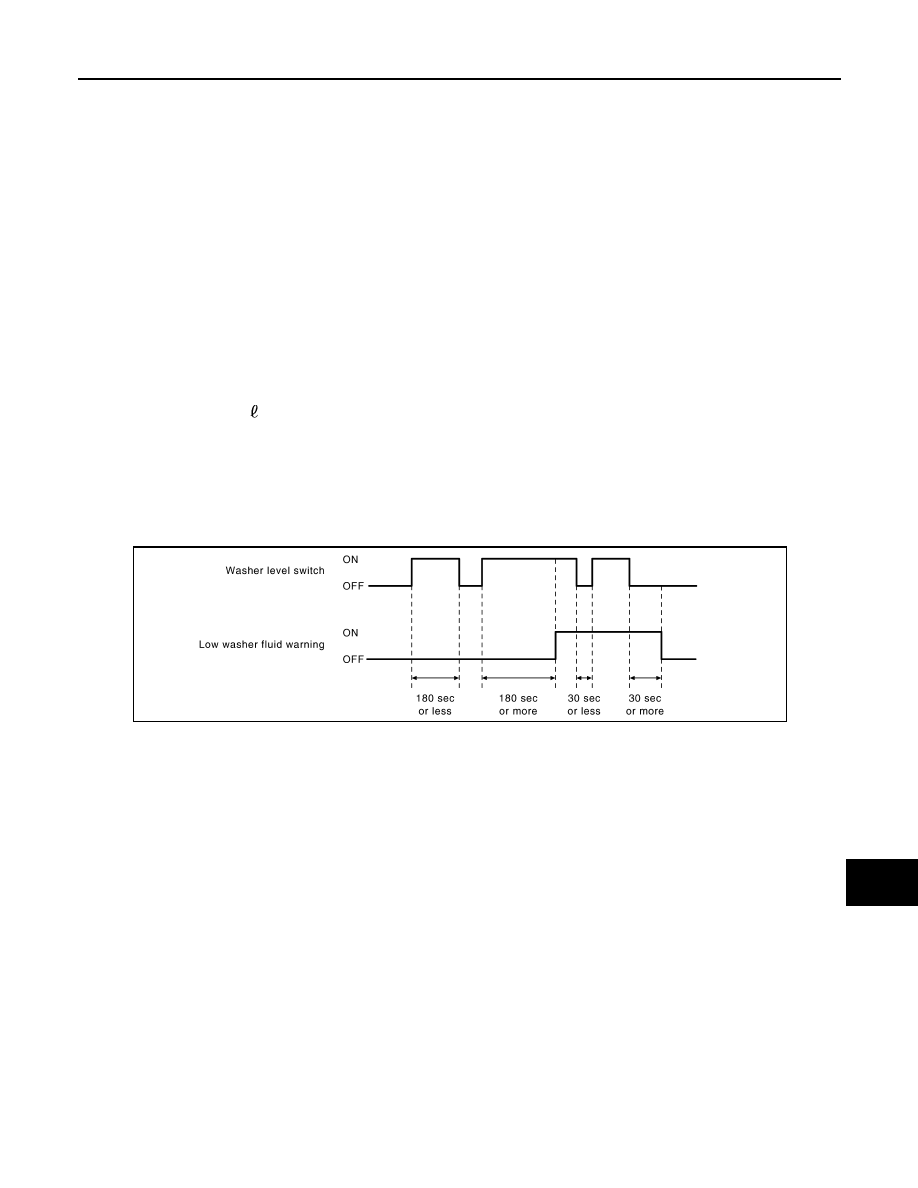

MWI-26 < SYSTEM DESCRIPTION > METER SYSTEM METER ILLUMINATION CONTROL : Component Description INFOID:0000000005524847 INFORMATION DISPLAY INFORMATION DISPLAY : System Diagram INFOID:0000000005524848 INFORMATION DISPLAY : System Description INFOID:0000000005524849 DESCRIPTION 1. Fuel level sensor unit (sub) 2. ABS actuator and electric unit (con- 3. Oil pressure switch 4. TCM 5. Ambient sensor 6. ECM 7. IPDM E/R 8. BCM 9. Combination meter 10. Fuel level sensor unit and fuel pump A. Lower right side of rear seat B. Engine room (RH) C. Engine front side D. Engine room (LH) E. Front bumper (left back) F. Engine room (LH) G. Engine room (LH) H. Behind the combination meter I. Lower left side of rear seat Unit Description Combination meter Controls the meter illumination with the illumination control switch signal from the meter control BCM Transmits the position light request signal to the combination meter via CAN communication. Meter control switch Transmits the following signals to the combination meter. • Illumination control switch signal (+) • Illumination control switch signal (–) JPNIA0747GB |
