OUTSIDE MIRROR

DOOR MIRROR ASSEMBLY : Removal and Installation

INFOID:0000000005513430

CAUTION:

Never damage the mirror bodies.

REMOVAL

1.

Remove the front door finisher. Refer to

INT-12, "FRONT DOOR FINISHER : Removal and Installation"

.

2.

Remove the door mirror corner cover.

3.

Disconnect the door mirror harness connector.

4.

Remove the door mirror mounting nuts, and remove the door mirror assembly.

INSTALLATION

Install in the reverse order of removal.

GLASS MIRROR

GLASS MIRROR : Exploded View

INFOID:0000000005513431

GLASS MIRROR : Disassembly and Assembly

INFOID:0000000005513432

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

JMLIA0123ZZ

OUTSIDE MIRROR

MIR-73

< REMOVAL AND INSTALLATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

1.

Place the glass mirror upward.

2.

Put a strip of protective tape (A) on the housing.

3.

Insert flat-bladed screwdriver (B) into the recess at lower side
between glass mirror (1) and actuator (2), and push up pawls to
remove glass mirror lower side.
NOTE:
 Insert a small slotted screwdriver into recess, and push up while
rotating (twist) to make work easier.

4.

Insert flat-bladed screwdriver at RH/LH side between glass mirror and actuator, and push up pawls to
remove glass mirror RH/LH side.
NOTE:
 Insert flat-bladed screwdriver into recesses, and push up while rotating (twist) to make work easier.

5.

Remove two terminals of mirror heater attachment. (With heater mirror model)

6.

Pull glass mirror as shown in the figure in order to disengage
both upper pawls, and then remove glass mirror.

ASSEMBLY

Install in the reverse order of removal.

CAUTION:

After installation, visually check that pawls are securely engaged.

DOOR MIRROR COVER

JMLIA0124ZZ

1.

Glass mirror

2.

Actuator

JMLIA0092ZZ

MIR-74

< REMOVAL AND INSTALLATION >

[WITH ADP]

OUTSIDE MIRROR

DOOR MIRROR COVER : Exploded View

INFOID:0000000005513433

DOOR MIRROR COVER : Disassembly and Assembly

INFOID:0000000005513434

CAUTION:

Never damage the mirror bodies.

DISASSEMBLY

1.

Remove the glass mirror. Refer to

MIR-72, "GLASS MIRROR : Disassembly and Assembly"

.

2.

Remove the pawls, and disassemble the door mirror cover from the mirror assembly.

ASSEMBLY

Install in the reverse order of removal.
NOTE:
After installation, visually check that pawls are securely engaged.

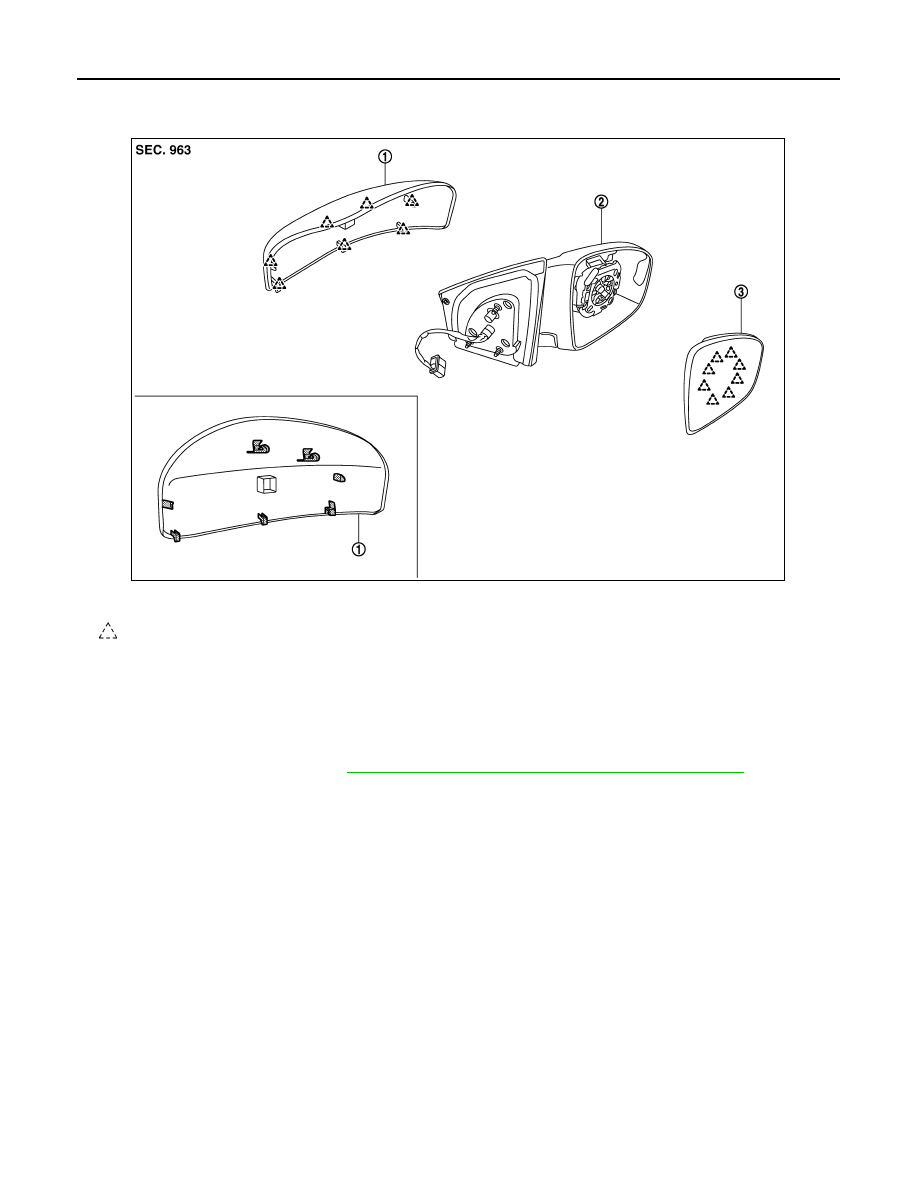

1.

Door mirror cover

2.

Door mirror assembly

3.

Glass mirror

: Pawl

JMLIA0123ZZ

DOOR MIRROR REMOTE CONTROL SWITCH

MIR-75

< REMOVAL AND INSTALLATION >

[WITH ADP]

C

D

E

F

G

H

I

J

K

M

A

B

MIR

N

O

P

DOOR MIRROR REMOTE CONTROL SWITCH

Exploded View

INFOID:0000000005513435

Refer to

INT-12, "FRONT DOOR FINISHER : Exploded View"

Removal and Installation

INFOID:0000000005513436

REMOVAL

1.

Remove the power window main switch finisher (2). Refer to

PWC-119, "Removal and Installation"

2.

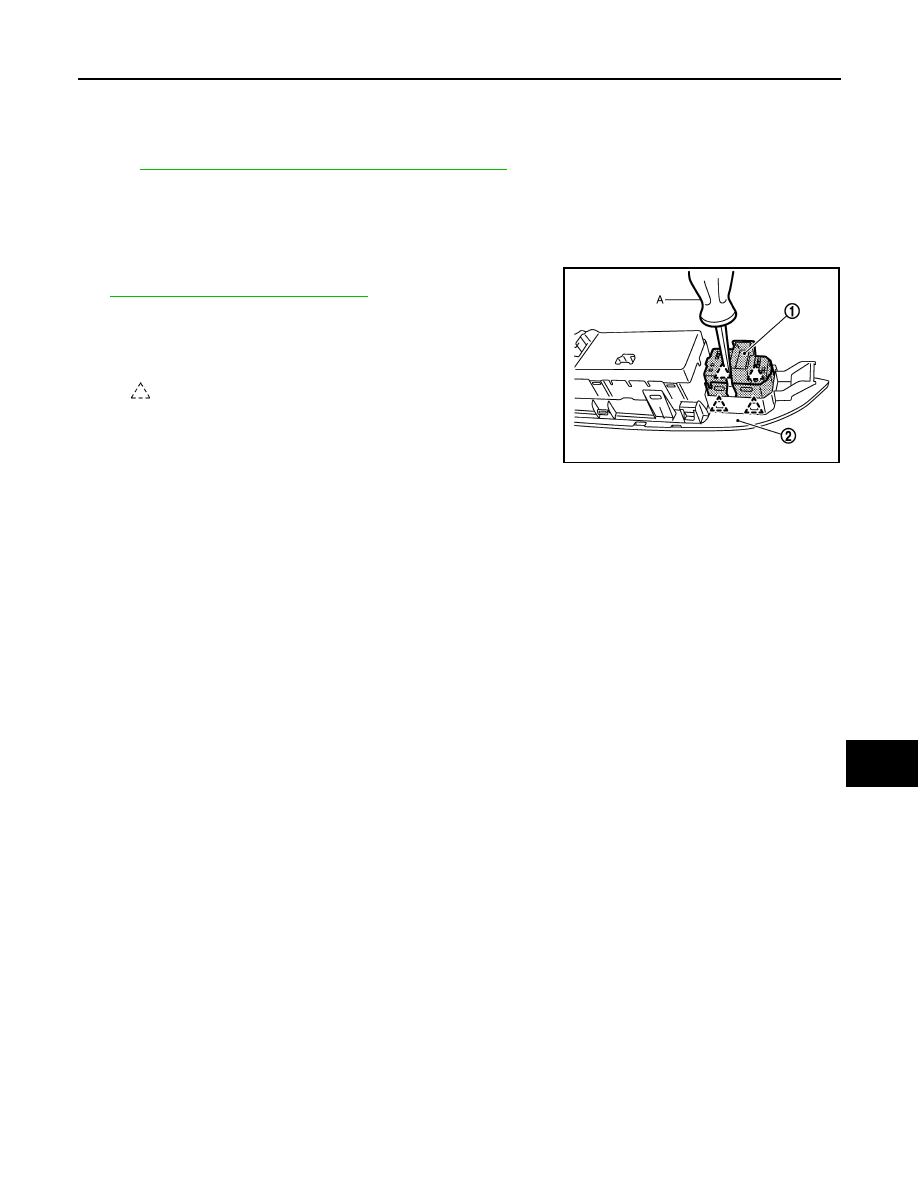

Remove door mirror remote control switch (1) from power win-
dow main switch finisher (2) using flat-bladed screwdriver (A).

INSTALLATION

Install in the reverse order of removal.

: Pawl

JMLIA0118ZZ
