Nissan Murano. Manual - part 921

IP-20

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

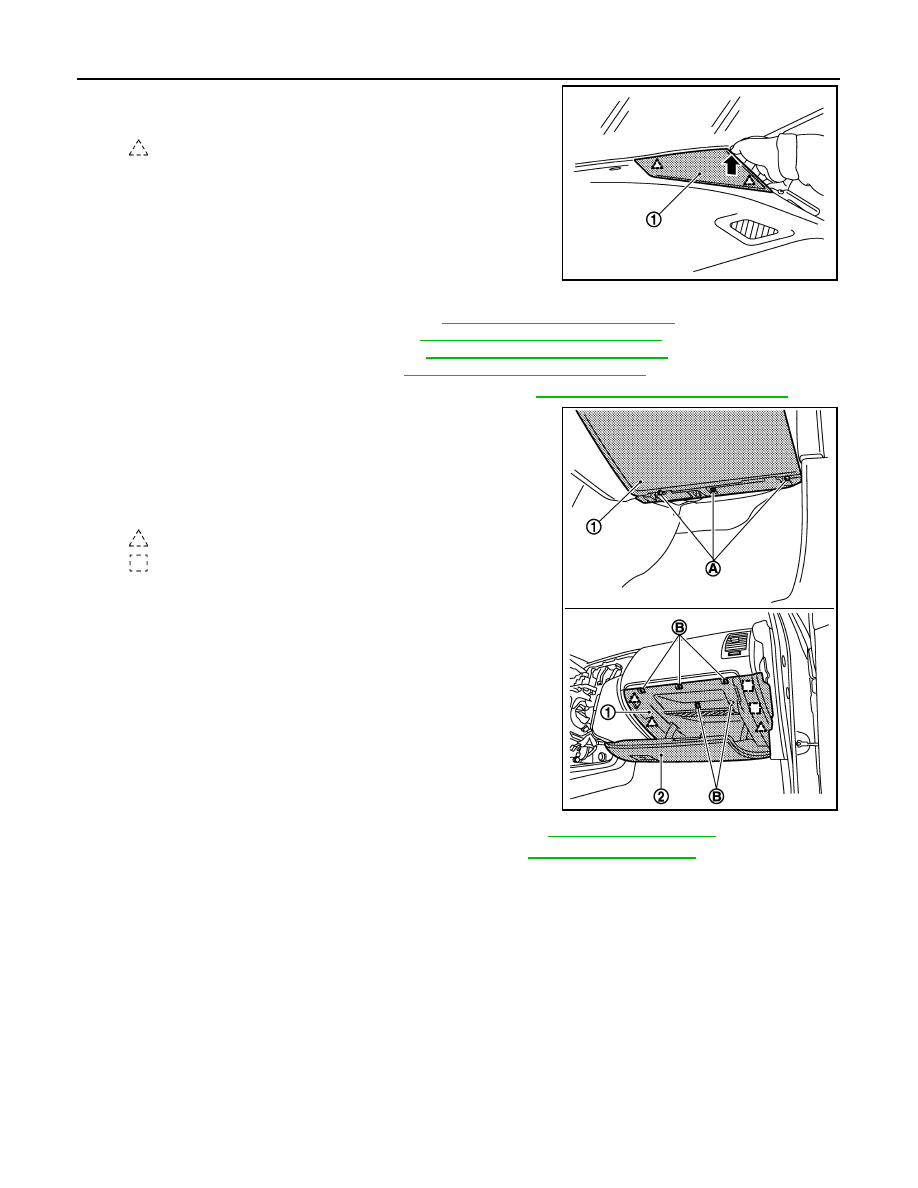

29. Remove speaker grille RH.

Pull up speaker grille RH (1).

30. Remove front squawker RH. Refer to the following.

• For Base audio without color display: Refer to

AV-43, "Removal and Installation"

.

• For Base audio with color display: Refer to

AV-153, "Removal and Installation"

.

• For Bose audio without navigation: Refer to

AV-280, "Removal and Installation"

.

• For Bose audio with navigation: Refer to

AV-452, "Removal and Installation"

.

31. Remove optical sensor (XENON headlamp models). Refer to

EXL-183, "Removal and Installation"

.

32. Remove instrument lower panel RH.

1.

Remove instrument lower panel RH (1) fixing screws (A).

2.

Open the glove box lid (2).

3.

Remove instrument lower panel RH fixing screws (B).

4.

Pull back instrument lower panel RH.

5.

Disconnect harness connector.

33. Disconnect front passenger air bag module connector. Refer to

SR-18, "Exploded View"

.

34. Remove front passenger air bag module fixing bolt. Refer to

SR-18, "Exploded View"

.

: Pawl

JMJIA1329ZZ

: Pawl

: Metal clip

JMJIA1330ZZ

INSTRUMENT PANEL ASSEMBLY

IP-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

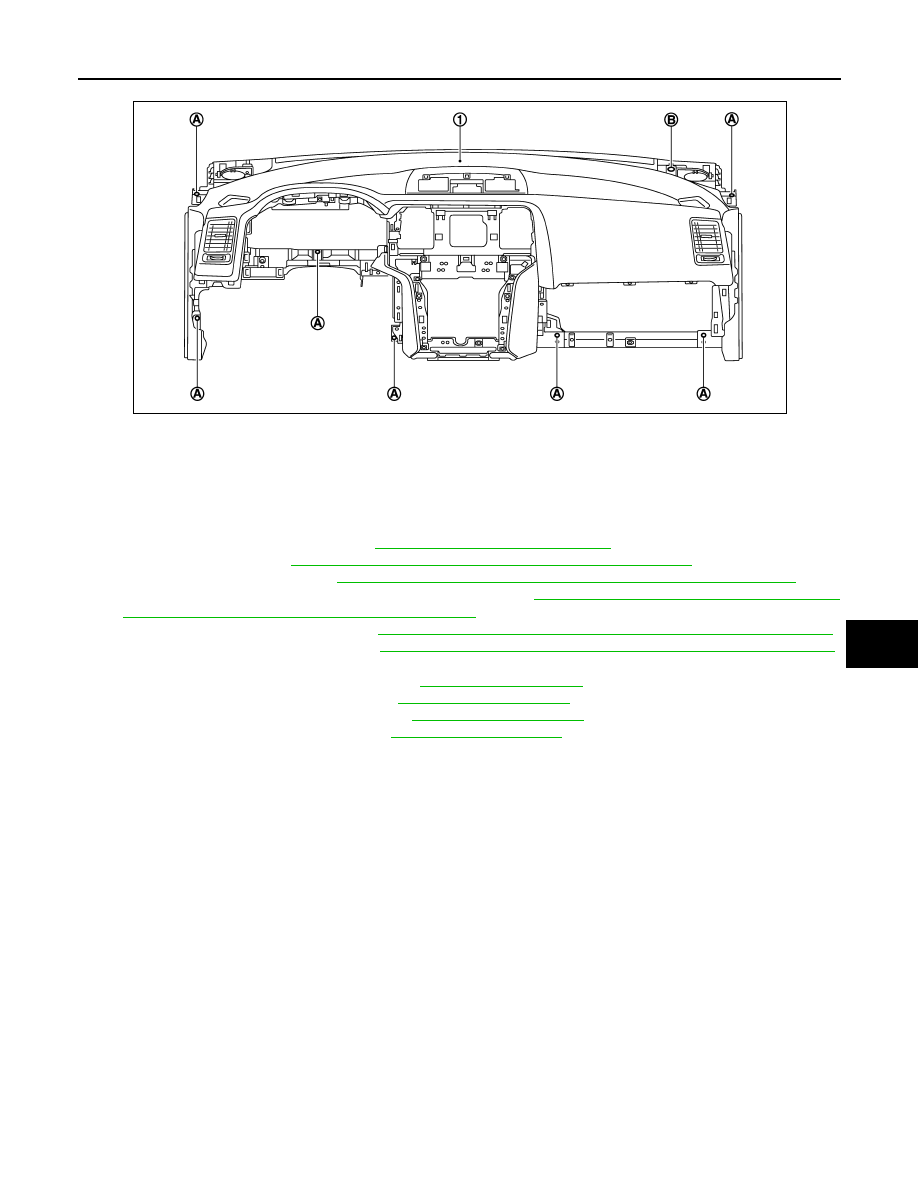

35. Remove instrument panel assembly (1) mounting screws (A) and bolt (B).

36. Remove instrument panel assembly.

CAUTION:

• Cover center console upper surface with a shop cloth to prevent it from being damaged.
• When removing instrument panel assembly, 2 workers are required so as to prevent it from drop-

ping.

37. Remove the following parts after removing instrument panel assembly.

• Passenger air bag module. Refer to

SR-18, "Removal and Installation"

.

• Ventilator duct. Refer to

VTL-53, "VENTILATOR DUCT : Removal and Installation"

.

• Upper ventilator duct. Refer to

VTL-54, "UPPER VENTILATOR DUCT : Removal and Installation"

.

• Defroster nozzle and side defroster nozzle LH/RH. Refer to

VTL-55, "DEFROSTER NOZZLE AND SIDE

DEFROSTER NOZZLE : Removal and Installation"

.

• Side defroster grille LH/RH. Refer to

VTL-52, "SIDE DEFROSTER GRILLE : Removal and Installation"

.

• Side ventilator grille LH/RH. Refer to

VTL-50, "SIDE VENTILATOR GRILLE : Removal and Installation"

.

• Antenna feeder
-  Base audio without color display: Refer to

AV-45, "Feeder Layout"

.

-  Base audio with color display: Refer to

AV-167, "Feeder Layout"

.

-  BOSE audio without navigation: Refer to

AV-298, "Feeder Layout"

.

-  BOSE audio with navigation: Refer to

AV-469, "Feeder Layout"

.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

• Never use the steering wheel mounting nut after removal, replace with the new nut.
• Never use the driver air bag mounting bolts after removal, replace with the new bolts.
• Never use the passenger air bag mounting bolt after removal, replace with the new bolt.

JMJIA1331ZZ

IP-22

< REMOVAL AND INSTALLATION >

CENTER CONSOLE ASSEMBLY

CENTER CONSOLE ASSEMBLY

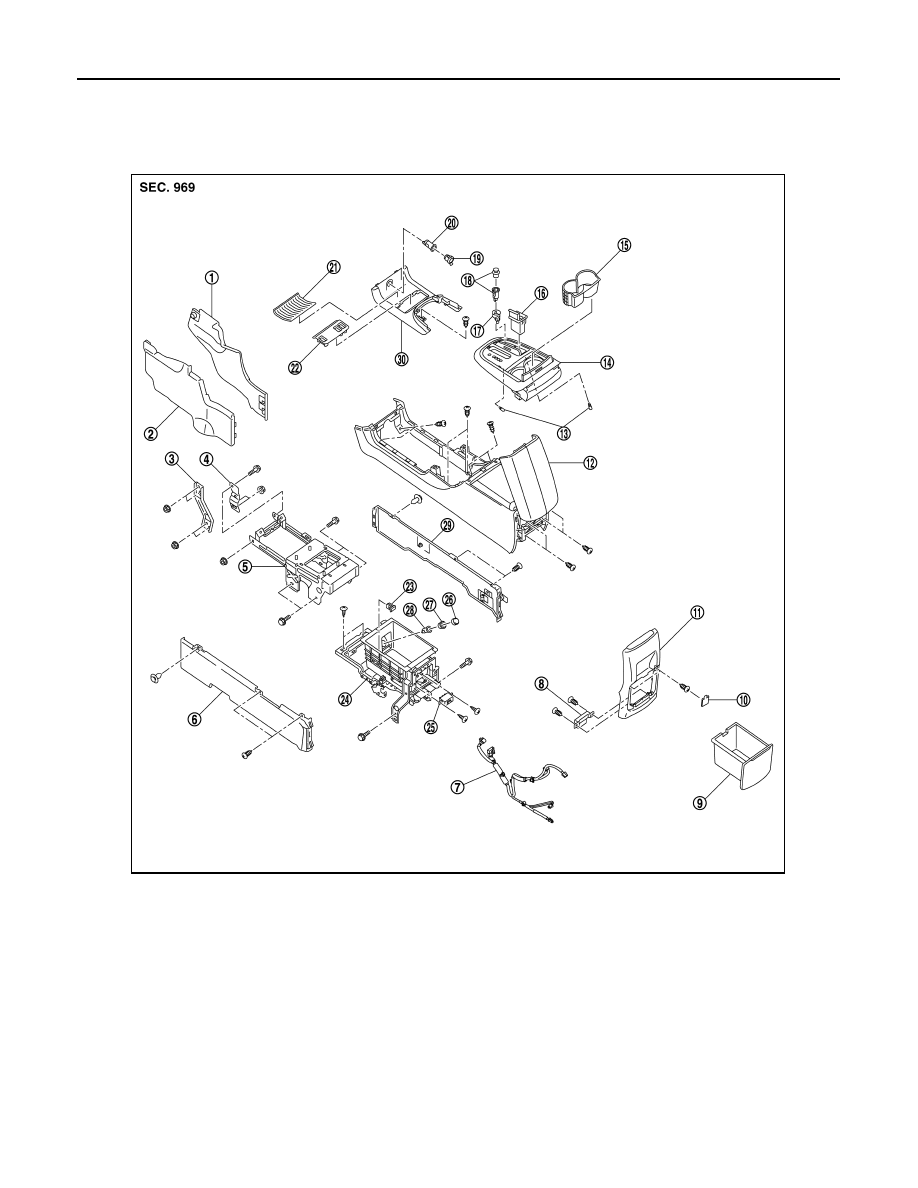

Exploded View

INFOID:0000000009719641

1.

Instrument lower cover RH

2.

Instrument lower cover LH

3.

Instrument stay LH

4.

Front console bracket

5.

Console reinforcement

6.

Lower console finisher LH

7.

Console harness

8.

Inside key antenna

9.

Rear console pocket

10. Console mask

11.

Console rear finisher

12. Center console assembly

13. Socket and bulb

14. Console finisher assembly

15. Cup holder assembly

16. Ashtray

17. Cigarette lighter ring

18. Cigarette lighter complete

19. Socket knob

20. Socket inner case

21. Console mat

22. Console switch finisher

23. USB connector

24. Lower console assembly

25. Auxiliary input jacks

26. Socket knob

27. Socket ring

28. Socket inner case

29. Lower console finisher RH

30. Front console pocket

JSJIA0058ZZ

CENTER CONSOLE ASSEMBLY

IP-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

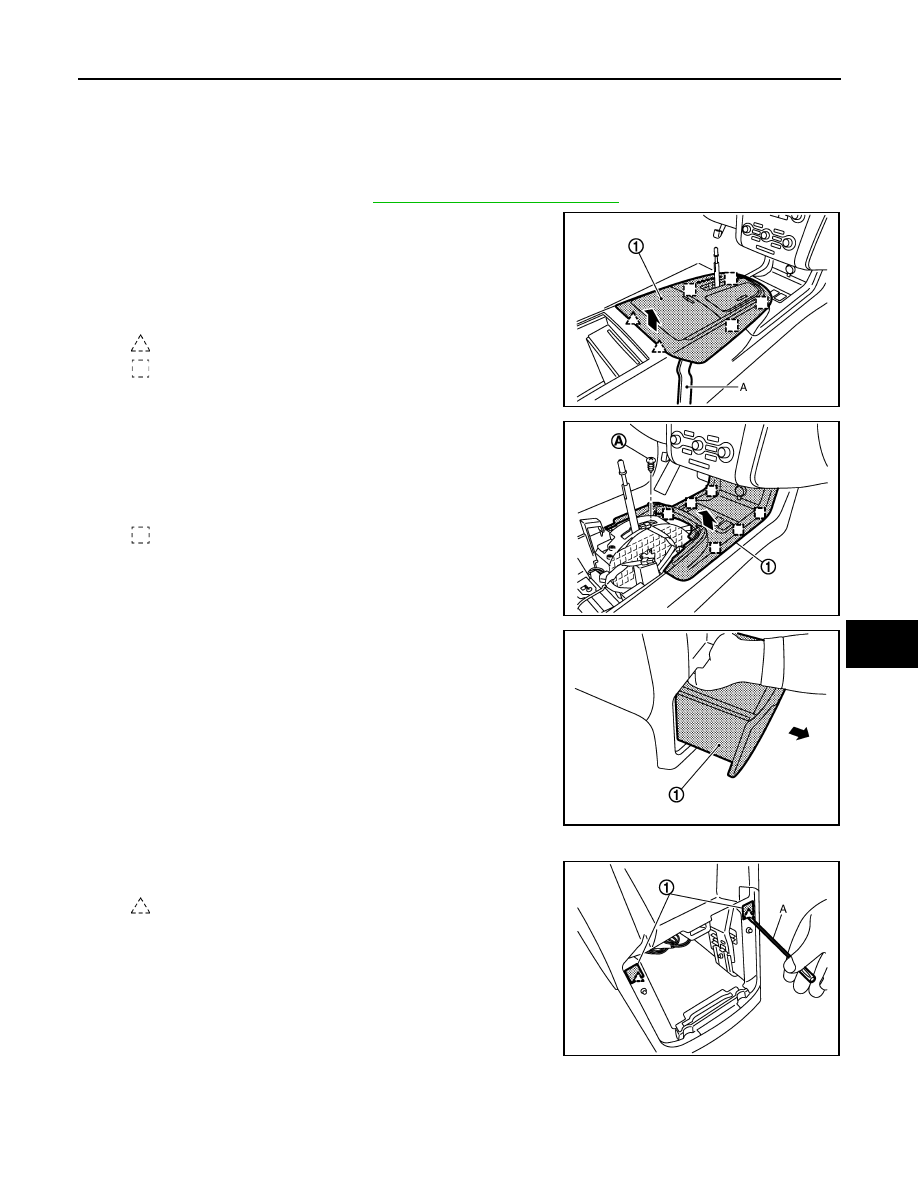

Removal and Installation

INFOID:0000000009719642

CAUTION:

When removing, always use a remover tool that is made of plastic.

REMOVAL

1.

Remove selector lever knob. Refer to

TM-167, "Removal and Installation"

.

2.

Remove console finisher assembly.
1.

Open the console lid.

2.

Remove console finisher assembly (1) fixing pawls and
metal clips with remover tool (A).

3.

Pull up console finisher assembly.

4.

Disconnect harness connectors.

3.

Remove front console pocket.
1.

Remove front console pocket (1) fixing screw (A).

2.

Pull up front console pocket, and then disengage metal
clips.

3.

Disconnect harness connectors.

4.

Remove rear console pocket.
1.

Open the rear console pocket (1).

2.

Release rear console pocket lock.

5.

Remove console rear finisher.
1.

Remove console mask (1) with flat-bladed screwdriver (A).

: Pawl

: Metal clip

JMJIA1334ZZ

: Metal clip

JMJIA1335ZZ

JMJIA1336ZZ

: Pawl

JMJIA1337ZZ
