HAC-50

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

B2578, B2579 IN-VEHICLE SENSOR

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT

1.

Using CONSULT, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2.

Check if any DTC No. is displayed in the self-diagnosis results.

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

.

Is DTC No.“B2578” or “B2579” displayed?

YES

>> Perform trouble diagnosis for the in-vehicle sensor. Refer to

HAC-50, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009722063

1.

CHECK VOLTAGE BETWEEN IN-VEHICLE SENSOR AND GROUND

1.

Disconnect in-vehicle sensor connector.

2.

Turn ignition switch ON.

3.

Check voltage between in-vehicle sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between in-vehicle sensor harness connector and A/C auto amp. harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK IN-VEHICLE SENSOR

Check in-vehicle sensor. Refer to

HAC-51, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

DTC

Items

 (CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

B2578

IN-VEHICLE SENSOR

Detected temperature at in-vehicle
sensor

−

44

°

C (

−

47

°

F) or less

• In-vehicle sensor
• A/C auto amp.
• Harness and connector

(In-vehicle sensor circuit is open,
or there is a short in the circuit)

B2579

Detected temperature at in-vehicle
sensor 100

°

C (212

°

F) or more

(+)

(

−

)

Voltage

In-vehicle sensor

—

Connector

Terminal

M41

1

Ground

Approx. 5 V

In-vehicle sensor

 A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M41

2

M50

37

Existed

B2578, B2579 IN-VEHICLE SENSOR

HAC-51

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

NO

>> Replace in-vehicle sensor.

4.

CHECK CIRCUIT CONTINUITY BETWEEN IN-VEHICLE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between in-vehicle sensor harness connector and A/C auto amp. harness connector.

4.

Check continuity between in-vehicle sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000009722064

1.

CHECK IN-VEHICLE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect in-vehicle sensor connector. Refer to

VTL-27, "Exploded View"

.

3.

Check resistance between in-vehicle sensor terminals.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace in-vehicle sensor.

In-vehicle sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M41

1

M50

36

Existed

In-vehicle sensor

—

Continuity

Connector

Terminal

M41

1

Ground

Not existed

Terminal

Condition

Resistance k

Ω

Temperature

°

C (

°

F)

1

2

−

15 (5)

12.73

−

10 (14)

9.92

−

5 (23)

7.80

0 (32)

6.19

5 (41)

4.95

10 (50)

3.99

15 (59)

3.24

20 (68)

2.65

25 (77)

2.19

30 (86)

1.81

35 (95)

1.51

40 (104)

1.27

45 (113)

1.07

HAC-52

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

B2581, B2582 INTAKE SENSOR

B2581, B2582 INTAKE SENSOR

Description

INFOID:0000000009722065

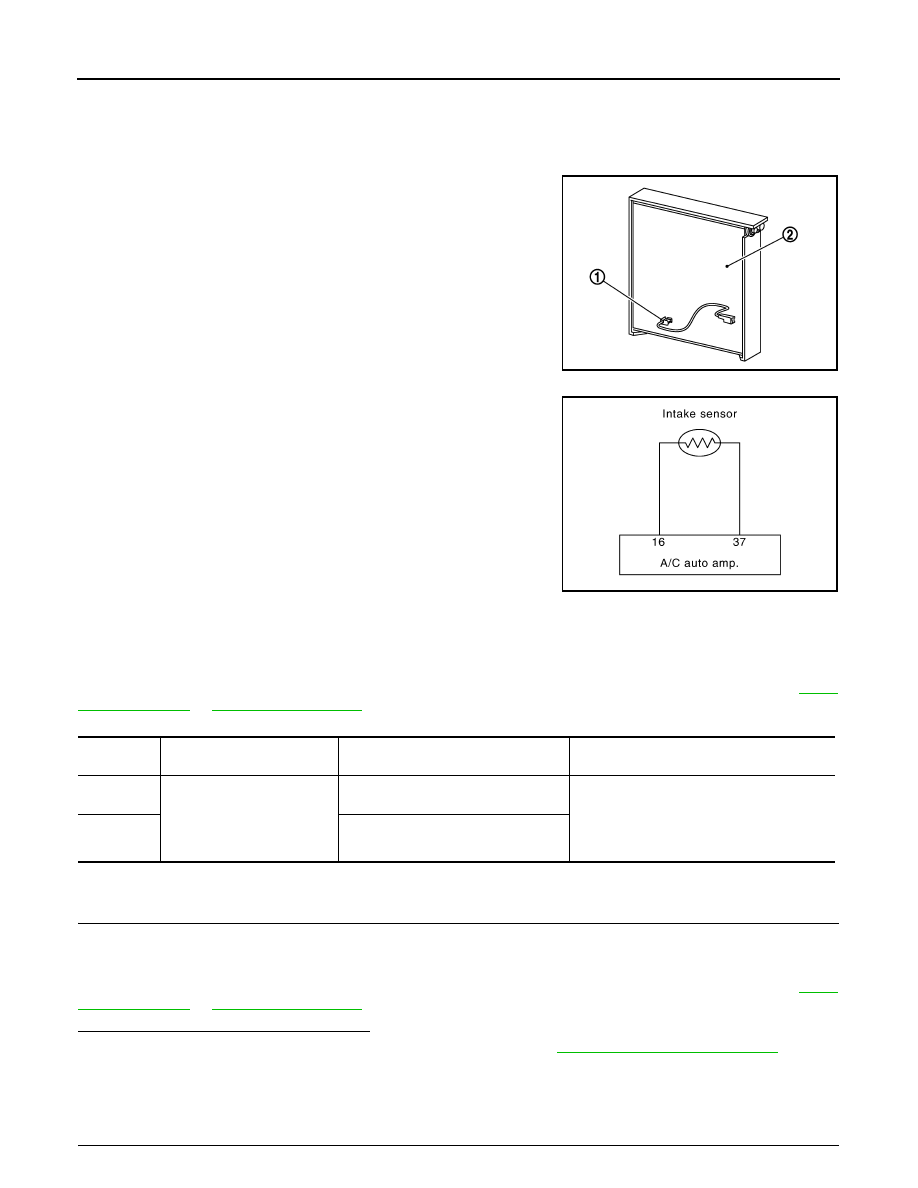

Intake Sensor
• The intake sensor (1) is located on the evaporator (2).
• It converts air temperature after it passes through the evaporator

into a resistance value which is then input to the A/C auto amp.

Intake Sensor Circuit

DTC Logic

INFOID:0000000009722066

DTC DETECTION LOGIC

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT

1.

Using CONSULT, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2.

Check if any DTC No. is displayed in the self-diagnosis results.

NOTE:
If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

44, "DTC Logic"

 or

HAC-45, "DTC Logic"

.

Is DTC No.“B2581” or “B2582” displayed?

YES

>> Perform trouble diagnosis for the intake sensor. Refer to

HAC-52, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000009722067

1.

CHECK VOLTAGE BETWEEN INTAKE SENSOR AND GROUND

JPIIA1351ZZ

JPIIA0614GB

DTC

Items

 (CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

B2581

INTAKE SENSOR

Detected temperature at intake sensor

−

33

°

C (

−

27

°

F) or less

• Intake sensor
• A/C auto amp.
• Harness and connector

(Intake sensor circuit is open, or there is a
short in the circuit)

B2582

Detected temperature at intake sensor
69

°

C (156

°

F) or more

B2581, B2582 INTAKE SENSOR

HAC-53

< DTC/CIRCUIT DIAGNOSIS >

[WITHOUT 7 INCH DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

1.

Disconnect intake sensor connector.

2.

Turn ignition switch ON.

3.

Check voltage between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 4.

2.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector and A/C auto amp. harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK INTAKE SENSOR

Check intake sensor. Refer to

HAC-53, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Replace intake sensor.

4.

CHECK CIRCUIT CONTINUITY BETWEEN INTAKE SENSOR AND A/C AUTO AMP.

1.

Turn ignition switch OFF.

2.

Disconnect A/C auto amp. connector.

3.

Check continuity between intake sensor harness connector and A/C auto amp. harness connector.

4.

Check continuity between intake sensor harness connector and ground.

Is the inspection result normal?

YES

>> Replace A/C auto amp.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000009722068

1.

CHECK INTAKE SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect intake sensor connector.

3.

Check resistance between intake sensor terminals.

(+)

(

−

)

Voltage

Intake sensor

—

Connector

Terminal

M42

1

Ground

Approx. 5 V

Intake sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M42

2

M50

37

Existed

Intake sensor

A/C auto amp.

Continuity

Connector

Terminal

Connector

Terminal

M42

1

M50

16

Existed

Intake sensor

—

Continuity

Connector

Terminal

M42

1

Ground

Not existed
