FSU-10

< REMOVAL AND INSTALLATION >

FRONT COIL SPRING AND STRUT

Disassembly and Assembly

INFOID:0000000009721405

DISASSEMBLY

CAUTION:

Never damage strut assembly piston rod when removing components from strut assembly.

1.

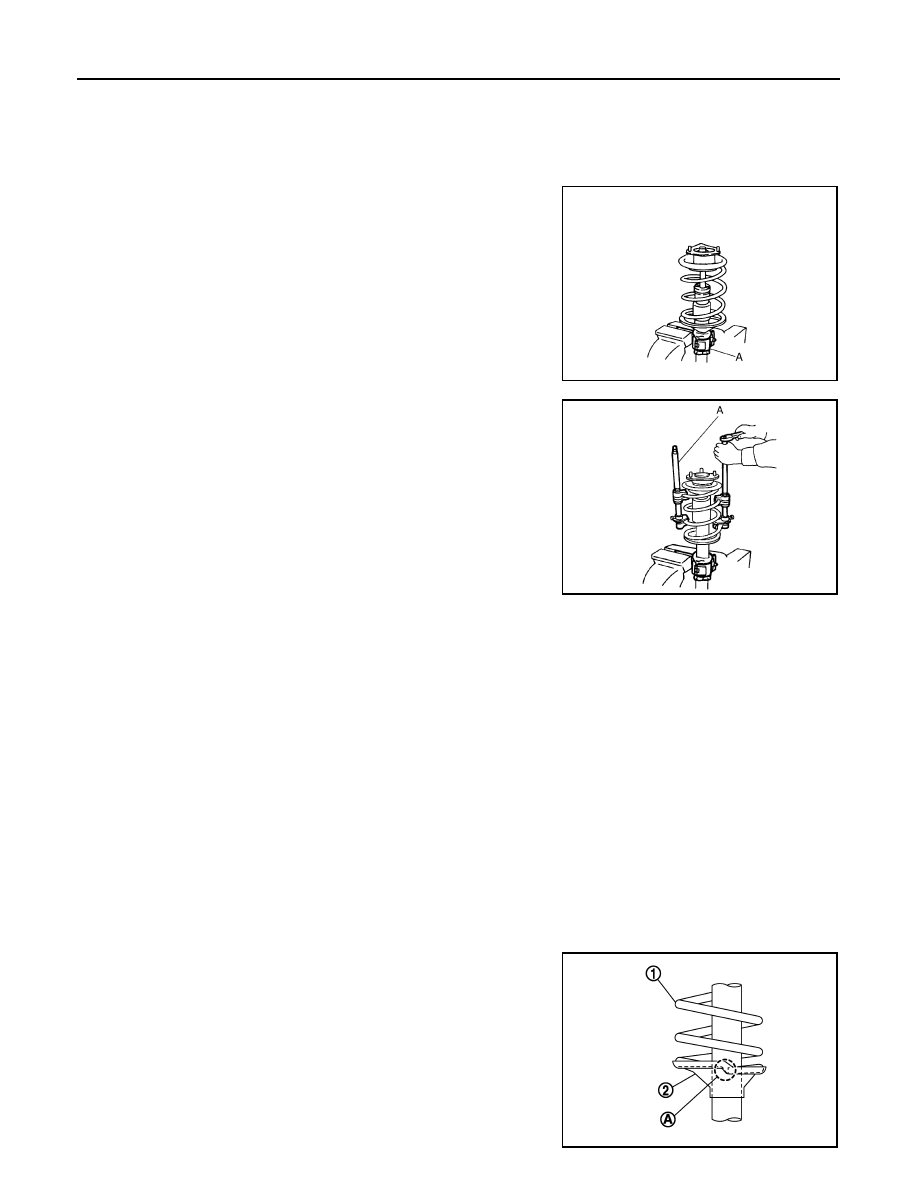

Install strut attachment (A) [SST: ST35652000 (

—

)] to strut

assembly and secure it in a vise.

CAUTION:

When installing the strut attachment to strut assembly,
wrap a shop cloth around strut to protect from damage.

2.

Using a spring compressor (A) (commercial service tool), com-
press coil spring between strut mounting bearing and lower rub-
ber seat (on strut assembly) until coil spring with a spring
compressor is free.

CAUTION:

Be sure a spring compressor is securely attached to coil
spring. Compress coil spring.

3.

Make sure coil spring with a spring compressor between strut
mounting bearing and lower rubber seat (strut assembly) is free.
And then remove piston rod lock nut while securing the piston
rod tip so that piston rod does not turn.

4.

Remove strut mounting insulator and strut mounting bearing,
and bound bumper from strut.

5.

After removing coil spring with a spring compressor (commercial service tool), then gradually release a
spring compressor.

CAUTION:

Loosen while making sure coil spring attachment position does not move.

6.

Remove lower rubber seat from strut.

7.

Remove the strut attachment [SST: ST35652000 (

—

)] from strut.

ASSEMBLY

1.

Install strut attachment [SST: ST35652000 (

—

)] to strut and secure it in a vise.

CAUTION:

When installing the strut attachment to strut assembly, wrap a shop cloth around strut to protect
from damage.

2.

Install lower rubber seat.

3.

Install bound bumper onto strut mounting insulator.

4.

Compress coil spring using a spring compressor (commercial service tool), and install it onto strut assem-
bly.

CAUTION:

• Face tube side of coil spring (1) downward. Align the

lower end (A) to lower rubber seat (2).

• Be sure a compressor is securely attached to coil spring.

Compress coil spring.

• Set coil spring so that its paint marks are aligned with the

positions of 1.25 turns and 2.25 turns from the bottom end
of the coil spring.

JPEIA0006ZZ

JPEIA0168ZZ

JPEIA0095ZZ

FRONT COIL SPRING AND STRUT

FSU-11

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

5.

Install strut mounting bearing and strut mounting insulator with bound bumper to strut.

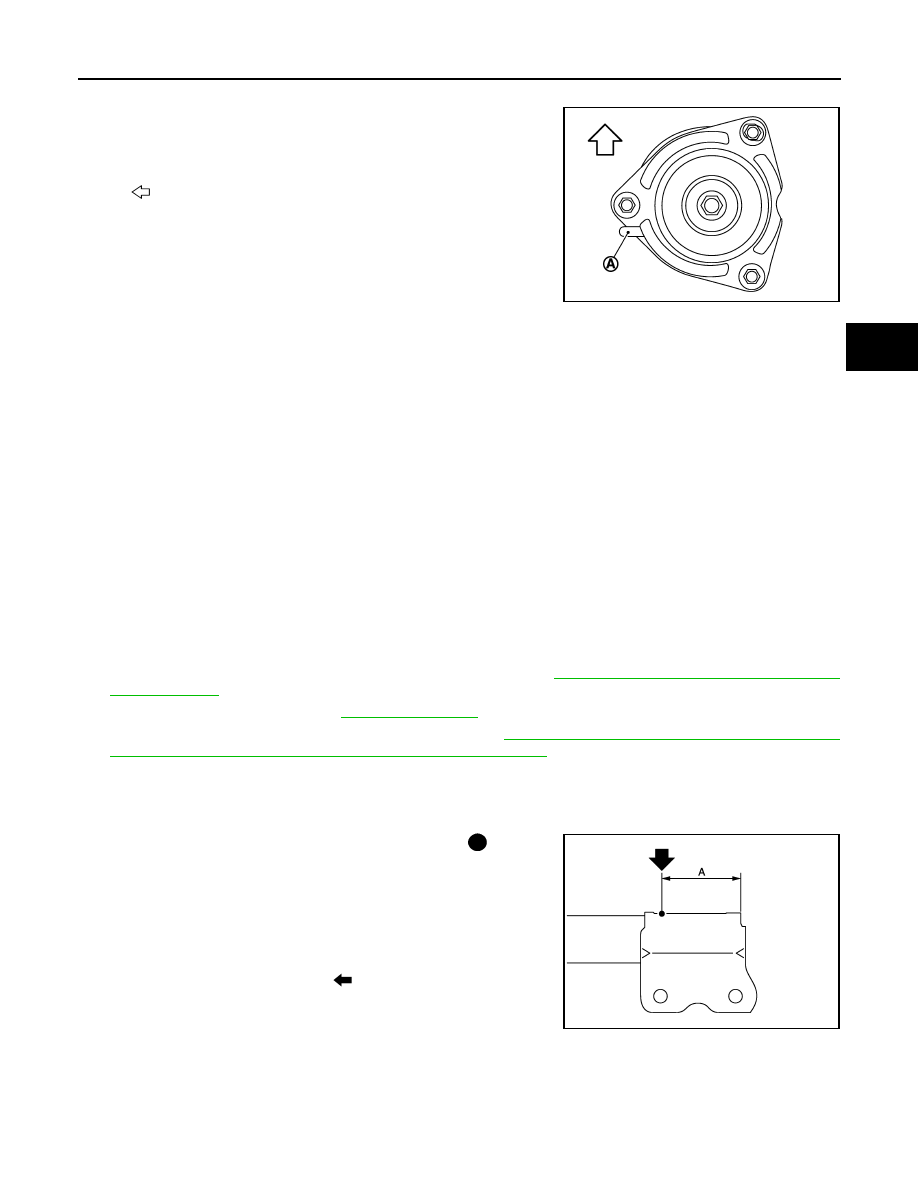

• Installation position of strut mounting insulator is shown in the

figure.

6.

Secure piston rod tip so that piston rod does not turn, then
tighten piston rod lock nut with specified torque.

CAUTION:

Never reuse piston rod lock nut.

7.

Gradually release a spring compressor (commercial service
tool), and remove coil spring.

CAUTION:

Loosen while making sure coil spring attachment position does not move.

8.

Remove the strut attachment [SST: ST35652000 (

—

)] from strut assembly.

Inspection

INFOID:0000000009721406

INSPECTION AFTER DISASSEMBLY

Strut

Check the following items, and replace the parts if necessary.
• Strut for deformation, cracks or damage.
• Piston rod for damage, uneven wear or distortion.
• Oil leakage.

Strut Mounting Insulator and Rubber Parts Inspection

Check strut mounting insulator for cracks and rubber parts for wear. Replace it if necessary.

Coil Spring

Check coil spring for cracks, wear or damage. Replace it if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connector. Refer to

BRC-123, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

Disposal

INFOID:0000000009721407

1.

Set strut assembly horizontally with the piston rod fully extended.

2.

Drill 2 – 3 mm (0.08 – 0.12 in) hole at the position (

) from top

as shown in the figure to release gas gradually.

CAUTION:

• Wear eye protection (safety glasses).
• Wear gloves.
• Be careful with metal chips or oil blown out by the com-

pressed gas.

NOTE:
• Drill vertically in this direction (

).

• Directly to the outer tube avoiding brackets.
• The gas is clear, colorless, odorless, and harmless.

3.

Position the drilled hole downward and drain oil by moving the piston rod several times.

CAUTION:

Dispose of drained oil according to the law and local regulations.

A

: Projection

: Vehicle front

JPEIA0094ZZ

A

: 20 – 30 mm (0.79 – 1.18 in)

JPEIA0160ZZ

FSU-12

< REMOVAL AND INSTALLATION >

TRANSVERSE LINK

TRANSVERSE LINK

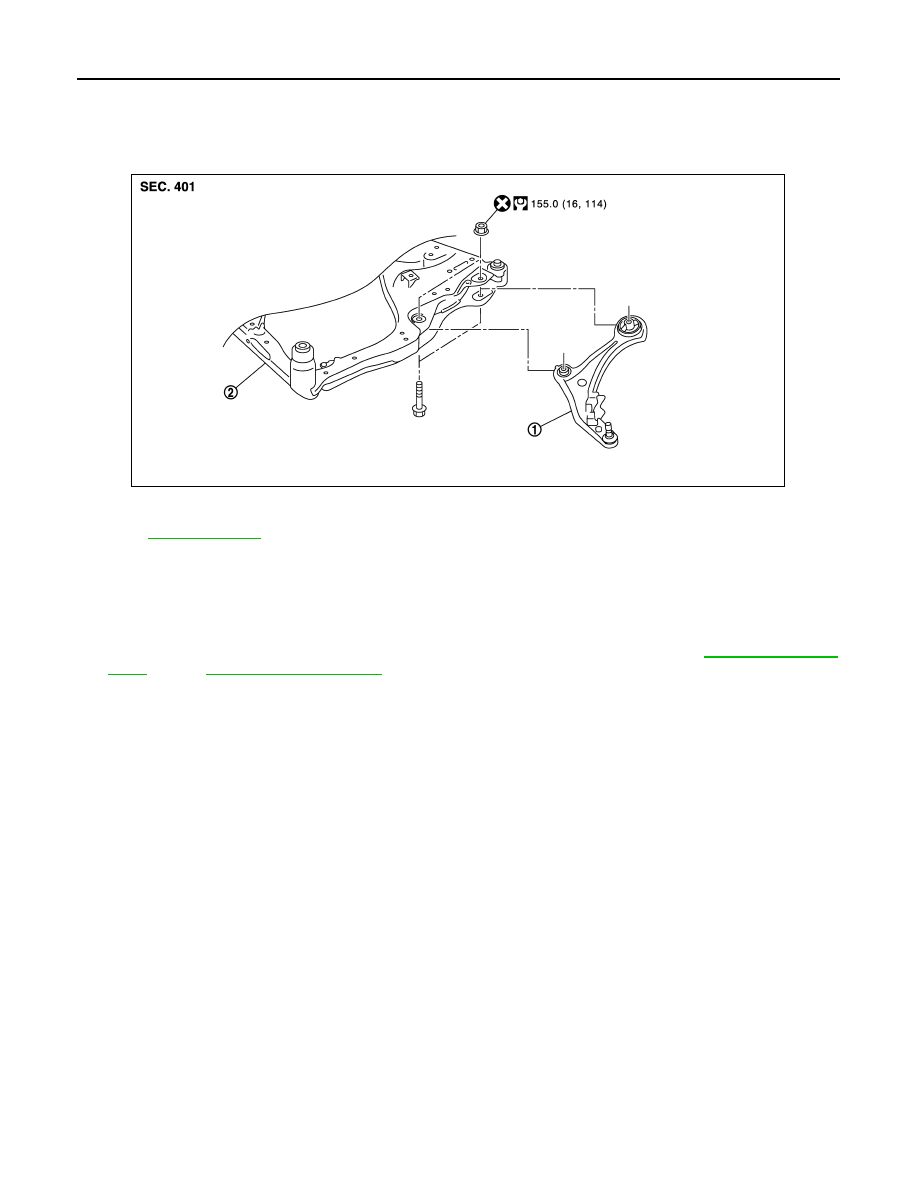

Exploded View

INFOID:0000000009721408

Removal and Installation

INFOID:0000000009721409

REMOVAL

1.

Remove tires with power tool.

2.

Remove drive shaft of wheel side from wheel hub and bearing assembly. Refer to

FAX-18, "Exploded

View"

 (2WD),

FAX-45, "Exploded View"

 (AWD).

3.

Remove transverse link from steering knuckle.

4.

Remove transverse link from suspension member.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of bolts and nuts at the front suspension member, under unladen conditions with

tires on level ground.

Inspection

INFOID:0000000009721410

INSPECTION AFTER REMOVAL

Appearance

Check the following items, and replace the part it necessary.
• Transverse link and bushing for deformation, cracks or damage.
• Ball joint boot for cracks or other damage, and also for grease leakage.

Ball Joint Inspection

Manually move ball stud to confirm it moves smoothly with no binding.

Swing Torque Inspection

1.

Move ball stud at least ten times by hand to check for smooth movement.

1.

Transverse link

2.

Front suspension member

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIA0091GB

TRANSVERSE LINK

FSU-13

< REMOVAL AND INSTALLATION >

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

2.

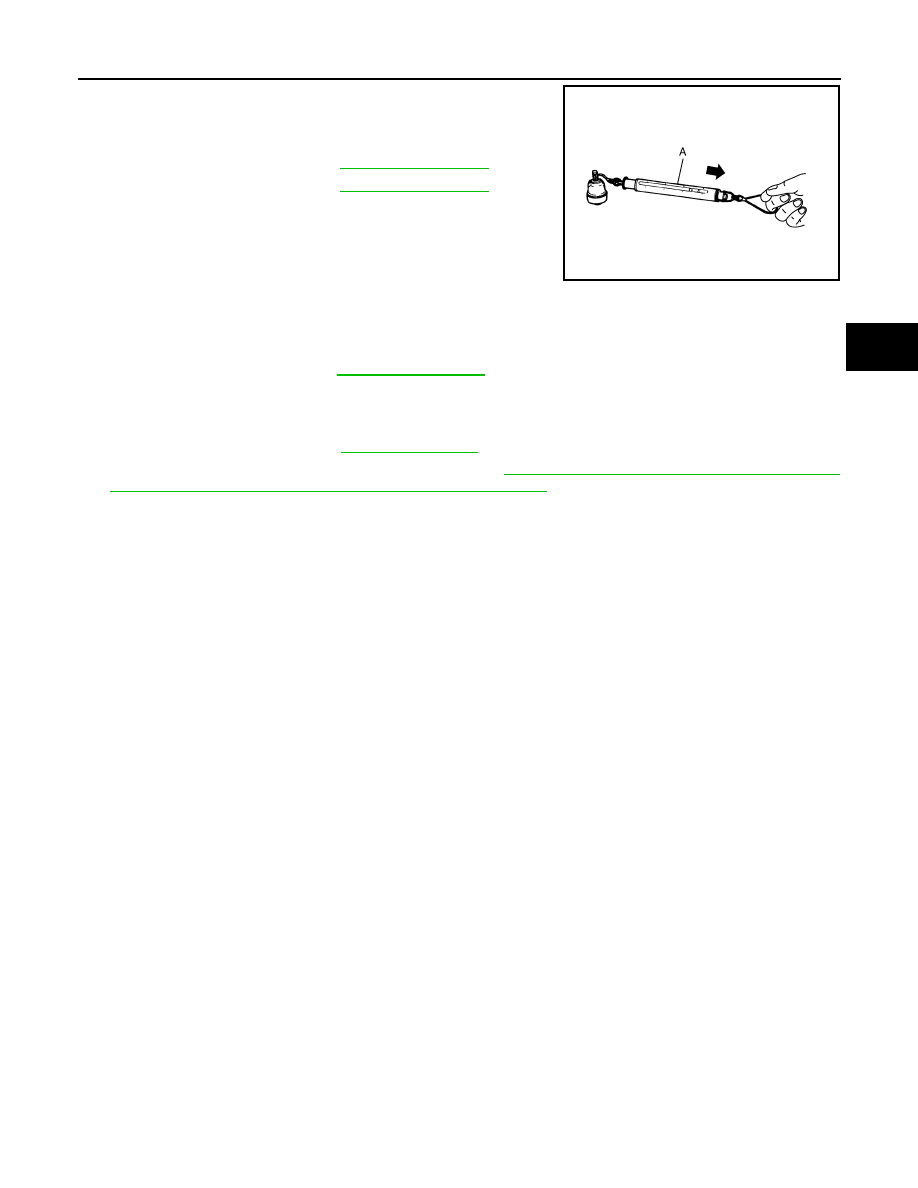

Hook a spring balance (A) at cotter pin mounting hole. Confirm
spring balance measurement value is within specifications when
ball stud begins moving.

-

If swing torque exceeds standard range, replace transverse link
assembly.

Axial End Play Inspection

1.

Move ball stud at least ten times by hand to check for smooth movement.

2.

Move tip of ball stud in axial direction to check for looseness.

-

If axial end play exceeds the standard value, replace transverse link assembly.

INSPECTION AFTER INSTALLATION

1.

Check wheel alignment. Refer to

FSU-7, "Inspection"

.

2.

Adjust neutral position of steering angle sensor. Refer to

BRC-9, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

Swing torque

:Refer to

FSU-19, "Ball Joint"

.

Spring balance
measurement

:Refer to

FSU-19, "Ball Joint"

.

JPEIA0005ZZ

Axial end play

:Refer to

FSU-19, "Ball Joint"

.
