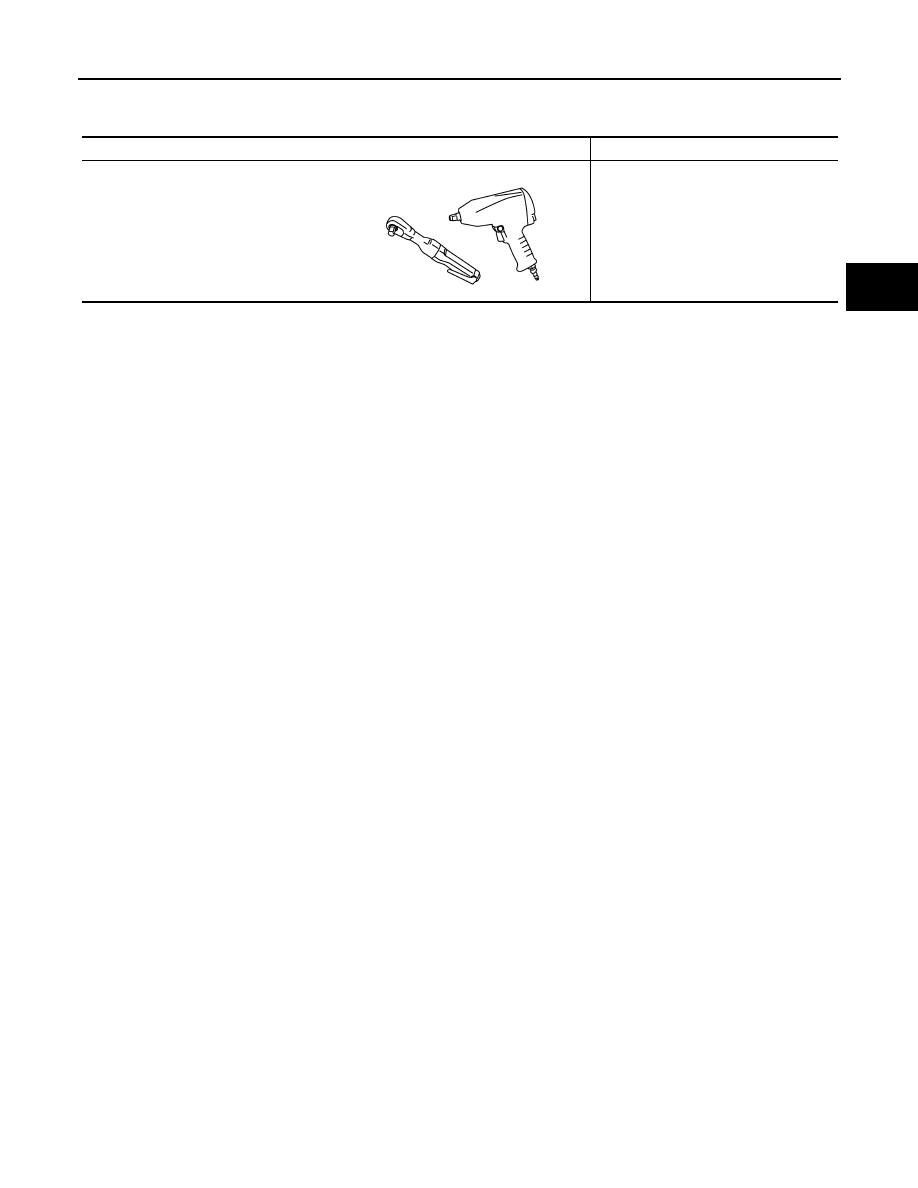

Power tool

Loosening bolts and nuts

PBIC0190E

FAX-36

< PERIODIC MAINTENANCE >

[AWD]

FRONT WHEEL HUB AND KNUCKLE

PERIODIC MAINTENANCE

FRONT WHEEL HUB AND KNUCKLE

Inspection

INFOID:0000000009717916

MOUNTING INSPECTION

Make sure that the mounting conditions (looseness, backlash) of each component and component conditions
(wear, damage) are normal.

WHEEL BEARING INSPECTION

• Move wheel hub and bearing assembly in the axial direction by hand. Make sure there is no looseness of

wheel bearing.

• Rotate wheel hub and bearing assembly and make sure there is no unusual noise or other irregular condi-

tions. If there is any of irregular conditions, replace wheel hub and bearing assembly.

Standard

Axial end play

: Refer to

FAX-55, "Wheel Bearing"

.

FRONT DRIVE SHAFT

FAX-37

< PERIODIC MAINTENANCE >

[AWD]

C

E

F

G

H

I

J

K

L

M

A

B

FAX

N

O

P

FRONT DRIVE SHAFT

Inspection

INFOID:0000000009717917

• Check drive shaft mounting point and joint for looseness and other damage.
• Check boot for cracks and other damage.

CAUTION:

Replace entire drive shaft assembly when noise or vibration occurs from drive shaft.

FAX-38

< REMOVAL AND INSTALLATION >

[AWD]

FRONT WHEEL HUB AND KNUCKLE

REMOVAL AND INSTALLATION

FRONT WHEEL HUB AND KNUCKLE

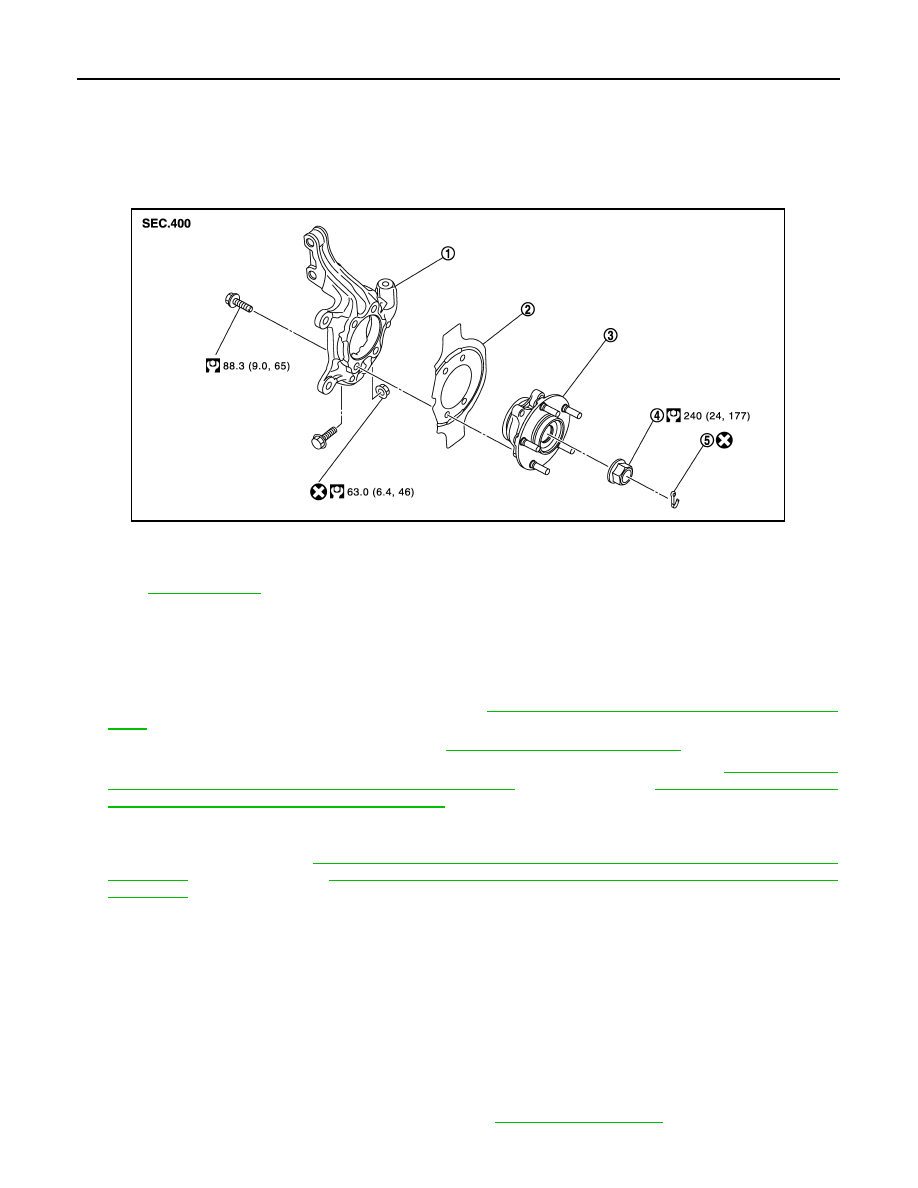

Exploded View

INFOID:0000000009717918

Removal and Installation

INFOID:0000000009717919

REMOVAL

1.

Remove tires with power tool.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-123, "FRONT WHEEL SENSOR : Exploded

View"

.

3.

Remove lock plate from strut assembly. Refer to

BR-22, "FRONT : Exploded View"

.

4.

Remove caliper assembly. Hang caliper assembly not to interfere with work. Refer to

BR-38, "BRAKE

CALIPER ASSEMBLY (1 PISTON TYPE) : Exploded View"

 (1 PISTON TYPE),

BR-42, "BRAKE CALIPER

ASSEMBLY (2 PISTON TYPE) : Exploded View"

 (2 PISTON TYPE).

CAUTION:

Never depress brake pedal while brake caliper is removed.

5.

Remove disc rotor. Refer to

BR-39, "BRAKE CALIPER ASSEMBLY (1 PISTON TYPE) : Removal and

Installation"

 (1 PISTON TYPE),

BR-43, "BRAKE CALIPER ASSEMBLY (2 PISTON TYPE) : Removal and

Installation"

 (2 PISTON TYPE).

6.

Remove cotter pin, and then loosen wheel hub lock nut with power tool.

7.

Patch wheel hub lock nut with a piece of wood. Hammer the wood to disengage wheel hub and bearing
assembly from drive shaft.

CAUTION:

• Never place drive shaft joint at an extreme angle. Also be careful not to overextend slide joint.
• Never allow drive shaft to hang down without support for joint sub-assembly, shaft and the other

parts.

NOTE:
Use suitable puller, if wheel hub and bearing assembly and drive shaft cannot be separated even after
performing the above procedure.

8.

Remove wheel hub lock nut.

9.

Remove strut assembly from steering knuckle. Refer to

FSU-9, "Exploded View"

.

1.

Steering knuckle

2.

Splash guard

3.

Wheel hub and bearing assembly

4.

Wheel hub lock nut

5.

Cotter pin

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIF0274GB
