ROOF SIDE MOLDING

CAUTION:

To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push it.

SUNROOF

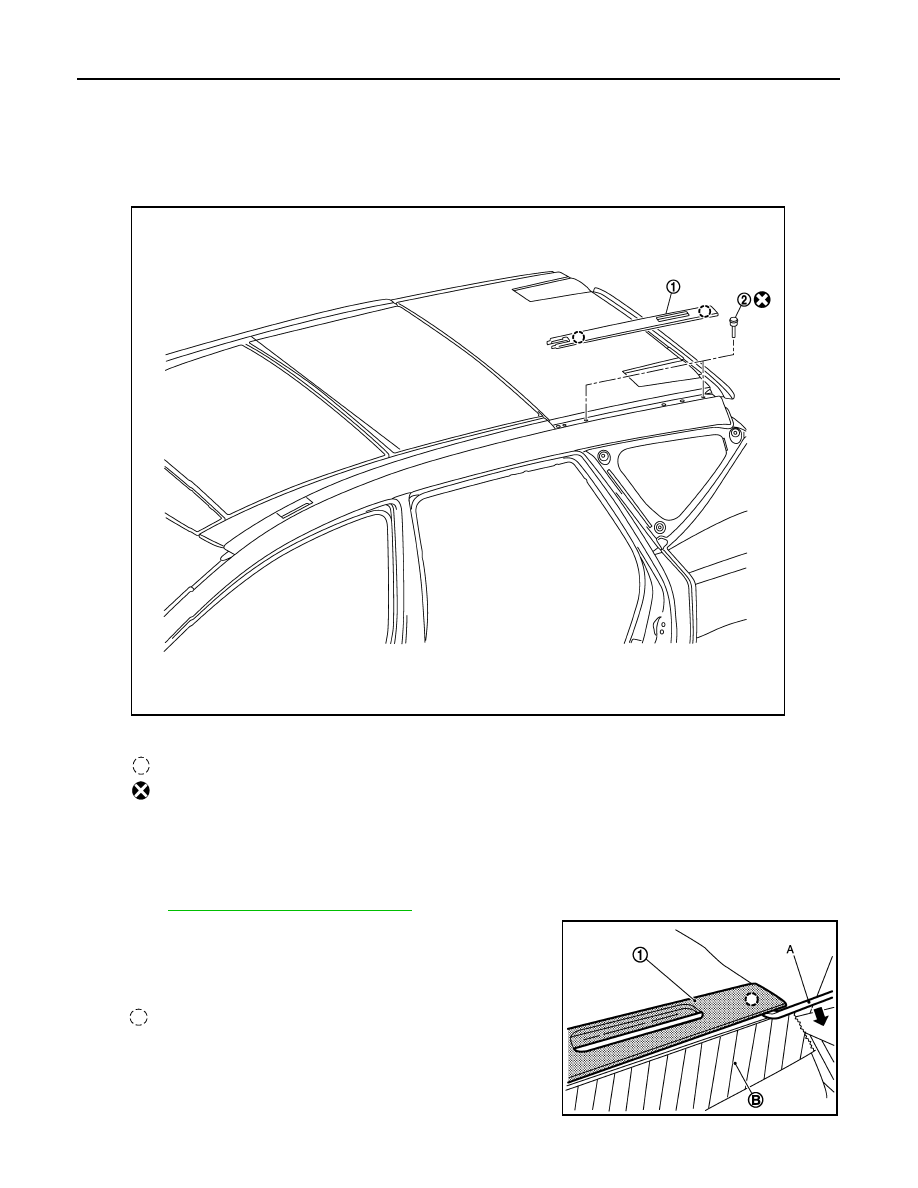

SUNROOF : Exploded View

INFOID:0000000009720587

SUNROOF : Removal and Installation

INFOID:0000000009720588

REMOVAL

1.

Remove roof rail assembly and roof rail center leg assembly. (with ROOF RAIL)
Refer to

EXT-31, "Removal and Installation"

.

2.

Disengage roof side molding (1) fixing clips with remover tool
(A).

CAUTION:

Apply protective tape (B) around the roof side molding.

1.

Roof side molding

2.

Roof side molding clip

: Clip

: Always replace after every disassembly.

JMKIA2020ZZ

: Clip

JMKIA2019ZZ

ROOF SIDE MOLDING

EXT-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

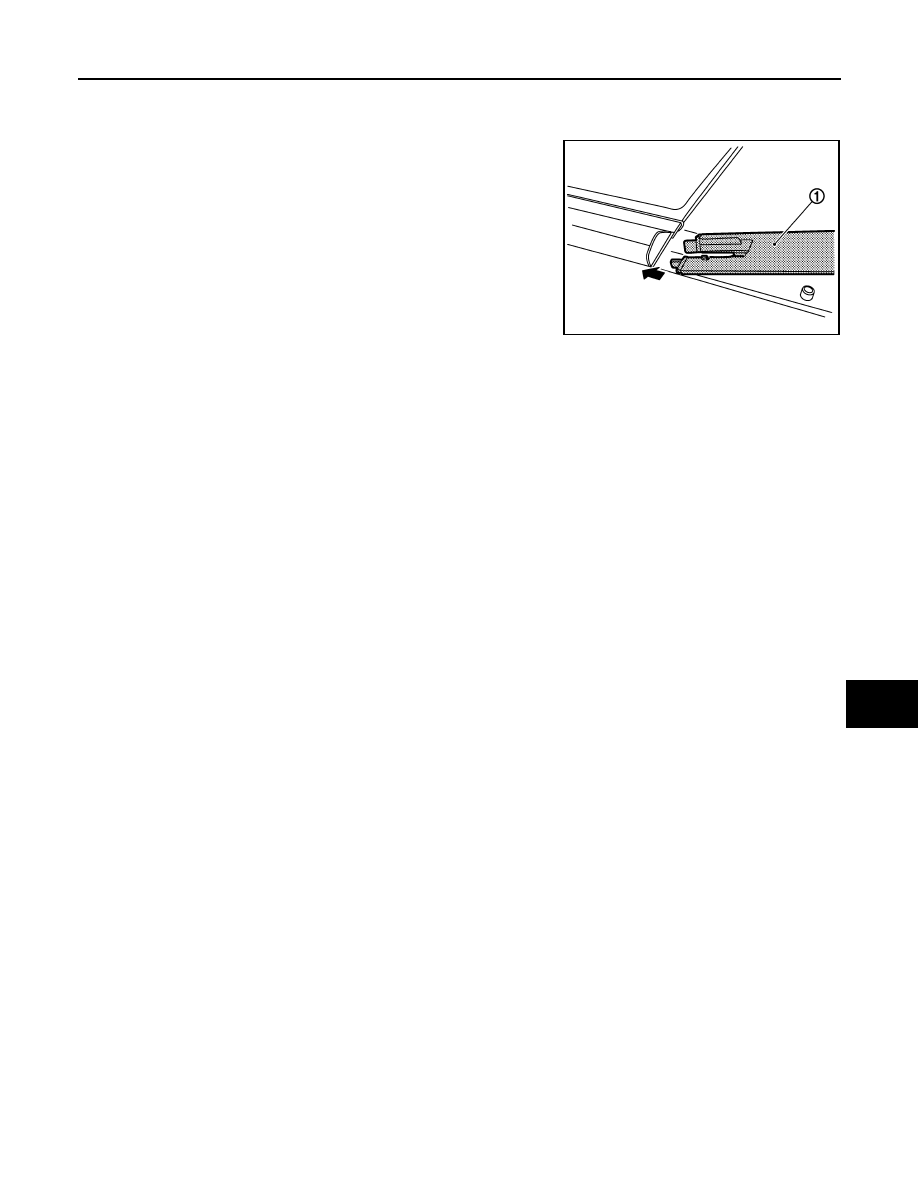

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Insert front end of roof side molding (1) into roof side finisher.

• To install roof side molding, check if all clips are matched over holes of panel on vehicle, then push

it.

JMKIA2021ZZ

EXT-36

< REMOVAL AND INSTALLATION >

DOOR OUTSIDE MOLDING

DOOR OUTSIDE MOLDING

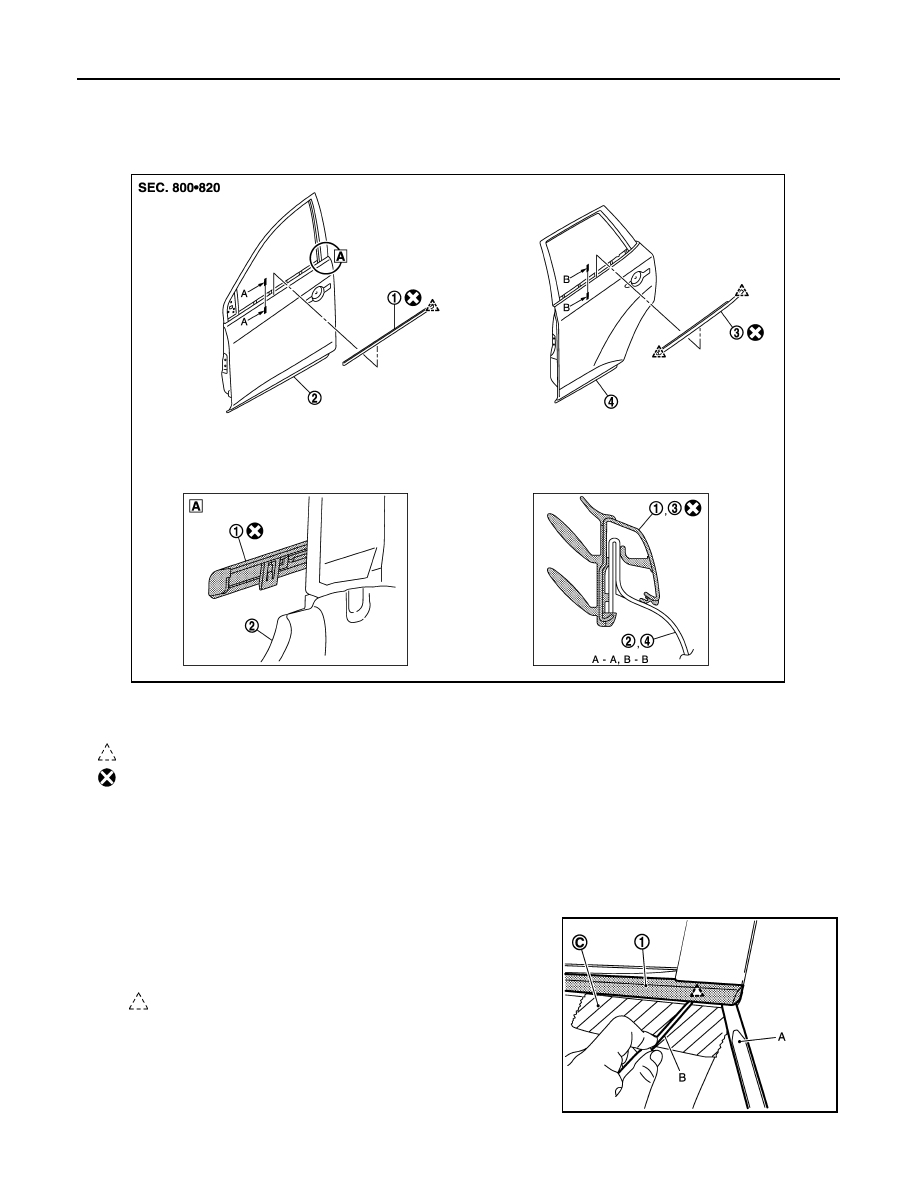

Exploded View

INFOID:0000000009720589

Removal and Installation

INFOID:0000000009720590

REMOVAL

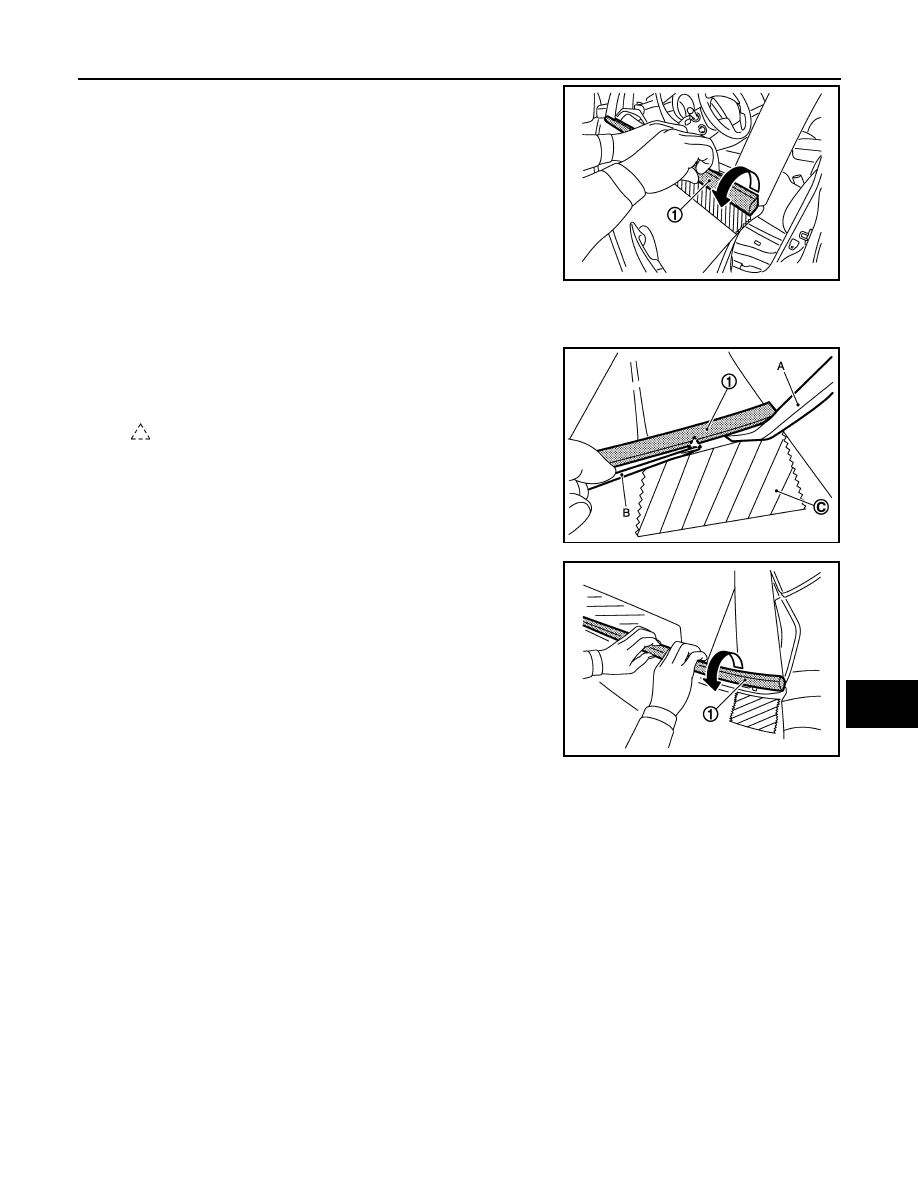

FRONT DOOR OUTSIDE MOLDING

1.

Fully open door window.

2.

Insert a remover tool (A) into lower space.

3.

Disengage pawls of fixing front door outside molding (1) with
thin flat blade screw driver (B).

CAUTION:

Apply protection tape (C) around outer circumference of
front door.

1.

Front door outside molding

2.

Front door assembly

3.

Rear door outside molding

4.

Rear door assembly

: Pawl

: Always replace after every disassembly.

JMKIA2022ZZ

: Pawl

JMKIA2023ZZ

DOOR OUTSIDE MOLDING

EXT-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

4.

Twist and pull up to upper side, and then remove front door out-
side molding (1).

REAR DOOR OUTSIDE MOLDING

1.

Fully open door window.

2.

Insert a remover tool (A) into lower space.

3.

Disengage pawls of fixing rear door outside molding (1) with flat
blade screw driver (B).

CAUTION:

Apply protection tape (C) around outer circumference of
rear door.

4.

Twist and pull up to upper side, and then remove rear door out-
side molding (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2024ZZ

: Pawl

JMKIA2025ZZ

JMKIA2026ZZ
