REAR BUMPER

REAR BUMPER

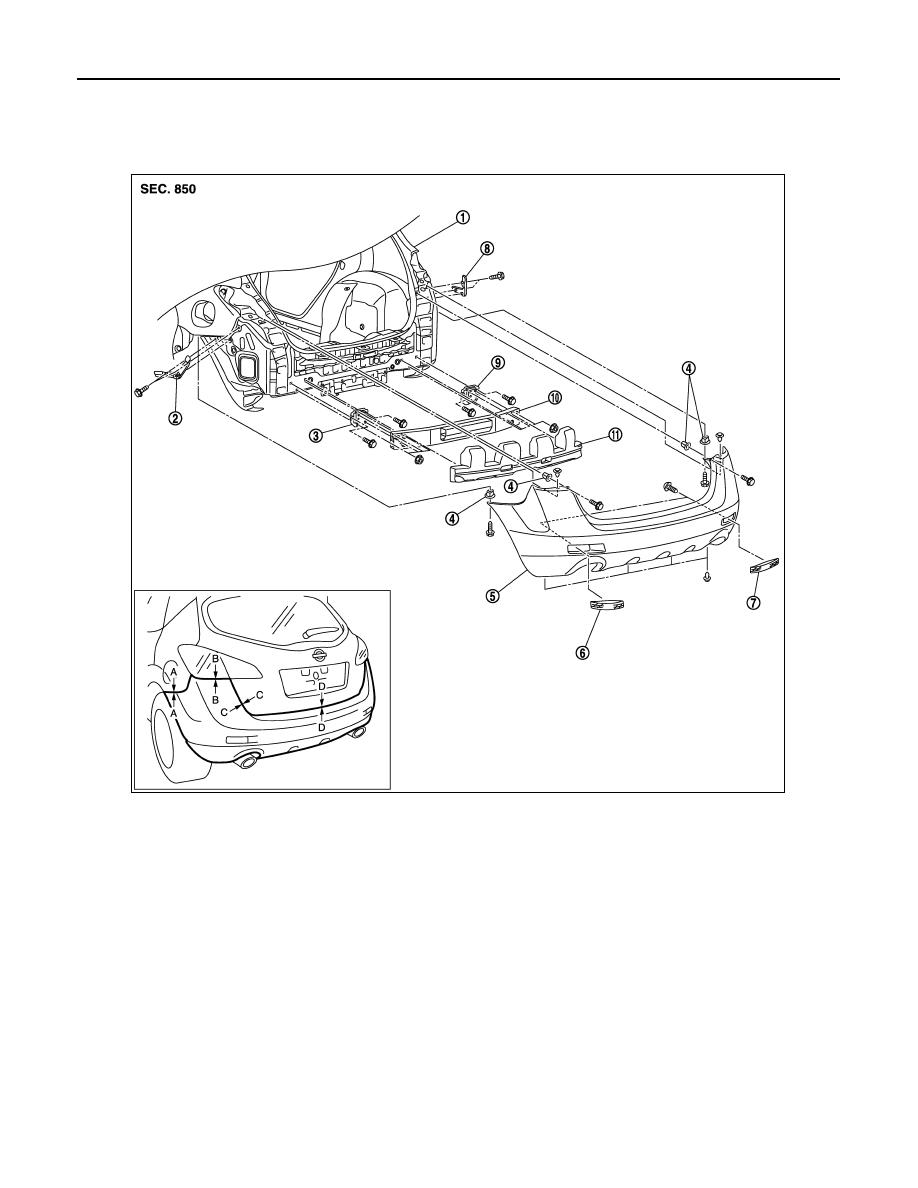

Exploded View

INFOID:0000000009720569

Removal and Installation

INFOID:0000000009720570

REMOVAL

CAUTION:

Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.

1.

Fully open back door assembly.

2.

Remove rear combination lamp (LH/RH).

1.

Rear body complete

2.

Bumper side bracket LH

3.

Bumper stay LH

4.

Grommet

5.

Bumper fascia assembly

6.

Reflex reflector LH

7.

Reflex reflector RH

8.

Bumper side bracket RH

9.

Bumper stay RH

10. Bumper reinforcement

11.

Energy absorber

JMKIA1967ZZ

REAR BUMPER

EXT-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

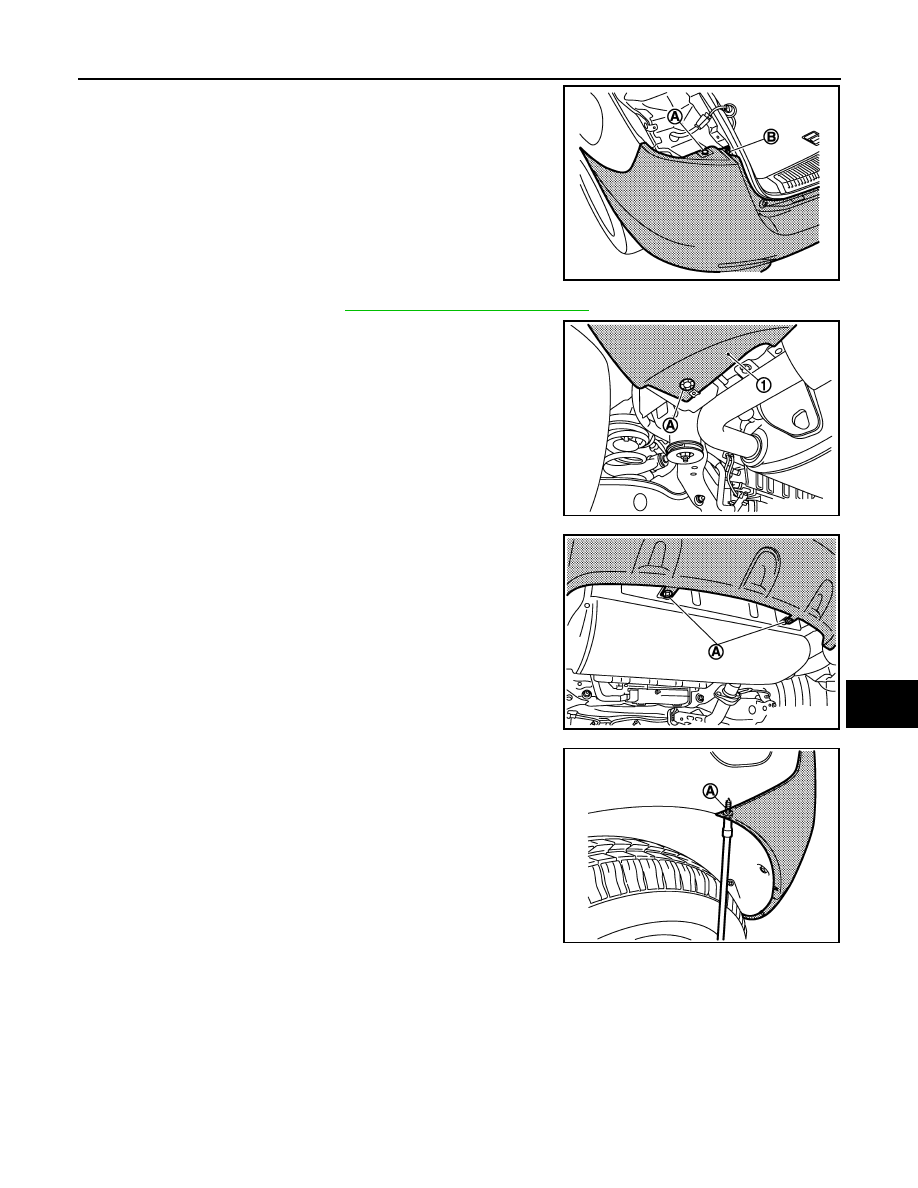

3.

Remove clips (A) located under rear combination lamp (LH/RH).

4.

Remove screws (B) (LH/RH).

5.

Remove rear mudguard. Refer to

EXT-28, "Removal and Installation"

.

6.

Remove clips (A) of bumper fascia (1) underside (LH/RH).

7.

Remove clips (A) of bumper fascia underside.

8.

Remove screws (A) of bumper fascia front end upper (LH/RH).

JMKIA1968ZZ

JMKIA2035ZZ

JMKIA1970ZZ

JMKIA1971ZZ

EXT-20

< REMOVAL AND INSTALLATION >

REAR BUMPER

9.

Pull to release bumper fascia assembly (1) from bumper side
bracket.

10. Remove bumper fascia assembly.

CAUTION:

When removing bumper fascia assembly, 2 workers are required so as to prevent it from dropping.

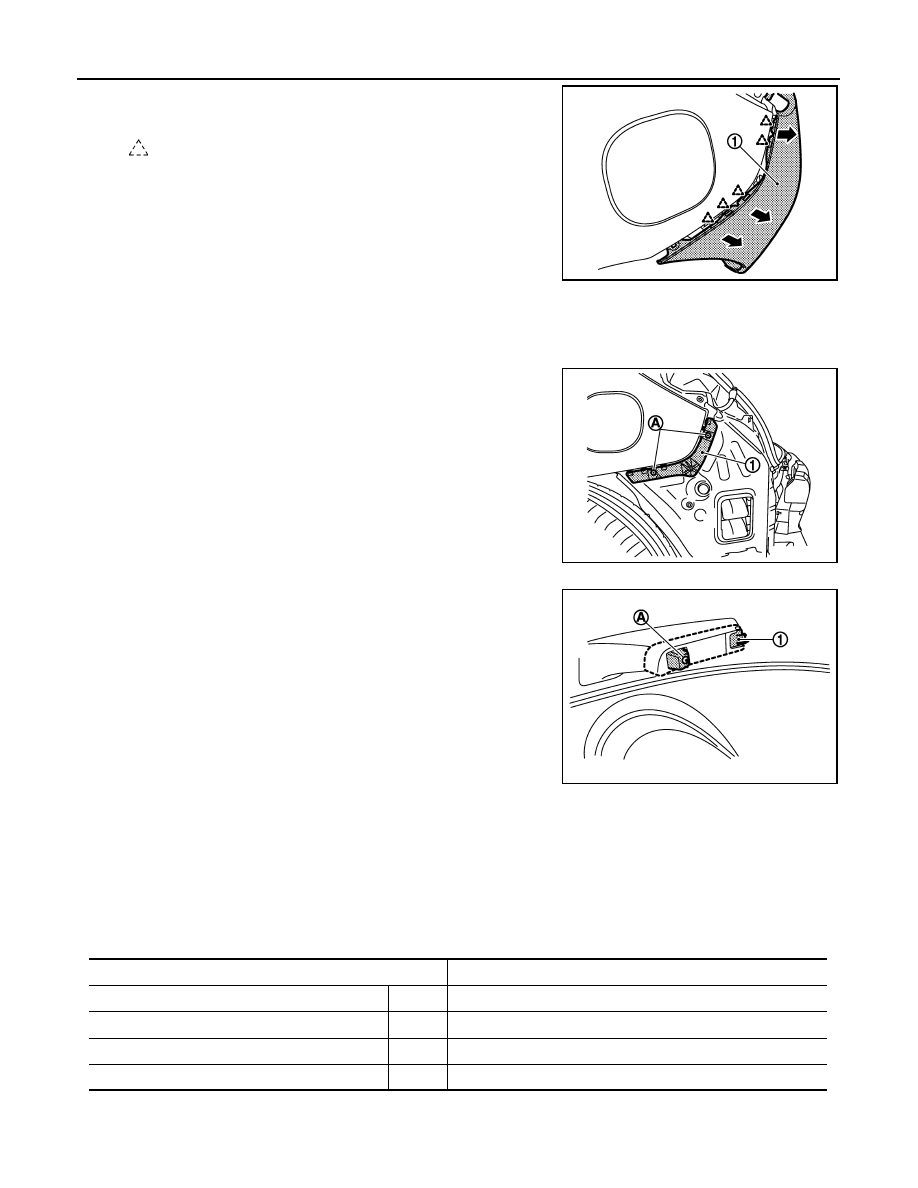

11. Remove the following parts after removing rear bumper fascia.

• Bumper side bracket (LH/RH)

Remove bumper side bracket (1) fixing screws (A) (LH/RH),
and then remove bumper side bracket (LH/RH).

• Reflex reflector (LH/RH)

Remove reflex reflector (1) fixing screws (A) (LH/RH), and
then remove reflex reflector (LH/RH).

12. Remove energy absorber.
13. Remove bumper reinforcement mounting nuts (LH/RH), and then remove bumper reinforcement.

14. Remove bumper stay mounting bolts, and then remove bumper stay.

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.

: Pawl

JMKIA1972ZZ

JMKIA1973ZZ

JMKIA1974ZZ

Portion

Clearance

Rear bumper – Rear fender

A – A

0.0 – 1.0 mm (0.000 – 0.039 in)

Rear bumper – Rear combination lamp

B – B

0.5 – 3.5 mm (0.020 – 0.138 in)

Rear bumper – Back door

C – C

4.0 – 8.0 mm (0.157 – 0.315 in)

Rear bumper – Back door

D – D

5.0 – 9.0 mm (0.197 – 0.354 in)

FRONT GRILLE

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

FRONT GRILLE

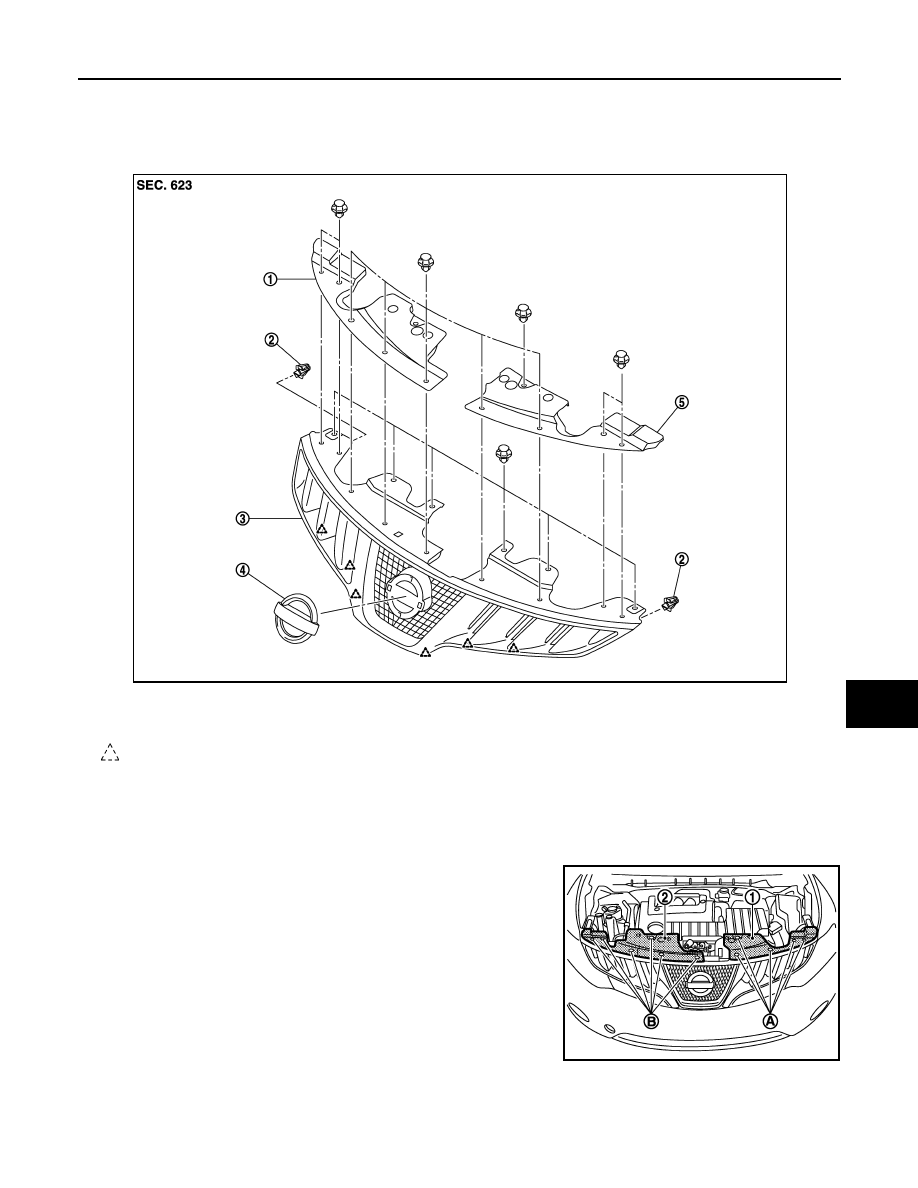

Exploded View

INFOID:0000000009720571

Removal and Installation

INFOID:0000000009720572

REMOVAL

1.

Fully open hood assembly.

2.

Remove radiator core support cover LH (1) fixing clips (A), and
then remove radiator core support cover LH.

3.

Remove radiator core support cover RH (2) fixing clips (B), and
then remove radiator core support cover RH.

1.

Radiator core support cover RH

2.

Fastener

3.

Front grille assembly

4.

Front emblem

5.

Radiator core support cover LH

: Pawl

JMKIA1975ZZ

JMKIA1976ZZ
