EXL-36

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

HEADLAMP (HI) CIRCUIT

HEADLAMP (HI) CIRCUIT

Description

INFOID:0000000009722901

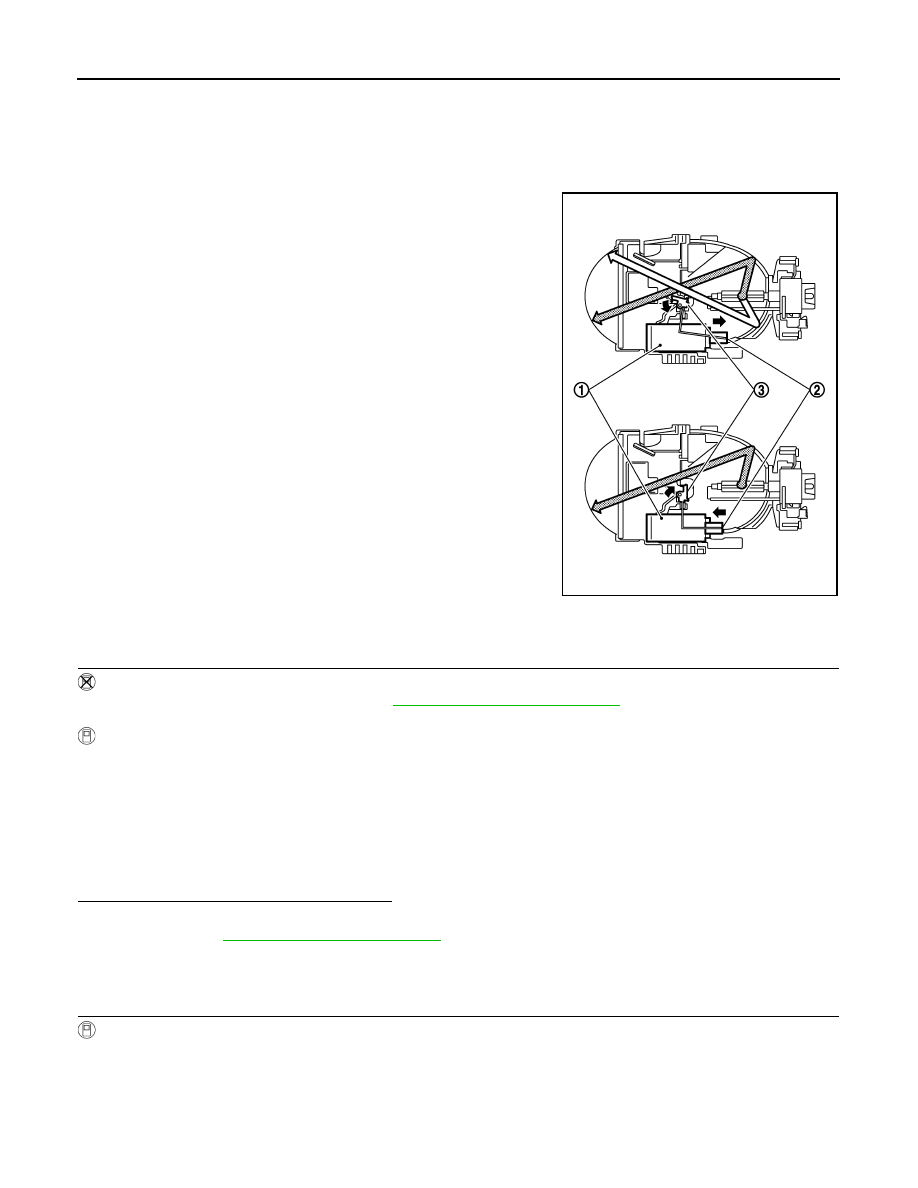

The high beam solenoid drives the mobile valve shade. And the mobile valve shade switches the high beam
and low beam of headlamp.
• When the headlamp high relay is turned ON, magnetic force is

applied to the high beam solenoid (1) by a current. The mobile
valve shade (3) is switched to the high beam position through the
actuator rod (2).

• When the headlamp high relay is turned OFF, the current stops.

The mobile valve shade returns to the low beam position automati-
cally.

Component Function Check

INFOID:0000000009722902

1.

CHECK HEADLAMP (HI) OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Start IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the headlamp switches to the high beam.

CONSULT ACTIVE TEST

1.

Select “EXTERNAL LAMPS” of IPDM E/R active test item.

2.

With operating the test items, check that the headlamp switches to the high beam.

NOTE:
HI/LO is repeated 1 second each.

Does the headlamp switch to the high beam?

YES

>> Headlamp (HI) circuit is normal.

NO

>> Refer to

EXL-36, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009722903

1.

CHECK HEADLAMP (HI) OUTPUT VOLTAGE

CONSULT ACTIVE TEST

1.

Turn the ignition switch OFF.

2.

Disconnect the high beam solenoid connector.

3.

Turn the ignition switch ON.

4.

Select “EXTERNAL LAMPS” of IPDM E/R active test item.

5.

With operating the test items, check the voltage between the IPDM E/R harness connector and the
ground.

JPLIA0802ZZ

Hi

: Headlamp switches to the high beam.

Off

: Headlamp OFF

HEADLAMP (HI) CIRCUIT

EXL-37

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEADLAMP (HI) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between the IPDM E/R harness connector and the high beam solenoid harness connec-
tor.

Does continuity exist?

YES

>> GO TO 5.

NO

>> Repair the harnesses or connectors.

3.

CHECK HEADLAMP (HI) FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuses are not fusing.

Is the fuse fusing?

YES

>> GO TO 4.

NO

>> Replace IPDM E/R.

4.

CHECK HEADLAMP (HI) SHORT CIRCUIT

1.

Disconnect IPDM E/R connector.

2.

Check continuity between the IPDM E/R harness connector terminal and the ground.

Does continuity exist?

YES

>> Repair the harnesses or connectors. And then replace the fuse.

NO

>> Replace the fuse. (Replace IPDM E/R if the fuse is fusing again.)

Terminals

Test item

Voltage

(Approx.)

(+)

(

−

)

IPDM E/R

Ground

EXTERNAL

LAMPS

Connector

Terminal

RH

E345

89

Hi

Battery
voltage

Off

0 V

LH

90

Hi

Battery
voltage

Off

0 V

IPDM E/R

High beam solenoid

Continuity

Connector

Terminal

Connector

Terminal

RH

E345

89

E326

1

Existed

LH

90

E325

1

Unit

Location

Fuse No.

Capacity

Headlamp HI (RH) IPDM E/R

#55

10

A

Headlamp HI (LH) IPDM E/R

#54

10

A

IPDM E/R

Ground

Continuity

Connector

Terminal

RH

E345

89

Not existed

LH

90

EXL-38

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

HEADLAMP (HI) CIRCUIT

5.

CHECK HEADLAMP (HI) GROUND OPEN CIRCUIT

Check continuity between the high beam solenoid harness connector and the ground.

Does continuity exist?

YES

>> Replace the front combination lamp.

NO

>> Repair the harnesses or connectors.

High beam solenoid

Ground

Continuity

Connector

Terminal

RH

E326

2

Existed

LH

E325

2

HEADLAMP (LO) CIRCUIT

EXL-39

< DTC/CIRCUIT DIAGNOSIS >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP (LO) CIRCUIT

Description

INFOID:0000000009722904

Headlamp (LO) circuit is connected to HID control unit integrated in the headlamp. Headlamp (LO) circuit turns
xenon headlamp ON.
For the details of HID control unit and the xenon headlamp, refer to

EXL-41, "Description"

.

Component Function Check

INFOID:0000000009722905

1.

CHECK HEADLAMP (LO) OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Start IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the headlamp is turned ON.

CONSULT ACTIVE TEST

1.

Select “EXTERNAL LAMPS” of IPDM E/R active test item.

2.

With operating the test items, check that the headlamp (LO) is turned ON.

Is the headlamp (LO) turned ON?

YES

>> Headlamp (LO) is normal.

NO

>> Refer to

EXL-39, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009722906

1.

CHECK HEADLAMP (LO) OUTPUT VOLTAGE

CONSULT ACTIVE TEST

1.

Turn the ignition switch OFF.

2.

Disconnect the headlamp connector.

3.

Turn the ignition switch ON.

4.

Select “EXTERNAL LAMPS” of IPDM E/R active test item.

5.

With operating the test items, check the voltage between the IPDM E/R harness connector and the
ground.

Is the measurement value normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK HEADLAMP (LO) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R connector.

3.

Check continuity between the IPDM E/R harness connector and the headlamp harness connector.

Lo

: Headlamp (LO) ON

Off

: Headlamp (LO) OFF

Terminals

Test item

Voltage

(Approx.)

(+)

(

−

)

IPDM E/R

Ground

EXTERNAL

LAMPS

Connector

Terminal

RH

E345

83

Lo

Battery
voltage

Off

0 V

LH

84

Lo

Battery
voltage

Off

0 V
