ENGINE STAND SETTING

UNIT DISASSEMBLY AND ASSEMBLY

ENGINE STAND SETTING

Setting

INFOID:0000000009717991

NOTE:
Explained here is how to disassemble with engine stand supporting transaxle surface. When using different
type of engine stand, note with difference in steps and etc.
1.

Remove the engine assembly from the vehicle. Refer to

EM-72, "2WD : Exploded View"

 (2WD models) or

EM-81, "AWD : Exploded View"

 (AWD models).

2.

Remove the parts that may restrict installation of engine to widely use engine stand.
NOTE:
The procedure is described assuming that you use a widely use engine stand holding the surface, to
which transaxle is installed.
• Remove drive plate. Fix crankshaft pulley with the pulley holder (commercial service tool), and remove

mounting bolts.

• Loosen mounting bolts in diagonal order.
• Check for deformation or damage drive plate.

CAUTION:

• Never disassemble drive plate.
• Never place drive plate with signal plate facing down.
• When handling signal plate, take care not to damage or scratch it.
• Handle signal plate in a manner that prevents it from becoming magnetized.

3.

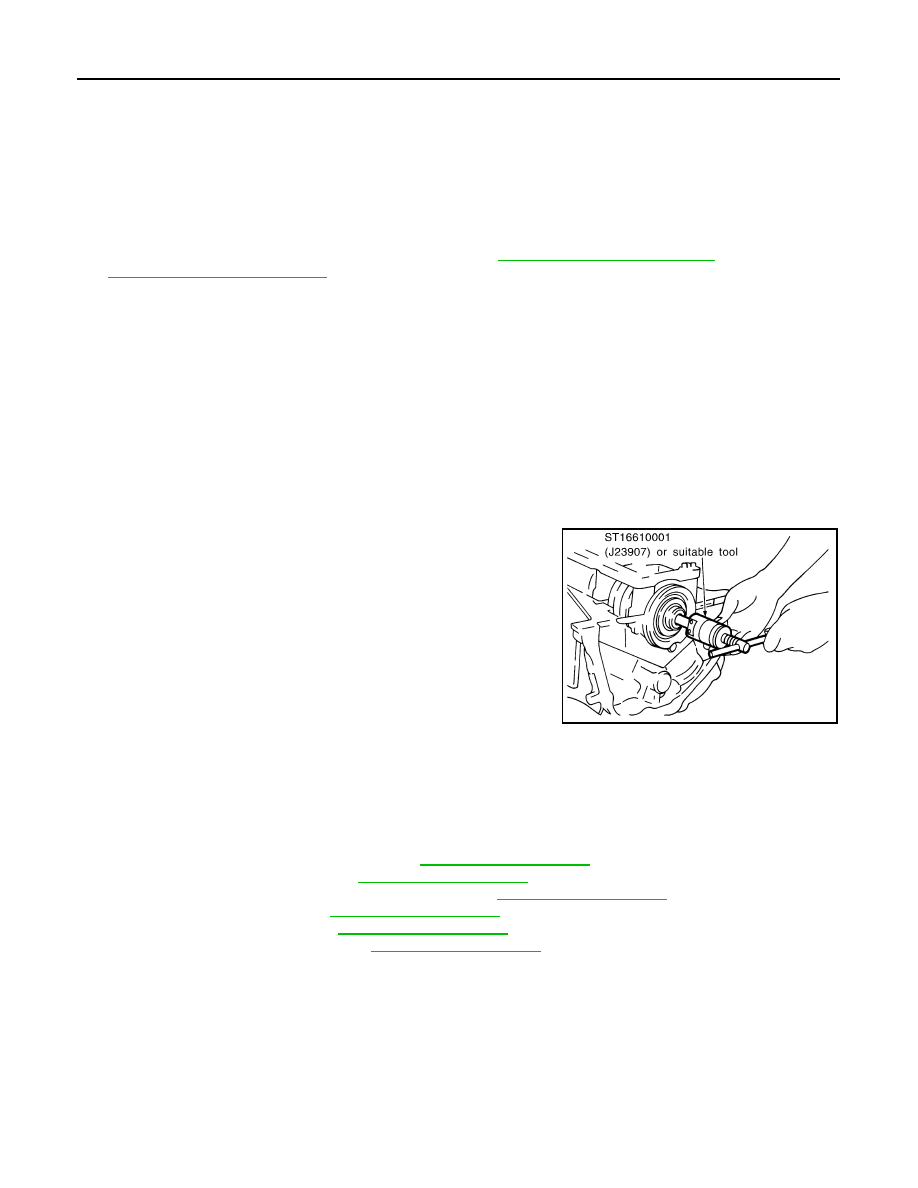

Remove pilot converter using the pilot bushing puller (SST) if
necessary.

4.

Lift the engine with hoist to install it onto the widely use engine stand.

CAUTION:

Use an engine stand that has a load capacity [220 kg (485 lb) or more] large enough for supporting
the engine weight.
• If the load capacity of the stand is not adequate, remove the following parts beforehand to reduce the

potential risk of overturning the stand.

- Remove intake manifold collector. Refer to

EM-33, "Exploded View"

.

- Remove intake manifold. Refer to

EM-36, "Exploded View"

.

- Remove fuel injector and fuel tube assembly. Refer to

EM-49, "Exploded View"

.

- Remove ignition coil. Refer to

EM-54, "Exploded View"

.

- Remove rocker cover. Refer to

EM-54, "Exploded View"

.

- Remove exhaust manifold. Refer to

EM-38, "Exploded View"

.

- Other removable brackets.

NOTE:

SEM005G

ENGINE STAND SETTING

EM-91

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

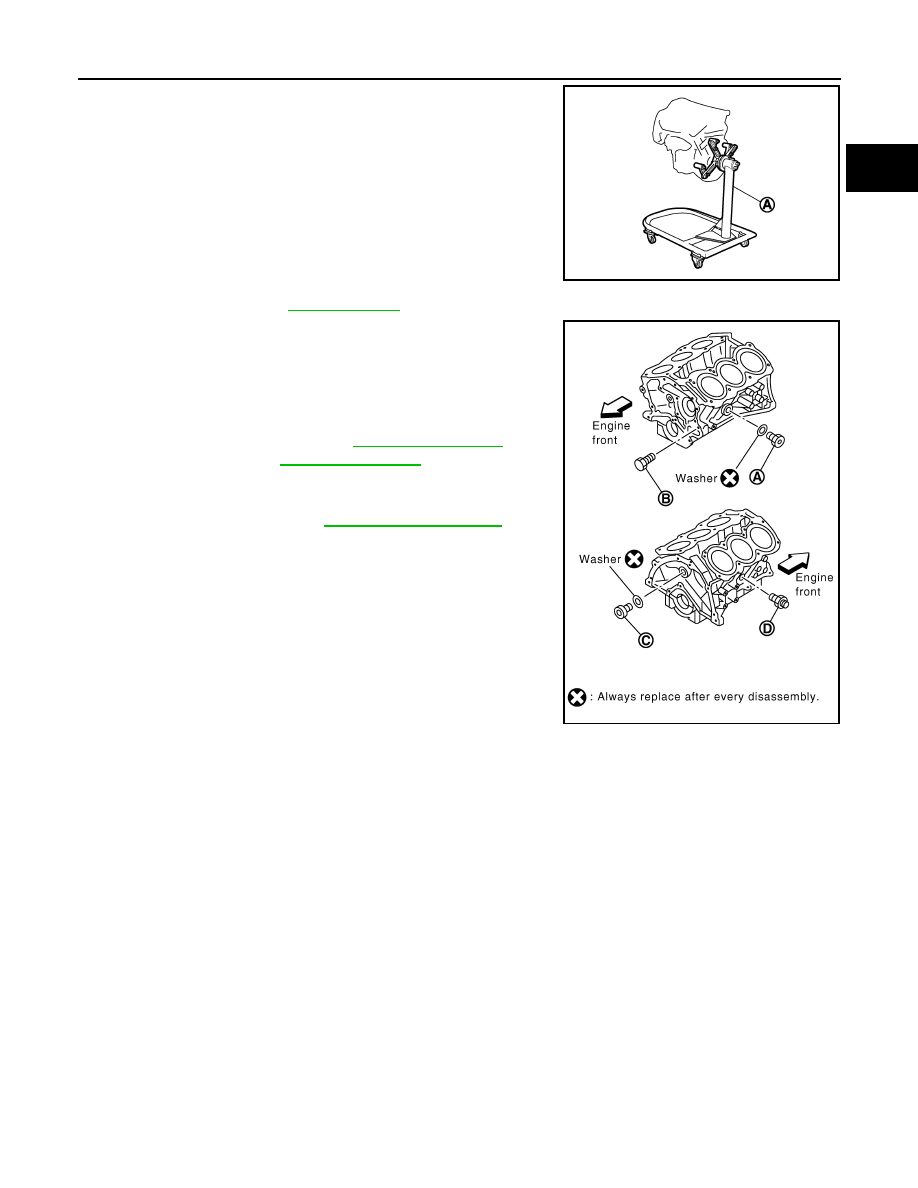

The figure shows an example of widely use engine stand (A)
that can hold mating surface of transaxle with drive plate
removed.

CAUTION:

Before removing the hanging chains, check the engine
stand is stable and there is no risk of overturning.

5.

Drain engine oil. Refer to

LU-9, "Draining"

.

6.

Drain engine coolant by removing water drain plugs (A) and (B)
from cylinder block both sides as shown in the figure.

NOTE:
For Canada, water drain plug (A) in the figure is not water drain
plug but block heater. Refer to

EM-122, "Exploded View"

.

JPBIA0190ZZ

C

:  Plug

D

: Connector bolt

Tightening torque

: Refer to

EM-123, "Disassem-

bly and Assembly"

.

PBIC2487E

EM-92

< UNIT DISASSEMBLY AND ASSEMBLY >

ENGINE UNIT

ENGINE UNIT

Disassembly

INFOID:0000000009717992

1.

Remove intake manifold collector. Refer to

EM-33, "Exploded View"

.

2.

Remove intake manifold. Refer to

EM-36, "Exploded View"

.

3.

Remove exhaust manifold. Refer to

EM-38, "Exploded View"

.

4.

Remove oil pan (lower and upper). Refer to

EM-43, "Exploded View"

.

5.

Remove ignition coil, spark plug and rocker cover. Refer to

EM-54, "Exploded View"

.

6.

Remove fuel injector and fuel tube. Refer to

EM-49, "Exploded View"

.

7.

Remove timing chain and rear timing chain case. Refer to

EM-57, "Exploded View"

 and

EM-93, "Exploded

View"

.

8.

Remove camshaft. Refer to

EM-98, "Exploded View"

.

9.

Remove cylinder head. Refer to

EM-111, "Exploded View"

.

Assembly

INFOID:0000000009717993

Assembly in the reverse order of disassembly.

REAR TIMING CHAIN CASE

EM-93

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

REAR TIMING CHAIN CASE

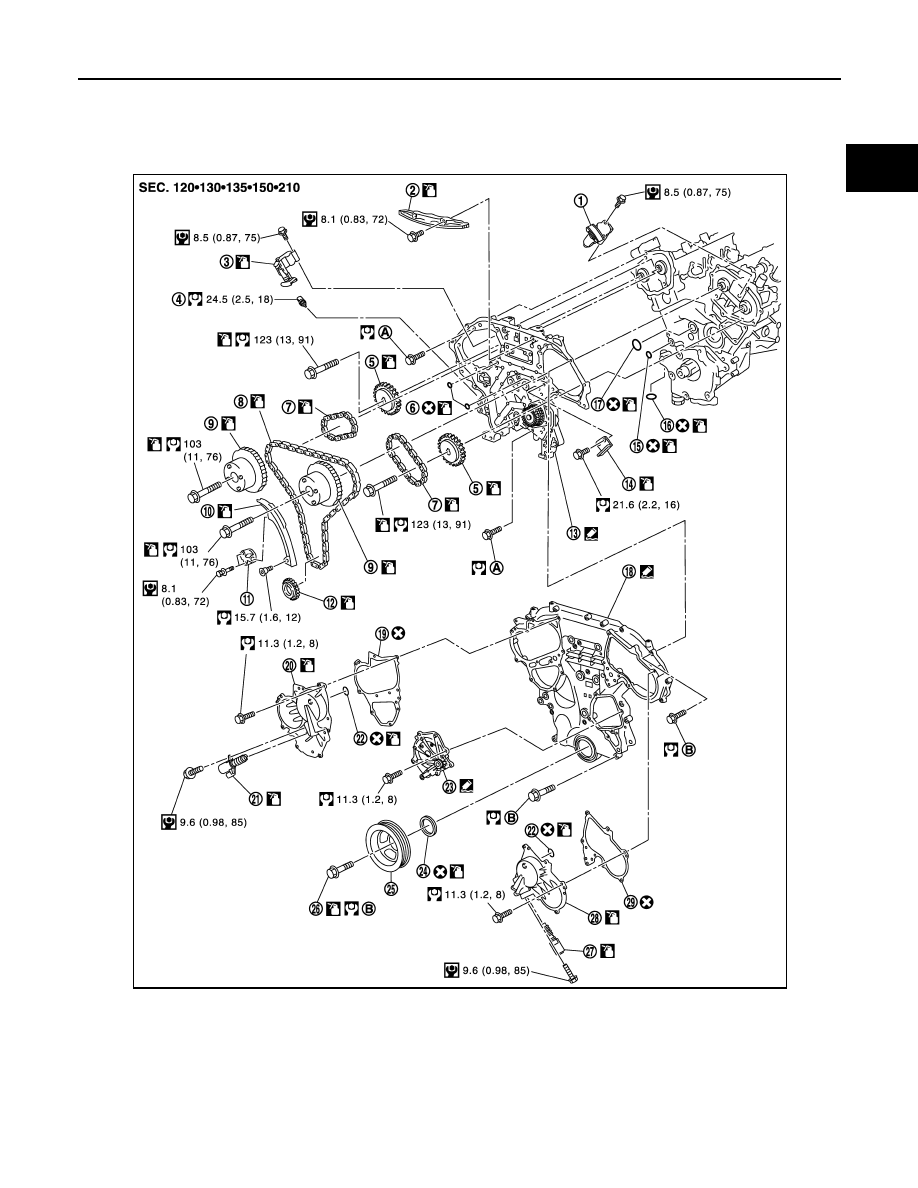

Exploded View

INFOID:0000000009717994

1.

Timing chain tensioner (secondary)
(bank 2)

2.

Internal chain guide

3.

Timing chain tensioner (secondary)
(bank 1)

4.

Oil temperature sensor

5.

Camshaft sprocket (EXH)

6.

O-ring

7.

Timing chain (secondary)

8.

Timing chain (primary)

9.

Camshaft sprocket (INT)

10. Slack guide

11. Timing chain tensioner (primary)

12.

Crankshaft sprocket

13. Rear timing chain case

14. Tension guide

15.

O-ring

16. O-ring

17. O-ring

18.

Front timing chain case

JPBIA2471GB
