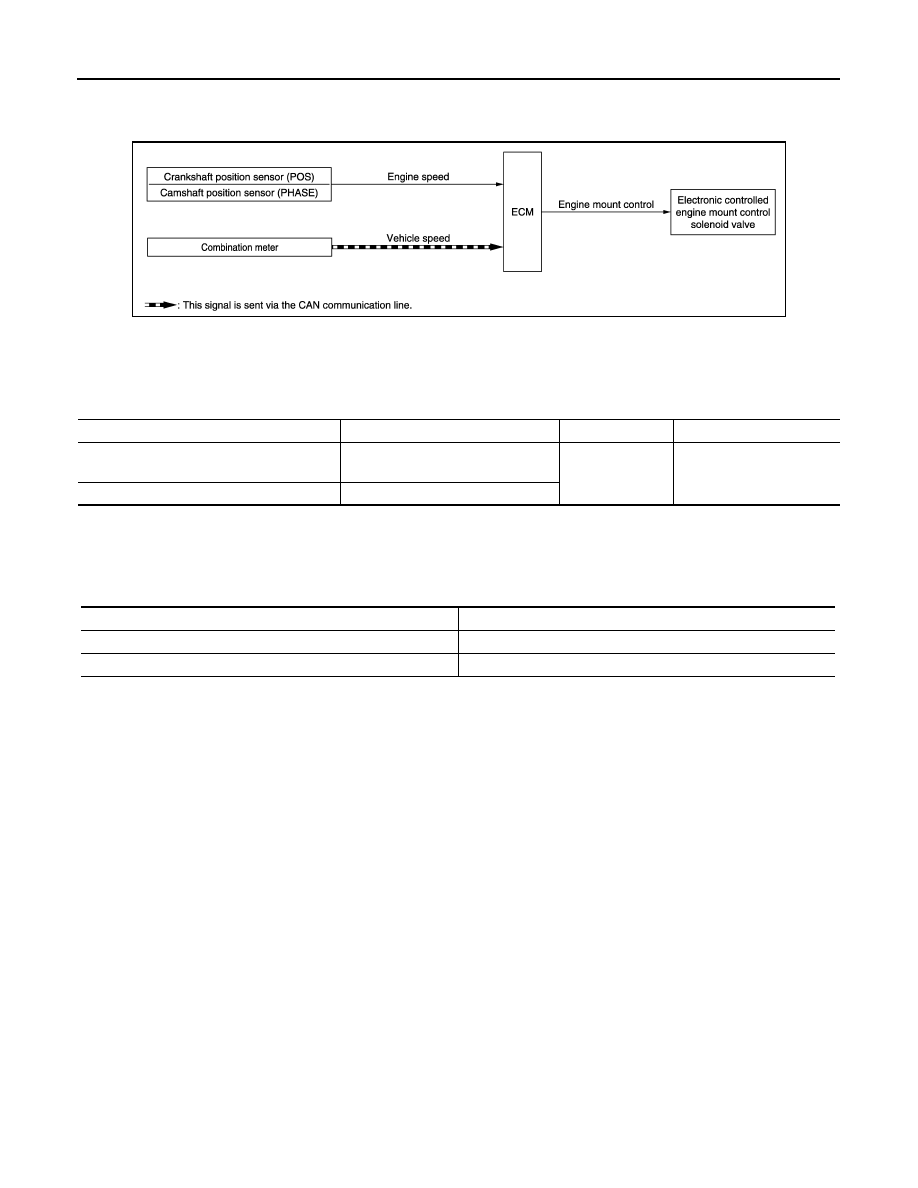

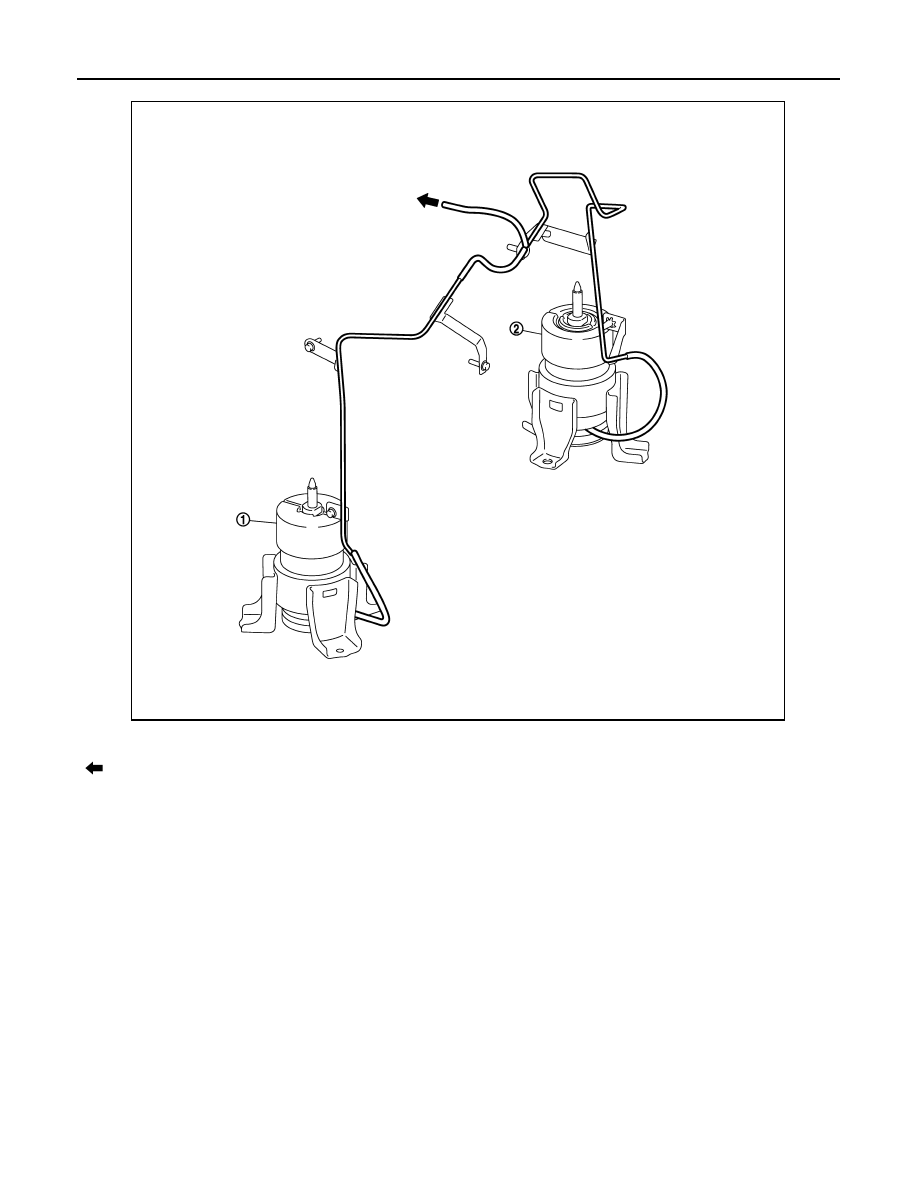

EC-82 < SYSTEM DESCRIPTION > [VQ35DE] ELECTRONIC CONTROLLED ENGINE MOUNT ELECTRONIC CONTROLLED ENGINE MOUNT System Diagram INFOID:0000000009719847 System Description INFOID:0000000009719848 INPUT/OUTPUT SIGNAL CHART *: This signal is sent to the ECM via the CAN communication line. SYSTEM DESCRIPTION The ECM controls the engine mount operation corresponding to the engine speed. The control system has a ELECTRONIC CONTROLLED ENGINE MOUNT LINE DRAWING JMBIA1827GB Sensor Input signal to ECM ECM function Actuator Crankshaft position sensor (POS) Engine speed Engine mount Electronic controlled en- Combination meter Vehicle speed* Vehicle condition Engine mount control Idle (With vehicle stopped) Soft Except above conditions Hard |
