IDLE SPEED

IDLE SPEED : Description

INFOID:0000000009719802

This describes how to check the idle speed. For the actual procedure, follow the instructions in “BASIC
INSPECTION”.

IDLE SPEED : Special Repair Requirement

INFOID:0000000009719803

1.

CHECK IDLE SPEED

With CONSULT

Check idle speed in “DATA MONITOR” mode with CONSULT.

With GST

Check idle speed with Service $01 of GST.

>> INSPECTION END

IGNITION TIMING

IGNITION TIMING : Description

INFOID:0000000009719804

This describes how to check the ignition timing. For the actual procedure, follow the instructions in “BASIC
INSPECTION”.

IGNITION TIMING : Special Repair Requirement

INFOID:0000000009719805

1.

CHECK IGNITION TIMING

1.

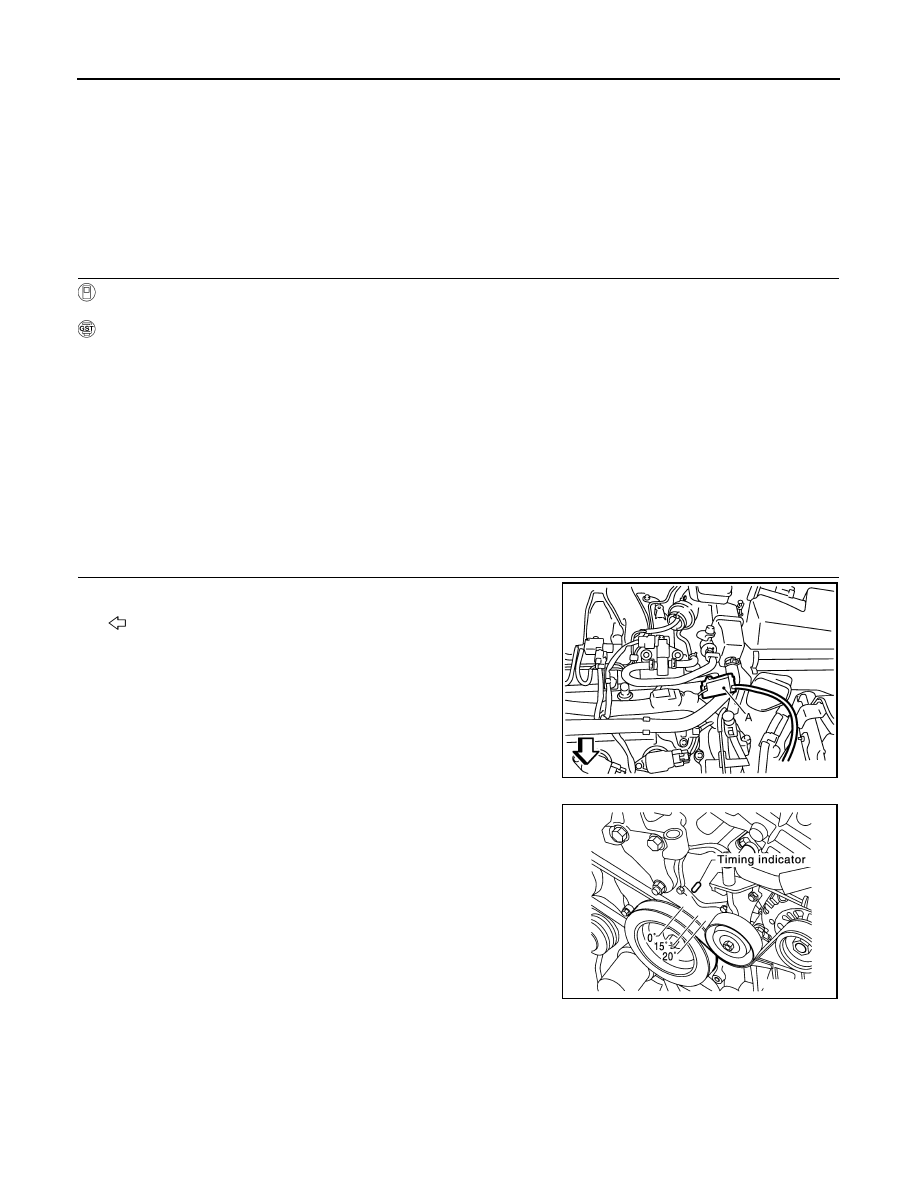

Attach timing light to loop wires as shown.

-

Timing light (A)

-

: Vehicle front

2.

Check ignition timing.

>> INSPECTION END

VIN REGISTRATION

VIN REGISTRATION : Description

INFOID:0000000009719806

VIN Registration is an operation to register VIN in ECM. It must be performed each time ECM is replaced.
NOTE:
Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).

JMBIA1128ZZ

JMBIA1135GB

INSPECTION AND ADJUSTMENT

EC-19

< BASIC INSPECTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

VIN REGISTRATION : Special Repair Requirement

INFOID:0000000009719807

1.

CHECK VIN

Check the VIN of the vehicle and note it. Refer to

GI-24, "Information About Identification or Model Code"

.

>> GO TO 2.

2.

PERFORM VIN REGISTRATION

With CONSULT

1.

Turn ignition switch ON with engine stopped.

2.

Select “VIN REGISTRATION” in “WORK SUPPORT” mode.

3.

Follow the instructions on the CONSULT display.

>> END

ACCELERATOR PEDAL RELEASED POSITION LEARNING

ACCELERATOR PEDAL RELEASED POSITION LEARNING : Description

INFOID:0000000009719808

Accelerator Pedal Released Position Learning is a function of ECM to learn the fully released position of the
accelerator pedal by monitoring the accelerator pedal position sensor output signal. It must be performed each
time the harness connector of the accelerator pedal position sensor or ECM is disconnected.

ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Re-
quirement

INFOID:0000000009719809

1.

START

1.

Check that accelerator pedal is fully released.

2.

Turn ignition switch ON and wait at least 2 seconds.

3.

Turn ignition switch OFF and wait at least 10 seconds.

4.

Turn ignition switch ON and wait at least 2 seconds.

5.

Turn ignition switch OFF and wait at least 10 seconds.

>> END

THROTTLE VALVE CLOSED POSITION LEARNING

THROTTLE VALVE CLOSED POSITION LEARNING : Description

INFOID:0000000009719810

Throttle Valve Closed Position Learning is a function of ECM to learn the fully closed position of the throttle
valve by monitoring the throttle position sensor output signal. It must be performed each time the harness con-
nector of electric throttle control actuator or ECM is disconnected or electric throttle control actuator is
cleaned.

THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement

INFOID:0000000009719811

1.

START

 WITH CONSULT

1.

Turn ignition switch ON.

2.

Select “CLSD THL POS LEARN” in “WORK SUPPORT” mode.

3.

Follow the instructions on the CONSULT display.

4.

Turn ignition switch OFF and wait at least 10 seconds.
Check that throttle valve moves during the above 10 seconds by confirming the operating sound.

 WITHOUT CONSULT

1.

Start the engine.
NOTE:
Coolant temperature is less than 25

°

C (77

°

F) before engine starts.

2.

Warm up the engine.

EC-20

< BASIC INSPECTION >

[VQ35DE]

INSPECTION AND ADJUSTMENT

NOTE:
Warm up the engine until “COOLAN TEMP/S” on “DATA MONITOR” of CONSULT reaches more than
65

°

C (149

°

F).

3.

Turn ignition switch OFF and wait at least 10 seconds.
NOTE:
Check that throttle valve moves during the above 10 seconds by confirming the operating sound.

>> END

IDLE AIR VOLUME LEARNING

IDLE AIR VOLUME LEARNING : Description

INFOID:0000000009719812

Idle Air Volume Learning is a function of ECM to learn the idle air volume that keeps engine idle speed within
the specific range. It must be performed under the following conditions:
• Each time the electric throttle control actuator or ECM is replaced.
• Idle speed or ignition timing is out of the specification.

IDLE AIR VOLUME LEARNING : Special Repair Requirement

INFOID:0000000009719813

1.

PRECONDITIONING

Check that all of the following conditions are satisfied.
Learning will be cancelled if any of the following conditions are missed for even a moment.
• Battery voltage: More than 12.9 V (At idle)
• Engine coolant temperature: 70 - 100

°

C (158 - 212

°

F)

• Selector lever position: P or N
• Electric load switch: OFF

(Air conditioner, head lamp, rear window defogger)
On vehicles equipped with daytime light systems, if the parking brake is applied before the engine is
started the head lamp will not illuminate.

• Steering wheel: Neutral (Straight-ahead position)
• Vehicle speed: Stopped
• Transmission: Warmed-up
- With CONSULT: Drive vehicle until “ATF TEMP SEN” in “DATA MONITOR” mode of “CVT” system indicates

less than 0.9 V.

- Without CONSULT: Drive vehicle for 10 minutes.

Will CONSULT be used?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

PERFORM IDLE AIR VOLUME LEARNING

With CONSULT

1.

Perform

EC-19, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-

ment"

.

2.

Perform

EC-19, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

3.

Start engine and warm it up to normal operating temperature.

4.

Select “IDLE AIR VOL LEARN” in “WORK SUPPORT” mode.

5.

Touch “START” and wait 20 seconds.

Is “CMPLT” displayed on CONSULT screen?

YES

>> GO TO 4.

NO

>> GO TO 5.

3.

PERFORM IDLE AIR VOLUME LEARNING

Without CONSULT

NOTE:
• It is better to count the time accurately with a clock.
• It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has

a malfunction.

1.

Perform

EC-19, "ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-

ment"

.

INSPECTION AND ADJUSTMENT

EC-21

< BASIC INSPECTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Perform

EC-19, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

3.

Start engine and warm it up to normal operating temperature.

4.

Turn ignition switch OFF and wait at least 10 seconds.

5.

Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.

6.

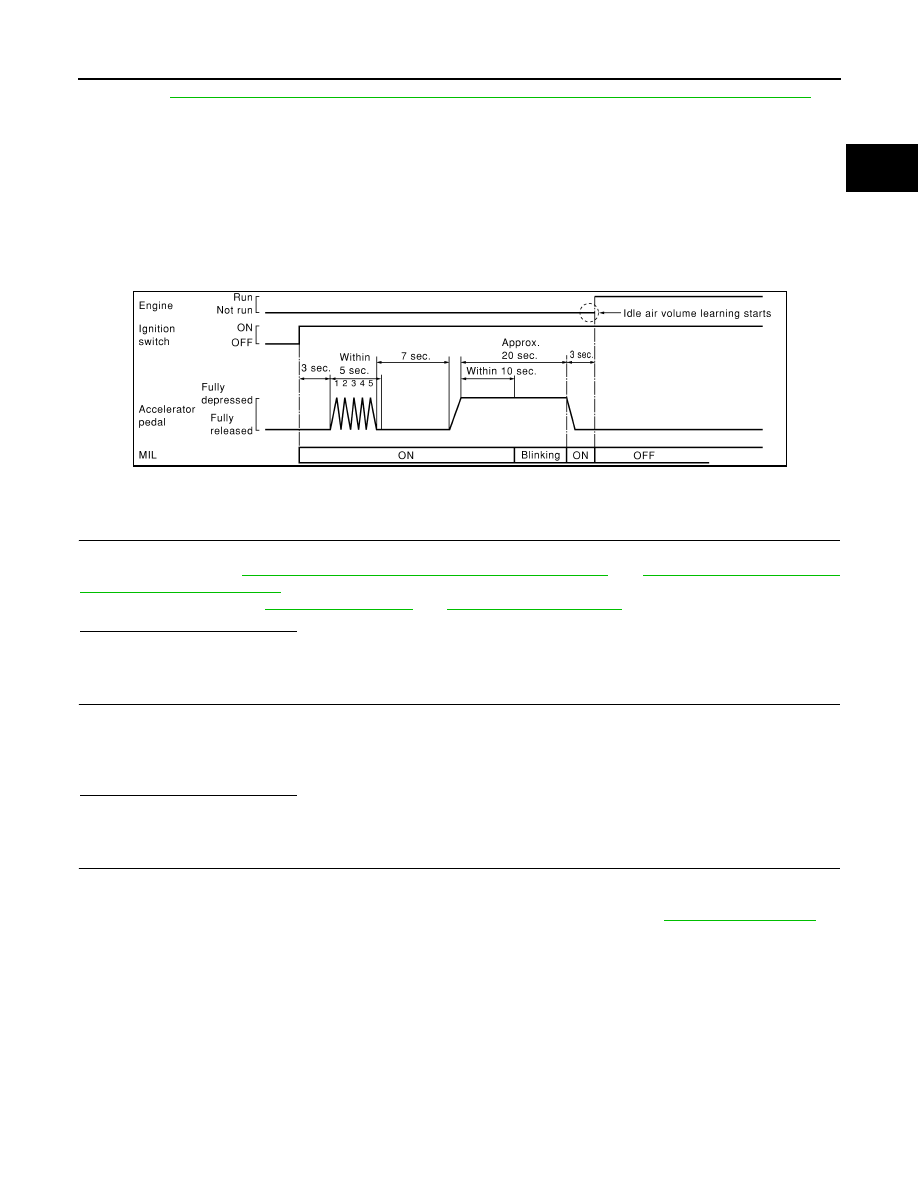

Repeat the following procedure quickly 5 times within 5 seconds.

-

Fully depress the accelerator pedal.

-

Fully release the accelerator pedal.

7.

Wait 7 seconds, fully depress the accelerator pedal for approx. 20 seconds until the MIL stops blinking
and turns ON.

8.

Fully release the accelerator pedal within 3 seconds after the MIL turns ON.

9.

Start engine and let it idle.

10. Wait 20 seconds.

>> GO TO 4.

4.

CHECK IDLE SPEED AND IGNITION TIMING

Rev up the engine 2 or 3 times and check that idle speed and ignition timing are within the specifications.
For procedure, refer to

EC-18, "IDLE SPEED : Special Repair Requirement"

 and

EC-18, "IGNITION TIMING :

Special Repair Requirement"

.

For specifications, refer to

EC-536, "Idle Speed"

 and

EC-536, "Ignition Timing"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART-I

Check the following
• Check that throttle valve is fully closed.
• Check PCV valve operation.
• Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair or replace malfunctioning part.

6.

DETECT MALFUNCTIONING PART-II

Engine component parts and their installation condition are questionable. Check and eliminate the cause of
the incident.
It is useful to perform “TROUBLE DIAGNOSIS - SPECIFICATION VALUE”. Refer to

EC-140, "Description"

.

If any of the following conditions occur after the engine has started, eliminate the cause of the incident and
perform Idle Air Volume Learning again:
• Engine stalls.
• Incorrect idle.

>> INSPECTION END

MIXTURE RATIO SELF-LEARNING VALUE CLEAR

MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Description

INFOID:0000000009719814

This describes show to erase the mixture ratio self-learning value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”.

SEC897C
