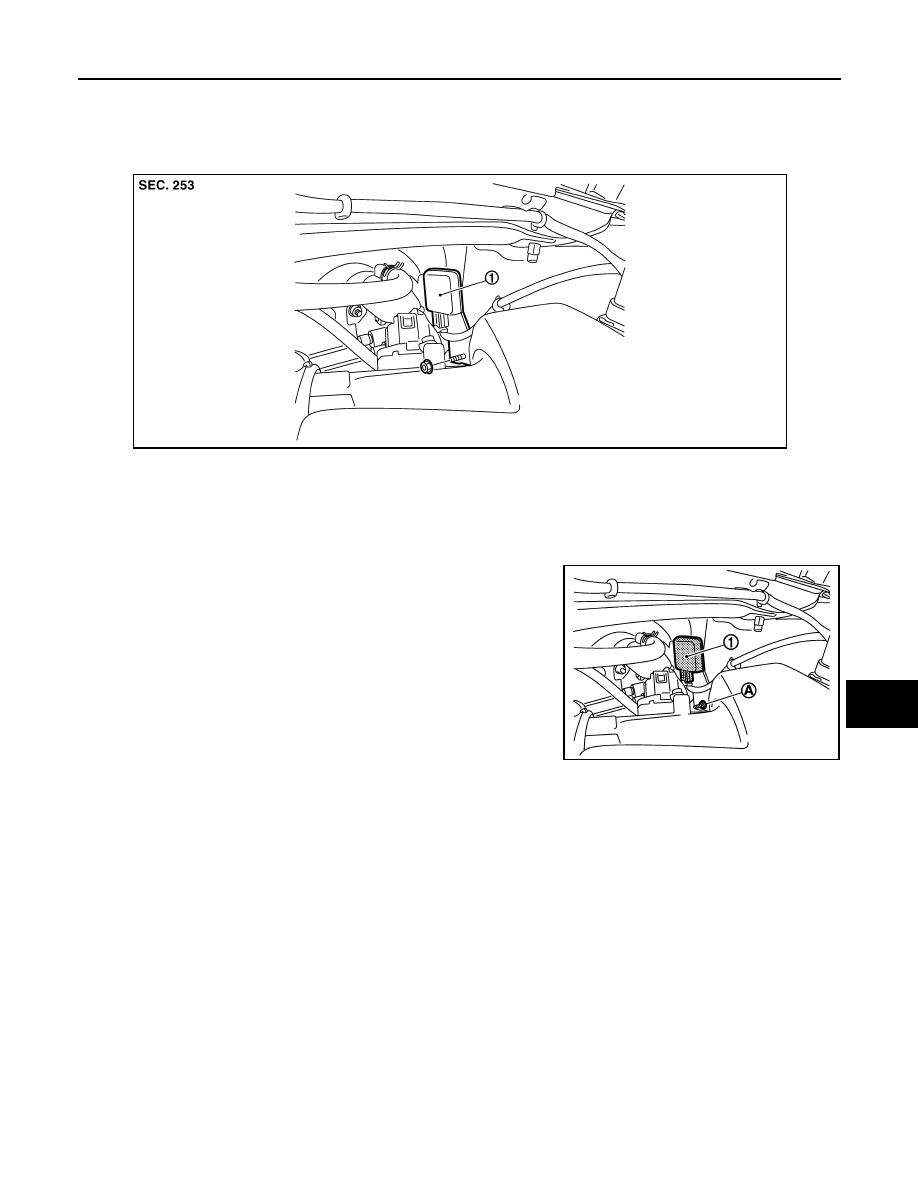

INTELLIGENT KEY WARNING BUZZER

Exploded View

INFOID:0000000009719289

Removal and Installation

INFOID:0000000009719290

REMOVAL

1.

Remove the Intelligent Key warning buzzer mounting bolt (A),
and then remove the Intelligent Key warning buzzer (1).

INSTALLATION

Install in the reverse order of removal.

1.

Intelligent Key warning buzzer

JMKIA1827ZZ

JMKIA1828ZZ

DLK-364

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

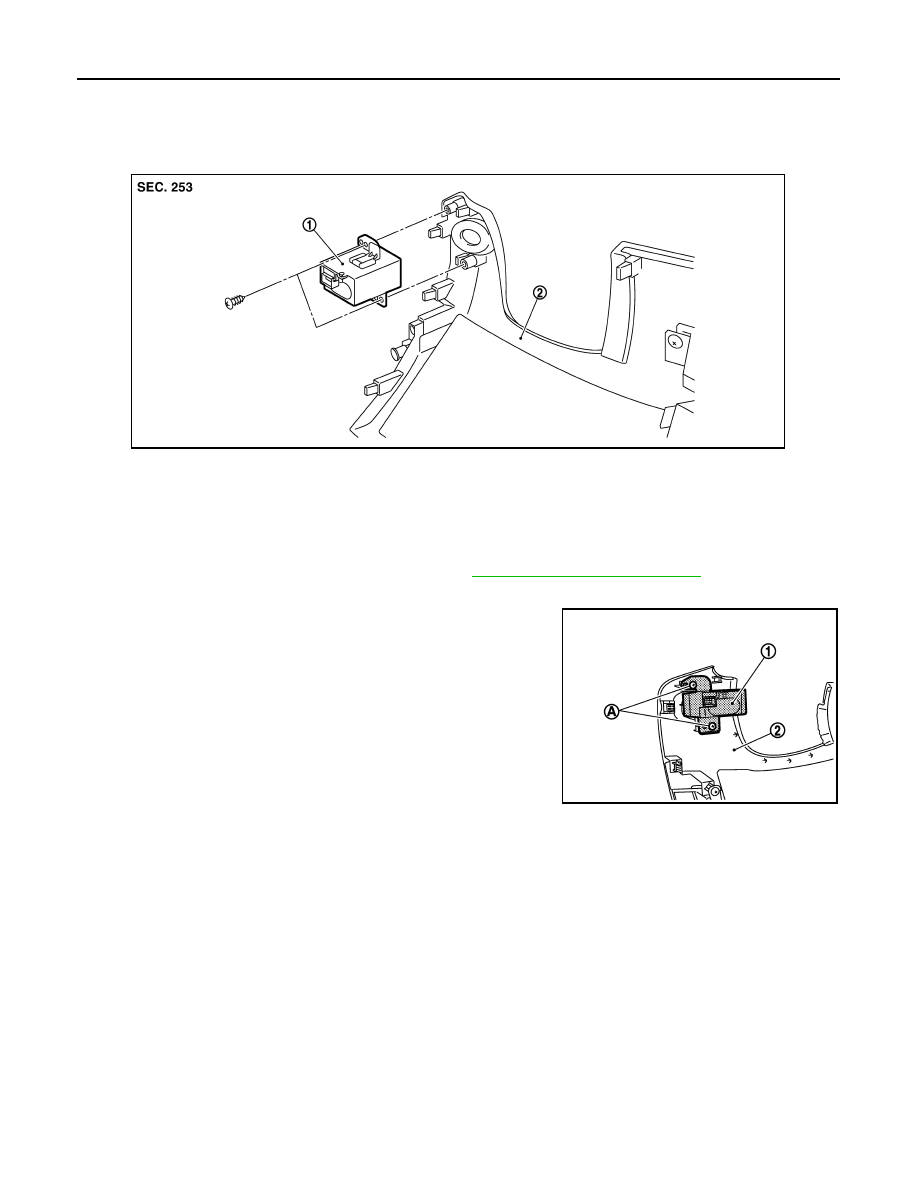

KEY SLOT

KEY SLOT

Exploded View

INFOID:0000000009719291

Removal and Installation

INFOID:0000000009719292

REMOVAL

1.

Remove the instrument lower panel LH (2). Refer to

IP-15, "Removal and Installation"

.

2.

Disconnect key slot connector.

3.

Remove the key slot mounting screw (A), and then remove key
slot (1) from instrument lower panel LH (2).

INSTALLATION

Install in the reverse order of removal.

1.

Key slot

JMKIA1820ZZ

JMKIA1821ZZ

BACK DOOR OPENER SWITCH ASSEMBLY

DLK-365

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

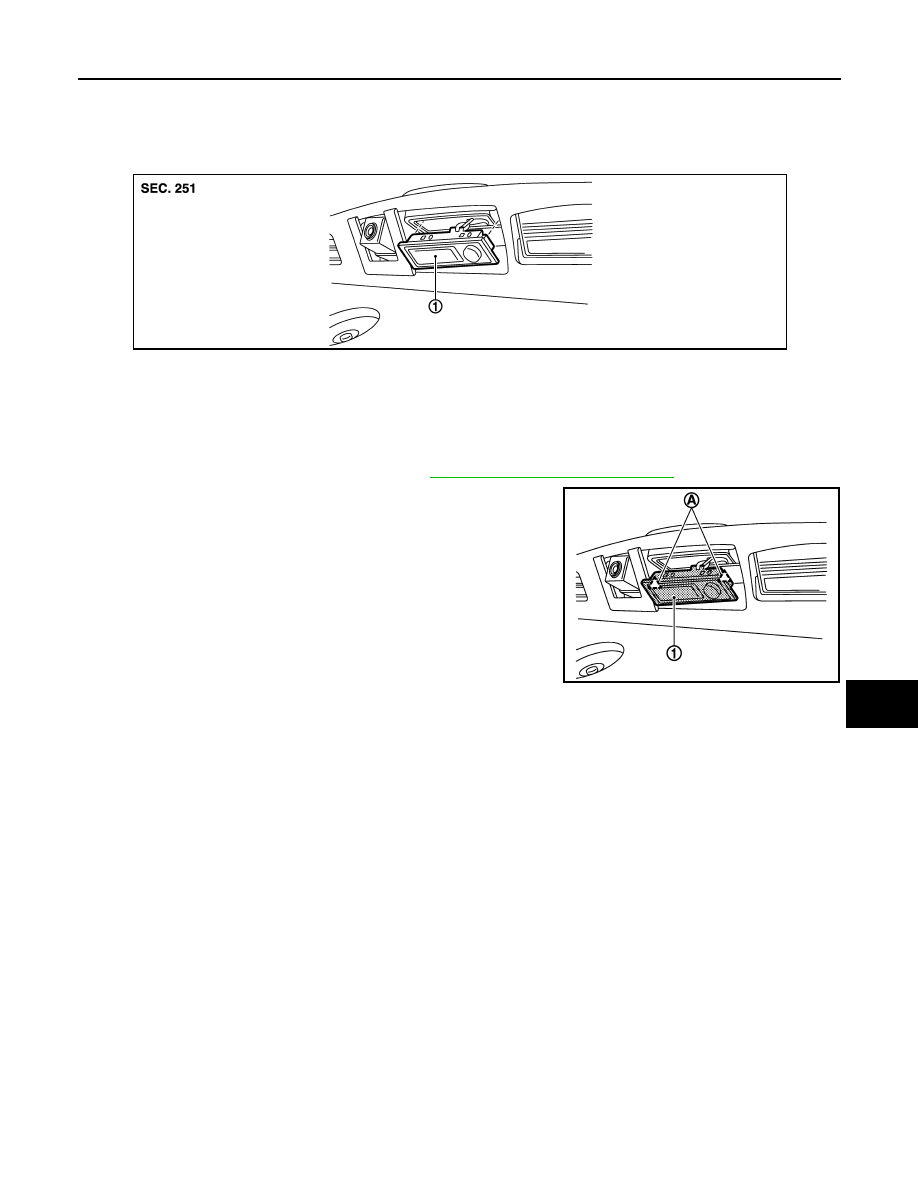

BACK DOOR OPENER SWITCH ASSEMBLY

Exploded View

INFOID:0000000009719293

Removal and Installation

INFOID:0000000009719294

REMOVAL

1.

Remove the back door finisher inner. Refer to

EXT-36, "Removal and Installation"

.

2.

Remove the back door opener switch assembly (1), and then
remove pawl.

INSTALLATION

Install in the reverse order of removal.

1.

Back door opener switch assembly

JMKIA2181ZZ

JMKIA2175ZZ

DLK-366

< REMOVAL AND INSTALLATION >

[WITH INTELLIGENT KEY SYSTEM]

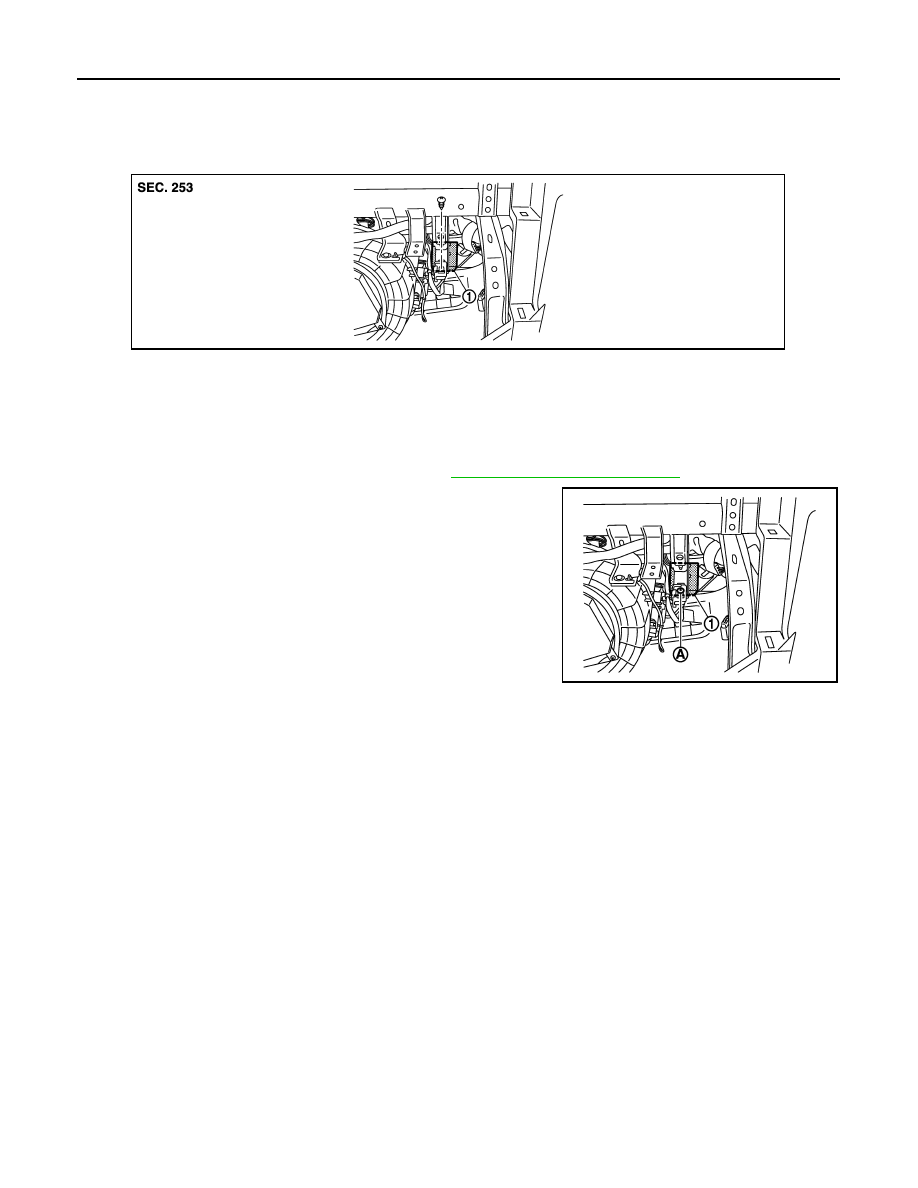

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Exploded View

INFOID:0000000009719295

Removal and Installation

INFOID:0000000009719296

REMOVAL

1.

Remove the instrument lower panel RH. Refer to

IP-15, "Removal and Installation"

.

2.

Remove the remote keyless entry receiver mounting bolt (A),
and then remove remote keyless entry receiver (1).

INSTALLATION

Install in the reverse order of removal.

1.

Remote keyless entry receiver

JMKIA2178ZZ
