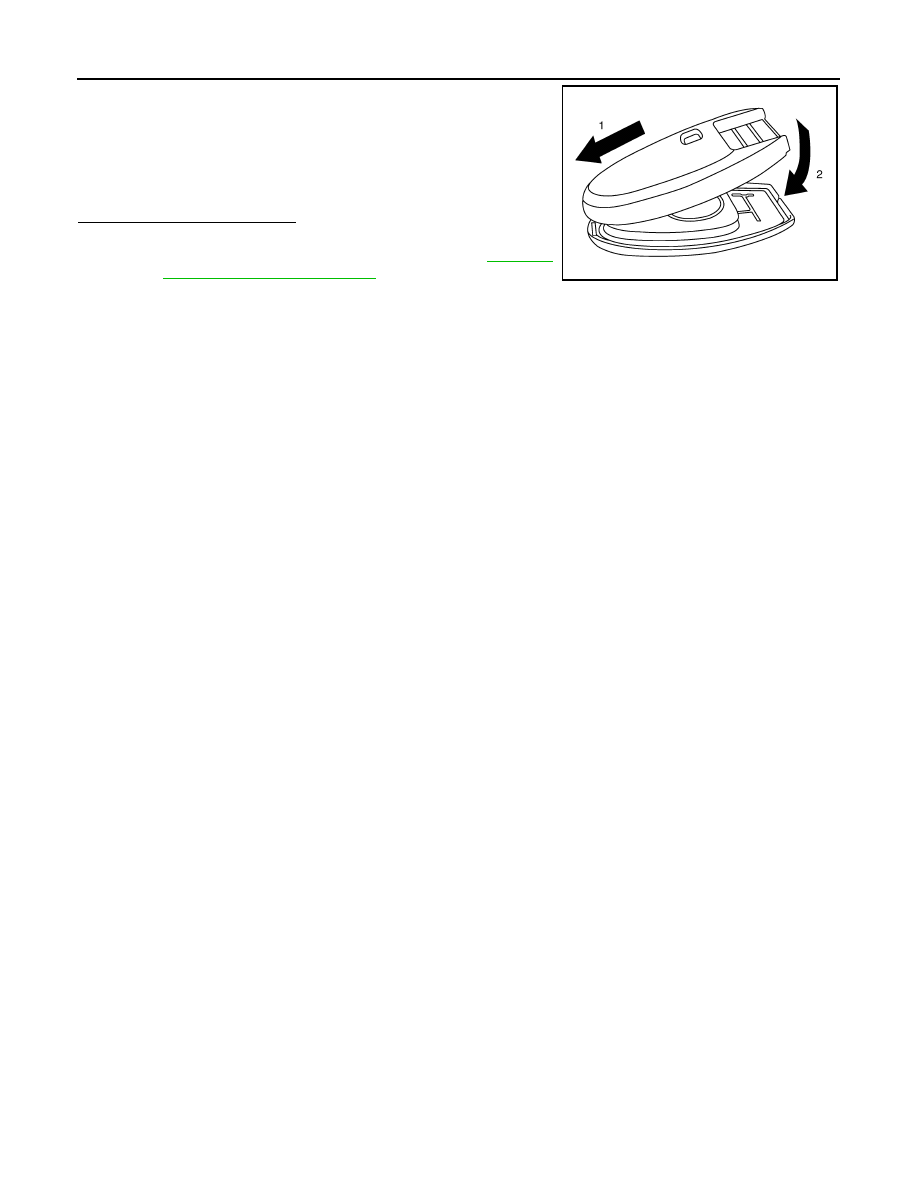

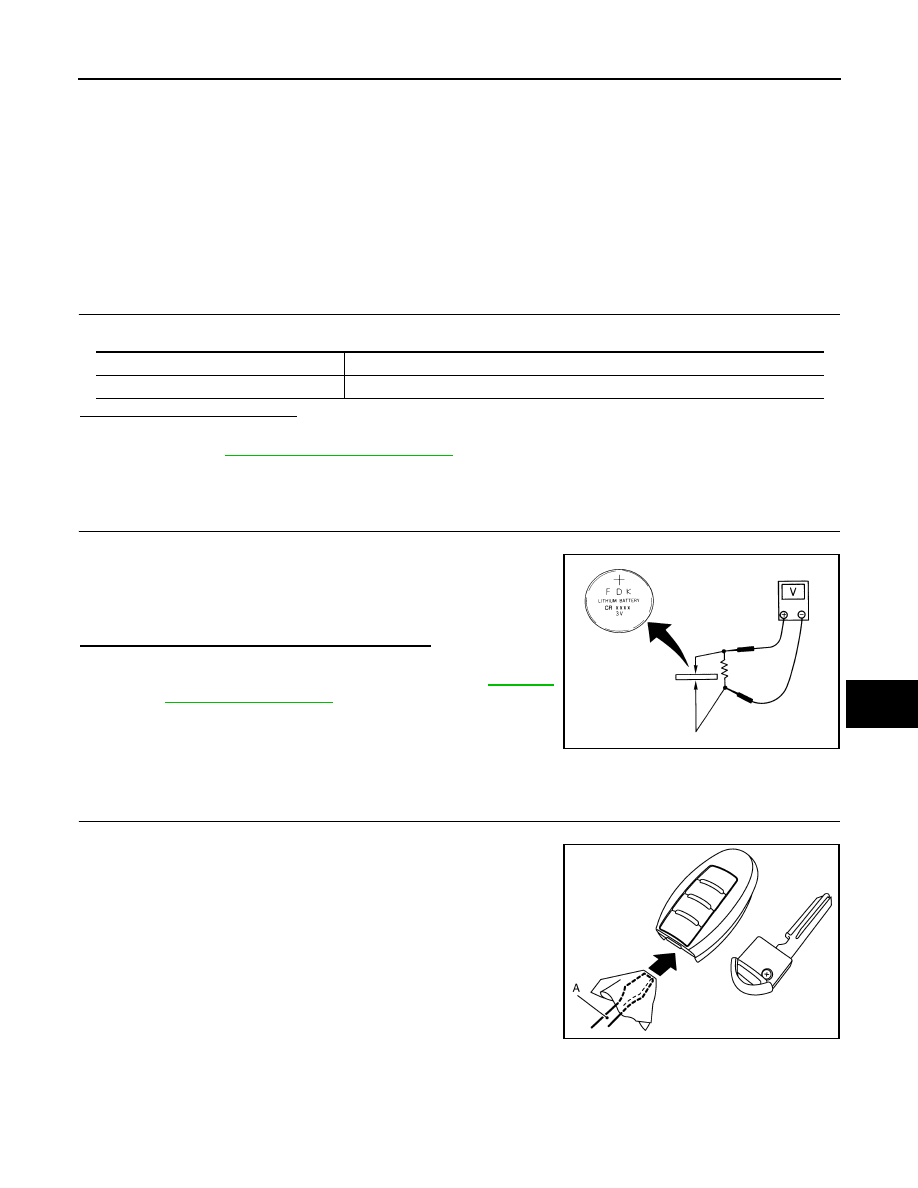

INTELLIGENT KEY DLK-127 < DTC/CIRCUIT DIAGNOSIS > [WITH INTELLIGENT KEY SYSTEM] C D E F G H I J L M A B DLK N O P INTELLIGENT KEY Description INFOID:0000000009719037 The following functions are available when having and carrying electronic ID. Component Function Check INFOID:0000000009719038 1. CHECK FUNCTION Check remote keyless entry receiver (“RKE OPE COUN1”) in Data Monitor mode with CONSULT. Is the inspection result normal? YES >> Intelligent Key is OK. NO >> Refer to DLK-127, "Diagnosis Procedure" Diagnosis Procedure INFOID:0000000009719039 1. CHECK INTELLIGENT KEY BATTERY Check by connecting a resistance (approximately 300 Ω ) so that the current value becomes about 10 mA. Is the measurement value within the specification? YES >> INSPECTION END NO >> Replace Intelligent Key battery. Refer to . Component Inspection INFOID:0000000009719040 1. REPLACE INTELLIGENT KEY BATTERY 1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key. 2. Insert a remover tool (A) wrapped with a cloth into the slit of the CAUTION: • Do not touch the circuit board or battery terminal. immediately wipe it dry. 3. Replace the battery with new one. Monitor item Condition RKE OPE COUN1 Check that the numerical value is changing while operating on the Intelligent Key. Standard : Approx. 2.5 - 3.0V OCC0607D PIIB6221E |
