DAS-142

< WIRING DIAGRAM >

[BSW]

DRIVER ASSISTANCE SYSTEMS

JROWC1669GB

DAS

DIAGNOSIS AND REPAIR WORK FLOW

DAS-143

< BASIC INSPECTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000009723332

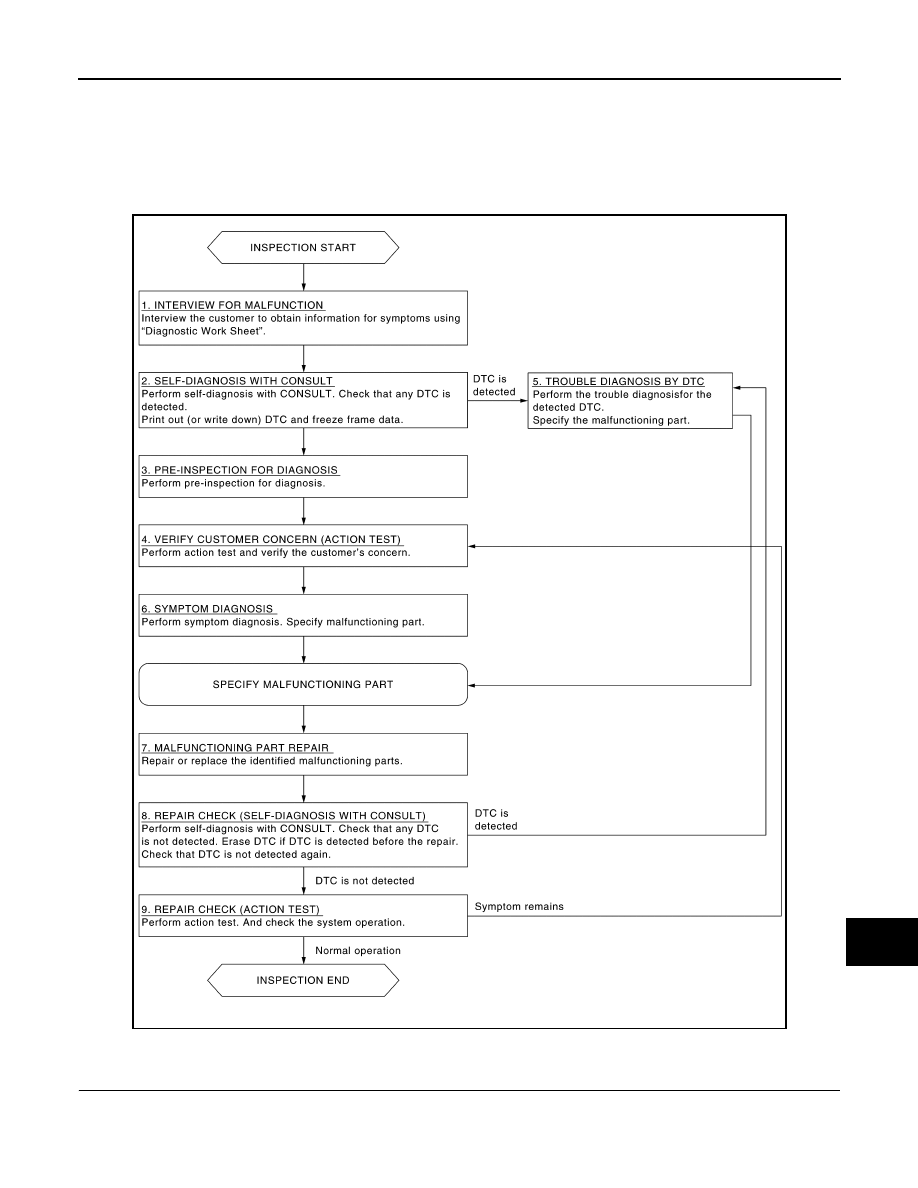

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer
about the concerns carefully and understand the symptoms fully.
NOTE:

JSOIA0654GB

DAS-144

< BASIC INSPECTION >

[BSW]

DIAGNOSIS AND REPAIR WORK FLOW

The customers are not professionals. Never assume that “maybe the customer means···” or “maybe the cus-
tomer mentioned this symptom”.

>> GO TO 2.

2.

SELF-DIAGNOSIS WITH CONSULT

1.

Perform “All DTC Reading” with CONSULT.

2.

Check if the DTC is detected on the self-diagnosis results of “AVM”.

3.

When DTC is detected, follow the instructions below:

-

Record DTC and Freeze Frame Data.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 3.

3.

PRE-INSPECTION FOR DIAGNOSIS

Perform pre-inspection for diagnosis. Refer to

DAS-145, "Inspection Procedure"

.

>> GO TO 4.

4.

ACTION TEST

Perform BSW system action test to check the operation status. Refer to

DAS-147, "Work Procedure"

.

Check if any other malfunctions occur.

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

1.

Check the DTC in the self-diagnosis results.

2.

Perform trouble diagnosis for the detected DTC. Specify a malfunctioning part. Refer to

DAS-128, "DTC

Index"

 (AVM).

>> GO TO 8.

6.

SYMPTOM DIAGNOSIS

Perform the applicable diagnosis according to the diagnosis chart by symptom. Refer to

DAS-180, "Symptom

Table"

.

>> GO TO 7.

7.

MALFUNCTIONING PART REPAIR

Repair or replace the identified malfunctioning parts.

>> GO TO 8.

8.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

1.

Erases self-diagnosis results.

2.

Perform “All DTC Reading” again after repairing or replacing the specific items.

3.

Check if any DTC is detected in self-diagnosis results of “AVM”.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 9.

9.

REPAIR CHECK (ACTION TEST)

Perform the BSW system action test. Check that the malfunction symptom is solved or no other symptoms
occur.

Is there a malfunction symptom?

YES

>> GO TO 4.

NO

>> INSPECTION END

DAS

PRE-INSPECTION FOR DIAGNOSIS

DAS-145

< BASIC INSPECTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

PRE-INSPECTION FOR DIAGNOSIS

Inspection Procedure

INFOID:0000000009723333

1.

CHECK REAR VIEW CAMERA LENS

Are rear view camera lens contaminated with foreign materials?

YES

>> Clean rear view camera lens.

NO

>> GO TO 2.

2.

CHECK REAR VIEW CAMERA INSTALLATION CONDITION

Check rear view camera installation condition (e.g. position, looseness, bent in back door).
Is it properly installed?

YES

>> INSPECTION END

NO

>> Install rear view camera properly, and perform rear view camera calibration. Refer to

DAS-53,

"Description"

.
