CHG-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

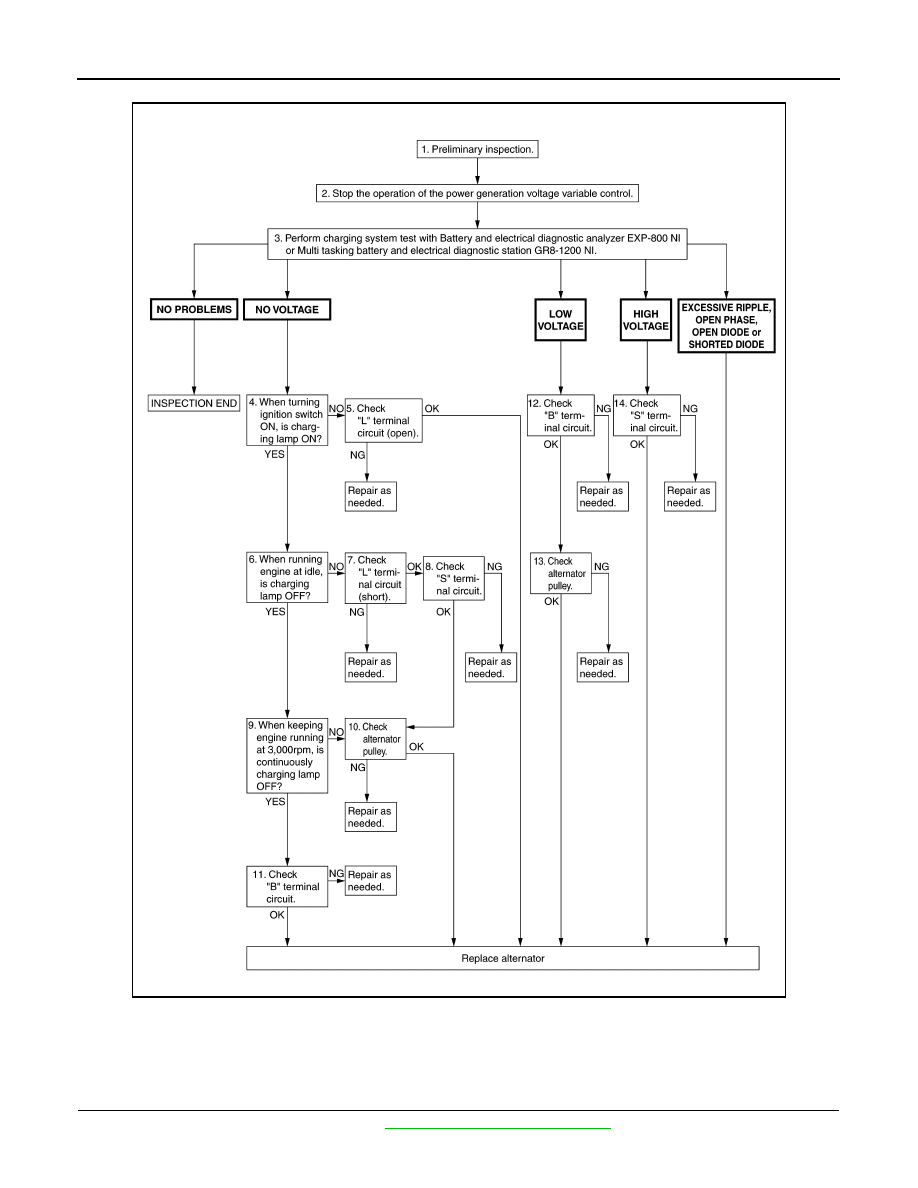

OVERALL SEQUENCE

DETAILED FLOW

NOTE:
To ensure a complete and thorough diagnosis, the battery, starter and alternator test segments must be done
as a set from start to finish.

1.

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-30, "Inspection Procedure"

.

JMMIA1147GB

CHG

DIAGNOSIS AND REPAIR WORK FLOW

CHG-5

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

>> GO TO 2.

2.

STOP POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

Stop the operation of the power generation voltage variable control in either of the following procedures.
• After selecting “ENGINE” of “SELECT SYSTEM” using CONSULT, set the DUTY value of “ALTERNATOR

DUTY” to 0 % by selecting “ALTERNATOR DUTY” of “Active Test”. Continue “Active Test” until the end of
inspection. (When the DUTY value is 0 or 100 %, the normal power generation is performed according to the
characteristic of the IC voltage regulator of the alternator.)

• Turn the ignition switch OFF, and disconnect the battery current sensor connector. [However, DTC (P1550 -

P1554) of the engine might remain. After finishing the inspection, connect the battery current sensor connec-
tor and erase the self-diagnosis results history of the engine using CONSULT.]

>> GO TO 3.

3.

DIAGNOSIS WITH EXP-800 NI OR GR8-1200 NI

Perform the charging system test using Multitasking battery and electrical diagnostic station GR8-1200 NI or
Battery and electrical diagnostic analyzer EXP-800 NI. Refer to the applicable Instruction Manual for proper
testing procedures.
Test result

NO PROBLEMS>>Charging system is normal and will also show “DIODE RIPPLE” test result.
NO VOLTAGE>>GO TO 4.
LOW VOLTAGE>>GO TO 12.
HIGH VOLTAGE>>GO TO 14.
EXCESSIVE RIPPLE, OPEN PHASE, OPEN DIODE or SHORTED DIODE>>Replace  the  alternator.  Per-

form “DIODE RIPPLE” test again using Multitasking battery and electrical diagnostic station GR8-
1200 NI or Battery and electrical diagnostic analyzer EXP-800 NI to confirm repair.

4.

INSPECTION WITH CHARGE WARNING LAMP (IGNITION SWITCH IS ON)

Turn the ignition switch ON.

Does the charge warning lamp illuminate?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

“L” TERMINAL CIRCUIT (OPEN) INSPECTION

Check “L” terminal circuit (open). Refer to

CHG-15, "Diagnosis Procedure"

.

Is the “L” terminal circuit normal?

YES

>> Replace alternator. Refer to

CHG-33, "Removal and Installation"

.

NO

>> Repair as needed.

6.

INSPECTION WITH CHARGE WARNING LAMP (IDLING)

Start the engine and run it at idle.

Does the charge warning lamp turn OFF?

YES

>> GO TO 9.

NO

>> GO TO 7.

7.

“L” TERMINAL CIRCUIT (SHORT) INSPECTION

Check “L” terminal circuit (short). Refer to

CHG-17, "Diagnosis Procedure"

.

Is the “L” terminal circuit normal?

YES

>> GO TO 8.

NO

>> Repair as needed.

8.

“S” TERMINAL CIRCUIT INSPECTION

Check “S” terminal circuit. Refer to

CHG-18, "Diagnosis Procedure"

.

Is the “S” terminal circuit normal?

YES

>> GO TO 10.

NO

>> Repair as needed.

CHG-6

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORK FLOW

9.

INSPECTION WITH CHARGE WARNING LAMP (ENGINE AT 3,000 RPM)

Increase and maintain the engine speed at 3,000 rpm.
Does the charge warning lamp remain off?

YES

>> GO TO 11.

NO

>> GO TO 10.

10.

INSPECTION OF ALTERNATOR PULLEY

Check alternator pulley. Refer to

CHG-34, "Inspection"

.

Is alternator pulley normal?

YES

>> Replace alternator. Refer to

CHG-33, "Removal and Installation"

.

NO

>> Repair as needed.

11.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-14, "Diagnosis Procedure"

.

Is “B” terminal circuit normal?

YES

>> Replace alternator. Refer to

CHG-33, "Removal and Installation"

.

NO

>> Repair as needed.

12.

“B” TERMINAL CIRCUIT INSPECTION

Check “B” terminal circuit. Refer to

CHG-14, "Diagnosis Procedure"

.

Is “B” terminal circuit normal?

YES

>> GO TO 13.

NO

>> Repair as needed.

13.

INSPECTION OF ALTERNATOR PULLEY

Check alternator pulley. Refer to

CHG-34, "Inspection"

.

Is alternator pulley normal?

YES

>> Replace alternator. Refer to

CHG-33, "Removal and Installation"

.

NO

>> Repair as needed.

14.

“S” TERMINAL CIRCUIT INSPECTION

Check “S” terminal circuit. Refer to

CHG-18, "Diagnosis Procedure"

.

Is the “S” terminal circuit normal?

YES

>> Replace alternator. Refer to

CHG-33, "Removal and Installation"

.

NO

>> Repair as needed.

CHG

DIAGNOSIS AND REPAIR WORK FLOW

CHG-7

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

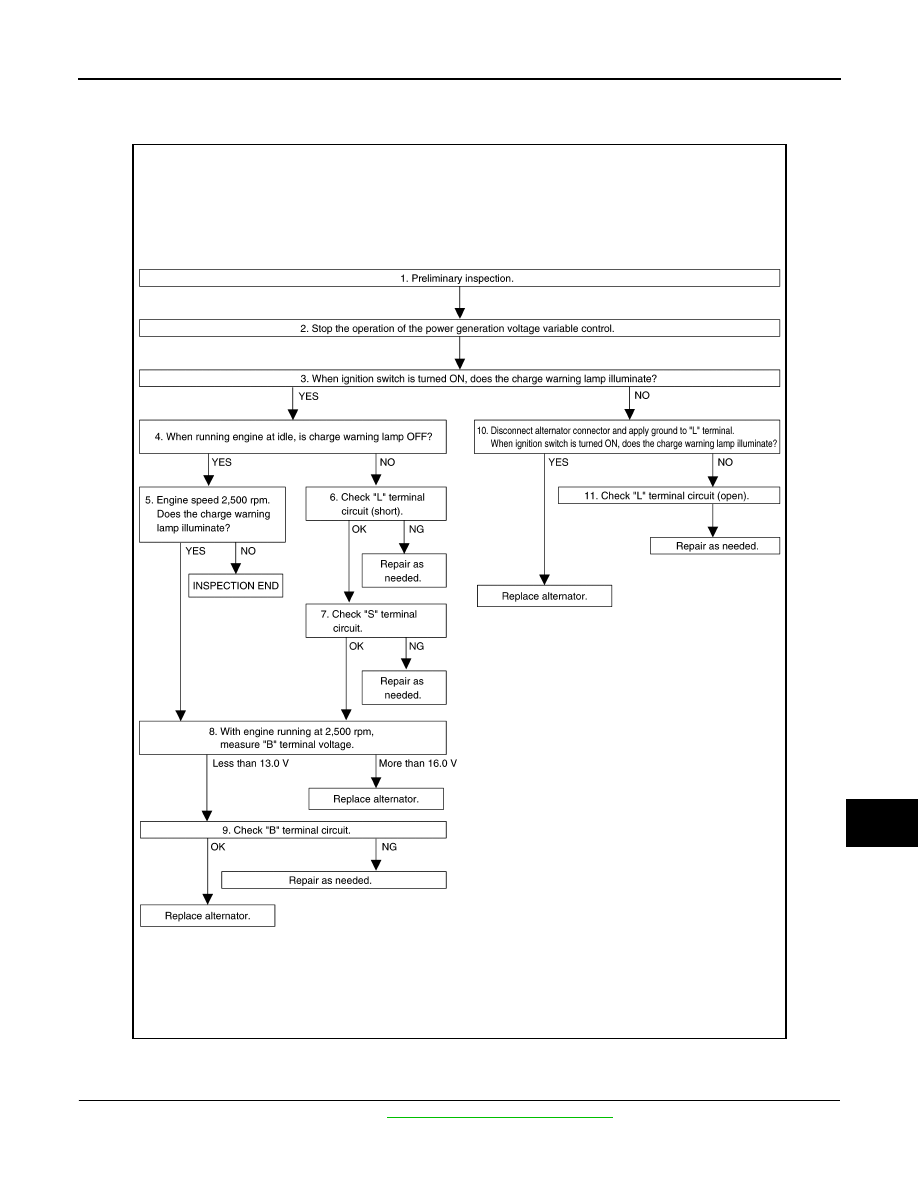

Work Flow (Without EXP-800 NI or GR8-1200 NI)

INFOID:0000000009722538

OVERALL SEQUENCE

DETAILED FLOW

1.

PRELIMINARY INSPECTION

Perform the preliminary inspection. Refer to

CHG-30, "Inspection Procedure"

.

JMMIA1148GB
